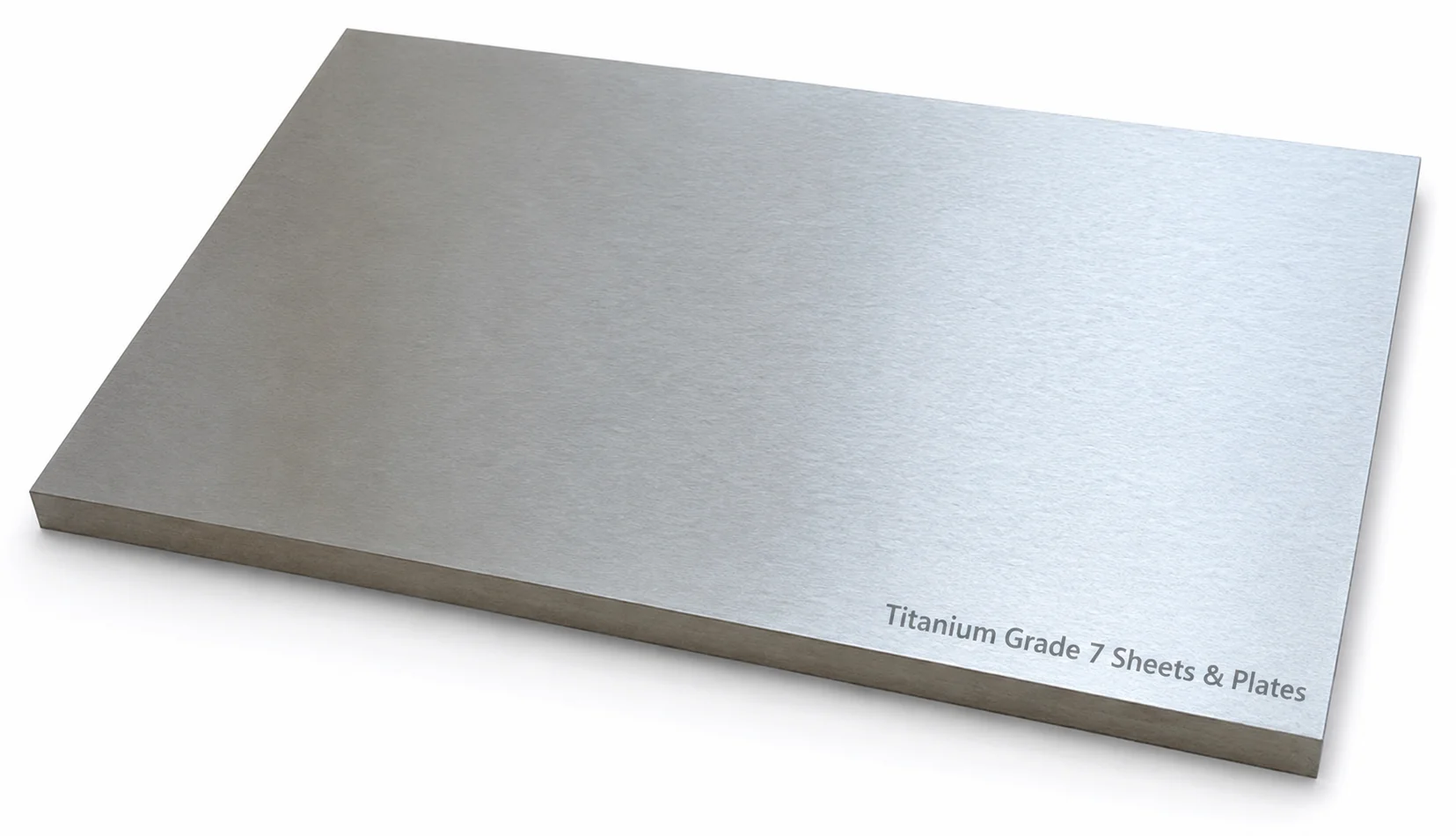

Titanium Grade 7 Sheets & Plates
| Specification | Details |
|---|---|
| Product Name | Titanium Grade 7 Sheets & Plates |
| Material Grade | Titanium Grade 7 / Commercially Pure Titanium with Palladium |
| UNS Designation | UNS R52400 |
| Werkstoff Number | W.Nr. 3.7235 |
| Material Type | Palladium-Modified Commercially Pure Titanium |
| Chemical Composition | Titanium Balance, Palladium 0.12–0.25%, Iron ≤0.30%, Oxygen ≤0.25%, Carbon ≤0.08%, Nitrogen ≤0.03%, Hydrogen ≤0.015% |
| Manufacturing Type | Hot Rolled / Cold Rolled / Annealed |
| Sheet & Plate Standard | ASTM B265 / ASME SB265 |
| Outside Dimensions | As per ASTM / ASME Standard or Customer Requirement |
| Thickness | As per Standard / Customer Requirement |
| Thickness Range | Approximately 0.5 mm to 100 mm or as required |
| Width | Standard / Customized Width as per Customer Requirement |
| Length | Standard / Fixed / Customized Length |
| Surface Finish | Hot Rolled / Cold Rolled / Annealed / Pickled / Polished / Customized |
| Edge Condition | Mill Edge / Cut Edge / Customized |
| Heat Treatment | Annealed / As Applicable |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Ultrasonic and Other NDT as Specified |
| Tensile Strength | Approximately 345 MPa minimum, subject to applicable specification and condition |
| Yield Strength | Approximately 275 MPa minimum, subject to applicable specification and condition |
| Elongation | Approximately 20% minimum, subject to applicable specification |
| Density | Approximately 4.51 g/cm³ |
| Melting Range | Approximately 1668–1670°C |
| Corrosion Resistance | Excellent resistance to general corrosion and particularly strong resistance in reducing acid environments |
| Acid Resistance | Excellent resistance to reducing acids and aggressive chemical environments |
| Pitting Resistance | Excellent resistance to localized corrosion under suitable service conditions |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion in aggressive chemical environments |
| Palladium Addition | Enhances corrosion resistance, particularly in reducing and acidic environments |
| Marine Resistance | Excellent resistance to seawater and chloride-containing environments |
| Formability | Good ductility and formability suitable for fabrication applications |
| Welding | Good weldability using suitable titanium welding procedures and inert-gas shielding |
| Fabrication | Suitable for forming, cutting, machining and fabrication using appropriate titanium-specific procedures |
| Available Form | Sheets / Plates / Flat Sheets / Cut-to-Size Plates |
| Customization | Thickness, Width, Length, Surface Finish, Edge, Cutting, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Titanium Grade 7 Sheets & Plates Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Pharmaceutical Equipment, Pulp & Paper, Desalination, Marine Equipment, Acid Handling Equipment, Heat Exchangers and Specialized In |
1. Titanium Grade 7 Sheets & Plates – Standard Sizes
| Product Form | Thickness | Width | Length |
|---|---|---|---|
| Titanium Grade 7 Sheet | 0.5–1.0 mm | 1000–1500 mm | 2000–3000 mm |
| Titanium Grade 7 Sheet | 1.0–2.0 mm | 1000–1500 mm | 2000–3000 mm |
| Titanium Grade 7 Sheet | 2.0–3.0 mm | 1000–2000 mm | 2000–4000 mm |
| Titanium Grade 7 Sheet | 3.0–6.0 mm | 1000–2000 mm | 2000–6000 mm |
| Titanium Grade 7 Plate | 6–10 mm | 1500–2000 mm | 3000–6000 mm |
| Titanium Grade 7 Plate | 10–20 mm | 1500–2500 mm | 3000–6000 mm |
| Titanium Grade 7 Plate | 20–40 mm | 1500–2500 mm | 3000–6000 mm |
| Titanium Grade 7 Heavy Plate | 40–60 mm | As per Mill Capability | As per Requirement |
| Titanium Grade 7 Heavy Plate | 60–100 mm | As per Mill Capability | As per Requirement |
| Titanium Grade 7 Custom Plate | Above 100 mm | Customized | Customized |
2. Titanium Grade 7 Sheets & Plates – Approximate Weight Chart
| Thickness | Approx. Weight per m² | Product Form |
|---|---|---|
| 1 mm | 4.51 kg/m² | Titanium Grade 7 Sheet |
| 2 mm | 9.02 kg/m² | Titanium Grade 7 Sheet |
| 3 mm | 13.53 kg/m² | Titanium Grade 7 Sheet |
| 4 mm | 18.04 kg/m² | Titanium Grade 7 Sheet |
| 5 mm | 22.55 kg/m² | Titanium Grade 7 Sheet |
| 6 mm | 27.06 kg/m² | Sheet / Plate |
| 8 mm | 36.08 kg/m² | Titanium Grade 7 Plate |
| 10 mm | 45.10 kg/m² | Titanium Grade 7 Plate |
| 12 mm | 54.12 kg/m² | Titanium Grade 7 Plate |
| 15 mm | 67.65 kg/m² | Titanium Grade 7 Plate |
| 20 mm | 90.20 kg/m² | Titanium Grade 7 Plate |
| 25 mm | 112.75 kg/m² | Heavy Titanium Grade 7 Plate |
| 30 mm | 135.30 kg/m² | Heavy Titanium Grade 7 Plate |
| 40 mm | 180.40 kg/m² | Heavy Titanium Grade 7 Plate |
| 50 mm | 225.50 kg/m² | Heavy Titanium Grade 7 Plate |
| 60 mm | 270.60 kg/m² | Heavy Titanium Grade 7 Plate |
| 75 mm | 338.25 kg/m² | Heavy Titanium Grade 7 Plate |
| 100 mm | 451.00 kg/m² | Heavy Titanium Grade 7 Plate |
3. Titanium Grade 7 Sheets & Plates – Technical & Supply Details
| Specification | Available Details |
|---|---|
| Material Grade | Titanium Grade 7 / Palladium-Modified Titanium |
| UNS Number | UNS R52400 |
| Werkstoff Number | W.Nr. 3.7235 |
| Material Type | Commercially Pure Titanium with Palladium Addition |
| Standard | ASTM B265 / ASME SB265 |
| Product Forms | Sheets / Plates / Flat Sheets / Cut-to-Size Plates |
| Manufacturing | Hot Rolled / Cold Rolled / Annealed |
| Heat Treatment | Annealed / As Applicable |
| Surface Finish | Hot Rolled / Cold Rolled / Annealed / Pickled / Polished / Customized |
| Edge Condition | Mill Edge / Cut Edge / Customized |
| Thickness | Standard / Customized |
| Width & Length | Standard / Fixed / Customized |
| Cutting | Cut-to-Size as per Drawing or Customer Requirement |
| Testing | Chemical / Mechanical / Dimensional / Visual / Ultrasonic / NDT as Required |
| Certification | EN 10204 3.1 / 3.2 as Required |
| MTC | Available with Applicable Export Orders |
| Third-Party Inspection | Available as per Customer / Project Requirement |
| Packing | Export-Worthy / Seaworthy Packing |
| Customization | Thickness, Width, Length, Finish, Edge, Cutting, Heat Treatment, Testing & Documentation |
| Export Supply | Worldwide Titanium Grade 7 Sheets & Plates Export Supply |
| Exporter Support | Technical Documentation, Inspection, Certification, Export Packing & International Shipment Coordination |
| Applications | Chemical Processing, Acid Handling Equipment, Desalination, Marine Equipment, Heat Exchangers, Pharmaceutical Equipment, Pulp & Paper and Specialized Industrial Applications |
Most Common Types Of Titanium Grade 7 Sheets & Plates
Titanium Grade 7 Sheets & Plates are available in different product forms, manufacturing conditions, surface finishes and customized dimensions. The palladium addition provides enhanced corrosion resistance, particularly in reducing and acidic environments.
| Type of Titanium Grade 7 Sheets & Plates | Description |
|---|---|
| Titanium Grade 7 Sheets | Thin-gauge palladium-modified titanium sheets used in chemical processing and corrosion-resistant equipment. |
| Titanium Grade 7 Plates | Heavy-gauge plates used for tanks, vessels, heat exchangers and demanding chemical-processing equipment. |
| Hot Rolled Titanium Grade 7 Plates | Heavy-thickness plates manufactured through hot rolling for industrial fabrication and equipment manufacturing. |
| Cold Rolled Titanium Grade 7 Sheets | Sheets offering controlled thickness, improved dimensional accuracy and a smoother surface. |
| Annealed Titanium Grade 7 Sheets & Plates | Heat-treated products supplied with good ductility and suitable mechanical properties for fabrication. |
| Pickled Titanium Grade 7 Sheets & Plates | Surface-cleaned titanium products suitable for applications requiring a clean and consistent surface. |
| Polished Titanium Grade 7 Sheets & Plates | Smooth-finish sheets and plates supplied for specialized equipment and customer-specific requirements. |
| Cut-to-Size Titanium Grade 7 Plates | Plates cut according to customer drawings, specified dimensions or project requirements. |
| Custom Titanium Grade 7 Sheets & Plates | Available with customized thickness, width, length, edge condition, surface finish, testing and documentation. |
| Titanium Grade 7 Export Sheets & Plates | Export-ready products supplied with applicable certification, inspection support, protective packing and international shipment coordination. |
Why Should You Buy Titanium Grade 7 Sheets & Plates from Metalx Nickel & Alloys?
- Experienced Titanium Grade 7 Sheets & Plates Exporter serving international buyers, importers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Alloy Exporter Experience in supplying and exporting corrosion-resistant, lightweight and high-performance titanium products to customers across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Titanium Grade 7 Sheets & Plates Exporter offering Titanium Grade 7 / Palladium-Modified Titanium / UNS R52400 / W.Nr. 3.7235 Sheets & Plates according to applicable international standards and customer requirements.
- Global Titanium Grade 7 Exporter Network with access to reputed titanium mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Titanium Grade 7 Sheets & Plates Exporter supplying palladium-modified titanium products for demanding applications requiring excellent corrosion resistance, superior resistance to reducing acids, pitting resistance, crevice corrosion resistance and reliable performance in aggressive chemical environments.
- Wide Alloy Exporter Product Range including Titanium Grade 7 Sheets & Plates, Titanium Grade 5 Sheets & Plates, Titanium Grade 2 Sheets & Plates, Titanium Grade 1 Sheets & Plates, Super Duplex 2507 Sheets & Plates, Duplex 2205 Sheets & Plates, 254 SMO Sheets & Plates, Alloy 20 Sheets & Plates, Nickel 200 Sheets & Plates, Nickel 201 Sheets & Plates, Incoloy Sheets & Plates, Inconel Sheets & Plates, Hastelloy Sheets & Plates, Monel Sheets & Plates and other specialized alloy products.
- Titanium Grade 7 Ready Stock Exporter offering selected thicknesses, widths, lengths and surface finishes from available stock, subject to current exporter stock availability.
- Custom Titanium Grade 7 Sheets & Plates Exporter supplying material according to customer drawings, required thickness, width, length, surface finish, edge condition, heat-treatment condition and project specifications.
| Key Feature | Details |
|---|---|
| Excellent Corrosion Resistance | Provides excellent resistance to corrosion in demanding industrial and chemical environments. |
| Enhanced Acid Resistance | Palladium addition improves performance in reducing and acidic environments. |
| Pitting Resistance | Offers strong resistance to pitting and localized corrosion under suitable service conditions. |
| Crevice Corrosion Resistance | Provides good resistance to crevice corrosion in aggressive environments. |
| Chemical Resistance | Suitable for selected chemical-processing applications involving corrosive media. |
| Seawater Resistance | Excellent resistance to seawater and chloride-containing environments. |
| Good Mechanical Performance | Provides useful mechanical properties while retaining the lightweight characteristics of titanium. |
| Good Formability | Suitable for forming and fabrication using appropriate titanium-specific procedures. |
| Good Weldability | Can be welded using suitable titanium welding procedures with proper inert-gas shielding. |
| Lightweight Material | Low density helps reduce equipment and component weight compared with many conventional metals. |
| Industrial Versatility | Suitable for chemical processing, heat exchangers, desalination, pollution-control and petrochemical equipment. |
| Customized Supply | Available in different thicknesses, widths, lengths, finishes and cut-to-size configurations. |
| Testing & Certification | Chemical, mechanical, dimensional and other inspection documentation can be provided as required. |
| Export-Ready Packaging | Can be supplied with protective export packaging suitable for domestic and international transportation. |
| Specification | Details |
|---|---|
| Product Name | Titanium Grade 7 Sheets & Plates |
| Material Grade | Titanium Grade 7 / Titanium with Palladium Addition |
| UNS Designation | UNS R52400 |
| Werkstoff Number | W.Nr. 3.7235 |
| Material Type | Palladium-Modified Commercially Pure Titanium |
| Product Forms | Sheets / Plates / Flat Sheets / Cut-to-Size Plates |
| Standard | ASTM B265 / ASME SB265, as applicable |
| Manufacturing Type | Hot Rolled / Cold Rolled / Annealed |
| Thickness | As per Standard / Customer Requirement |
| Width | Standard / Customized |
| Length | Standard / Fixed / Customized |
| Surface Finish | Mill Finish / Hot Rolled / Cold Rolled / Pickled / Polished / Customized |
| Edge Condition | Mill Edge / Cut Edge / Customized |
| Heat Treatment | Annealed / As Applicable |
| Palladium Addition | Approximately 0.12–0.25%, subject to applicable specification |
| Testing | Chemical / Mechanical / Dimensional / Visual / Ultrasonic / Other NDT as Required |
| MTC | EN 10204 3.1 / 3.2 as Required |
| Inspection | Third-Party Inspection Available as Required |
| Corrosion Resistance | Excellent resistance to general and aggressive chemical corrosion |
| Acid Resistance | Excellent resistance to selected reducing and acidic environments |
| Pitting Resistance | Excellent resistance to localized corrosion under suitable service conditions |
| Marine Resistance | Excellent resistance to seawater and chloride-containing environments |
| Formability | Good ductility and formability for suitable fabrication operations |
| Welding | Good weldability using appropriate titanium welding procedures and shielding |
| Customization | Thickness, Width, Length, Surface Finish, Edge, Cutting, Testing and Documentation |
| Applications | Chemical Processing, Heat Exchangers, Desalination, Pollution Control, Petrochemical Equipment and Industrial Equipment |
| Supply | Domestic and International Export Orders |
| Packing | Export-Worthy / Seaworthy Protective Packing |
| Export Supply | Worldwide Titanium Grade 7 Sheets & Plates Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
1. What are Titanium Grade 7 Sheets & Plates?
Titanium Grade 7 Sheets Plates are manufactured from Ti-6Al-4V , a high-strength alpha-beta titanium alloy known for its excellent strength-to-weight ratio, corrosion resistance and reliable mechanical performance.
2. What is the UNS number of Titanium Grade 7 ?
The UNS designation for Titanium Grade 7 is UNS R56400 . The material is commonly supplied according to ASTM B265 / ASME SB265 and other applicable specifications.
3. What are the main advantages of Titanium Grade 7 ?
Key advantages include high mechanical strength, excellent strength-to-weight ratio, corrosion resistance, good fatigue performance, lightweight construction and good resistance to seawater and chloride environments .
4. Where are Titanium Grade 7 Sheets & Plates commonly used?
They are widely used in aerospace, aircraft components, chemical processing, marine equipment, heat exchangers, pressure vessels, oil gas, power generation, medical equipment and specialized engineering applications .
5. Can Titanium Grade 7 Sheets & Plates be welded and fabricated?
Yes. Titanium Grade 7 can be welded, machined, formed and fabricated using suitable titanium-specific procedures, proper tooling and effective inert-gas shielding.
6. Can Metalx Nckel & Alloys supply customized Titanium Grade 7 Sheets & Plates?
Yes. Metalx Nckel & Alloys can supply customized thicknesses, widths, lengths and cut-to-size plates, along with MTC, chemical and mechanical testing, inspection, certification, export-worthy packing and international shipment support according to project requirements.
