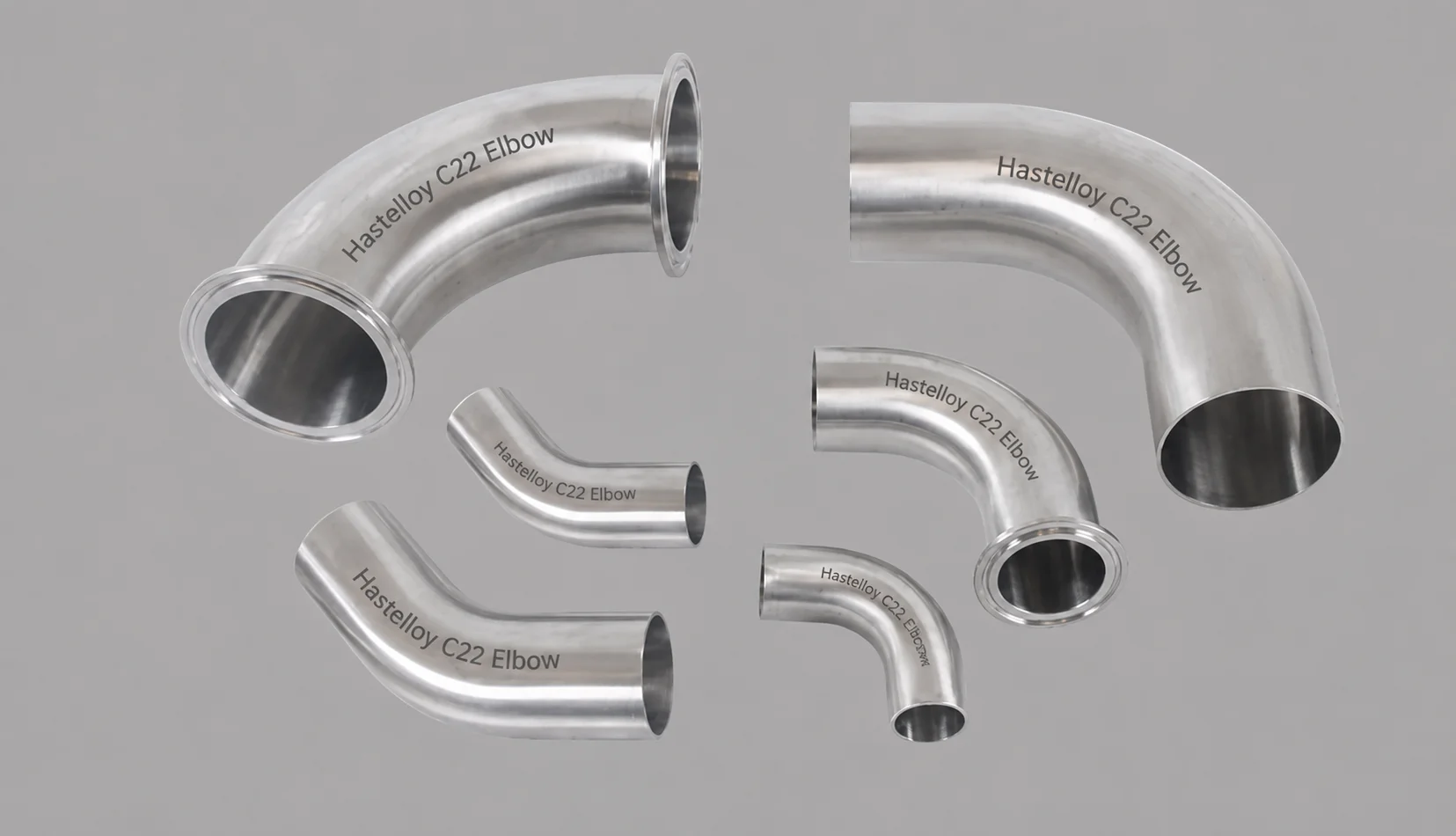

Hastelloy C22 Elbow
| Specification Hastelloy C22 Elbow Details | |
|---|---|
| Product Name | Hastelloy C22 Elbow |
| Material Grade | Hastelloy C22 / Alloy C22 |
| UNS Designation | UNS N06022 |
| Werkstoff Number | W.Nr. 2.4602 |
| Material Type | Nickel-Chromium-Molybdenum-Tungsten Alloy |
| Chemical Composition | Nickel Balance, Chromium 20–22.5%, Molybdenum 12.5–14.5%, Tungsten 2.5–3.5%, Iron 2–6%, Cobalt 2.5% max, Carbon 0.015% max, Vanadium 0.35% max |
| Manufacturing Type | Seamless / Welded / Hot Formed / Cold Formed |
| Fitting Standard | ASTM B366 / ASME SB366 |
| Dimensional Standard | ASME B16.9 |
| Socket-Weld / Threaded Standard | ASME B16.11, where applicable |
| Elbow Type | Long Radius / Short Radius |
| Elbow Angle | 45° / 90° / 180° / Customized |
| Radius | 1.5D Long Radius / 1D Short Radius / Customized Radius |
| Size | NPS 1/2 to NPS 48 or as required |
| Outside Diameter | As per ASME B16.9 / Customer Requirement |
| Wall Thickness | SCH 5S, 10S, 10, 40S, 40, 80S, 80, 100, 120, 140, 160, XXS or as required |
| End Type | Plain End / Beveled End / Customized |
| Surface Finish | Mill Finish / Pickled / Annealed / Polished / Customized |
| Heat Treatment | Solution Annealed / Rapidly Quenched as applicable |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hydrostatic, PMI and NDT as specified |
| Tensile Strength | Minimum approximately 690 MPa |
| Yield Strength | Minimum approximately 283 MPa |
| Elongation | Minimum approximately 40% |
| Density | Approximately 8.69 g/cm³ |
| Melting Range | Approximately 1357–1399°C |
| Corrosion Resistance | Excellent resistance to pitting, crevice corrosion, stress-corrosion cracking and oxidizing/reducing environments |
| High-Temperature Resistance | Excellent resistance to oxidation and corrosive environments at elevated temperatures |
| Chemical Resistance | Excellent resistance to wet chlorine, hypochlorites, ferric chloride and various aggressive chemicals |
| Welding | Excellent weldability using suitable Hastelloy C22-compatible welding procedures |
| Filler Metal | ERNiCrMo-10 / Alloy C22 compatible filler |
| Welding Electrode | ENiCrMo-10 |
| Available Form | 45° Elbow / 90° Elbow / 180° Return / Custom Elbow |
| Customization | Size, Schedule, Angle, Radius, Length, End Preparation, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Chemical Processing, Pharmaceutical, Petrochemical, Pollution Control, Waste Treatment, FGD Systems, Pulp & Paper, Marine and Process Industries |
Hastelloy C22 Elbow – Standard Dimensions
| NPS | Outside Diameter (mm) | Outside Diameter (in.) | Typical Schedule Range |
|---|---|---|---|
| 1/2″ | 21.34 | 0.840 | SCH 5S–XXS |
| 3/4″ | 26.67 | 1.050 | SCH 5S–XXS |
| 1″ | 33.40 | 1.315 | SCH 5S–XXS |
| 1-1/4″ | 42.16 | 1.660 | SCH 5S–XXS |
| 1-1/2″ | 48.26 | 1.900 | SCH 5S–XXS |
| 2″ | 60.33 | 2.375 | SCH 5S–XXS |
| 2-1/2″ | 73.03 | 2.875 | SCH 5S–XXS |
| 3″ | 88.90 | 3.500 | SCH 5S–XXS |
| 4″ | 114.30 | 4.500 | SCH 5S–XXS |
| 5″ | 141.30 | 5.563 | SCH 5S–XXS |
| 6″ | 168.28 | 6.625 | SCH 5S–XXS |
| 8″ | 219.08 | 8.625 | SCH 5S–XXS |
| 10″ | 273.05 | 10.750 | SCH 5S–XXS |
| 12″ | 323.85 | 12.750 | SCH 5S–XXS |
| 14″ | 355.60 | 14.000 | SCH 5S–XXS |
| 16″ | 406.40 | 16.000 | SCH 5S–XXS |
| 18″ | 457.20 | 18.000 | SCH 5S–XXS |
| 20″ | 508.00 | 20.000 | SCH 5S–XXS |
| 24″ | 609.60 | 24.000 | SCH 5S–XXS |
| 30″ | 762.00 | 30.000 | As Required |
| 36″ | 914.40 | 36.000 | As Required |
| 42″ | 1066.80 | 42.000 | As Required |
| 48″ | 1219.20 | 48.000 | As Required |
Hastelloy C22 Elbow – 90° Long Radius Dimensions
| NPS | Outside Diameter (mm) | Center-to-End A (mm) | Approx. Radius |
|---|---|---|---|
| 1/2″ | 21.34 | 38.0 | 38 mm |
| 3/4″ | 26.67 | 38.0 | 38 mm |
| 1″ | 33.40 | 38.0 | 38 mm |
| 1-1/4″ | 42.16 | 48.0 | 48 mm |
| 1-1/2″ | 48.26 | 57.0 | 57 mm |
| 2″ | 60.33 | 76.0 | 76 mm |
| 2-1/2″ | 73.03 | 95.0 | 95 mm |
| 3″ | 88.90 | 114.0 | 114 mm |
| 4″ | 114.30 | 152.0 | 152 mm |
| 5″ | 141.30 | 190.0 | 190 mm |
| 6″ | 168.28 | 229.0 | 229 mm |
| 8″ | 219.08 | 305.0 | 305 mm |
| 10″ | 273.05 | 381.0 | 381 mm |
| 12″ | 323.85 | 457.0 | 457 mm |
| 14″ | 355.60 | 533.0 | 533 mm |
| 16″ | 406.40 | 610.0 | 610 mm |
| 18″ | 457.20 | 686.0 | 686 mm |
| 20″ | 508.00 | 762.0 | 762 mm |
| 24″ | 609.60 | 914.0 | 914 mm |
Hastelloy C22 Elbow – Size & Type Chart
| Size Range | Elbow Angle | Radius | Available Finish | Supply Condition |
|---|---|---|---|---|
| 1/2″–2″ | 45° / 90° / 180° | 1.5D / 1D | Bright / Pickled / Polished | Solution Annealed |
| 2-1/2″–4″ | 45° / 90° / 180° | 1.5D / 1D | Mill / Pickled / Polished | Solution Annealed |
| 5″–8″ | 45° / 90° / 180° | 1.5D / 1D | Mill / Pickled / Machined | Solution Annealed |
| 10″–12″ | 45° / 90° / 180° | 1.5D / Custom | Mill / Pickled / Machined | Solution Annealed |
| 14″–18″ | 45° / 90° / 180° | 1.5D / Custom | Mill / Machined | Solution Annealed |
| 20″–24″ | 45° / 90° / 180° | 1.5D / Custom | Mill / Machined | Solution Annealed |
| 30″–36″ | 45° / 90° / 180° | Custom | Mill / Machined | Solution Annealed |
| 42″–48″ | 45° / 90° / 180° | Custom | Mill / Machined | Solution Annealed |
Why Should You Buy Hastelloy C22 Elbows from Metalx Nickel & Alloys?
- Experienced Hastelloy C22 Elbow Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant and high-performance alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Hastelloy C22 Exporter offering Hastelloy C22 / UNS N06022 Elbows for demanding chemical, petrochemical and process applications.
- Global Sourcing Network with access to reputed nickel alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Nickel Alloy Fittings Range including Hastelloy C22, Hastelloy C276, Hastelloy B3, Inconel, Incoloy, Monel and other specialized nickel alloy fittings.
- Ready Stock Availability for selected Hastelloy C22 Elbow sizes, subject to current stock and availability.
- Custom Hastelloy C22 Elbow Supply according to customer drawings, size, schedule, wall thickness, radius and angle.
- 45° & 90° Elbow Supply for standard and specialized industrial piping requirements.
- Long & Short Radius Options available according to project requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B366 / ASME SB366, where applicable.
- ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
- Visual & Hardness Testing Support can be arranged where required by the applicable specification or purchase order.
- Custom Surface Finish – Mill finish or other specified finishes can be supplied according to requirements.
- Export-Ready Packing designed to protect Hastelloy C22 Elbows during handling, storage and international transportation.
- Worldwide Hastelloy C22 Elbow Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Hastelloy C22 Elbow Export Support for EPC contractors, chemical plants, petrochemical companies, pharmaceutical industries, pollution-control facilities, waste-treatment plants and specialized engineering buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, radius, angle, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Hastelloy C22 Elbow shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Hastelloy C22 Elbow
- Nickel-Chromium-Molybdenum-Tungsten Alloy Construction – Manufactured from Hastelloy C22 for demanding corrosion-resistant applications.
- Excellent Corrosion Resistance – Provides broad resistance to many aggressive chemical environments.
- Excellent Pitting Resistance – Suitable for applications where localized corrosion is a concern.
- Excellent Crevice Corrosion Resistance – Provides reliable performance in environments prone to crevice corrosion.
- Good Resistance to Stress Corrosion Cracking – Offers useful resistance in many demanding process environments.
- Resistance to Oxidizing Environments – Suitable for selected oxidizing chemical service conditions.
- Resistance to Reducing Environments – Provides useful performance across many reducing process environments.
- Strong Chloride Resistance – Suitable for selected chloride-containing process environments.
- Good Resistance to Aggressive Chemicals – Can be considered for applications involving severe chemical media.
- Reliable Butt-Weld Connection – Provides a permanent welded connection for industrial piping systems.
- 45° & 90° Configurations – Common elbow angles can be supplied according to piping requirements.
- Long Radius Options – Available where a smoother directional change is required.
- Short Radius Options – Available where compact piping arrangements are needed.
- Customized Angles – Special configurations can be considered according to project requirements.
- Wide Size Availability – Available in different nominal sizes and outside diameters.
- Multiple Wall Thicknesses – Different schedules and customized wall thicknesses can be supplied.
- Good Weldability – Suitable for fabrication using qualified welding procedures.
- Good Fabrication Characteristics – Can be processed using suitable industrial fabrication practices.
- Chemical Processing Applications – Suitable for aggressive chemical process piping.
- Petrochemical Applications – Can be considered for selected petrochemical process systems.
- Pollution-Control Applications – Suitable for selected flue-gas and pollution-control systems.
- Waste Treatment Applications – Can be considered for selected corrosive waste-treatment systems.
- Pharmaceutical Applications – Suitable for selected corrosion-sensitive process equipment.
- Power Generation Applications – Can be used in selected power-generation process systems.
- High-Temperature Service – Provides useful corrosion and mechanical performance at elevated temperatures within applicable design limits.
- Custom Manufacturing Support – Dimensions, thickness, angle, radius and finish can be supplied according to requirements.
- Material Traceability – Material identification and relevant certificates can be supplied according to order requirements.
- Quality Testing Available – Chemical, mechanical, dimensional, visual and other specified inspections can be arranged.
- Export-Ready Material – Elbows can be suitably packed for handling, storage and international transportation.
- Global Hastelloy C22 Elbow Exporter – METALX NICKEL & ALLOYS supplies Hastelloy C22 Elbows to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Hastelloy C22 Elbow Details |
|---|---|
| Product Name | Hastelloy C22 Elbow |
| Material Grade | Hastelloy C22 |
| UNS Designation | N06022 |
| Material Type | Nickel-Chromium-Molybdenum-Tungsten Alloy |
| Material Standard | ASTM B366, where applicable |
| Dimensional Standard | ASME B16.9, where applicable |
| Elbow Type | Butt Weld Elbow |
| Elbow Angle | 45°, 90° and customized angles where applicable |
| Radius | Long Radius / Short Radius, as required |
| Connection Type | Butt Weld |
| Size | As per applicable standard or customer specification |
| Wall Thickness | SCH 5S, 10S, 40S, 80S, 160S and XXS, subject to size and availability |
| Dimensions | ASME B16.9 or customer drawings |
| End Type | Bevelled Ends for Butt Welding |
| Manufacturing | Wrought / Formed, as applicable |
| Configuration | Seamless or welded, depending on size and specification |
| Surface Finish | Mill Finish or customer-specified finish |
| Heat Treatment | Solution Annealed as applicable |
| Testing | Chemical, mechanical, dimensional, visual and other specified inspections |
| Documentation | MTC, inspection reports and relevant quality documents as required |
| Customization | Size, thickness, schedule, angle, radius, finish, testing and documentation |
| Packing | Export-worthy packing suitable for safe international transportation |
| Applications | Chemical Processing, Petrochemical, Pollution Control, Power Generation, Pharmaceutical, Waste Treatment and Corrosive Process Piping |
What types of Inconel 718 Reducers are available?
The common types are Concentric Reducers and Eccentric Reducers.
What elbow angles are available?
Common configurations include 45° and 90° elbows. Customized angles may also be considered where applicable.
Which industries does MetalX Nickel & Alloys serve?
Our alloy products are suitable for Oil & Gas, Chemical Processing, Petrochemical, Power Generation, Marine, Aerospace, Pharmaceutical, Engineering, Fabrication, and other critical industrial applications.
Can Inconel 718 be heat treated?
Yes. Inconel 718 can be supplied in specified solution-treated and age-hardened conditions, depending on the applicable specification and requirements.
Does MetalX Nickel & Alloys provide customized material solutions?
Yes, we understand that every project has unique requirements. We can support requirements based on alloy grade, product form, dimensions, thickness, diameter, length, quantity, specifications, and application needs.
What testing can be provided?
Testing can include chemical analysis, mechanical testing, dimensional inspection, visual inspection and other specified tests.
