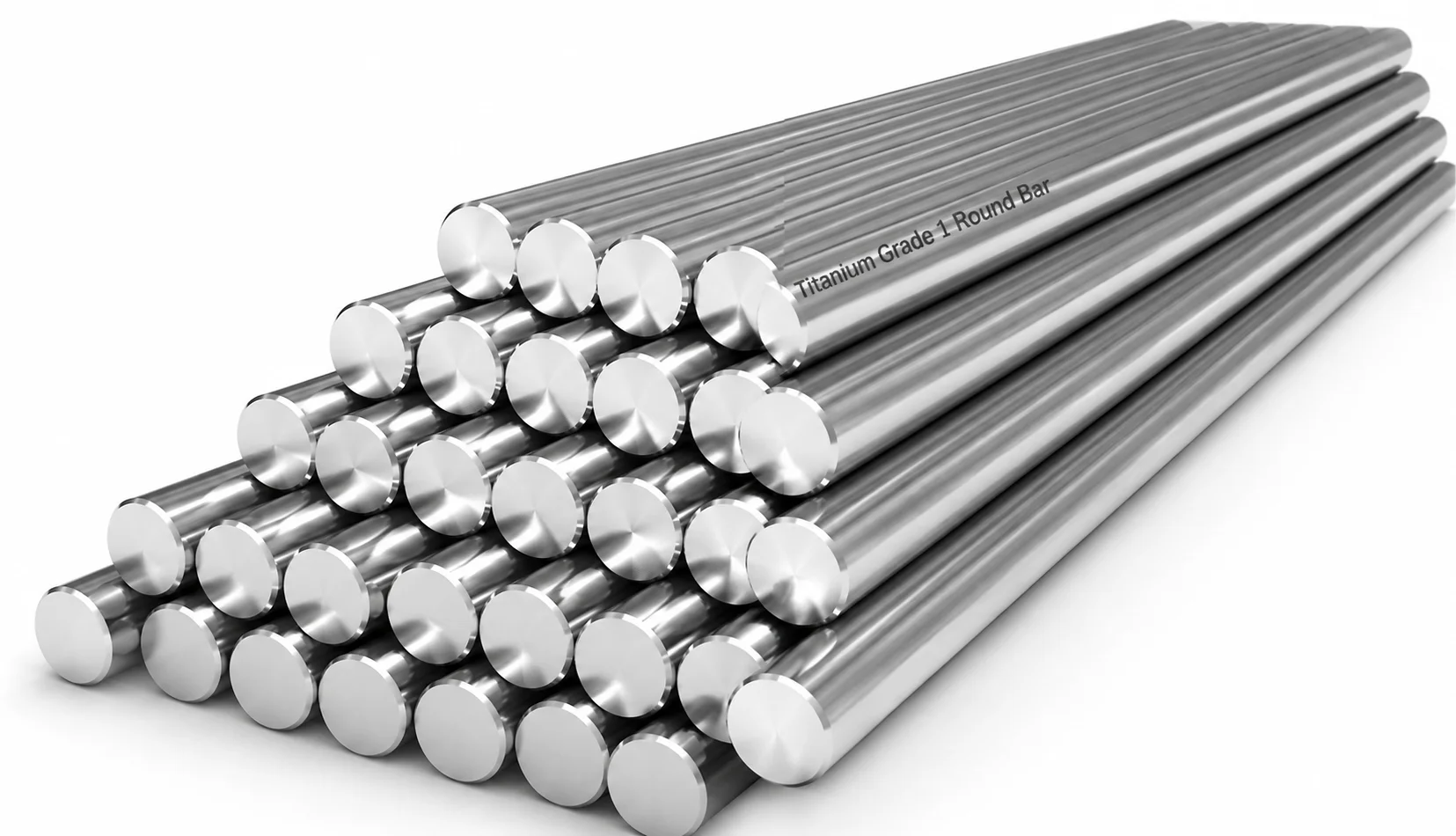

Titanium Grade 1 Round Bar
| Specification Titanium Grade 1 Round Bar Details | |
|---|---|
| Product Name | Titanium Grade 1 Round Bar |
| Material Grade | Titanium Grade 1 / Commercially Pure Titanium |
| UNS Designation | UNS R50250 |
| Werkstoff Number | W.Nr. 3.7025 |
| Material Type | Commercially Pure Titanium |
| Chemical Composition | Titanium Balance, Nitrogen 0.03% max, Carbon 0.08% max, Hydrogen 0.015% max, Iron 0.20% max, Oxygen 0.18% max |
| Manufacturing Type | Hot Rolled / Cold Rolled / Forged / Ground / Machined |
| Round Bar Standard | ASTM B348 / ASME SB348 |
| Bar & Rod Standard | ASTM B348 |
| Forging Standard | ASTM B381 / ASME SB381, where applicable |
| General Requirements | Applicable ASTM / ASME material requirements |
| Diameter | As per Standard / Customer Requirement |
| Diameter Range | Approximately 3 mm to 300 mm, depending on manufacturing capability |
| Length | Standard 1–6 m / Fixed or Customized Length |
| Tolerance | h7, h8, h9, h10, h11 or as required |
| Surface Finish | Mill Finish / Bright / Peeled / Ground / Polished / Machined |
| Heat Treatment | Annealed / Stress Relieved as applicable |
| Condition | Annealed / Hot Rolled / Cold Worked / Ground |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hardness, Ultrasonic and NDT as specified |
| Tensile Strength | Minimum approximately 240 MPa |
| Yield Strength | Minimum approximately 170 MPa |
| Elongation | Minimum approximately 24% |
| Density | Approximately 4.51 g/cm³ |
| Melting Point | Approximately 1668°C |
| Corrosion Resistance | Excellent resistance to seawater, chlorides, oxidizing acids and many chemical environments |
| Weight Advantage | Low density provides a high strength-to-weight advantage compared with many conventional metals |
| Biocompatibility | Excellent biocompatibility, making Grade 1 suitable for certain medical and biomedical applications |
| Welding | Excellent weldability when proper inert-gas shielding and titanium welding procedures are used |
| Filler Metal | Grade 1 compatible titanium filler, as specified |
| Available Form | Round Bar / Rod / Precision Ground Bar |
| Customization | Diameter, Length, Tolerance, Finish, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Chemical Processing, Marine, Desalination, Heat Exchangers, Medical Equipment, Pharmaceutical, Food Processing, Architecture and Aerospace Components |
Titanium Grade 1 Round Bar – Standard Dimensions
| Diameter (mm) | Diameter (in.) | Weight (kg/m) | Weight (lb/ft) |
|---|---|---|---|
| 5 | 0.197 | 0.088 | 0.059 |
| 6 | 0.236 | 0.128 | 0.086 |
| 8 | 0.315 | 0.227 | 0.153 |
| 10 | 0.394 | 0.354 | 0.238 |
| 12 | 0.472 | 0.510 | 0.343 |
| 14 | 0.551 | 0.694 | 0.466 |
| 16 | 0.630 | 0.907 | 0.609 |
| 18 | 0.709 | 1.149 | 0.772 |
| 20 | 0.787 | 1.417 | 0.952 |
| 22 | 0.866 | 1.716 | 1.153 |
| 25 | 0.984 | 2.217 | 1.490 |
| 28 | 1.102 | 2.783 | 1.870 |
| 30 | 1.181 | 3.186 | 2.140 |
| 32 | 1.260 | 3.623 | 2.434 |
| 36 | 1.417 | 4.587 | 3.081 |
| 40 | 1.575 | 5.670 | 3.810 |
| 45 | 1.772 | 7.170 | 4.818 |
| 50 | 1.969 | 8.860 | 5.951 |
| 56 | 2.205 | 11.130 | 7.476 |
| 63 | 2.480 | 14.060 | 9.444 |
| 71 | 2.795 | 17.850 | 11.994 |
| 80 | 3.150 | 22.680 | 15.240 |
| 90 | 3.543 | 28.660 | 19.250 |
| 100 | 3.937 | 35.420 | 23.790 |
| 110 | 4.331 | 42.870 | 28.800 |
| 125 | 4.921 | 55.360 | 37.180 |
| 150 | 5.906 | 79.690 | 53.520 |
| 175 | 6.890 | 108.400 | 72.780 |
| 200 | 7.874 | 141.680 | 95.160 |
Titanium Grade 1 Round Bar – Inch / US Bar Sizes
| US Bar Size | Diameter (in.) | Diameter (mm) | Approx. Weight (kg/m) |
|---|---|---|---|
| #2 | 0.250 | 6.35 | 0.143 |
| #3 | 0.375 | 9.53 | 0.323 |
| #4 | 0.500 | 12.70 | 0.567 |
| #5 | 0.625 | 15.88 | 0.886 |
| #6 | 0.750 | 19.05 | 1.276 |
| #7 | 0.875 | 22.23 | 1.740 |
| #8 | 1.000 | 25.40 | 2.272 |
| #9 | 1.125 | 28.58 | 2.874 |
| #10 | 1.250 | 31.75 | 3.548 |
| #11 | 1.375 | 34.93 | 4.293 |
| #12 | 1.500 | 38.10 | 5.105 |
| #13 | 1.625 | 41.28 | 6.015 |
| #14 | 1.750 | 44.45 | 6.994 |
| #15 | 1.875 | 47.63 | 8.010 |
| #16 | 2.000 | 50.80 | 9.074 |
| #18 | 2.250 | 57.15 | 11.480 |
| #20 | 2.500 | 63.50 | 14.180 |
Titanium Grade 1 Round Bar – Size & Tolerance Chart
| Diameter Range | Available Finish | Typical Tolerance | Supply Condition |
|---|---|---|---|
| 3–10 mm | Bright / Cold Drawn / Ground | h8 / h9 / h10 / h11 | Annealed / Cold Worked |
| 10–25 mm | Bright / Cold Drawn / Polished | h8 / h9 / h10 / h11 | Annealed |
| 25–50 mm | Peeled / Ground / Polished | h9 / h10 / h11 | Annealed / Hot Rolled |
| 50–75 mm | Peeled / Ground / Machined | h10 / h11 | Annealed |
| 75–100 mm | Peeled / Machined / Ground | h11 | Annealed |
| 100–150 mm | Hot Rolled / Peeled / Machined | h11 / Customer Requirement | Annealed |
| 150–200 mm | Hot Rolled / Forged / Machined | Customer Requirement | Annealed |
| 200–250 mm | Forged / Rough Machined | Customer Requirement | Annealed |
| 250–300 mm | Forged / Custom Machined | Customer Requirement | Annealed |
Why Should You Buy Titanium Grade 1 Round Bars from Metalx Nickel & Alloys?
- Experienced Titanium Grade 1 Round Bar Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Alloy Industry Experience in supplying titanium, nickel alloys and corrosion-resistant materials to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Titanium Grade 1 Exporter offering Titanium Grade 1 / UNS R50250 Round Bars for demanding corrosion-resistant and lightweight applications.
- Global Sourcing Network with access to reputed titanium mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Specialty Alloy Product Range including Titanium Grade 1, Titanium Grade 2, Duplex 2205, Super Duplex 2507, Inconel, Incoloy, Hastelloy, Monel and other specialized alloys.
- Ready Stock Availability for selected Titanium Grade 1 Round Bar sizes, subject to current stock and availability.
- Custom Titanium Grade 1 Round Bar Supply according to customer drawings, diameter, length, surface finish, heat treatment and project specifications.
- Cut-to-Length Service available for applicable sizes and customer requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B348 / ASME SB348, where applicable.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable ASTM/ASME standards and customer specifications.
- Ultrasonic Testing Support can be arranged where required by the applicable specification or purchase order.
- Hardness & Visual Inspection can also be arranged according to customer requirements.
- Heat Treatment Support – Annealed material can be supplied according to applicable material requirements.
- Surface Finish Support – Bright, polished, pickled, ground and other specified finishes can be supplied.
- Export-Ready Packing designed to protect Titanium Grade 1 Round Bars during handling, storage and international transportation.
- Worldwide Titanium Grade 1 Round Bar Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Titanium Grade 1 Round Bar Export Support for EPC contractors, chemical processing plants, marine industries, desalination projects, heat exchanger manufacturers, water-treatment facilities and specialized engineering companies.
- Technical Support from Export Enquiry to Shipment covering grade, diameter, length, surface finish, heat treatment, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Titanium Grade 1 Round Bar shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Titanium Grade 1 Round Bar
- Commercially Pure Titanium – Titanium Grade 1 is one of the commercially pure titanium grades with excellent corrosion resistance and high ductility.
- Excellent Corrosion Resistance – Provides outstanding resistance to many corrosive chemical environments.
- Excellent Resistance to Seawater – Suitable for selected marine and seawater-handling applications.
- Excellent Resistance to Chlorides – Performs well in many chloride-containing environments.
- Excellent Resistance to Many Acids – Can be considered for selected acidic chemical environments under appropriate conditions.
- High Ductility – Grade 1 offers very good ductility compared with higher-strength titanium grades.
- Excellent Formability – Suitable for forming and fabrication where high ductility is important.
- Low Density – Titanium has a density of approximately 4.51 g/cm³, providing useful lightweight characteristics.
- High Strength-to-Weight Ratio – Provides a useful combination of relatively low weight and mechanical strength.
- Excellent Marine Performance – Can be used for selected marine components exposed to seawater.
- Good Weldability – Titanium Grade 1 can be welded using appropriate controlled procedures and suitable shielding.
- Good Fabrication Characteristics – Suitable for forming, machining and fabrication using appropriate practices.
- Non-Magnetic Material – Titanium is generally considered non-magnetic.
- Excellent Resistance to Erosion – Provides useful resistance in selected flowing-fluid applications.
- Hot Rolled & Cold Rolled Options – Round bars can be supplied according to required dimensions and specifications.
- Forged Options Available – Forged round bars can be supplied for selected sizes and applications.
- Wide Diameter Availability – Available in different diameters for machining and component manufacturing.
- Multiple Surface Finishes – Bright, polished, pickled, ground and other specified finishes can be supplied.
- Annealed Condition – Material can be supplied in annealed condition according to applicable requirements.
- Chemical Processing Applications – Suitable for selected chemical processing equipment and components.
- Heat Exchanger Applications – Used for selected heat-transfer equipment exposed to corrosive fluids.
- Desalination Applications – Can be considered for selected desalination and water-treatment components.
- Marine Applications – Suitable for selected marine and seawater-handling equipment.
- Medical Applications – Commercially pure titanium can be used in selected medical and biomedical applications, subject to applicable medical specifications.
- Aerospace Applications – Can be considered for selected aerospace applications where commercially pure titanium is appropriate.
- Reliable Material Traceability – Material certificates and inspection documentation can be supplied according to order requirements.
- Quality Testing Available – Chemical, mechanical, dimensional, hardness, visual, ultrasonic and other specified inspections can be arranged.
- Export-Ready Material – Round bars can be suitably packed for handling, storage and international transportation.
- Global Titanium Grade 1 Round Bar Exporter – METALX NICKEL & ALLOYS supplies Titanium Grade 1 Round Bars to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Titanium Grade 1 Round Bar Details |
|---|---|
| Product Name | Titanium Grade 1 Round Bar |
| Material Grade | Titanium Grade 1 |
| UNS Designation | R50250 |
| Material Type | Commercially Pure Titanium |
| Titanium Content | Balance Titanium |
| Manufacturing | Hot Rolled / Cold Rolled / Forged, as required |
| Applicable Standards | ASTM / ASME specifications as applicable |
| Common Standard | ASTM B348 / ASME SB348, where applicable |
| Bar Type | Round Bar |
| Diameter | As per customer requirement and applicable standard |
| Length | Standard, random and customized lengths |
| Surface Finish | Bright, polished, pickled, ground or as required |
| Heat Treatment | Annealed / As specified |
| End Condition | Plain cut, chamfered or as specified |
| Chemical Composition | Commercially pure titanium with controlled levels of iron, oxygen, carbon, nitrogen and hydrogen |
| Mechanical Properties | Tensile strength, yield strength, elongation and hardness according to applicable specification |
| Density | Approximately 4.51 g/cm³ |
| Melting Point | Approximately 1668°C |
| Corrosion Resistance | Excellent resistance to many corrosive environments |
| Strength-to-Weight Ratio | High strength-to-weight characteristics with relatively low density |
| Testing | Chemical, mechanical, dimensional, hardness, visual, ultrasonic and other specified tests |
| Applications | Chemical processing, marine, heat exchangers, desalination, medical, aerospace and industrial equipment |
| Customization | Diameter, length, surface finish, heat treatment, testing and documentation as required |
| Packing | Export-worthy packing suitable for safe international transportation |
| Export Supply | Available for international buyers, distributors, EPC contractors and industrial end users |
1. What is Titanium Grade 1 Round Bar?
Titanium Grade 1 Round Bar is manufactured from commercially pure titanium and is known for excellent corrosion resistance, high ductility, good formability and low density.
2. What is the UNS designation of Titanium Grade 1?
The UNS designation is R50250.
3. What is the common standard for Titanium Grade 1 Round Bar?
A commonly applicable specification is ASTM B348 / ASME SB348, subject to the exact product requirements.
4. Is Titanium Grade 1 commercially pure titanium?
Yes. Titanium Grade 1 is a commercially pure titanium grade with controlled levels of interstitial elements and other impurities.
5. Is Titanium Grade 1 resistant to seawater?
Yes. Titanium Grade 1 provides excellent corrosion resistance in many seawater and marine environments.
6. What is the main advantage of Titanium Grade 1 over higher-grade titanium?
Titanium Grade 1 is particularly valued for its excellent ductility, formability and corrosion resistance, while higher grades may offer greater mechanical strength.
