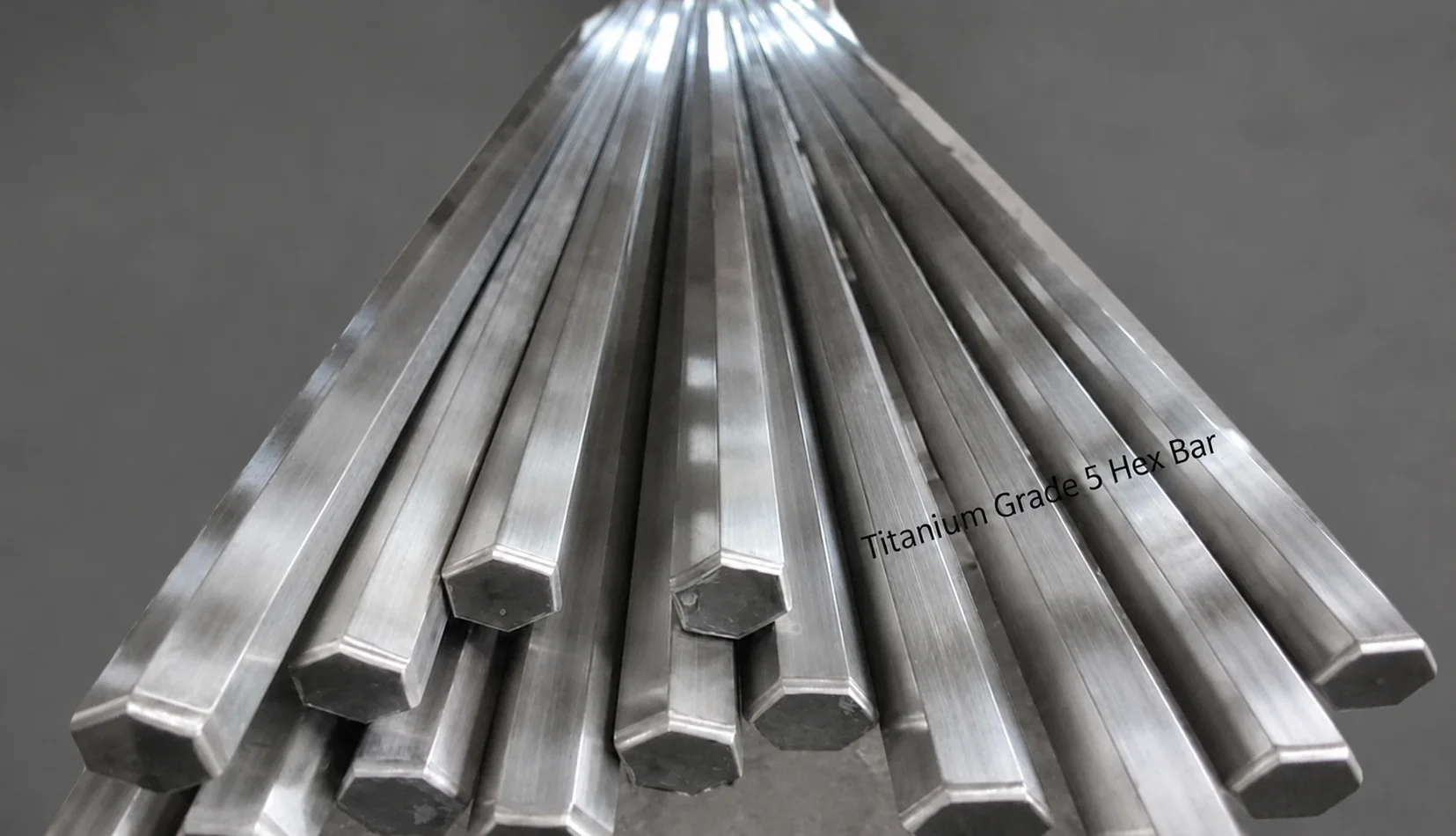

Titanium Grade 5 Hex Bar
| Titanium Grade 5 Hex Bar – Quick Information | Details |
|---|---|
| Available Brands | TIMET, VSMPO-AVISMA, ATI and Other Approved Manufacturers |
| Ex-Stock | Subject to Current Stock Availability |
| Hex Bar Size | Standard and Customized Sizes Available |
| Custom Size | Standard & Non-Standard Sizes Available |
| Material Grade | Titanium Grade 5 / Ti-6Al-4V |
| UNS Designation | UNS R56400 |
| Material Type | Alpha-Beta Titanium Alloy |
| Standard | ASTM B348 / ASME SB348, ASTM F136 where applicable |
| Available Forms | Hexagonal, Round, Square, Flat and Other Custom Profiles |
| Surface Finish | Bright, Ground, Polished, Machined or As Required |
| Length | Standard, Random, Fixed or Cut-to-Length |
| MTC | EN 10204 3.1 and 3.2 |
| Origin | Japanese, European, Korean, American and Other Approved Origins |
| Testing | Chemical, Mechanical, Dimensional, Visual, PMI and Hardness Testing as Required |
| Heat Treatment | Annealed / Solution Treated / Aged / As Applicable |
| Export Packing | Standard / Seaworthy Export Packing |
| Delivery Time | Subject to Size, Quantity, Destination and Stock Availability |
| Applications | Aerospace Components, Marine Equipment, Chemical Processing, Medical Equipment, Oil & Gas, Heat Exchangers, Petrochemical Equipment, Automotive and Specialized Engineering Components |
1. Titanium Grade 5 Hex Bars – Standard Sizes
| Hex Bar Size (Across Flats) | Approx. Diameter Equivalent | Standard Length |
|---|---|---|
| 5 mm | 5.77 mm | 1000–3000 mm |
| 6 mm | 6.93 mm | 1000–3000 mm |
| 8 mm | 9.24 mm | 1000–3000 mm |
| 10 mm | 11.55 mm | 1000–4000 mm |
| 12 mm | 13.86 mm | 1000–4000 mm |
| 14 mm | 16.17 mm | 1000–4000 mm |
| 16 mm | 18.48 mm | 1000–4000 mm |
| 20 mm | 23.09 mm | 2000–6000 mm |
| 25 mm | 28.87 mm | 2000–6000 mm |
| 30 mm | 34.64 mm | 2000–6000 mm |
| 32 mm | 36.95 mm | 2000–6000 mm |
| 40 mm | 46.19 mm | 2000–6000 mm |
| 50 mm | 57.74 mm | 2000–6000 mm |
| 60 mm | 69.28 mm | 2000–6000 mm |
| 75 mm | 86.60 mm | 2000–6000 mm |
| 100 mm | 115.47 mm | 2000–6000 mm |
2. Titanium Grade 5 Hex Bars – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Titanium Grade 5 Hex Bar |
| Material Grade | Titanium Grade 5 / Ti-6Al-4V |
| UNS Designation | UNS R56400 |
| Werkstoff Number | W.Nr. 3.7165 |
| Material Type | Alpha-Beta Titanium Alloy |
| Shape | Hexagonal Solid Bar |
| Manufacturing Type | Hot Rolled / Cold Finished / Forged / Machined |
| Standard | ASTM B348 / ASME SB348 |
| Hex Bar Size | As per Standard / Customer Requirement |
| Length | Standard / Fixed / Customized / Cut-to-Length |
| Surface Finish | Bright / Ground / Polished / Machined / Mill Finish |
| Edge Condition | Hexagonal / Precision Finished |
| Heat Treatment | Annealed / Solution Treated / Aged / As Applicable |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI as Required |
| Tensile Strength | Approximately 895 MPa minimum, subject to applicable specification and condition |
| Yield Strength | Approximately 825 MPa minimum, subject to applicable specification and condition |
| Elongation | Approximately 10% minimum, subject to applicable specification |
| Density | Approximately 4.43 g/cm³ |
| Melting Range | Approximately 1600–1660°C |
| Corrosion Resistance | Excellent resistance to many corrosive environments |
| Chloride Resistance | Good resistance to chloride-containing environments |
| Seawater Resistance | Excellent resistance to seawater and marine environments |
| Strength-to-Weight Ratio | Excellent strength combined with relatively low density |
| Fatigue Resistance | Good fatigue performance under suitable service conditions |
| Heat Resistance | Suitable for elevated-temperature applications within recommended service limits |
| Welding | Good weldability using suitable titanium welding procedures and controlled conditions |
| Fabrication | Suitable for machining and fabrication using appropriate titanium-alloy practices |
| Available Form | Hex Bars / Hexagonal Bars / Precision Hex Bars / Cut-to-Length Bars |
| Customization | Across Flats, Length, Surface Finish, Heat Treatment, Tolerance, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Titanium Grade 5 Hex Bar Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Aerospace, Medical Equipment, Marine, Oil & Gas, Chemical Processing, Petrochemical, Automotive, Power Generation and Specialized Engineering Components |
3. Titanium Grade 5 Hex Bars – Supply & Export Details
| Supply Parameter | Available Options |
|---|---|
| Product Form | Hex Bars / Hexagonal Bars / Precision Hex Bars |
| Size | Standard and Customized Hex Sizes |
| Length | Standard / Random / Fixed / Cut-to-Length |
| Surface Finish | Bright / Ground / Polished / Machined / Mill Finish |
| Condition | Annealed / Solution Treated / Aged / As Specified |
| Heat Treatment | Annealed / Solution Treated / Aged / As Applicable |
| Dimensional Inspection | Across Flats, Length, Straightness and Tolerance Inspection |
| Chemical Testing | Chemical Composition / PMI as Required |
| Mechanical Testing | Tensile / Yield / Elongation / Hardness Testing |
| Visual Inspection | Surface and Dimensional Visual Inspection |
| NDT | Ultrasonic or Other NDT as Specified |
| Certification | EN 10204 3.1 / 3.2 |
| Third-Party Inspection | Available as per Project Requirement |
| Material Traceability | Heat Number and Material Identification as Required |
| Cut-to-Size | Available according to Customer Drawing or Required Dimensions |
| Packaging | Export-Worthy / Seaworthy Protective Packaging |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Customization | Size, Length, Finish, Heat Treatment, Tolerance, Testing and Documentation |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing and International Shipment Coordination |
| Export Supply | Worldwide Titanium Grade 5 Hex Bar Export Supply |
| Applications | Aerospace Components, Medical Equipment, Marine Engineering, Oil & Gas, Chemical Processing, Heat Exchangers, Petrochemical Equipment and Specialized Engineering Applications |
Most Common Types Of Titanium Grade 5 Hex Bar
Titanium Grade 5 Hex Bars are available in different manufacturing processes, heat-treatment conditions, surface finishes and customized dimensions for aerospace, medical, marine, oil & gas and other demanding applications.
| Type of Titanium Grade 5 Hex Bar | Description |
|---|---|
| Titanium Grade 5 Cold Drawn Hex Bars | Precision-finished hex bars offering controlled dimensions, close tolerances and a smooth surface for precision machining. |
| Titanium Grade 5 Cold Finished Hex Bars | Cold-finished bars suitable for components requiring accurate dimensions and consistent surface quality. |
| Titanium Grade 5 Hot Finished Hex Bars | Hot-worked hex bars generally used for larger sizes and industrial applications requiring reliable mechanical performance. |
| Titanium Grade 5 Forged Hex Bars | Forged hex bars manufactured for demanding components requiring high strength and structural integrity. |
| Titanium Grade 5 Bright Hex Bars | Bright-finished hex bars with a clean and uniform surface suitable for machining and component manufacturing. |
| Titanium Grade 5 Polished Hex Bars | Polished hex bars supplied with an enhanced surface finish for specialized engineering and fabrication applications. |
| Titanium Grade 5 Ground Hex Bars | Ground hex bars offering improved surface uniformity and dimensional control for precision components. |
| Titanium Grade 5 Machined Hex Bars | Machined hex bars manufactured to specified dimensions and tolerances for specialized components and assemblies. |
| Titanium Grade 5 Annealed Hex Bars | Annealed hex bars supplied with suitable ductility and metallurgical properties for fabrication and general engineering applications. |
| Titanium Grade 5 Solution Treated Hex Bars | Solution-treated bars supplied for applications requiring specific mechanical and metallurgical properties. |
| Titanium Grade 5 Aged Hex Bars | Age-treated hex bars offering enhanced strength for demanding aerospace and high-performance applications. |
| Titanium Grade 5 Precision Hex Bars | Close-tolerance hexagonal bars suitable for fasteners, fittings, pins, shafts, connectors and precision-machined components. |
Why Should You Buy Titanium Grade 5 Hex Bars from MetalX Nickel & Alloys?
- Experienced Titanium Grade 5 Hex Bar Supplier serving international buyers, importers, distributors, EPC contractors, stockholders, traders and industrial end users.
- Over 2 Decades of Alloy Supply Experience in supplying high-performance nickel, titanium and specialty alloy products across the UAE, Saudi Arabia, Africa and other international markets.
- Specialized Titanium Grade 5 Supplier offering Titanium Grade 5 / Ti-6Al-4V / UNS R56400 Hex Bars according to applicable international standards and customer requirements.
- Wide Stockist & Supplier Network with access to reputed titanium mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major supply markets.
- Ready Stock Availability for Titanium Grade 5 Hex Bars in various sizes, lengths, surface finishes and heat-treatment conditions, subject to current stock availability.
- Cut-to-Size Facility available for customized Titanium Grade 5 Hex Bars according to required dimensions, tolerances and customer drawings.
- Global Export Supply with organized delivery and shipment support for customers across the Middle East, Africa, Asia, Europe and other international destinations.
- Project-Specific Materials can be supplied according to required standards, specifications, heat-treatment conditions, testing requirements and inspection procedures.
- Technical Documentation Support including Technical Data Sheets, Material Test Certificates (MTC), chemical composition reports, mechanical test reports and inspection documents as required.
- Competitive Pricing with special resale pricing available for traders, wholesalers, importers, distributors and stockholders.
| Key Feature | Details |
|---|---|
| Excellent Strength-to-Weight Ratio | Provides high mechanical strength while maintaining relatively low weight, making it suitable for lightweight engineering components. |
| High Mechanical Strength | Offers high tensile and yield strength for demanding structural and mechanical applications. |
| Excellent Corrosion Resistance | Provides strong resistance to corrosion in many industrial, marine and chemical environments. |
| Seawater Resistance | Performs reliably in marine and seawater applications under suitable service conditions. |
| Good Fatigue Strength | Offers good fatigue performance for components subjected to repeated or cyclic loading. |
| Low Density | Its relatively low density helps reduce component weight compared with many conventional engineering materials. |
| Good Temperature Performance | Maintains useful mechanical properties in elevated-temperature applications within recommended limits. |
| Good Fabrication Characteristics | Can be machined and fabricated using appropriate titanium-alloy processing methods. |
| Good Weldability | Suitable for welding when proper titanium welding procedures and controlled atmospheric conditions are used. |
| Precision Hexagonal Profile | Six-sided geometry provides effective gripping surfaces for machining, fastening and assembly operations. |
| Multiple Surface Finishes | Available in bright, pickled, polished, ground, machined and other specified finishes. |
| Customized Dimensions | Can be supplied in customized across-flats dimensions, lengths, tolerances and finishes according to requirements. |
| Inspection & Certification | Chemical, mechanical, dimensional and other specified testing can be provided with applicable documentation. |
| Wide Industrial Applications | Suitable for aerospace, medical, marine, oil & gas, chemical processing, automotive and specialized engineering applications. |
| Export-Ready Supply | Can be supplied with material identification, applicable certification, protective packaging and export documentation. |
| Specification | Details |
|---|---|
| Product Name | Titanium Grade 5 Hex Bar |
| Material Grade | Titanium Grade 5 |
| UNS Designation | UNS R56400 |
| Alloy Designation | Ti-6Al-4V |
| Material Type | Alpha-Beta Titanium Alloy |
| Shape | Hexagonal Solid Bar |
| Standard | ASTM B348 / ASME SB348 and other applicable standards |
| Manufacturing Type | Hot Rolled / Cold Drawn / Forged / Machined, as applicable |
| Hex Bar Size | Standard and Customized Sizes as Required |
| Length | Standard / Fixed / Customized / Cut-to-Length |
| Surface Finish | Bright / Pickled / Polished / Ground / Machined / As Required |
| Surface Condition | Smooth and Dimensionally Controlled |
| Edge Condition | Hexagonal / Precision Finished |
| Heat Treatment | Annealed / Solution Treated / Aged / As Applicable |
| Tensile Strength | Approximately 895 MPa minimum, subject to applicable specification and condition |
| Yield Strength | Approximately 825 MPa minimum, subject to applicable specification and condition |
| Elongation | Approximately 10% minimum, subject to applicable specification |
| Density | Approximately 4.43 g/cm³ |
| Melting Range | Approximately 1600–1660°C |
| Corrosion Resistance | Excellent resistance to many corrosive environments |
| Chloride Resistance | Good resistance to chloride-containing environments |
| Marine Resistance | Excellent resistance to seawater and marine environments |
| Fatigue Resistance | Good fatigue performance under suitable service conditions |
| Strength-to-Weight Ratio | Excellent combination of high strength and low density |
| Heat Resistance | Suitable for elevated-temperature applications within recommended service limits |
| Welding | Good weldability using suitable titanium-alloy welding procedures and controlled conditions |
| Fabrication | Suitable for machining, forming and specialized fabrication processes |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI / NDT as Required |
| MTC | EN 10204 3.1 / 3.2 as Required |
| Available Form | Hex Bars / Hexagonal Bars / Precision Hex Bars / Cut-to-Length Bars |
| Customization | Across Flats, Length, Surface Finish, Heat Treatment, Tolerance, Testing and Documentation |
| Supply Form | Hexagonal Solid Bars |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Titanium Grade 5 Hex Bar Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Aerospace Components, Medical Equipment, Marine Engineering, Oil & Gas, Chemical Processing, Automotive, Power Generation, Heat Exchangers, Pumps, Valves, Fasteners and Specialized Engineering Components |
1. What is a Titanium Grade 5 Hex Bar?
Titanium Grade 5 Hex Bar is a six-sided solid bar manufactured from Ti-6Al-4V titanium alloy , identified by UNS R56400 . It is widely used where high strength, low weight and corrosion resistance are required.
2. What are the main advantages of Titanium Grade 5 Hex Bars?
They offer an excellent strength-to-weight ratio, high mechanical strength, good fatigue resistance, excellent corrosion resistance and relatively low density , making them suitable for demanding applications.
3. Where are Titanium Grade 5 Hex Bars commonly used?
They are commonly used in aerospace, medical equipment, marine engineering, oil gas, chemical processing, automotive, heat exchangers, pumps, valves, fasteners and specialized engineering applications .
4. Which standards are applicable to Titanium Grade 5 Hex Bars?
Titanium Grade 5 Hex Bars can be supplied according to ASTM B348 / ASME SB348 and other applicable customer or project specifications.
5. What surface finishes are available for Titanium Grade 5 Hex Bars?
They can be supplied in bright, pickled, polished, ground, machined or other specified finishes , depending on size, manufacturing condition and customer requirements.
6. Can Titanium Grade 5 Hex Bars be customized?
Yes. METALX NICKEL ALLOYS can supply customized sizes, across-flats dimensions, lengths, tolerances, surface finishes, heat-treatment conditions, testing and certification according to customer drawings and project requirements.
