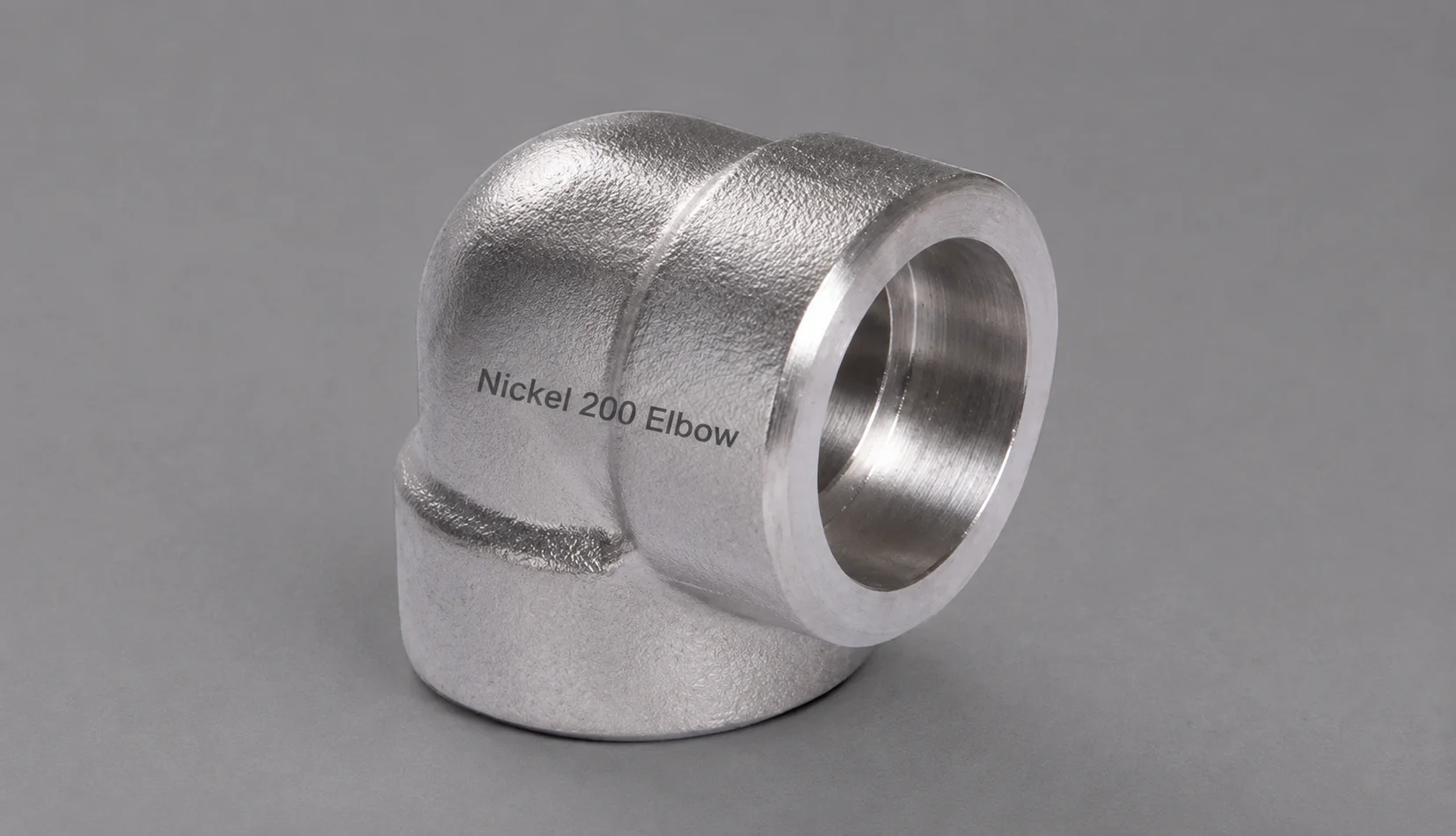

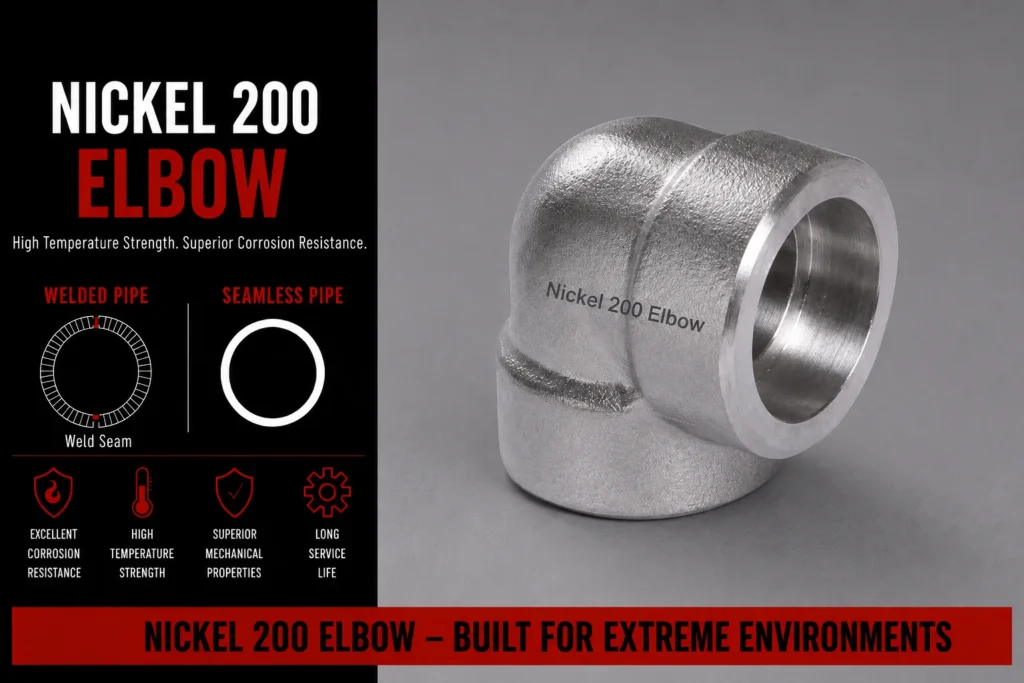

Nickel 200 Elbow
| Parameter | Nickel 200 Elbow Details |
|---|---|
| Product Name | Nickel 200 Elbow |
| Grade | Nickel 200 |
| UNS No. | N02200 |
| Werkstoff No. | 2.4066 |
| Alloy Family | Commercially Pure Nickel |
| Nickel Content | 99.0% minimum |
| Carbon Content | 0.15% maximum |
| Copper Content | 0.25% maximum |
| Manganese Content | 0.35% maximum |
| Sulfur Content | 0.01% maximum |
| Silicon Content | 0.35% maximum |
| Iron Content | 0.40% maximum |
| Standard | ASTM B366 / ASME SB366 |
| Dimensions | ASME B16.9 |
| Elbow Configuration | 45°, 90°, 180° Return |
| Radius | Long Radius / Short Radius |
| Production Route | Seamless / Welded / Fabricated |
| Nominal Size | 1/2″ to 48″ |
| Wall Thickness | SCH 5S through XXS / Custom Thickness |
| End Preparation | Beveled / Plain / Customized |
| Heat Treatment | Annealed as specified |
| Surface Condition | Mill / Pickled / Bright Annealed / Polished |
| Hardness | As per applicable material condition |
| Tensile Strength | Approx. 380 MPa minimum, depending on condition |
| Yield Strength | Approx. 100 MPa minimum, depending on condition |
| Elongation | Approx. 40% minimum |
| Density | Approx. 8.89 g/cm³ |
| Electrical Resistivity | Approx. 8.5 µΩ·cm |
| Magnetic Property | Ferromagnetic |
| Corrosion Behaviour | Excellent resistance in reducing environments |
| Caustic Resistance | Excellent resistance to concentrated alkalis |
| Welding | Suitable for conventional nickel-alloy welding processes |
| Filler Material | Nickel 200 compatible filler |
| Inspection | Visual, Dimensional, PMI, Mechanical and NDT as specified |
| Certification | EN 10204 3.1 / 3.2 |
| Marking | Grade, Size, Schedule, Heat No. and Manufacturer Identification |
| Supply | Domestic & Worldwide Export |
| Applications | Chemical Processing, Caustic Soda, Food Processing, Synthetic Fibres, Electronics, Marine and Chemical Equipment |
Nickel 200 Elbow – Standard Dimensions
| Nominal Pipe Size | OD (mm) | OD (inch) | Typical Elbow Radius – LR (mm) | Typical Radius – SR (mm) |
|---|---|---|---|---|
| 1/2″ | 21.34 | 0.840 | 38 | 25 |
| 3/4″ | 26.67 | 1.050 | 38 | 25 |
| 1″ | 33.40 | 1.315 | 38 | 25 |
| 1-1/4″ | 42.16 | 1.660 | 48 | 32 |
| 1-1/2″ | 48.26 | 1.900 | 57 | 38 |
| 2″ | 60.33 | 2.375 | 76 | 51 |
| 2-1/2″ | 73.03 | 2.875 | 95 | 64 |
| 3″ | 88.90 | 3.500 | 114 | 76 |
| 4″ | 114.30 | 4.500 | 152 | 102 |
| 5″ | 141.30 | 5.563 | 190 | 127 |
| 6″ | 168.28 | 6.625 | 229 | 152 |
| 8″ | 219.08 | 8.625 | 305 | 203 |
| 10″ | 273.05 | 10.750 | 381 | 254 |
| 12″ | 323.85 | 12.750 | 457 | 305 |
| 14″ | 355.60 | 14.000 | 533 | 356 |
| 16″ | 406.40 | 16.000 | 610 | 406 |
| 18″ | 457.20 | 18.000 | 686 | 457 |
| 20″ | 508.00 | 20.000 | 762 | 508 |
| 24″ | 609.60 | 24.000 | 914 | 610 |

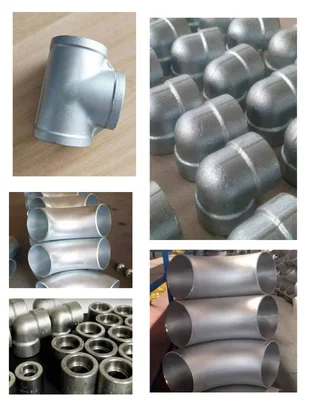

Nickel 200 Elbow – Available Configurations
| Configuration | Options Available |
|---|---|
| Elbow Angle | 45° / 90° / 180° |
| Bend Radius | 1D / 1.5D / Custom |
| Construction | Seamless / Welded / Fabricated |
| Size Range | 1/2″–48″ |
| Schedule | 5S / 10S / 10 / 40S / 40 / 80S / 80 / 100 / 120 / 140 / 160 / XXS |
| Ends | Butt Weld / Beveled / Plain |
| Finish | Pickled / Mill / Bright Annealed / Polished |
| Heat Treatment | Annealed / Solution Treated as required |
| Testing | PMI / Hydro / Radiography / Ultrasonic / Dimensional |
| Documentation | MTC 3.1 / 3.2 / Inspection Certificate |
| Special Requirement | Custom Radius / Non-standard Wall / Special Dimensions |
Nickel 200 Elbow – Typical Applications
| Industry | Typical Service / Equipment |
|---|---|
| Chemical Industry | Chemical transfer piping and process lines |
| Alkali Industry | Caustic soda handling systems |
| Food Industry | Food-processing equipment and piping |
| Electronics | Electronic and chemical processing equipment |
| Marine | Corrosion-resistant piping systems |
| Synthetic Fibre | Process equipment and chemical lines |
| Chlor-Alkali | Alkali and chemical handling systems |
| Pharmaceutical | Corrosion-resistant process equipment |
| Heat Treatment | High-purity nickel components |
| Chemical Storage | Tanks, vessels and connecting pipework |
Why Should You Buy Nickel 200 Elbows from Metalx Nickel & Alloys?
- Experienced Nickel 200 Elbow Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant and high-performance alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Nickel 200 Exporter offering Nickel 200 / UNS N02200 Elbows for demanding chemical and industrial applications.
- Global Sourcing Network with access to reputed nickel alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Nickel Alloy Fittings Range including Nickel 200, Nickel 201, Nickel 205, Incoloy, Inconel, Monel and Hastelloy fittings.
- Ready Stock Availability for selected Nickel 200 Elbow sizes, subject to current stock and availability.
- Custom Nickel 200 Elbow Supply according to customer drawings, size, schedule, wall thickness, radius and angle.
- 45° & 90° Elbow Supply for standard and specialized industrial piping requirements.
- Long & Short Radius Options available according to project requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B366 / ASME SB366, where applicable.
- ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
- Visual & Hardness Testing Support can be arranged where required by the applicable specification or purchase order.
- Custom Surface Finish – Mill finish, pickled or other specified finishes can be supplied according to requirements.
- Export-Ready Packing designed to protect Nickel 200 Elbows during handling, storage and international transportation.
- Worldwide Nickel 200 Elbow Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Nickel 200 Elbow Export Support for EPC contractors, engineering companies, chemical plants, caustic-processing facilities, food-processing companies, pharmaceutical industries and specialized industrial buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, heat treatment, radius, angle, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Nickel 200 Elbow shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Nickel 200 Elbow
- Commercially Pure Nickel Construction – Manufactured from Nickel 200 for applications requiring commercially pure nickel material.
- High Nickel Content – Provides the characteristic corrosion resistance and physical properties associated with Nickel 200.
- Excellent Caustic Resistance – Particularly suitable for selected caustic soda and alkaline processing environments.
- Good Resistance to Reducing Media – Performs well in many reducing environments under suitable operating conditions.
- Good Resistance to Neutral Salts – Offers useful resistance to selected neutral salt solutions.
- Good Corrosion Resistance – Suitable for a range of chemical and industrial process environments.
- Reliable Butt-Weld Connection – Provides a permanent welded connection for compatible piping systems.
- 45° & 90° Configurations – Common elbow angles available according to piping requirements.
- Long Radius Options – Suitable where a smoother directional transition is preferred.
- Short Radius Options – Available for selected compact piping layouts.
- Customized Angles – Special elbow angles can be considered according to project requirements.
- Smooth Directional Change – Allows piping to change direction while maintaining a continuous process route.
- Wide Size Availability – Available in different nominal sizes and outside diameters.
- Multiple Wall Thicknesses – Different schedules and customized thicknesses can be supplied.
- Good Thermal Conductivity – Nickel 200 provides useful thermal conductivity for selected industrial applications.
- Good Electrical Conductivity – Suitable for selected applications requiring the electrical characteristics of commercially pure nickel.
- Good Fabrication Characteristics – Can be formed, welded and machined using appropriate industrial procedures.
- Good Ductility – Provides useful forming and fabrication characteristics.
- Suitable for Chemical Service – Can be considered for selected chemical handling and processing systems.
- Caustic Processing Applications – Commonly considered for suitable caustic alkali service.
- Food Processing Applications – Can be used in selected food-processing equipment where material compatibility is required.
- Pharmaceutical Applications – Suitable for selected pharmaceutical processing equipment.
- Water Treatment Applications – Can be considered for selected water-treatment and chemical-handling systems.
- Heat Transfer Applications – Useful in selected heat-transfer and processing equipment.
- Industrial Process Piping – Suitable for piping systems requiring Nickel 200 material characteristics.
- Custom Dimensions – Size, thickness, angle and radius can be supplied according to project requirements.
- Multiple Surface Options – Mill finish, pickled or other specified finishes can be supplied.
- Material Traceability – Material identification and relevant certificates can be supplied as required.
- Quality Testing Available – Chemical, mechanical, dimensional, visual and other specified inspections can be arranged.
- Export-Ready Material – Elbows can be suitably packed for handling, storage and international transportation.
- Global Nickel 200 Elbow Exporter – METALX NICKEL & ALLOYS supplies Nickel 200 Elbows to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Nickel 200 Elbow Details |
|---|---|
| Product Name | Nickel 200 Elbow |
| Material Grade | Nickel 200 |
| UNS Designation | N02200 |
| Werkstoff Number | 2.4066 |
| Material Type | Commercially Pure Nickel Alloy |
| Material Standard | ASTM B366 / ASME SB366, where applicable |
| Dimensional Standard | ASME B16.9, where applicable |
| Elbow Type | Butt Weld Elbow |
| Elbow Angle | 45°, 90° and customized angles where applicable |
| Radius | Long Radius / Short Radius |
| Connection Type | Butt Weld |
| Size | As per applicable standard or customer specification |
| Wall Thickness | Different schedules and customized thicknesses |
| Dimensions | ASME B16.9 or customer drawings |
| End Preparation | Bevelled Ends for Butt Welding |
| Manufacturing | Wrought / Formed, as applicable |
| Configuration | Seamless or welded, depending on size and specification |
| Heat Treatment | Annealed as applicable |
| Surface Finish | Mill Finish, Pickled or customer-specified finish |
| Testing | Chemical, mechanical, dimensional, visual and other specified inspections |
| Documentation | MTC, inspection reports and relevant quality documents as required |
| Customization | Size, thickness, schedule, angle, radius, finish, testing and documentation |
| Packing | Export-worthy packing suitable for safe international transportation |
| Applications | Chemical Processing, Caustic Handling, Food Processing, Pharmaceutical Equipment, Water Treatment and Industrial Process Piping |
What is a Nickel 200 Elbow?
A Nickel 200 Elbow is a commercially pure nickel butt-weld fitting used to change the direction of piping in chemical and industrial process systems
What is the UNS designation of Nickel 200?
The UNS designation is N02200.
What type of material is Nickel 200?
Nickel 200 is a commercially pure nickel alloy with high nickel content and controlled levels of other elements.
What material standard is commonly applicable to Nickel 200 Elbows?
ASTM B366 / ASME SB366 can be applicable to wrought nickel alloy fittings, subject to the exact product requirements.
Can Material Test Certificates be provided?
Yes. Material Test Certificates, inspection reports and relevant quality documents can be supplied according to customer and project requirements.
What testing can be provided?
Testing can include chemical analysis, mechanical testing, dimensional inspection, visual inspection, hydrostatic testing and other specified tests.
