Nickel 200 Socket Weld Elbow
| Specification | Details |
|---|---|
| Product Name | Incoloy 825 Socket Weld Tee |
| Material Grade | Incoloy 825 / Alloy 825 |
| UNS Designation | UNS N08825 |
| Werkstoff Number | W.Nr. 2.4858 |
| Material Type | Nickel-Iron-Chromium Alloy with Molybdenum, Copper and Titanium |
| Chemical Composition | Nickel approximately 38–46%, Chromium approximately 19.5–23.5%, Molybdenum approximately 2.5–3.5%, Copper approximately 1.5–3.5%, Titanium approximately 0.6–1.2%, Iron Balance |
| Fitting Type | Socket Weld Tee |
| Tee Type | Equal Tee / Reducing Tee |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / Passivated / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Incoloy 825 Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 825 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.14 g/cm³ |
| Melting Range | Approximately 1380–1400°C |
| Corrosion Resistance | Excellent resistance to general corrosion in aggressive chemical environments |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion under suitable service conditions |
| Chloride Resistance | Good resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Acid Resistance | Excellent resistance to selected sulfuric, phosphoric and reducing acid environments |
| High-Temperature Performance | Good mechanical stability and corrosion resistance within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Equal Socket Weld Tee / Reducing Socket Weld Tee / Forged Socket Weld Tee |
| Customization | Size, Tee Type, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 825 Socket Weld Tee Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Acid Processing, Marine Systems, Oil & Gas, Petrochemical, Pollution Control, Power Generation, Heat Exchangers and Corrosive Process Piping |
| Specification | Details |
|---|---|
| Product Name | Nickel 200 Socket Weld Elbow |
| Material Grade | Nickel 200 / Commercially Pure Nickel |
| UNS Designation | UNS N02200 |
| Werkstoff Number | W.Nr. 2.4066 |
| Material Type | Commercially Pure Nickel |
| Chemical Composition | Nickel 99.0% min, with controlled amounts of iron, carbon, manganese, silicon and sulfur as per applicable specification |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° Socket Weld Elbow |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Nickel 200 Material Specification and Condition |
| Yield Strength | As per Applicable Nickel 200 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.89 g/cm³ |
| Melting Range | Approximately 1435–1446°C |
| Corrosion Resistance | Excellent resistance to caustic alkalis, neutral and reducing environments |
| Alkali Resistance | Excellent resistance to concentrated caustic alkali solutions under suitable service conditions |
| Acid Resistance | Good resistance to selected reducing acids under appropriate conditions |
| Chloride Resistance | Good resistance to selected chloride-containing environments |
| Water Resistance | Good resistance to distilled, natural and flowing water under suitable conditions |
| High-Temperature Performance | Good mechanical and corrosion performance within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Elbow Angle, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Nickel 200 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Caustic Alkali Handling, Food Processing, Synthetic Fiber Production, Electronics, Aerospace, Marine Systems and Industrial Process Piping |
1. Most Common Types of Nickel 200 Socket Weld Elbow
| Type | Details |
|---|---|
| Nickel 200 45° Socket Weld Elbow | Used for changing the piping direction by 45° while maintaining a compact socket weld connection. |
| Nickel 200 90° Socket Weld Elbow | Commonly used for a 90° change in piping direction in industrial process systems. |
| Nickel 200 Forged Socket Weld Elbow | Forged construction provides reliable strength, durability and dimensional consistency. |
| Nickel 200 Precision Machined Elbow | Precision machining provides accurate socket dimensions and proper pipe alignment. |
| Nickel 200 Class 3000 Elbow | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Nickel 200 Class 6000 Elbow | Designed for higher-pressure industrial piping applications requiring Class 6000 fittings. |
| Nickel 200 Class 9000 Elbow | Used for specialized high-pressure piping systems requiring Class 9000 fittings. |
| Customized Nickel 200 Socket Weld Elbow | Available according to customer drawings, dimensions, elbow angle, pressure class, finish and testing requirements. |
2. Nickel 200 Socket Weld Elbow – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Nickel 200 Socket Weld Elbow |
| Material Grade | Nickel 200 / Commercially Pure Nickel |
| UNS Designation | UNS N02200 |
| Werkstoff Number | W.Nr. 2.4066 |
| Material Type | Commercially Pure Nickel |
| Chemical Composition | Nickel 99.0% min, with controlled amounts of iron, carbon, manganese, silicon and sulfur as per applicable specification |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° Socket Weld Elbow |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Nickel 200 Material Specification and Condition |
| Yield Strength | As per Applicable Nickel 200 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.89 g/cm³ |
| Melting Range | Approximately 1435–1446°C |
| Corrosion Resistance | Excellent resistance to caustic alkalis, neutral and reducing environments |
| Alkali Resistance | Excellent resistance to concentrated caustic alkali solutions under suitable service conditions |
| Acid Resistance | Good resistance to selected reducing acids under appropriate conditions |
| Chloride Resistance | Good resistance to selected chloride-containing environments |
| Water Resistance | Good resistance to distilled, natural and flowing water under suitable conditions |
| High-Temperature Performance | Good mechanical and corrosion performance within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Elbow Angle, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Nickel 200 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Caustic Alkali Handling, Food Processing, Synthetic Fiber Production, Electronics, Aerospace, Marine Systems and Industrial Process Piping |
3. Nickel 200 Socket Weld Elbow – Supply & Quality Details
| Supply Parameter | Available Options / Details |
|---|---|
| Material | Nickel 200 / UNS N02200 / W.Nr. 2.4066 |
| Elbow Configuration | 45° / 90° Socket Weld Elbow |
| Size Range | 1/8″ to 4″ NPS or As per Requirement |
| Pressure Classes | Class 3000 / 6000 / 9000 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Connection | Socket Weld |
| Standards | ASME B16.11 / ASTM B366 / ASME SB366, as applicable |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Annealed / As Required |
| Testing | Chemical / Mechanical / Dimensional / Visual / Hardness / PMI / Other Tests |
| Inspection | Dimensional, Visual and Material Inspection |
| Certification | EN 10204 3.1 / 3.2 |
| Marking | Size, Grade, Standard and Heat/Batch Identification |
| Material Traceability | Heat Number and Batch Identification as Applicable |
| Customization | Size, Elbow Angle, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Packing | Export-Worthy Protective Packaging |
| Documentation | MTC, Inspection Reports, Test Certificates and Other Documents as Required |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Nickel 200 Socket Weld Elbow Supply |
| Applications | Chemical Processing, Caustic Alkali Handling, Food Processing, Electronics, Marine, Aerospace and Industrial Process Piping |

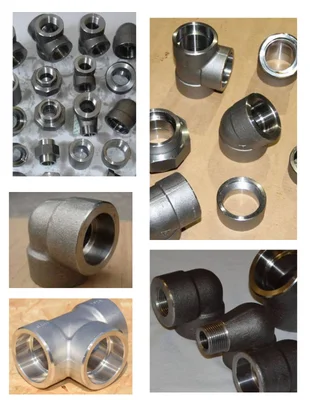

Most Common Types Of Nickel 200 Socket Weld Elbow
| Type | Details |
|---|---|
| Nickel 200 45° Socket Weld Elbow | Used to change the piping direction by 45° while providing a compact and secure socket weld connection. |
| Nickel 200 90° Socket Weld Elbow | Commonly used for a 90° change in piping direction in chemical and industrial process systems. |
| Nickel 200 Forged Socket Weld Elbow | Forged construction provides good mechanical strength, durability and dimensional consistency. |
| Nickel 200 Precision Machined Elbow | Precision machining provides accurate socket dimensions and reliable pipe alignment. |
| Nickel 200 Class 3000 Socket Weld Elbow | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Nickel 200 Class 6000 Socket Weld Elbow | Designed for higher-pressure piping applications requiring Class 6000 fittings. |
| Nickel 200 Class 9000 Socket Weld Elbow | Used for specialized high-pressure piping systems requiring Class 9000 fittings. |
| Customized Nickel 200 Socket Weld Elbow | Available according to customer drawings, elbow angle, dimensions, pressure class, surface finish, testing and documentation requirements. |
Why Should You Buy Nickel 200 Socket Weld Elbows from MetalX Nickel & Alloys?
- Experienced Nickel 200 Socket Weld Elbow Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant, high-performance and specialty nickel alloy products across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Nickel 200 Socket Weld Elbow Exporter offering Nickel 200 / Commercially Pure Nickel / UNS N02200 / W.Nr. 2.4066 Socket Weld Elbows according to applicable international standards and customer requirements.
- Global Nickel 200 Sourcing Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Nickel 200 Socket Weld Elbow Supplier providing commercially pure nickel fittings for applications requiring excellent resistance to caustic alkalis, reducing environments, corrosion resistance, good thermal stability and reliable mechanical performance.
- Wide Nickel Alloy Fittings Range including Nickel 200 Socket Weld Elbows, Nickel 200 Socket Weld Tees, Nickel 200 Socket Weld Couplings, Nickel 200 Socket Weld Unions, Nickel 200 Socket Weld Crosses, Nickel 201 Socket Weld Fittings, Incoloy Socket Weld Fittings, Inconel Socket Weld Fittings and Hastelloy Socket Weld Fittings.
They are commonly used in chemical processing, petrochemical plants, power generation, heat-treatment equipment, industrial furnaces, heat exchangers, thermal processing systems and high-temperature process piping .
| Key Feature | Details |
|---|---|
| Commercially Pure Nickel | Manufactured from Nickel 200 / UNS N02200, providing useful corrosion resistance and ductility. |
| Excellent Corrosion Resistance | Offers excellent resistance in many reducing and caustic environments. |
| Caustic Resistance | Suitable for caustic soda and alkaline service under appropriate operating conditions. |
| 45° & 90° Configurations | Available in 45-degree and 90-degree configurations for different piping layouts. |
| Socket Weld Connection | Provides a compact and secure welded joint suitable for appropriate industrial piping systems. |
| Compact Design | Suitable for space-constrained piping arrangements where a compact connection is preferred. |
| Good Ductility | Nickel 200 provides good ductility and useful mechanical properties across a broad temperature range. |
| High-Temperature Capability | Maintains useful mechanical performance within recommended service temperature limits. |
| Precision Dimensions | Accurate socket dimensions support proper pipe insertion, alignment and welding. |
| Multiple Pressure Classes | Available in Class 3000, 6000 and 9000 configurations, subject to size and applicable requirements. |
| Multiple Sizes | Commonly supplied from 1/8″ to 4″ NPS, with customized sizes available as required. |
| Standard Compliance | Can be supplied according to ASME B16.11 and applicable ASTM B366 / ASME SB366 requirements. |
| Custom Manufacturing | Elbow angle, dimensions, pressure class, wall thickness, finish, testing and documentation can be customized. |
| Inspection & Certification | Dimensional, visual, material and other required testing can be arranged with MTC documentation. |
| Export-Ready Packaging | Available with protective wooden cases, boxes, pallets or customized export packaging for safe transportation. |
| Specification | Details |
|---|---|
| Product Name | Nickel 200 Socket Weld Elbow |
| Material Grade | Nickel 200 |
| UNS Designation | UNS N02200 |
| Werkstoff Number | W.Nr. 2.4066 |
| Material Type | Commercially Pure Nickel |
| Chemical Composition | Nickel 99.0% min, with controlled amounts of iron, carbon, manganese, silicon and sulfur as per applicable specification |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° Socket Weld Elbow |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, subject to size and requirement |
| Schedule / Wall Thickness | As per applicable dimensional standard and customer requirements |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Pickled / Machined / Polished / As Specified |
| Heat Treatment | Annealed / As per Applicable Material Standard |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Visual / Hardness / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Nickel 200 Material Specification and Condition |
| Yield Strength | As per Applicable Nickel 200 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.89 g/cm³ |
| Melting Range | Approximately 1435–1446°C |
| Corrosion Resistance | Excellent resistance to many reducing and caustic environments |
| Alkali Resistance | Excellent resistance to caustic soda and alkaline solutions under suitable service conditions |
| Acid Resistance | Good resistance to selected reducing acids under appropriate conditions |
| Water Resistance | Good resistance to distilled, natural and flowing water under suitable conditions |
| Chloride Resistance | Good resistance to selected chloride-containing environments |
| High-Temperature Performance | Good mechanical stability and ductility within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Elbow Angle, Pressure Class, Wall Thickness, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class and Heat/Batch Identification as Applicable |
| Packaging | Export-Worthy Wooden Cases, Boxes, Pallets or Customized Packaging |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Nickel 200 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Caustic Handling, Food Processing, Synthetic Fiber Production, Marine Applications, Electrical & Electronic Equipment and Industrial Process Piping |
1. What is a Nickel 200 Socket Weld Elbow?
A Nickel 200 Socket Weld Elbow is a forged nickel-alloy pipe fitting used to change the direction of piping systems. It provides a compact socket weld connection and is suitable for various corrosive and industrial applications.
2. What is the material designation of Nickel 200?
Nickel 200 is commercially pure nickel identified by UNS N02200 and W.Nr. 2.4066 . It is known for good ductility and excellent resistance to many reducing and caustic environments.
3. What types of Nickel 200 Socket Weld Elbows are available?
The most common types are 45° Socket Weld Elbows and 90° Socket Weld Elbows . Forged and precision-machined options can also be supplied according to project requirements.
4. What sizes and pressure classes are available?
Nickel 200 Socket Weld Elbows are commonly supplied from 1/8″ to 4″ NPS , subject to requirements. Typical pressure classes include Class 3000, Class 6000 and Class 9000 , depending on size and applicable specifications.
5. Which standards are used for Nickel 200 Socket Weld Elbows?
The fittings can be manufactured dimensionally according to ASME B16.11 , with applicable material requirements according to ASTM B366 / ASME SB366 . Customer-specific specifications can also be accommodated.
6. Where are Nickel 200 Socket Weld Elbows used?
They are commonly used in chemical processing, caustic handling, food processing, synthetic fiber production, marine applications, electrical and electronic equipment, and industrial process piping , particularly where resistance to caustic and reducing environments is required.
