Inconel 600 Pipe
| Inconel 600 Pipe – Quick Information | Details |
|---|---|
| Available Brands | Nippon Steel, Sanyo Special Steel, Special Metals |
| Ex-Stock | — |
| Seamless Pipe Size | 4 to 219 mm |
| Welded Pipe Size | 5 to 1219.2 mm |
| Custom Size | Standard & Non-Standard Sizes Available |
| Saudi Arabian Standard | SASO 7507 |
| MTC | EN 10204 3.1 and 3.2 |
| Available Forms | Rectangular, Square, Round, Hexagon |
| Pipe End | Threaded, Beveled, Plain End |
| Origin | Japanese, European, Korean, American |
| HS Code | 7304319000 |
| Delivery Time – Bahrain | 9 Days |
| Delivery Time – France | 25–30 Days |
1. Inconel 600 Pipe – Standard Dimensions
| Size (NPS) | OD (in.) | WT (in.) | OD (mm) | WT (mm) |
|---|---|---|---|---|
| 20″ | 20.000 | 0.594 | 508.0 | 15.09 |
| 18″ | 18.000 | 0.562 | 457.0 | 14.27 |
| 16″ | 16.000 | 0.500 | 406.4 | 12.70 |
| 14″ | 14.000 | 0.437 | 355.6 | 11.13 |
| 12″ | 12.750 | 0.406 | 323.8 | 10.31 |
| 10″ | 10.750 | 0.365 | 273.0 | 9.27 |
| 8″ | 8.625 | 0.322 | 219.1 | 8.18 |
| 6″ | 6.625 | 0.280 | 168.3 | 7.11 |
| 5″ | 5.563 | 0.258 | 141.3 | 6.55 |
| 4″ | 4.500 | 0.237 | 114.3 | 6.02 |
| 3 1/2″ | 4.000 | 0.226 | 101.6 | 5.74 |
| 3″ | 3.500 | 0.216 | 88.9 | 5.49 |
| 2 1/2″ | 2.885 | 0.203 | 73.0 | 5.16 |
| 2″ | 2.375 | 0.154 | 60.3 | 3.91 |
| 1 1/2″ | 1.900 | 0.145 | 48.3 | 3.68 |
| 1 1/4″ | 1.660 | 0.140 | 42.2 | 3.56 |
| 1″ | 1.320 | 0.133 | 33.4 | 3.38 |
| 3/4″ | 1.050 | 0.113 | 26.7 | 2.88 |
| 1/2″ | 0.840 | 0.109 | 21.3 | 2.77 |
| 3/8″ | 0.680 | 0.091 | 17.1 | 2.31 |
| 1/4″ | 0.540 | 0.088 | 13.7 | 2.24 |
| 1/8″ | 0.410 | 0.068 | 10.3 | 1.73 |

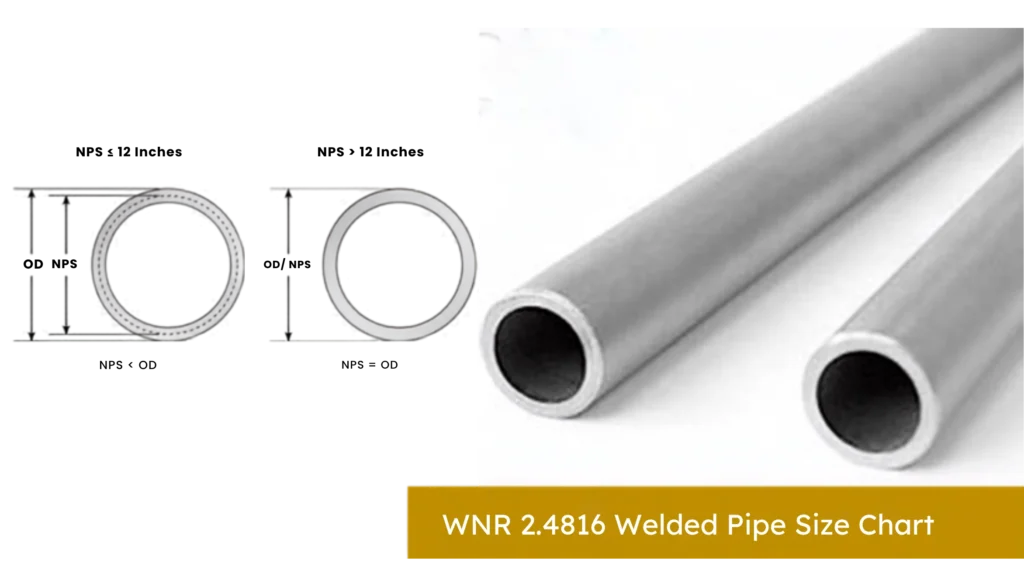

2. Dimensions of ASTM B167 UNS N06600 ERW Pipe
| NPS | OD (mm) | OD (in.) | WT (mm) | WT (in.) | Weight (lb/ft) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| 3/4″ | 27 | 1.050 | 2.880 | 0.113 | 1.131 | 1.684 |
| 3.912 | 0.154 | 1.474 | 2.195 | |||
| 1/2″ | 21 | 0.840 | 2.769 | 0.109 | 0.851 | 1.268 |
| 3.734 | 0.147 | 1.088 | 1.621 | |||
| 1″ | 33 | 1.315 | 3.378 | 0.133 | 1.679 | 2.501 |
| 4.547 | 0.179 | 2.172 | 3.325 | |||
| 1 1/2″ | 48 | 1.900 | 3.683 | 0.145 | 2.718 | 4.048 |
| 5.080 | 0.200 | 3.361 | 5.409 | |||
| 1 1/4″ | 42 | 1.660 | 3.556 | 0.140 | 2.273 | 3.385 |
| 4.851 | 0.191 | 2.997 | 4.464 | |||
| 2 1/2″ | 73 | 2.885 | 5.516 | 0.203 | 5.793 | 8.629 |
| 7.010 | 0.276 | 7.661 | 11.411 | |||
| 2″ | 60 | 2.375 | 3.912 | 0.154 | 3.653 | 5.441 |
| 5.537 | 0.218 | 5.022 | 7.480 | |||
| 3″ | 89 | 3.500 | 5.486 | 0.216 | 7.576 | 11.284 |
| 7.620 | 0.300 | 10.253 | 15.272 | |||
| 4″ | 114 | 4.500 | 6.020 | 0.237 | 10.790 | 16.073 |
| 8.560 | 0.337 | 14.983 | 22.318 | |||
| 6″ | 168 | 6.625 | 4.775 | 0.188 | 12.924 | 19.252 |
| 5.563 | 0.219 | 14.983 | 22.318 | |||
| 7.112 | 0.280 | 18.974 | 58.263 | |||
| 6.350 | 0.250 | 17.021 | 25.354 | |||
| 5.516 | 0.203 | 13.923 | 20.739 | |||
| 7.925 | 0.312 | 21.036 | 31.334 | |||
| 10.973 | 0.432 | 28.573 | 42.561 |
3. Nickel Alloy 600 Clad Pipe – Schedule Chart
| O.D. (in.) | Nominal Size | 80 | 10 | 80S & E.H. | 40S & Std | 10S | 40 | 160 |
|---|---|---|---|---|---|---|---|---|
| 0.540 | 1/4″ | 0.119 | 0.065 | 0.119 | 0.088 | 0.065 | 0.088 | — |
| 0.405 | 1/8″ | 0.095 | 0.049 | 0.095 | 0.068 | 0.049 | 0.068 | — |
| 0.675 | 3/8″ | 0.126 | 0.065 | 0.126 | 0.091 | 0.065 | 0.091 | — |
| 1.050 | 3/4″ | 0.154 | 0.083 | 0.154 | 0.113 | 0.083 | 0.113 | 0.218 |
| 0.840 | 1/2″ | 0.147 | 0.083 | 0.147 | 0.109 | 0.083 | 0.109 | 0.187 |
| 1.315 | 1″ | 0.179 | 0.109 | 0.179 | 0.133 | 0.109 | 0.133 | 0.250 |
| 1.900 | 1 1/2″ | 0.200 | 0.109 | 0.200 | 0.145 | 0.109 | 0.145 | 0.281 |
| 1.660 | 1 1/4″ | 0.191 | 0.109 | 0.191 | 0.140 | 0.109 | 0.140 | 0.250 |
| 2.375 | 2″ | 0.218 | 0.109 | 0.218 | 0.154 | 0.109 | 0.154 | 0.343 |
| 3.500 | 3″ | 0.300 | 0.120 | 0.300 | 0.216 | 0.120 | 0.216 | 0.437 |
| 2.885 | 2 1/2″ | 0.276 | 0.120 | 0.276 | 0.203 | 0.120 | 0.203 | 0.375 |
| 4.000 | 3 1/2″ | 0.318 | 0.120 | 0.318 | 0.226 | 0.120 | 0.226 | — |
| 5.000 | 4 1/2″ | — | — | 0.355 | 0.247 | — | — | — |
| 4.500 | 4″ | 0.337 | 0.120 | 0.337 | 0.237 | 0.120 | 0.237 | 0.531 |
| 5.563 | 5″ | 0.375 | 0.134 | 0.375 | 0.258 | 0.134 | 0.258 | 0.625 |
| 7.625 | 7″ | — | — | 0.500 | 0.301 | — | — | — |
| 6.625 | 6″ | 0.432 | 0.134 | 0.432 | 0.280 | 0.134 | 0.280 | 0.718 |
| 8.625 | 8″ | 0.500 | 0.148 | 0.500 | 0.322 | 0.148 | 0.322 | 0.906 |
| 18.000 | 18″ | 0.937 | 0.250 | 0.500 | 0.375 | 0.188 | 0.562 | 1.781 |
| 10.750 | 10″ | 0.593 | 0.165 | 0.500 | 0.365 | 0.165 | 0.365 | 1.125 |
| 9.625 | 9″ | — | — | 0.500 | 0.342 | — | — | — |
| 12.750 | 12″ | 0.687 | 0.180 | 0.500 | 0.375 | 0.180 | 0.406 | 1.312 |
| 14.000 | 14″ | 0.750 | 0.250 | 0.500 | 0.375 | 0.188 | 0.437 | 1.406 |
| 11.750 | 11″ | — | — | 0.500 | 0.375 | — | — | — |
| 16.000 | 16″ | 0.843 | 0.250 | 0.500 | 0.375 | 0.188 | 0.500 | 1.593 |
Most Common Types Of Inconel 600 Pipe
Inconel 600 Seamless Pipe
Alloy 600 Welded Pipe
WNR 2.4816 Annealed Pipe
Why Should You Buy From MetalX Nickel & Alloys?
- Distributor of renowned Nickel Alloy Mills across Europe and the USA.
- Over 2 decades of experience as a supplier of high-temperature alloys in Dubai (UAE), Saudi Arabia, and Africa.
- One of the largest stockists of Nickel Alloy flat products in Mumbai.
- Ready stock of Sheets, Coils, Strips, and Bars available in over 50 sizes across Al Jubail, Abu Dhabi, Muscat, and South Africa.
- Cut-to-size facility available at no extra cost.
- Weekly delivery services to Nigeria, Qatar, Dammam, Sharjah, and Singapore.
- NACE-certified materials available at competitive dealer prices.
- Special resale pricing for traders, wholesalers, importers, and stockholders across MENA countries.
- Technical Data Sheets and Material Test Certificates (MTC) provided along with quotations.
- Free samples and latest price lists available on request.
- Trusted supplier to the Heat Exchanger, Instrumentation, Oil & Gas, and other industrial sectors.
- Weight comparison charts and price-per-kg comparisons for materials sourced from China and India.
Key Features of Inconel 600 Pipes
Inconel 600 Pipes are engineered for demanding industrial applications where corrosion resistance, oxidation resistance, mechanical strength, and high-temperature performance are essential. The alloy’s high nickel content provides excellent resistance to many reducing environments, while chromium enhances its resistance to oxidizing conditions.
Why Choose Inconel 600 Pipes?
- Excellent Corrosion Resistance: Performs reliably in a wide range of corrosive environments.
- High Oxidation Resistance: Chromium content provides strong resistance to oxidation at elevated temperatures.
- Excellent Temperature Capability: Maintains reliable performance in high-temperature industrial applications.
- Resistance to Stress Corrosion Cracking: Offers good resistance to chloride-ion stress corrosion cracking.
- High Mechanical Strength: Provides dependable strength and durability under demanding operating conditions.
- Versatile Industrial Applications: Suitable for chemical processing, petrochemical equipment, heat-treatment systems, furnace components, and industrial piping.
Reliable Performance for Demanding Applications
The actual performance of an Inconel 600 Pipe depends on several factors, including operating temperature, pressure, chemical concentration, flow conditions, pipe dimensions, manufacturing condition, and welding procedure. Therefore, proper material selection should always consider the complete operating environment rather than relying on the alloy grade alone.
METALX NICKEL & ALLOYS can supply Inconel 600 Pipes in accordance with applicable material standards and customer specifications, helping buyers select the right size, wall thickness, manufacturing form, and finish for their specific industrial requirements.
| Specification | Details |
|---|---|
| Product | Inconel 600 Pipe |
| Alloy | Inconel 600 |
| UNS Number | N06600 |
| Werkstoff Number | 2.4816 |
| Product Type | Seamless Pipe / Welded Pipe |
| Material | Nickel-Chromium-Iron Alloy |
| Applicable ASTM/ASME | ASTM B167, ASTM B517, ASTM B775, ASTM B829, ASME SB167, as applicable |
| Size | As per customer requirement |
| Wall Thickness | As per required schedule or specification |
| Length | Standard or custom length |
| Form | Round Pipe |
| Surface Finish | Mill Finish or as specified |
| End Type | Plain End, Beveled End or as specified |
| Manufacturing | Cold Drawn, Cold Worked, Hot Finished or Welded, depending on specification |
| Testing | Dimensional, mechanical, chemical and other tests as specified |
| Inspection | Mill Test Certificate and third-party inspection where required |
| Application | Chemical Processing, Heat Treatment, Petrochemical, Furnace Equipment and Industrial Piping |
