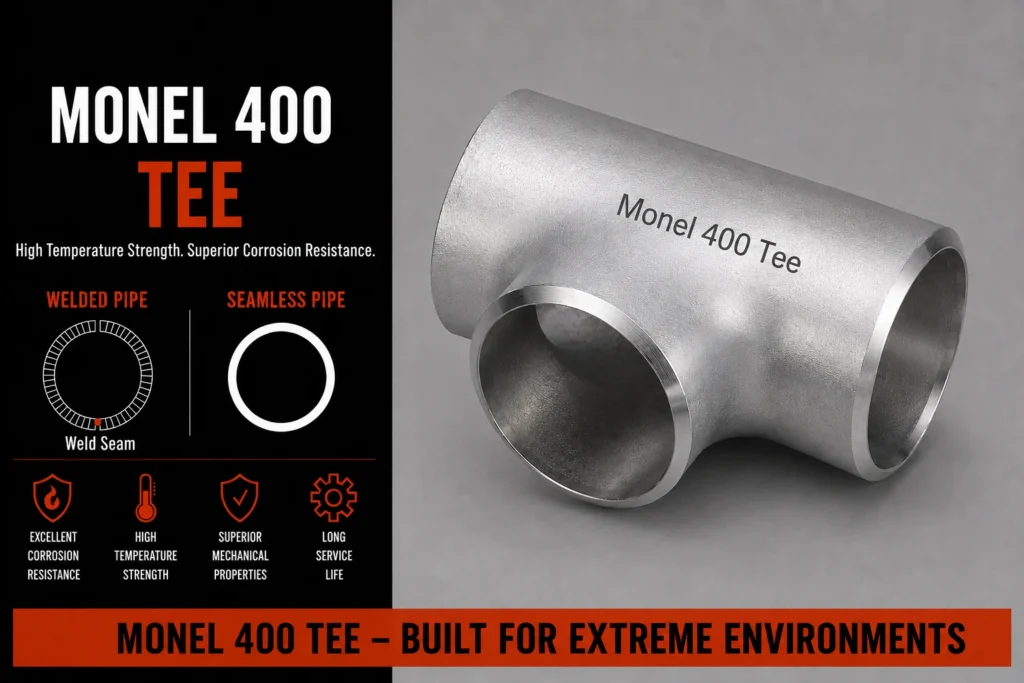

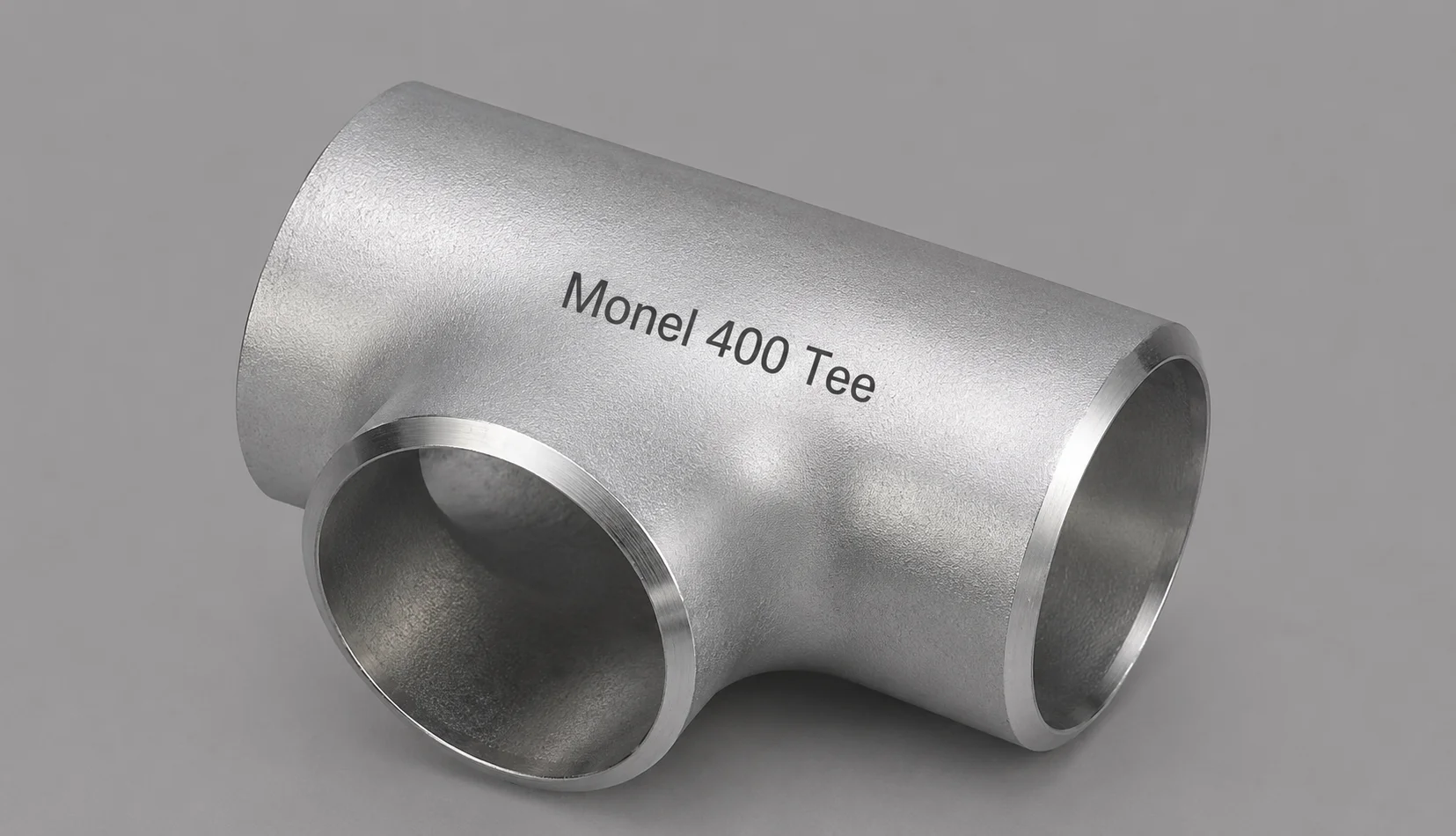

Monel 400 Tee
| Specification Monel 400 Tee Details | |
|---|---|
| Product Name | Monel 400 Tee |
| Material Grade | Monel 400 / Alloy 400 |
| UNS Designation | UNS N04400 |
| Werkstoff Number | W.Nr. 2.4360 |
| Material Type | Nickel-Copper Alloy |
| Chemical Composition | Nickel 63% min, Copper 28–34%, Iron 2.5% max, Manganese 2% max, Carbon 0.30% max, Silicon 0.50% max |
| Manufacturing Type | Seamless / Welded / Hot Formed / Cold Formed |
| Fitting Standard | ASTM B366 / ASME SB366 |
| Dimensional Standard | ASME B16.9 |
| Tee Type | Equal Tee / Reducing Tee |
| Size | NPS 1/2 to NPS 48 or as required |
| Outside Diameter | As per ASME B16.9 / Customer Requirement |
| Wall Thickness | SCH 5S, 10S, 10, 40S, 40, 80S, 80, 100, 120, 140, 160, XXS or as required |
| Branch Size | Equal / Reduced Branch as specified |
| End Type | Butt Weld / Beveled End / Customized |
| Surface Finish | Mill Finish / Pickled / Annealed / Polished / Customized |
| Heat Treatment | Annealed / Stress Relieved as applicable |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hydrostatic, PMI and NDT as specified |
| Tensile Strength | Minimum approximately 483 MPa |
| Yield Strength | Minimum approximately 193 MPa |
| Elongation | Minimum approximately 35% |
| Density | Approximately 8.80 g/cm³ |
| Melting Range | Approximately 1300–1350°C |
| Corrosion Resistance | Excellent resistance to seawater, hydrofluoric acid, alkalies, neutral and reducing environments |
| Seawater Resistance | Excellent resistance to flowing seawater and marine environments |
| Chemical Resistance | Excellent resistance to hydrofluoric acid, alkaline solutions and many non-oxidizing acids |
| High-Temperature Resistance | Good resistance to elevated-temperature service and oxidation |
| Welding | Good weldability using suitable Monel 400-compatible welding procedures |
| Filler Metal | ENiCu-7 / ERNiCu-7 |
| Welding Electrode | ENiCu-7 |
| Available Form | Equal Tee / Reducing Tee |
| Customization | Size, Schedule, Branch Size, End Preparation, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Marine Engineering, Oil & Gas, Chemical Processing, Petrochemical, Seawater Equipment, Heat Exchangers, Pump & Valve Components, Offshore and Process Industries |
Monel 400 Tee – Standard Dimensions
| NPS | Outside Diameter (mm) | Outside Diameter (in.) | Typical Schedule Range |
|---|---|---|---|
| 1/2″ | 21.34 | 0.840 | SCH 5S–XXS |
| 3/4″ | 26.67 | 1.050 | SCH 5S–XXS |
| 1″ | 33.40 | 1.315 | SCH 5S–XXS |
| 1-1/4″ | 42.16 | 1.660 | SCH 5S–XXS |
| 1-1/2″ | 48.26 | 1.900 | SCH 5S–XXS |
| 2″ | 60.33 | 2.375 | SCH 5S–XXS |
| 2-1/2″ | 73.03 | 2.875 | SCH 5S–XXS |
| 3″ | 88.90 | 3.500 | SCH 5S–XXS |
| 4″ | 114.30 | 4.500 | SCH 5S–XXS |
| 5″ | 141.30 | 5.563 | SCH 5S–XXS |
| 6″ | 168.28 | 6.625 | SCH 5S–XXS |
| 8″ | 219.08 | 8.625 | SCH 5S–XXS |
| 10″ | 273.05 | 10.750 | SCH 5S–XXS |
| 12″ | 323.85 | 12.750 | SCH 5S–XXS |
| 14″ | 355.60 | 14.000 | SCH 5S–XXS |
| 16″ | 406.40 | 16.000 | SCH 5S–XXS |
| 18″ | 457.20 | 18.000 | SCH 5S–XXS |
| 20″ | 508.00 | 20.000 | SCH 5S–XXS |
| 24″ | 609.60 | 24.000 | SCH 5S–XXS |
| 30″ | 762.00 | 30.000 | As Required |
| 36″ | 914.40 | 36.000 | As Required |
| 42″ | 1066.80 | 42.000 | As Required |
| 48″ | 1219.20 | 48.000 | As Required |
Monel 400 Tee – Equal & Reducing Tee Sizes
| Run Size | Branch Size | Tee Type | Outside Diameter |
|---|---|---|---|
| 1/2″ | 1/2″ | Equal Tee | 21.34 mm |
| 3/4″ | 3/4″ | Equal Tee | 26.67 mm |
| 1″ | 1″ | Equal Tee | 33.40 mm |
| 1-1/4″ | 1-1/4″ | Equal Tee | 42.16 mm |
| 1-1/2″ | 1-1/2″ | Equal Tee | 48.26 mm |
| 2″ | 2″ | Equal Tee | 60.33 mm |
| 2-1/2″ | 2-1/2″ | Equal Tee | 73.03 mm |
| 3″ | 3″ | Equal Tee | 88.90 mm |
| 4″ | 4″ | Equal Tee | 114.30 mm |
| 6″ | 6″ | Equal Tee | 168.28 mm |
| 8″ | 8″ | Equal Tee | 219.08 mm |
| 10″ | 10″ | Equal Tee | 273.05 mm |
| 12″ | 12″ | Equal Tee | 323.85 mm |
| 2″ | 1″ | Reducing Tee | 60.33 / 33.40 mm |
| 3″ | 2″ | Reducing Tee | 88.90 / 60.33 mm |
| 4″ | 2″ | Reducing Tee | 114.30 / 60.33 mm |
| 4″ | 3″ | Reducing Tee | 114.30 / 88.90 mm |
| 6″ | 4″ | Reducing Tee | 168.28 / 114.30 mm |
| 8″ | 6″ | Reducing Tee | 219.08 / 168.28 mm |
| 10″ | 8″ | Reducing Tee | 273.05 / 219.08 mm |
| 12″ | 10″ | Reducing Tee | 323.85 / 273.05 mm |
Monel 400 Tee – Size & Type Chart
| Size Range | Tee Type | Available Finish | Supply Condition | End Connection |
|---|---|---|---|---|
| 1/2″–2″ | Equal / Reducing | Bright / Pickled / Polished | Annealed | Butt Weld / Customized |
| 2-1/2″–4″ | Equal / Reducing | Mill / Pickled / Polished | Annealed | Butt Weld |
| 5″–8″ | Equal / Reducing | Mill / Pickled / Machined | Annealed | Butt Weld |
| 10″–12″ | Equal / Reducing | Mill / Pickled / Machined | Annealed | Butt Weld |
| 14″–18″ | Equal / Reducing | Mill / Machined | Annealed | Butt Weld |
| 20″–24″ | Equal / Reducing | Mill / Machined | Annealed | Butt Weld |
| 30″–36″ | Equal / Reducing | Mill / Machined | Annealed | Butt Weld |
| 42″–48″ | Equal / Reducing | Mill / Machined | Annealed | Butt Weld |
Why Should You Buy Monel 400 Tees from Metalx Nickel & Alloys?
- Experienced Monel 400 Tee Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant and high-performance alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Monel 400 Exporter offering Monel 400 / UNS N04400 Tees for demanding marine, chemical and industrial applications.
- Global Sourcing Network with access to reputed nickel alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Nickel Alloy Fittings Range including Monel 400, Monel K500, Hastelloy, Inconel, Incoloy and other specialized nickel alloy fittings.
- Ready Stock Availability for selected Monel 400 Tee sizes, subject to current stock and availability.
- Custom Monel 400 Tee Supply according to customer drawings, size, schedule, wall thickness and branch dimensions.
- Equal & Reducing Tee Supply for standard and specialized industrial piping requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B366 / ASME SB366, where applicable.
- ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
- Visual & Hardness Testing Support can be arranged where required by the applicable specification or purchase order.
- Custom Surface Finish – Mill finish or other specified finishes can be supplied according to requirements.
- Export-Ready Packing designed to protect Monel 400 Tees during handling, storage and international transportation.
- Worldwide Monel 400 Tee Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Monel 400 Tee Export Support for EPC contractors, engineering companies, marine industries, chemical plants, petroleum-processing facilities, heat-exchanger manufacturers and specialized industrial buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, branch dimensions, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Monel 400 Tee shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Monel 400 Tee
- Nickel-Copper Alloy Construction – Manufactured from Monel 400 for demanding industrial applications.
- Excellent Seawater Resistance – Particularly useful for marine and seawater service.
- Good Corrosion Resistance – Provides resistance to many corrosive environments.
- Good Chloride Resistance – Suitable for selected chloride-containing applications.
- Resistance to Hydrofluoric Acid – Useful in suitable hydrofluoric acid service conditions.
- Good Alkaline Resistance – Provides useful resistance to many alkaline environments.
- Reliable Butt-Weld Connection – Provides a permanent welded connection for industrial piping.
- Equal Tee Configuration – Suitable where the branch and run have the same nominal size.
- Reducing Tee Configuration – Suitable where a smaller branch connection is required.
- Efficient Branch Connection – Allows process lines to be divided or connected within a piping system.
- Wide Size Availability – Available in different nominal sizes and outside diameters.
- Multiple Wall Thicknesses – Different schedules and customized thicknesses can be supplied.
- Good Mechanical Strength – Provides useful strength for demanding piping applications.
- Good Weldability – Suitable for fabrication using qualified welding procedures.
- Good Fabrication Characteristics – Can be processed using appropriate industrial practices.
- Annealed Options – Can be supplied in applicable annealed conditions.
- Marine Applications – Suitable for selected seawater and marine piping systems.
- Chemical Processing Applications – Can be considered for corrosive chemical process piping.
- Petroleum Processing Applications – Suitable for selected petroleum and hydrocarbon processing systems.
- Heat Exchanger Applications – Useful for selected heat-transfer and process equipment.
- Water System Applications – Suitable for selected industrial water and seawater systems.
- Custom Branch Dimensions – Branch size and configuration can be supplied according to project requirements.
- Multiple Surface Options – Mill finish or other specified finishes can be supplied.
- Material Traceability – Material identification and relevant certificates can be supplied as required.
- Quality Testing Available – Chemical, mechanical, dimensional, visual and other specified inspections can be arranged.
- Export-Ready Material – Tees can be suitably packed for handling and international transportation.
- Global Monel 400 Tee Exporter – METALX NICKEL & ALLOYS supplies Monel 400 Tees to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Monel 400 Tee Details |
|---|---|
| Product Name | Monel 400 Tee |
| Material Grade | Monel 400 |
| UNS Designation | N04400 |
| Werkstoff Number | 2.4360 / 2.4361 |
| Material Type | Nickel-Copper Alloy |
| Nickel Content | Approximately 63% minimum |
| Copper Content | Approximately 28%–34% |
| Material Standard | ASTM B366 / ASME SB366, where applicable |
| Dimensional Standard | ASME B16.9, where applicable |
| Tee Type | Equal Tee / Reducing Tee |
| Connection Type | Butt Weld |
| Size | As per applicable standard or customer specification |
| Wall Thickness | Different schedules and customized thicknesses |
| Branch Size | Equal or reducing branch sizes as required |
| Manufacturing | Wrought / Formed, as applicable |
| Surface Finish | Mill Finish or customer-specified finish |
| Heat Treatment | Annealed or as applicable |
| End Preparation | Bevelled Ends for Butt Welding |
| Testing | Chemical, mechanical, dimensional, visual and other specified inspections |
| Documentation | MTC, inspection reports and relevant quality documents as required |
| Customization | Size, thickness, branch dimensions, finish, testing and documentation |
| Packing | Export-worthy packing suitable for safe international transportation |
| Applications | Marine Engineering, Chemical Processing, Petroleum Processing, Petrochemical, Heat Exchangers, Water Systems and Industrial Piping |
What is a Monel 400 Tee?
A Monel 400 Tee is a nickel-copper alloy butt-weld fitting used to create a branch connection in industrial piping systems.
What is the UNS designation of Monel 400?
The UNS designation is N04400.
What type of alloy is Monel 400?
Monel 400 is a nickel-copper alloy containing approximately 63% minimum nickel and approximately 28%–34% copper.
What material standard is commonly applicable to Monel 400 Tees?
ASTM B366 / ASME SB366 can be applicable to wrought nickel alloy fittings, subject to the exact product requirements.
What dimensional standard is used for Monel 400 Tees?
ASME B16.9 is commonly applicable for dimensions and tolerances of wrought butt-welding fittings.
What types of Monel 400 Tees are available?
The common configurations are Equal Tee and Reducing Tee.
