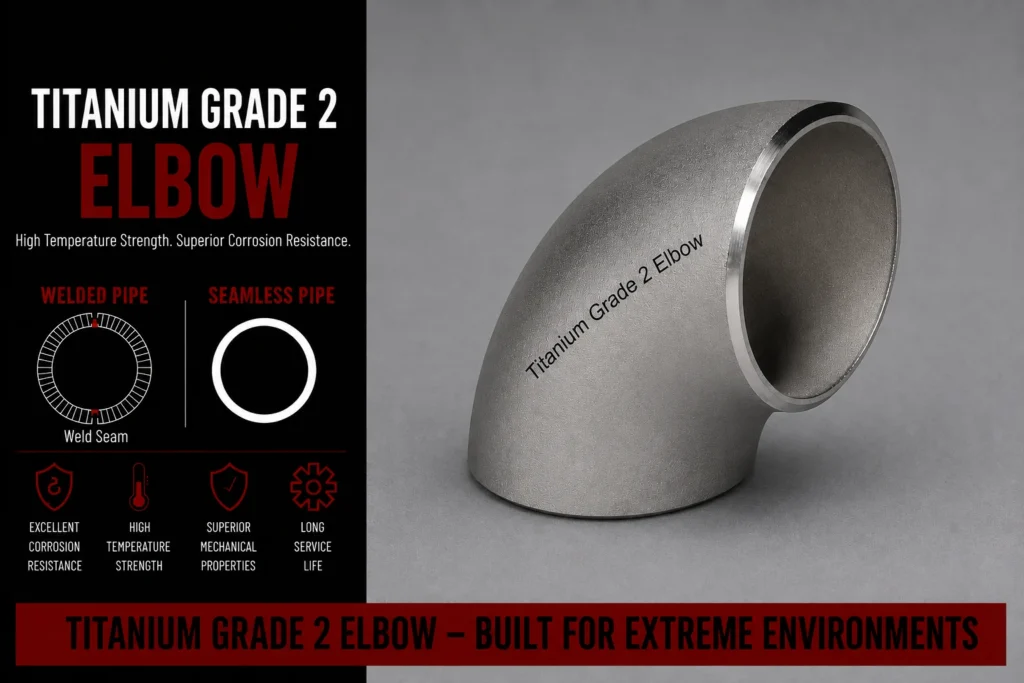

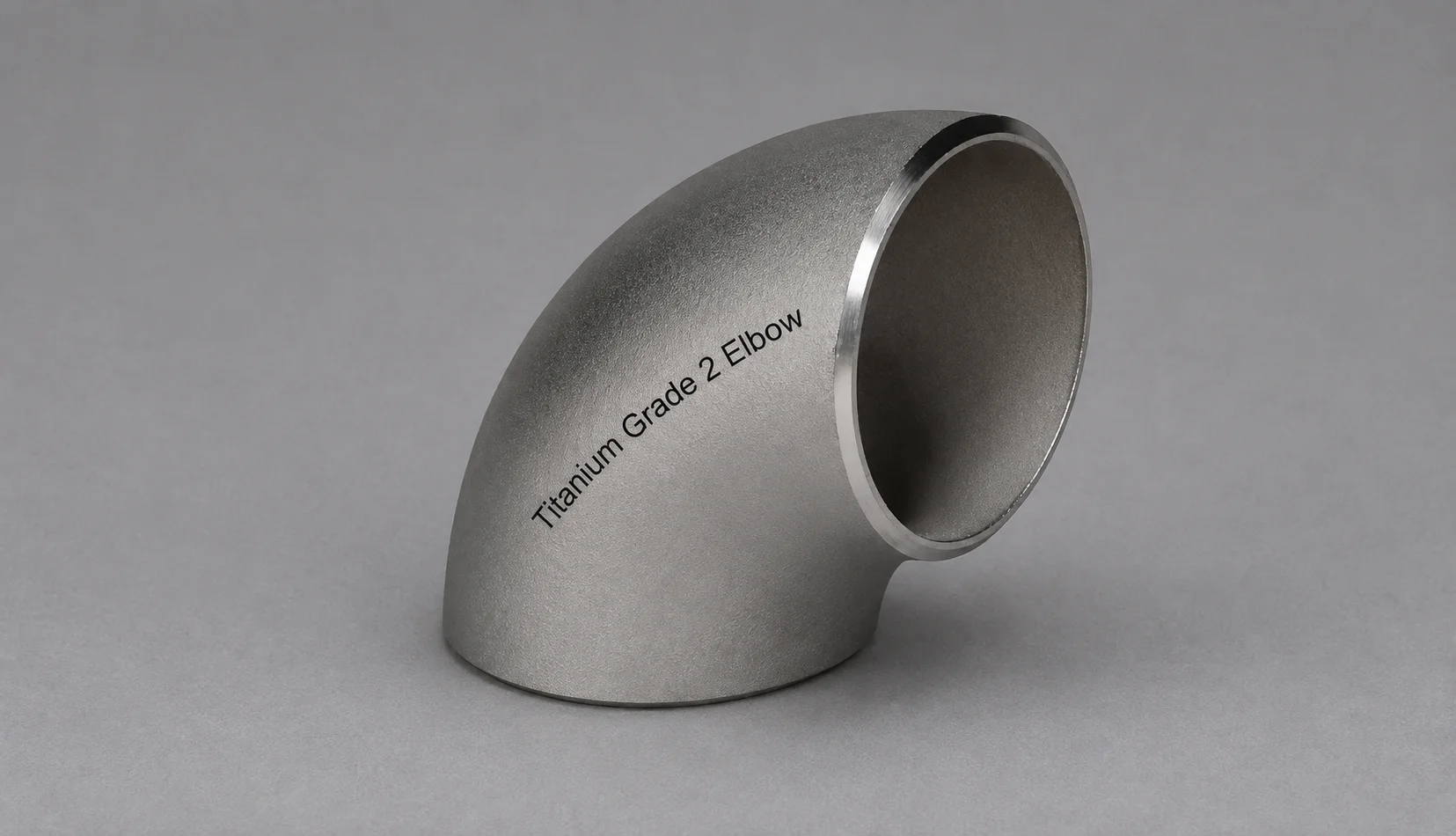

Titanium Grade 2 Elbow
- Home
- /
- Butt Weld Fittings
- /
- Titanium Butt Weld Fittings
- /
- Titanium Grade 2 Elbow
| Parameter | Titanium Grade 2 Elbow Details |
|---|---|
| Product Name | Titanium Grade 2 Elbow |
| Material Grade | Titanium Grade 2 |
| UNS Number | R50400 |
| Werkstoff Number | 3.7035 |
| Material Type | Commercially Pure Titanium |
| Titanium Content | Balance / Commercially Pure Titanium |
| Product Standard | ASTM B363 / ASME SB363 |
| Dimensional Standard | ASME B16.9 |
| Elbow Configuration | Long Radius / Short Radius |
| Elbow Angle | 45° / 90° / 180° Return |
| Bend Radius | 1D / 1.5D / Custom |
| Nominal Size | 1/2″ to 48″ |
| Manufacturing | Seamless / Welded / Fabricated |
| Wall Thickness | SCH 5S–SCH 160 / Custom |
| End Connection | Butt Weld |
| End Preparation | Beveled / Plain / Customized |
| Heat Treatment | As per applicable specification |
| Surface Finish | Mill / Pickled / Polished |
| Tensile Strength | Approx. 345 MPa minimum |
| Yield Strength | Approx. 275 MPa minimum |
| Elongation | Approx. 20% minimum |
| Density | Approx. 4.51 g/cm³ |
| Corrosion Resistance | Excellent resistance to many chloride, seawater and oxidizing environments |
| Chloride Resistance | Excellent |
| Seawater Performance | Excellent |
| Weldability | Good with proper shielding and titanium welding procedures |
| Inspection | PMI / Visual / Dimensional / Mechanical / NDT |
| Certification | EN 10204 3.1 / 3.2 |
| Traceability | Heat Number / Batch Identification |
| Customization | Special angle, radius, thickness and dimensions |
| Supply | Domestic & Worldwide Export |
| Applications | Chemical Processing, Desalination, Seawater Systems, Heat Exchangers, Chlor-Alkali, Marine, Power Generation and Process Piping |
Titanium Grade 2 Elbow – Standard Dimensions
| NPS | Outside Diameter (mm) | LR Center-to-End (mm) | SR Center-to-End (mm) |
|---|---|---|---|
| 1/2″ | 21.34 | 38 | 25 |
| 3/4″ | 26.67 | 38 | 25 |
| 1″ | 33.40 | 38 | 25 |
| 1-1/4″ | 42.16 | 48 | 32 |
| 1-1/2″ | 48.26 | 57 | 38 |
| 2″ | 60.33 | 76 | 51 |
| 2-1/2″ | 73.03 | 95 | 64 |
| 3″ | 88.90 | 114 | 76 |
| 4″ | 114.30 | 152 | 102 |
| 5″ | 141.30 | 190 | 127 |
| 6″ | 168.28 | 229 | 152 |
| 8″ | 219.08 | 305 | 203 |
| 10″ | 273.05 | 381 | 254 |
| 12″ | 323.85 | 457 | 305 |
| 14″ | 355.60 | 533 | 356 |
| 16″ | 406.40 | 610 | 406 |
| 18″ | 457.20 | 686 | 457 |
| 20″ | 508.00 | 762 | 508 |
| 24″ | 609.60 | 914 | 610 |
Titanium Grade 2 Elbow – Configuration Options
| Feature | Available Options |
|---|---|
| Elbow Angle | 45° / 90° / 180° |
| Bend Radius | 1D / 1.5D / Custom |
| Size Range | 1/2″–48″ |
| Schedule | SCH 5S / 10S / 40S / 80S / Custom |
| Construction | Seamless / Welded / Fabricated |
| Connection | Butt Weld |
| End Preparation | Beveled / Plain / Special |
| Surface Finish | Mill / Pickled / Polished |
| Wall Thickness | Standard / Heavy Wall / Custom |
| Heat Treatment | As Required by Specification |
| Special Radius | Available on request |
| Custom Dimensions | Available as per approved drawing |
| Special Testing | Available for critical-service applications |
Titanium Grade 2 Elbow – Testing & Quality Details
| Quality Parameter | Inspection / Requirement |
|---|---|
| Material Verification | PMI / Chemical Analysis |
| Mechanical Testing | Tensile / Yield / Elongation |
| Dimensional Checks | OD / Thickness / Radius / Angle / Ovality |
| Visual Examination | Surface & workmanship |
| NDT Options | UT / RT / PT as specified |
| Weld Inspection | As per applicable welding specification |
| Surface Inspection | Pickling / Cleaning Verification |
| Documentation | MTC / EN 10204 3.1 / 3.2 |
| Traceability | Heat Number / Batch Number |
| Third-Party Inspection | Available |
| Packing | Export-Grade Wooden Cases / Bundles |
| Custom Testing | Project-specific requirements available |
Why Should You Buy Titanium Grade 2 Elbows from Metalx Nickel & Alloys?
- Experienced Titanium Grade 2 Elbow Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Alloy Industry Experience in supplying corrosion-resistant and high-performance alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Titanium Exporter offering Titanium Grade 2 / UNS R50400 / 3.7035 Elbows for demanding corrosive applications.
- Commercially Pure Titanium Expertise for applications requiring excellent resistance to seawater, chlorides and selected chemical media.
- Global Sourcing Network with access to reputed titanium mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Titanium Product Range including Titanium Grade 1, Grade 2, Grade 5 and other titanium products, subject to requirements.
- Ready Stock Availability for selected Titanium Grade 2 Elbow sizes, subject to current stock and availability.
- Custom Titanium Grade 2 Elbow Supply according to customer drawings, size, schedule, wall thickness, radius and angle.
- 45° & 90° Elbow Supply for standard and specialized industrial piping requirements.
- Long & Short Radius Options available according to project requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B363 / ASME SB363, where applicable.
- ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- PMI Testing Support for positive material identification where required.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
- Visual & Hardness Testing Support can be arranged where required by the applicable specification or purchase order.
- NDT Support including applicable ultrasonic or radiographic examination where specified.
- Custom Surface Finish can be arranged according to the applicable specification.
- Export-Ready Packing designed to protect Titanium Grade 2 Elbows during handling, storage and international transportation.
- Worldwide Titanium Grade 2 Elbow Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Titanium Grade 2 Elbow Export Support for EPC contractors, engineering companies, chemical plants, chlor-alkali facilities, desalination plants, marine projects, heat-exchanger manufacturers and specialized industrial buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, radius, angle, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Titanium Grade 2 Elbow shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Inconel 600 Cap
- Nickel-Chromium Alloy Construction – Manufactured from Inconel Alloy 600 for demanding industrial piping applications.
- Excellent Corrosion Resistance – Provides strong resistance to many corrosive environments.
- Good Oxidation Resistance – Performs well in elevated-temperature oxidizing conditions.
- Good Resistance to Chloride Stress Corrosion Cracking – Suitable for selected chloride-containing environments.
- High-Temperature Performance – Suitable for selected high-temperature process piping systems.
- Good Mechanical Strength – Provides useful mechanical performance under demanding operating conditions.
- Reliable Pipe Closure – Butt-weld caps provide a permanent method for closing the end of a piping system.
- Butt-Weld Configuration – Designed for welding directly to compatible pipe ends.
- Wrought Construction – Can be supplied as wrought or formed fittings according to applicable requirements.
- Seamless & Welded Options – Product configuration can be supplied according to size, specification and availability.
- Wide Size Availability – Available in different nominal pipe sizes.
- Multiple Wall Thicknesses – Different schedules and customized wall thicknesses can be supplied.
- Good Fabrication Compatibility – Suitable for industrial piping fabrication using qualified procedures.
- Chemical Processing Applications – Suitable for selected corrosive chemical service systems.
- Petrochemical Applications – Can be considered for selected petrochemical piping systems.
- Power Generation Applications – Suitable for selected high-temperature piping and process equipment.
- Furnace Applications – Can be considered for selected furnace and heat-treatment installations.
- Aerospace Applications – Suitable for selected aerospace-related process equipment.
- Nuclear-Related Applications – Can be considered for selected applications where the required material and design specifications permit.
- High-Temperature Process Lines – Suitable for selected piping systems exposed to elevated temperatures.
- Multiple Surface Options – Mill finish or other specified finishes can be supplied.
- Custom Dimensions – Size and wall thickness can be supplied according to project requirements.
- Reliable Material Traceability – Material identification and relevant certificates can be supplied according to order requirements.
- Quality Testing Available – Dimensional, material, visual and other specified inspections can be arranged.
- Export-Ready Material – Caps can be suitably packed for handling, storage and international transportation.
- Global Inconel 600 Cap Exporter – METALX NICKEL & ALLOYS supplies Inconel 600 Caps to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Titanium Grade 2 Elbow Details |
|---|---|
| Product Name | Titanium Grade 2 Elbow |
| Material Grade | Titanium Grade 2 |
| UNS Designation | R50400 |
| Werkstoff Number | 3.7035 |
| Material Type | Commercially Pure Titanium |
| Material Standard | ASTM B363 / ASME SB363, where applicable |
| Dimensional Standard | ASME B16.9, where applicable |
| Elbow Type | Butt Weld Elbow |
| Elbow Angle | 45°, 90° and customized angles where applicable |
| Radius | Long Radius / Short Radius |
| Connection Type | Butt Weld |
| Size | As per applicable standard or customer specification |
| Wall Thickness | Different schedules and customized thicknesses |
| Manufacturing | Wrought / Formed, as applicable |
| Configuration | Seamless / Welded, depending on size and specification |
| End Preparation | Bevelled Ends for Butt Welding |
| Heat Treatment | As per applicable specification |
| Surface Finish | Mill Finish, Pickled or customer-specified finish |
| Testing | Chemical, mechanical, dimensional, visual, PMI and other specified inspections |
| Documentation | MTC, inspection reports and relevant quality documents as required |
| Customization | Size, thickness, schedule, angle, radius, finish, testing and documentation |
| Packing | Export-worthy packing suitable for safe international transportation |
| Applications | Chemical Processing, Chlor-Alkali, Desalination, Marine, Heat Exchangers, Petrochemical and Water Treatment |
What is the UNS designation of Titanium Grade 2?
The UNS designation is R50400.
What is the Werkstoff Number of Titanium Grade 2?
The Werkstoff Number is 3.7035.
Which industries does MetalX Nickel & Alloys serve?
Our alloy products are suitable for Oil & Gas, Chemical Processing, Petrochemical, Power Generation, Marine, Aerospace, Pharmaceutical, Engineering, Fabrication, and other critical industrial applications.
Why is Titanium Grade 2 used in seawater applications?
Titanium Grade 2 has excellent resistance to seawater and many chloride-containing environments, making it suitable for selected marine and desalination applications.
Does MetalX Nickel & Alloys provide customized material solutions?
Yes, we understand that every project has unique requirements. We can support requirements based on alloy grade, product form, dimensions, thickness, diameter, length, quantity, specifications, and application needs.
Why are Nickel Alloys important for industrial applications?
Nickel alloys offer excellent properties such as corrosion resistance, high-temperature strength, oxidation resistance, durability, and mechanical performance, making them suitable for demanding operating environments.
