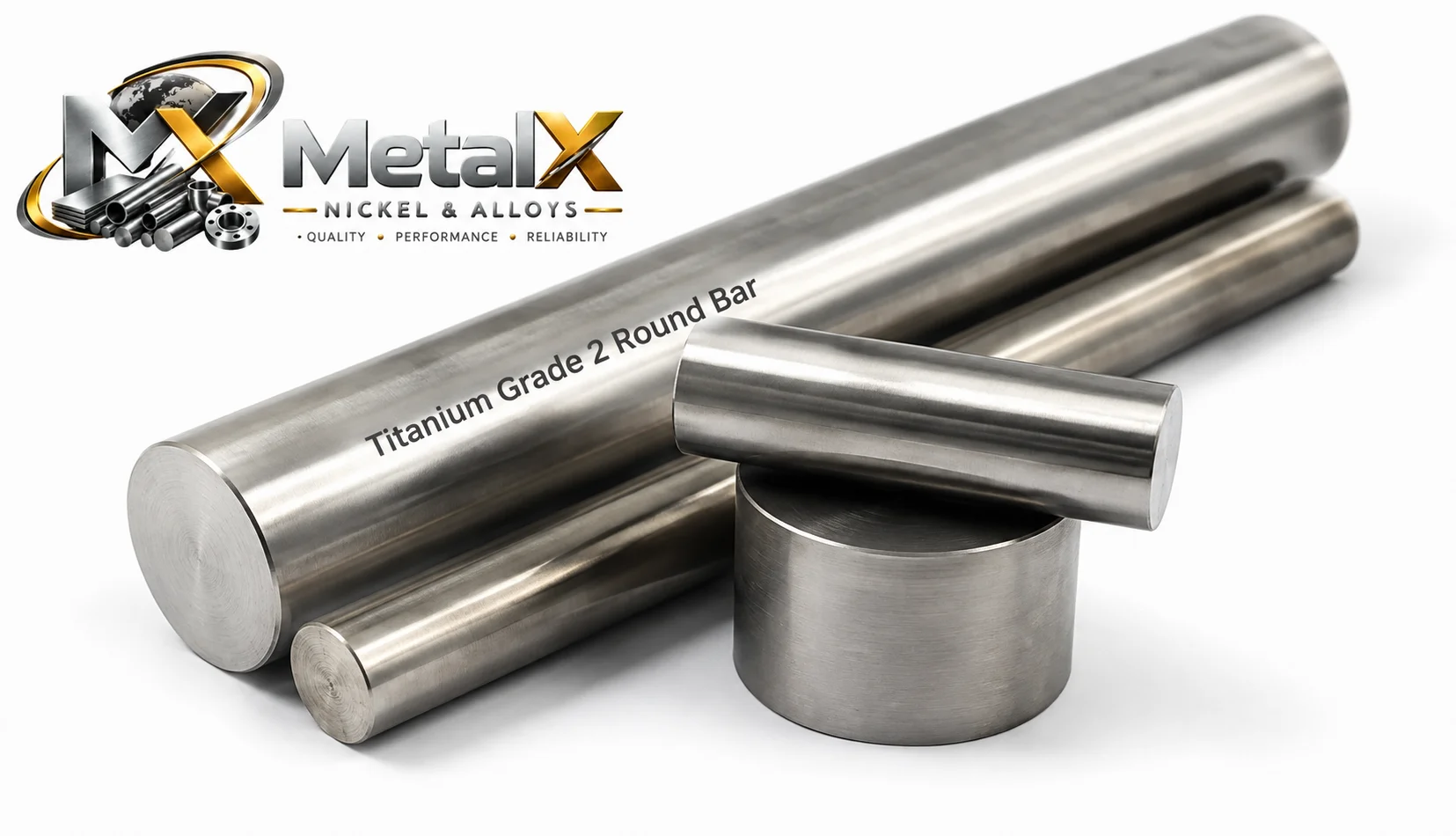

Titanium Grade 2 Round Bar
- Home
- /
- Round Bars
- /
- Titanium Round Bars
- /
- Titanium Grade 2 Round Bar
| Specification Titanium Grade 2 Round Bar Details | |
|---|---|
| Product Name | Titanium Grade 2 Round Bar |
| Material Grade | Titanium Grade 2 / Commercially Pure Titanium |
| UNS Designation | UNS R50400 |
| Werkstoff Number | W.Nr. 3.7035 |
| EN Designation | Ti Grade 2 |
| Material Type | Commercially Pure Titanium |
| Chemical Composition | Titanium Balance, Nitrogen 0.03% max, Carbon 0.08% max, Hydrogen 0.015% max, Iron 0.30% max, Oxygen 0.25% max |
| Manufacturing Type | Hot Rolled / Cold Rolled / Forged / Ground / Machined |
| Round Bar Standard | ASTM B348 / ASME SB348 |
| Bar & Rod Standard | ASTM B348 |
| Forging Standard | ASTM B381 / ASME SB381, where applicable |
| General Requirements | Applicable ASTM / ASME material requirements |
| Diameter | As per Standard / Customer Requirement |
| Diameter Range | Approximately 3 mm to 300 mm, depending on manufacturing capability |
| Length | Standard 1–6 m / Fixed or Customized Length |
| Tolerance | h7, h8, h9, h10, h11 or as required |
| Surface Finish | Mill Finish / Bright / Peeled / Ground / Polished / Machined |
| Heat Treatment | Annealed / Stress Relieved as applicable |
| Condition | Annealed / Hot Rolled / Cold Worked / Ground |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hardness, Ultrasonic and NDT as specified |
| Tensile Strength | Minimum approximately 345 MPa |
| Yield Strength | Minimum approximately 275 MPa |
| Elongation | Minimum approximately 20% |
| Density | Approximately 4.51 g/cm³ |
| Melting Point | Approximately 1668°C |
| Corrosion Resistance | Excellent resistance to seawater, chlorides, oxidizing acids and many chemical environments |
| Strength-to-Weight Ratio | Excellent strength combined with low density |
| Heat Resistance | Good performance in moderately elevated-temperature applications |
| Biocompatibility | Excellent biocompatibility for suitable medical and biomedical applications |
| Welding | Excellent weldability when proper inert-gas shielding and titanium welding procedures are used |
| Filler Metal | Grade 2 compatible titanium filler, as specified |
| Available Form | Round Bar / Rod / Precision Ground Bar |
| Customization | Diameter, Length, Tolerance, Finish, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Chemical Processing, Marine, Desalination, Heat Exchangers, Power Generation, Medical Equipment, Pharmaceutical, Food Processing, Aerospace and Architectural Components |
Titanium Grade 2 Round Bar – Standard Dimensions
| Diameter (mm) | Diameter (in.) | Weight (kg/m) | Weight (lb/ft) |
|---|---|---|---|
| 5 | 0.197 | 0.088 | 0.059 |
| 6 | 0.236 | 0.128 | 0.086 |
| 8 | 0.315 | 0.227 | 0.153 |
| 10 | 0.394 | 0.354 | 0.238 |
| 12 | 0.472 | 0.510 | 0.343 |
| 14 | 0.551 | 0.694 | 0.466 |
| 16 | 0.630 | 0.907 | 0.609 |
| 18 | 0.709 | 1.149 | 0.772 |
| 20 | 0.787 | 1.417 | 0.952 |
| 22 | 0.866 | 1.716 | 1.153 |
| 25 | 0.984 | 2.217 | 1.490 |
| 28 | 1.102 | 2.783 | 1.870 |
| 30 | 1.181 | 3.186 | 2.140 |
| 32 | 1.260 | 3.623 | 2.434 |
| 36 | 1.417 | 4.587 | 3.081 |
| 40 | 1.575 | 5.670 | 3.810 |
| 45 | 1.772 | 7.170 | 4.818 |
| 50 | 1.969 | 8.860 | 5.951 |
| 56 | 2.205 | 11.130 | 7.476 |
| 63 | 2.480 | 14.060 | 9.444 |
| 71 | 2.795 | 17.850 | 11.994 |
| 80 | 3.150 | 22.680 | 15.240 |
| 90 | 3.543 | 28.660 | 19.250 |
| 100 | 3.937 | 35.420 | 23.790 |
| 110 | 4.331 | 42.870 | 28.800 |
| 125 | 4.921 | 55.360 | 37.180 |
| 150 | 5.906 | 79.690 | 53.520 |
| 175 | 6.890 | 108.400 | 72.780 |
| 200 | 7.874 | 141.680 | 95.160 |
Titanium Grade 2 Round Bar – Inch / US Bar Sizes
| US Bar Size | Diameter (in.) | Diameter (mm) | Approx. Weight (kg/m) |
|---|---|---|---|
| #2 | 0.250 | 6.35 | 0.143 |
| #3 | 0.375 | 9.53 | 0.323 |
| #4 | 0.500 | 12.70 | 0.567 |
| #5 | 0.625 | 15.88 | 0.886 |
| #6 | 0.750 | 19.05 | 1.276 |
| #7 | 0.875 | 22.23 | 1.740 |
| #8 | 1.000 | 25.40 | 2.272 |
| #9 | 1.125 | 28.58 | 2.874 |
| #10 | 1.250 | 31.75 | 3.548 |
| #11 | 1.375 | 34.93 | 4.293 |
| #12 | 1.500 | 38.10 | 5.105 |
| #13 | 1.625 | 41.28 | 6.015 |
| #14 | 1.750 | 44.45 | 6.994 |
| #15 | 1.875 | 47.63 | 8.010 |
| #16 | 2.000 | 50.80 | 9.074 |
| #18 | 2.250 | 57.15 | 11.480 |
| #20 | 2.500 | 63.50 | 14.180 |
Titanium Grade 2 Round Bar – Size & Tolerance Chart
| Diameter Range | Available Finish | Typical Tolerance | Supply Condition |
|---|---|---|---|
| 3–10 mm | Bright / Cold Drawn / Ground | h8 / h9 / h10 / h11 | Annealed / Cold Worked |
| 10–25 mm | Bright / Cold Drawn / Polished | h8 / h9 / h10 / h11 | Annealed |
| 25–50 mm | Peeled / Ground / Polished | h9 / h10 / h11 | Annealed / Hot Rolled |
| 50–75 mm | Peeled / Ground / Machined | h10 / h11 | Annealed |
| 75–100 mm | Peeled / Machined / Ground | h11 | Annealed |
| 100–150 mm | Hot Rolled / Peeled / Machined | h11 / Customer Requirement | Annealed |
| 150–200 mm | Hot Rolled / Forged / Machined | Customer Requirement | Annealed |
| 200–250 mm | Forged / Rough Machined | Customer Requirement | Annealed |
| 250–300 mm | Forged / Custom Machined | Customer Requirement | Annealed |
Why Should You Buy Titanium Grade 2 Round Bars from Metalx Nickel & Alloys?
- Experienced Titanium Grade 2 Round Bar Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Alloy Industry Experience in supplying titanium, nickel alloys and corrosion-resistant materials to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Titanium Grade 2 Exporter offering Titanium Grade 2 / UNS R50400 Round Bars for demanding corrosion-resistant and lightweight applications.
- Global Sourcing Network with access to reputed titanium mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Specialty Alloy Product Range including Titanium Grade 1, Titanium Grade 2, Duplex 2205, Super Duplex 2507, 254 SMO, Inconel, Incoloy, Hastelloy, Monel and other specialized alloys.
- Ready Stock Availability for selected Titanium Grade 2 Round Bar sizes, subject to current stock and availability.
- Custom Titanium Grade 2 Round Bar Supply according to customer drawings, diameter, length, surface finish, heat treatment and project specifications.
- Cut-to-Length Service available for applicable sizes and customer requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B348 / ASME SB348, where applicable.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable ASTM/ASME standards and customer specifications.
- Ultrasonic Testing Support can be arranged where required by the applicable specification or purchase order.
- Hardness & Visual Inspection can also be arranged according to customer requirements.
- Heat Treatment Support – Annealed material can be supplied according to applicable material requirements.
- Surface Finish Support – Bright, polished, pickled, ground and other specified finishes can be supplied.
- Export-Ready Packing designed to protect Titanium Grade 2 Round Bars during handling, storage and international transportation.
- Worldwide Titanium Grade 2 Round Bar Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Titanium Grade 2 Round Bar Export Support for EPC contractors, chemical processing plants, marine industries, desalination projects, heat exchanger manufacturers, water-treatment facilities and specialized engineering companies.
- Technical Support from Export Enquiry to Shipment covering grade, diameter, length, surface finish, heat treatment, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Titanium Grade 2 Round Bar shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Titanium Grade 2 Round Bar
- Commercially Pure Titanium – Titanium Grade 2 is a commercially pure titanium grade widely used for its combination of corrosion resistance and mechanical strength.
- Excellent Corrosion Resistance – Provides outstanding resistance to many chemical and industrial environments.
- Excellent Seawater Resistance – Suitable for selected marine, seawater and desalination applications.
- Excellent Chloride Resistance – Performs well in many chloride-containing environments.
- Good Resistance to Oxidizing Media – Provides useful resistance in many oxidizing environments.
- Good Resistance to Many Acids – Can be considered for selected acidic chemical environments under appropriate conditions.
- Higher Strength than Grade 1 – Titanium Grade 2 provides greater mechanical strength than Titanium Grade 1 while retaining good corrosion resistance.
- Good Ductility – Maintains useful ductility for fabrication and forming applications.
- Good Formability – Suitable for forming and fabrication using appropriate procedures.
- Low Density – Titanium has a density of approximately 4.51 g/cm³, providing useful lightweight characteristics.
- High Strength-to-Weight Ratio – Combines relatively low weight with good mechanical strength.
- Good Weldability – Can be welded using appropriate controlled procedures and suitable shielding.
- Good Fabrication Characteristics – Suitable for forming, machining and fabrication using appropriate industrial practices.
- Non-Magnetic Material – Titanium is generally considered non-magnetic.
- Excellent Marine Performance – Suitable for selected marine components exposed to seawater and chloride environments.
- Hot Rolled & Cold Rolled Options – Round bars can be supplied according to required dimensions and specifications.
- Forged Options Available – Forged round bars can be supplied for selected sizes and applications.
- Wide Diameter Availability – Available in different diameters for machining and component manufacturing.
- Multiple Surface Finishes – Bright, polished, pickled, ground and other specified finishes can be supplied.
- Annealed Condition – Material can be supplied in annealed condition according to applicable requirements.
- Chemical Processing Applications – Suitable for selected chemical processing equipment and components.
- Heat Exchanger Applications – Used for selected heat-transfer equipment exposed to corrosive fluids.
- Desalination Applications – Can be considered for selected desalination and water-treatment equipment.
- Marine Applications – Suitable for selected marine and seawater-handling equipment.
- Medical Applications – Can be used in selected medical and biomedical applications where the applicable specification permits.
- Aerospace Applications – Can be considered for selected aerospace applications requiring commercially pure titanium.
- Industrial Equipment Applications – Suitable for specialized components requiring corrosion resistance and lightweight material.
- Reliable Material Traceability – Material certificates and inspection documentation can be supplied according to order requirements.
- Quality Testing Available – Chemical, mechanical, dimensional, hardness, visual, ultrasonic and other specified inspections can be arranged.
- Export-Ready Material – Round bars can be suitably packed for handling, storage and international transportation.
- Global Titanium Grade 2 Round Bar Exporter – METALX NICKEL & ALLOYS supplies Titanium Grade 2 Round Bars to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Titanium Grade 2 Round Bar Details |
|---|---|
| Product Name | Titanium Grade 2 Round Bar |
| Material Grade | Titanium Grade 2 |
| UNS Designation | R50400 |
| Material Type | Commercially Pure Titanium |
| Titanium Content | Balance Titanium |
| Manufacturing | Hot Rolled / Cold Rolled / Forged, as required |
| Applicable Standards | ASTM / ASME specifications as applicable |
| Common Standard | ASTM B348 / ASME SB348, where applicable |
| Bar Type | Round Bar |
| Diameter | As per customer requirement and applicable standard |
| Length | Standard, random and customized lengths |
| Surface Finish | Bright, polished, pickled, ground or as required |
| Heat Treatment | Annealed / As specified |
| End Condition | Plain cut, chamfered or as specified |
| Chemical Composition | Commercially pure titanium with controlled levels of iron, oxygen, carbon, nitrogen and hydrogen |
| Mechanical Properties | Tensile strength, yield strength, elongation and hardness according to applicable specification |
| Density | Approximately 4.51 g/cm³ |
| Melting Point | Approximately 1668°C |
| Corrosion Resistance | Excellent resistance to many corrosive environments |
| Strength | Higher mechanical strength than Titanium Grade 1 |
| Strength-to-Weight Ratio | High strength-to-weight characteristics with relatively low density |
| Testing | Chemical, mechanical, dimensional, hardness, visual, ultrasonic and other specified tests |
| Applications | Chemical processing, marine, seawater systems, desalination, heat exchangers, medical, aerospace and industrial equipment |
| Customization | Diameter, length, surface finish, heat treatment, testing and documentation as required |
| Packing | Export-worthy packing suitable for safe international transportation |
| Export Supply | Available for international buyers, distributors, EPC contractors and industrial end users |
1. What is Titanium Grade 2 Round Bar?
Titanium Grade 2 Round Bar is manufactured from commercially pure titanium and is known for excellent corrosion resistance, good mechanical strength, ductility and formability.
2. What is the UNS designation of Titanium Grade 2?
The UNS designation is R50400.
3. What is the common standard for Titanium Grade 2 Round Bar?
A commonly applicable specification is ASTM B348 / ASME SB348, subject to the exact product requirements.
4. Is Titanium Grade 2 commercially pure titanium?
Yes. Titanium Grade 2 is a commercially pure titanium grade with controlled levels of interstitial elements and other impurities.
5. What is the difference between Titanium Grade 1 and Grade 2?
Titanium Grade 2 generally provides higher mechanical strength than Grade 1, while both offer excellent corrosion resistance. Grade 1 is typically more ductile, while Grade 2 provides a useful balance of strength, ductility and corrosion resistance.
6. Is Titanium Grade 2 resistant to seawater?
Yes. Titanium Grade 2 provides excellent corrosion resistance in many seawater and marine environments.
