254 SMO Elbow
- Home
- /
- Butt Weld Fittings
- /
- 254 SMO Butt Weld Fittings
- /

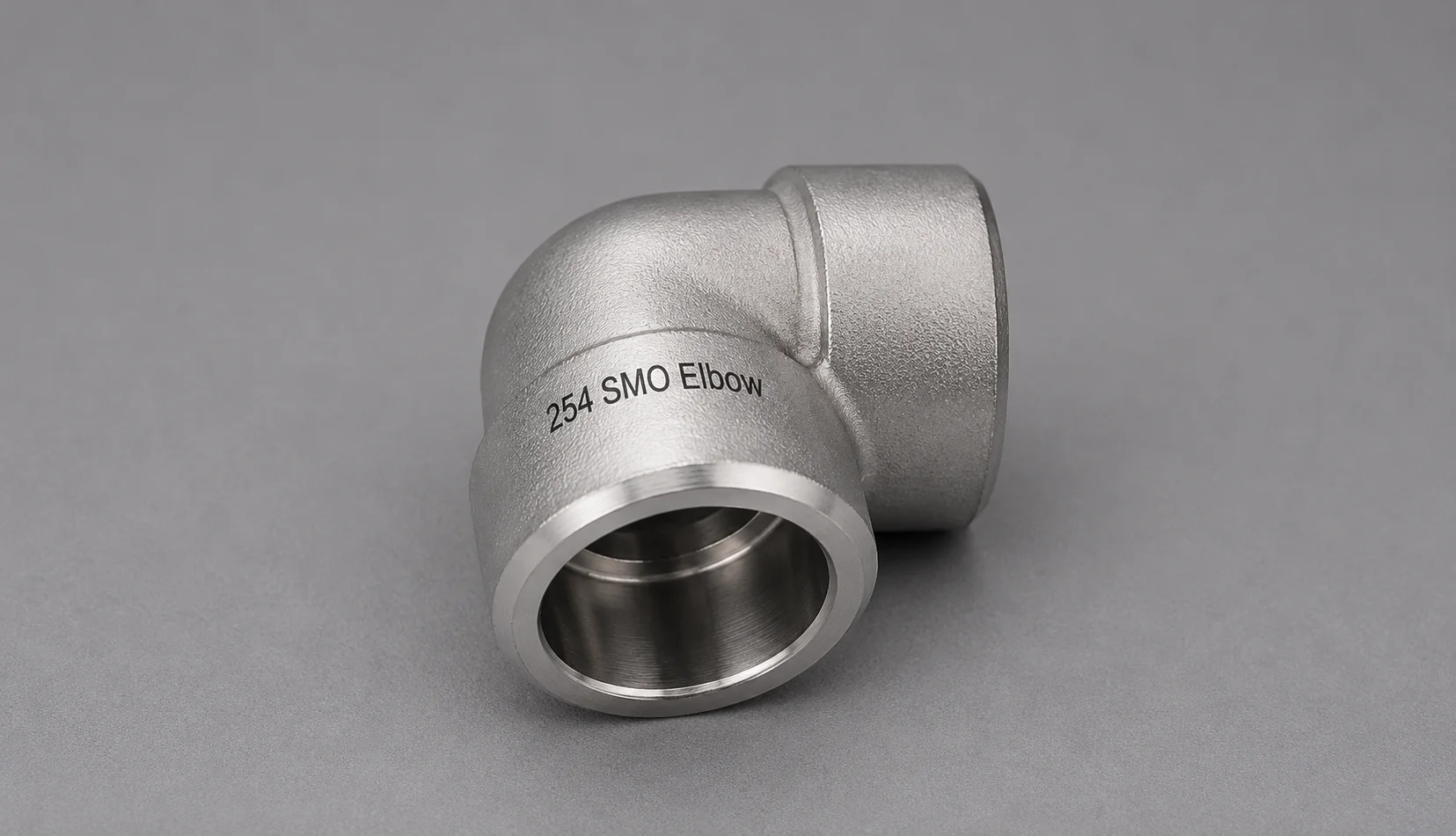

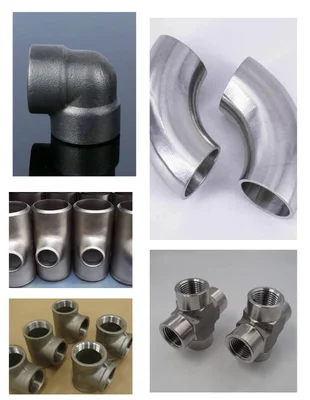

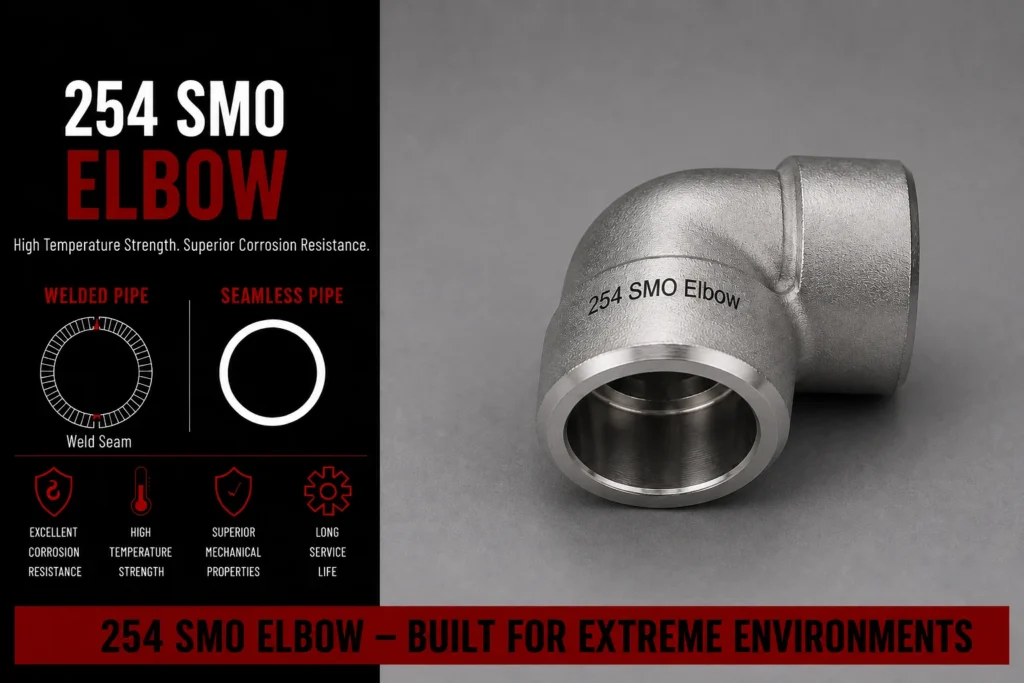

- 254 SMO Elbow
| Parameter | 254 SMO Elbow Details |
|---|---|
| Product Name | 254 SMO Elbow |
| Material Grade | 254 SMO / 6Mo Stainless Steel |
| UNS Number | S31254 |
| Werkstoff Number | 1.4547 |
| Alloy Family | Super-Austenitic Stainless Steel |
| Chromium | Approx. 19.5–20.5% |
| Nickel | Approx. 17.5–18.5% |
| Molybdenum | Approx. 6.0–6.5% |
| Nitrogen | Approx. 0.18–0.22% |
| Copper | Approx. 0.5–1.0% |
| Carbon | 0.020% max |
| Product Standard | ASTM A403 / ASME SA403 |
| Dimensional Standard | ASME B16.9 |
| Elbow Configuration | 45° / 90° / 180° Return |
| Bend Radius | Long Radius / Short Radius / Custom |
| Nominal Size | 1/2″ to 48″ |
| Construction | Seamless / Welded / Fabricated |
| Wall Thickness | SCH 5S–SCH 160 / XXS / Custom |
| End Connection | Butt Weld |
| End Preparation | Beveled / Plain / Customized |
| Heat Treatment | Solution Annealed |
| Surface Finish | Mill / Pickled / Passivated / Polished |
| Tensile Strength | Approx. 650 MPa minimum |
| Yield Strength | Approx. 300 MPa minimum |
| Elongation | Approx. 35% minimum |
| Density | Approx. 8.0 g/cm³ |
| PREN | Typically >40 |
| Pitting Resistance | Excellent |
| Crevice Corrosion Resistance | Excellent |
| Chloride SCC Resistance | Excellent compared with conventional austenitic grades |
| Weldability | Good with controlled welding procedures |
| Inspection | PMI / Visual / Dimensional / Mechanical / NDT |
| Certification | EN 10204 3.1 / 3.2 |
| Traceability | Heat Number / Batch Identification |
| Customization | Special angle, radius, thickness and dimensions |
| Supply | Domestic & Worldwide Export |
| Applications | Offshore, Marine, Desalination, Chemical Processing, Pulp & Paper, Flue Gas Scrubbing and Process Piping |
254 SMO Elbow – Standard Dimensions
| NPS | Outside Diameter (mm) | LR Center-to-End (mm) | SR Center-to-End (mm) |
|---|---|---|---|
| 1/2″ | 21.34 | 38 | 25 |
| 3/4″ | 26.67 | 38 | 25 |
| 1″ | 33.40 | 38 | 25 |
| 1-1/4″ | 42.16 | 48 | 32 |
| 1-1/2″ | 48.26 | 57 | 38 |
| 2″ | 60.33 | 76 | 51 |
| 2-1/2″ | 73.03 | 95 | 64 |
| 3″ | 88.90 | 114 | 76 |
| 4″ | 114.30 | 152 | 102 |
| 5″ | 141.30 | 190 | 127 |
| 6″ | 168.28 | 229 | 152 |
| 8″ | 219.08 | 305 | 203 |
| 10″ | 273.05 | 381 | 254 |
| 12″ | 323.85 | 457 | 305 |
| 14″ | 355.60 | 533 | 356 |
| 16″ | 406.40 | 610 | 406 |
| 18″ | 457.20 | 686 | 457 |
| 20″ | 508.00 | 762 | 508 |
| 24″ | 609.60 | 914 | 610 |
254 SMO Elbow – Configuration & Schedule Options
| Feature | Available Options |
|---|---|
| Elbow Angle | 45° / 90° / 180° |
| Bend Radius | 1D / 1.5D / Custom |
| Size Range | 1/2″–48″ |
| Schedule | 5S / 10S / 10 / 40S / 40 / 80S / 80 / 100 / 120 / 140 / 160 / XXS |
| Manufacturing | Seamless / Welded / Fabricated |
| Connection | Butt Weld |
| End Preparation | Beveled / Plain / Special |
| Surface Finish | Mill / Pickled / Passivated / Polished |
| Heat Treatment | Solution Annealed |
| Special Radius | Available on request |
| Custom Thickness | Available |
| Custom Dimensions | Available as per approved drawing |
254 SMO Elbow – Testing & Quality Details
| Quality Parameter | Inspection / Requirement |
|---|---|
| Material Verification | PMI / Chemical Analysis |
| Mechanical Testing | Tensile / Yield / Elongation |
| Dimensional Checks | OD / Thickness / Radius / Angle / Ovality |
| Visual Examination | Surface & workmanship |
| NDT Options | UT / RT / PT as specified |
| Heat Treatment Verification | Solution Annealing Records |
| Corrosion Testing | Pitting / Intergranular Corrosion Testing as specified |
| Surface Treatment | Pickling / Passivation |
| Documentation | MTC / EN 10204 3.1 / 3.2 |
| Traceability | Heat Number / Batch Number |
| Third-Party Inspection | Available |
| Packing | Export-Grade Wooden Cases / Bundles |
| Special Testing | Project-specific requirements available |
Why Should You Buy 254 SMO Elbows from Metalx Nickel & Alloys?
- Experienced 254 SMO Elbow Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Alloy Industry Experience in supplying corrosion-resistant and high-performance alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized 254 SMO Exporter offering 254 SMO / UNS S31254 / 1.4547 Elbows for demanding corrosive environments.
- Super Austenitic Stainless Steel Expertise for applications requiring exceptional resistance to pitting, crevice corrosion and chloride-related attack.
- Global Sourcing Network with access to reputed stainless-steel and specialty-alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Specialty Stainless Fittings Range including 254 SMO, Duplex 2205, Super Duplex 2507 and other high-performance alloys.
- Ready Stock Availability for selected 254 SMO Elbow sizes, subject to current stock and availability.
- Custom 254 SMO Elbow Supply according to customer drawings, size, schedule, wall thickness, radius and angle.
- 45° & 90° Elbow Supply for standard and specialized industrial piping requirements.
- Long & Short Radius Options available according to project requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM A403 / ASME SA403, where applicable.
- ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- PMI Testing Support for positive material identification where required.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
- Visual & Hardness Testing Support can be arranged where required by the applicable specification or purchase order.
- NDT Support including applicable ultrasonic or radiographic examination where specified.
- Pickling & Passivation can be supplied according to project requirements.
- Custom Surface Finish can be arranged according to the applicable specification.
- Export-Ready Packing designed to protect 254 SMO Elbows during handling, storage and international transportation.
- Worldwide 254 SMO Elbow Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- 254 SMO Elbow Export Support for EPC contractors, engineering companies, desalination plants, offshore projects, marine industries, chemical plants, pulp & paper facilities and specialized industrial buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, radius, angle, heat treatment, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for 254 SMO Elbow shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of 254 SMO Elbow
- Super Austenitic Stainless Steel Construction – Manufactured from 254 SMO for highly demanding corrosion-resistant applications.
- High Molybdenum Content – Provides enhanced resistance to localized corrosion in chloride-containing environments.
- High Chromium Content – Contributes to excellent general corrosion and oxidation resistance.
- Nitrogen Alloying – Supports high strength and improved resistance to localized corrosion.
- Excellent Pitting Resistance – Particularly suitable for aggressive chloride-containing services.
- Excellent Crevice Corrosion Resistance – Designed for demanding marine and process environments.
- High Resistance to Chloride Stress Corrosion Cracking – Suitable for applications where conventional stainless steels may be less suitable.
- Strong General Corrosion Resistance – Performs well in a wide range of aggressive chemical environments.
- Reliable Directional Change – Allows piping systems to change direction while maintaining a corrosion-resistant material system.
- 45° & 90° Configurations – Common elbow angles available for industrial piping layouts.
- Long Radius Options – Provides a gradual directional transition for many process piping arrangements.
- Short Radius Options – Suitable for selected compact piping configurations.
- Customized Angles – Special elbow angles can be supplied according to customer drawings where applicable.
- Reliable Butt-Weld Connection – Provides a permanent welded connection when properly fabricated.
- Wide Size Availability – Available in different nominal pipe sizes.
- Multiple Wall Thicknesses – Different schedules and customized thicknesses can be supplied.
- Solution-Annealed Condition – Heat treatment can be provided according to applicable requirements.
- Good Weldability – Can be welded using suitable procedures for super-austenitic stainless steel.
- Good Fabrication Characteristics – Suitable for controlled forming and fabrication processes.
- Marine Applications – Particularly useful for selected seawater and marine-service equipment.
- Desalination Applications – Suitable for demanding desalination and seawater-treatment systems.
- Chemical Processing Applications – Can be used in selected aggressive chemical process lines.
- Oil & Gas Applications – Suitable for selected upstream, downstream and offshore piping systems.
- Pulp & Paper Applications – Useful for selected corrosive process environments.
- Flue Gas Desulfurization Applications – Suitable for selected scrubber and pollution-control systems.
- Water Treatment Applications – Can be considered for chloride-rich and chemically aggressive water-treatment services.
- Heat Exchanger Applications – Suitable for selected heat-transfer systems exposed to corrosive media.
- Industrial Process Piping – Useful where exceptional localized corrosion resistance is required.
- Custom Dimensions – Size, wall thickness, angle and radius can be supplied according to project requirements.
- Pickled & Passivated Options – Surface treatment can be supplied according to project specifications.
- PMI Verification – Positive Material Identification can be arranged where required.
- Material Traceability – Material identification and relevant certification can be supplied.
- Quality Testing Available – Chemical, mechanical, dimensional, visual, PMI and other specified inspections can be arranged.
- Export-Ready Material – Elbows can be suitably packed for handling, storage and international transportation.
- Global 254 SMO Elbow Exporter – METALX NICKEL & ALLOYS supplies 254 SMO Elbows to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | 254 SMO Elbow Details |
|---|---|
| Product Name | 254 SMO Elbow |
| Material Grade | 254 SMO / 6Mo Stainless Steel |
| UNS Designation | S31254 |
| Werkstoff Number | 1.4547 |
| Material Type | Super Austenitic Stainless Steel |
| Material Standard | ASTM A403 / ASME SA403, where applicable |
| Dimensional Standard | ASME B16.9, where applicable |
| Elbow Type | Butt Weld Elbow |
| Elbow Angle | 45°, 90° and customized angles where applicable |
| Radius | Long Radius / Short Radius |
| Connection Type | Butt Weld |
| Size | As per applicable standard or customer specification |
| Wall Thickness | Different schedules and customized thicknesses |
| Manufacturing | Wrought / Formed, as applicable |
| Configuration | Seamless / Welded, depending on size and specification |
| End Preparation | Bevelled Ends for Butt Welding |
| Heat Treatment | Solution Annealed as applicable |
| Surface Finish | Mill Finish, Pickled, Passivated or customer-specified finish |
| Testing | Chemical, mechanical, dimensional, visual, PMI and other specified inspections |
| Documentation | MTC, inspection reports and relevant quality documents as required |
| Customization | Size, thickness, schedule, angle, radius, finish, testing and documentation |
| Packing | Export-worthy packing suitable for safe international transportation |
| Applications | Marine, Desalination, Chemical Processing, Oil & Gas, Pulp & Paper, Flue Gas Desulfurization and Water Treatment |
