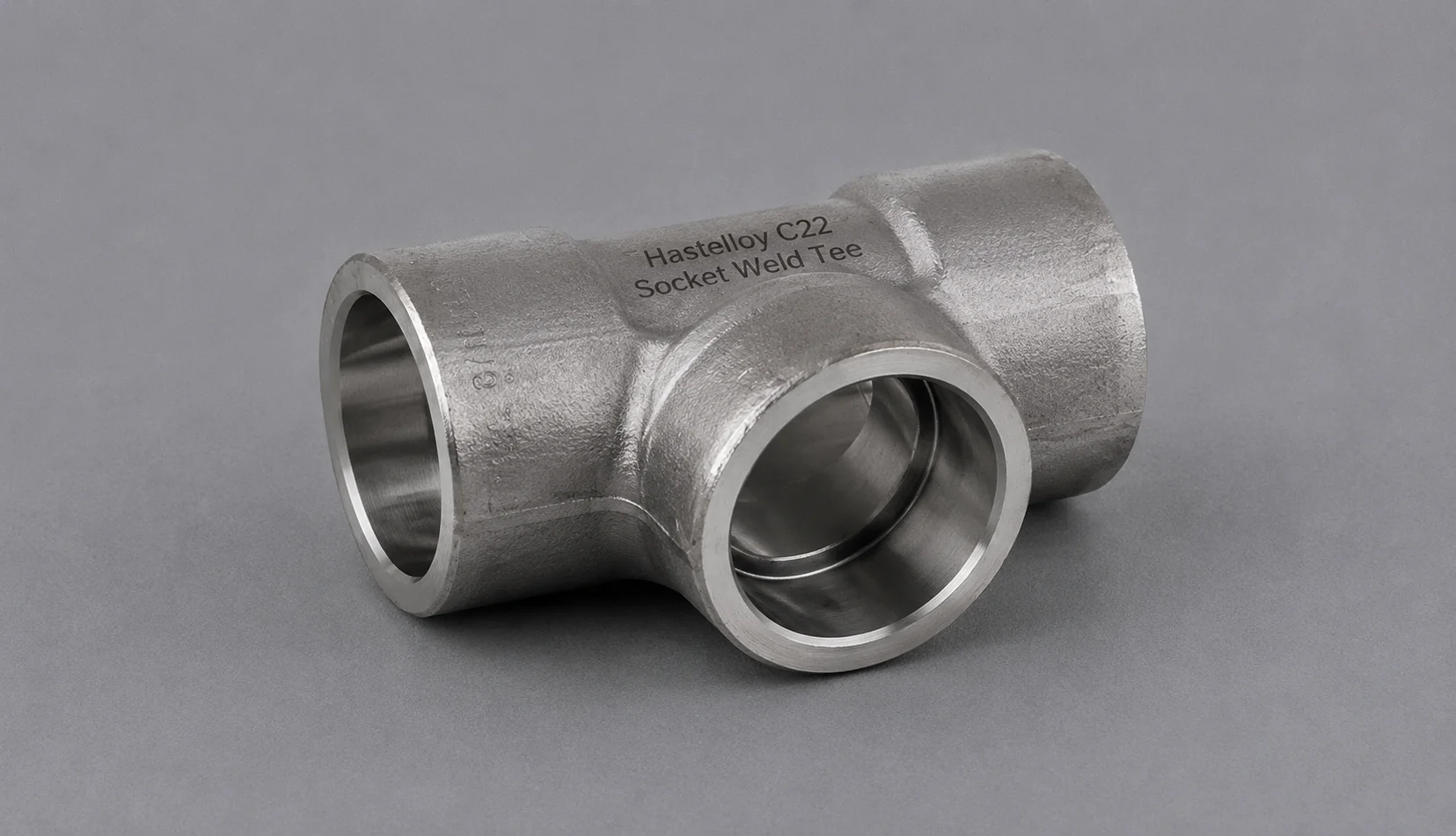

Hastelloy C22 Socket Weld Tee
| Specification | Details |
|---|---|
| Product Name | Hastelloy C22 Socket Weld Tee |
| Material Grade | Hastelloy C22 / Alloy C22 |
| UNS Designation | UNS N06022 |
| Werkstoff Number | W.Nr. 2.4602 |
| Material Type | Nickel-Chromium-Molybdenum-Tungsten Alloy |
| Chemical Composition | Nickel Balance, Chromium approximately 20–22.5%, Molybdenum approximately 12.5–14.5%, Tungsten approximately 2.5–3.5%, Iron approximately 2–6%, Carbon 0.015% max |
| Fitting Type | Socket Weld Tee |
| Tee Type | Equal Tee / Reducing Tee |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Type | Socket Weld / Customized as Required |
| Surface Finish | Bright / Pickled / Machined / Polished / Passivated / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Hastelloy C22 Material Specification and Condition |
| Yield Strength | As per Applicable Hastelloy C22 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.69 g/cm³ |
| Melting Range | Approximately 1357–1399°C |
| Corrosion Resistance | Excellent resistance to general corrosion and aggressive chemical environments |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion under suitable conditions |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Acid Resistance | Excellent resistance to oxidizing and reducing acids |
| Oxidation Resistance | Good resistance to oxidation under suitable service conditions |
| High-Temperature Performance | Good mechanical stability and corrosion resistance at elevated temperatures |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for precision machining and specialized fabrication |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Equal Socket Weld Tee / Reducing Socket Weld Tee / Forged Socket Weld Tee |
| Customization | Size, Tee Type, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Hastelloy C22 Socket Weld Tee Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Pharmaceutical, Petrochemical, Oil & Gas, Wastewater Treatment, Pollution Control, Power Generation, Marine and Industrial Process Piping |
1. Hastelloy C22 Socket Weld Tee – Standard Sizes
| Nominal Size (NPS) | Tee Type | Pressure Class |
|---|---|---|
| 1/8″ | Equal / Reducing | Class 3000 / 6000 / 9000 |
| 1/4″ | Equal / Reducing | Class 3000 / 6000 / 9000 |
| 3/8″ | Equal / Reducing | Class 3000 / 6000 / 9000 |
| 1/2″ | Equal / Reducing | Class 3000 / 6000 / 9000 |
| 3/4″ | Equal / Reducing | Class 3000 / 6000 / 9000 |
| 1″ | Equal / Reducing | Class 3000 / 6000 / 9000 |
| 1-1/4″ | Equal / Reducing | Class 3000 / 6000 / 9000 |
| 1-1/2″ | Equal / Reducing | Class 3000 / 6000 / 9000 |
| 2″ | Equal / Reducing | Class 3000 / 6000 / 9000 |
| 2-1/2″ | Equal / Reducing | Class 3000 / 6000 / 9000 |
| 3″ | Equal / Reducing | Class 3000 / 6000 / 9000 |
| 4″ | Equal / Reducing | Class 3000 / 6000 / 9000 |
2. Hastelloy C22 Socket Weld Tee – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Hastelloy C22 Socket Weld Tee |
| Material Grade | Hastelloy C22 / Alloy C22 |
| UNS Designation | UNS N06022 |
| Werkstoff Number | W.Nr. 2.4602 |
| Material Type | Nickel-Chromium-Molybdenum-Tungsten Alloy |
| Chemical Composition | Nickel Balance, Chromium approximately 20–22.5%, Molybdenum approximately 12.5–14.5%, Tungsten approximately 2.5–3.5%, Iron approximately 2–6%, Carbon 0.015% max |
| Fitting Type | Socket Weld Tee |
| Tee Type | Equal Tee / Reducing Tee |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Type | Socket Weld / Customized as Required |
| Surface Finish | Bright / Pickled / Machined / Polished / Passivated / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Hastelloy C22 Material Specification and Condition |
| Yield Strength | As per Applicable Hastelloy C22 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.69 g/cm³ |
| Melting Range | Approximately 1357–1399°C |
| Corrosion Resistance | Excellent resistance to general corrosion and aggressive chemical environments |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion under suitable conditions |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Acid Resistance | Excellent resistance to oxidizing and reducing acids |
| Oxidation Resistance | Good resistance to oxidation under suitable service conditions |
| High-Temperature Performance | Good mechanical stability and corrosion resistance at elevated temperatures |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for precision machining and specialized fabrication |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Equal Socket Weld Tee / Reducing Socket Weld Tee / Forged Socket Weld Tee |
| Customization | Size, Tee Type, Branch Size, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Hastelloy C22 Socket Weld Tee Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Pharmaceutical, Petrochemical, Oil & Gas, Wastewater Treatment, Pollution Control, Power Generation, Marine and Industrial Process Piping |
3. Nickel 201 Sheets & Plates – Technical & Supply Details
| Supply Parameter | Available Options |
|---|---|
| Tee Configuration | Equal Tee / Reducing Tee |
| Size Range | 1/8″ to 4″ NPS, subject to applicable standard |
| Pressure Classes | Class 3000 / 6000 / 9000 |
| Material | Hastelloy C22 / Alloy C22 / UNS N06022 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Passivated / Polished / Machined |
| Heat Treatment | Solution Annealed / As Required |
| Dimensional Inspection | Socket Dimensions, Run & Branch Dimensions and Tolerances |
| Chemical Testing | Chemical Composition / PMI |
| Mechanical Testing | Tensile / Yield / Elongation as Applicable |
| Visual Inspection | Surface and Workmanship Inspection |
| Hardness Testing | As Required |
| NDT | As Required by Project or Purchase Specification |
| Certification | EN 10204 3.1 / 3.2 |
| Third-Party Inspection | Available as per Customer Requirement |
| Material Traceability | Heat Number and Material Identification |
| Packaging | Export-Worthy / Seaworthy Protective Packaging |
| Customization | Size, Tee Type, Branch Size, Pressure Class, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing and Shipment Coordination |
| Export Supply | Worldwide Hastelloy C22 Socket Weld Tee Supply |
| Applications | Chemical, Pharmaceutical, Petrochemical, Oil & Gas, Marine, Pollution Control, Power Generation and High-Performance Piping Applications |
Most Common Types Of Hastelloy C22 Socket Weld Tee
| Type | Description |
|---|---|
| Hastelloy C22 Equal Socket Weld Tee | Features three outlets of the same nominal size and is used for equal-size branch connections. |
| Hastelloy C22 Reducing Socket Weld Tee | Has a smaller branch outlet than the main run and is used to connect different pipe sizes. |
| Hastelloy C22 Forged Socket Weld Tee | Forged construction provides high strength, structural integrity and dimensional consistency. |
| Hastelloy C22 Class 3000 Socket Weld Tee | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Hastelloy C22 Class 6000 Socket Weld Tee | Designed for higher-pressure piping applications requiring Class 6000 fittings. |
| Hastelloy C22 Class 9000 Socket Weld Tee | Used in specialized high-pressure applications requiring Class 9000 socket weld fittings. |
| Hastelloy C22 Precision Machined Tee | Manufactured with accurate socket dimensions and controlled surface finish for precision applications. |
| Hastelloy C22 Customized Socket Weld Tee | Supplied according to customer requirements for size, branch dimensions, pressure class, finish and testing. |
Why Should You Buy Hastelloy C22 Socket Weld Tees from MetalX Nickel & Alloys?
- Experienced Hastelloy C22 Socket Weld Tee Exporter serving international buyers, importers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Exporter Experience in supplying and exporting corrosion-resistant, high-performance and specialty nickel alloy products to customers across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Hastelloy C22 Socket Weld Tee Exporter offering Hastelloy C22 / Alloy C22 / UNS N06022 / W.Nr. 2.4602 Socket Weld Tees according to applicable international standards and customer requirements.
- Global Hastelloy C22 Exporter Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Hastelloy C22 Socket Weld Tee Exporter supplying nickel-chromium-molybdenum alloy fittings for demanding applications requiring excellent corrosion resistance, pitting and crevice corrosion resistance, chloride resistance, acid resistance and reliable mechanical performance.
- Wide Nickel Alloy Fittings Product Range including Hastelloy C22 Socket Weld Elbows, Hastelloy C22 Socket Weld Tees, Hastelloy C22 Socket Weld Couplings, Hastelloy C22 Socket Weld Unions, Hastelloy C22 Socket Weld Crosses, Hastelloy C22 Socket Weld Caps and Hastelloy C22 Socket Weld Reducers.
| Key Feature | Details |
|---|---|
| Excellent Corrosion Resistance | Provides excellent resistance to general corrosion in aggressive chemical environments. |
| Pitting & Crevice Corrosion Resistance | Strong resistance to localized corrosion, including pitting and crevice corrosion. |
| Chloride Resistance | Performs reliably in chloride-containing and other demanding process environments. |
| Stress-Corrosion Cracking Resistance | Offers excellent resistance to chloride-induced stress-corrosion cracking under suitable conditions. |
| Chemical Resistance | Suitable for various oxidizing and reducing chemical environments. |
| High Nickel Content | Nickel-based construction provides strong corrosion resistance and reliable service performance. |
| Chromium & Molybdenum Content | Chromium and molybdenum enhance resistance to localized corrosion and aggressive chemical media. |
| Forged Construction | Forged construction provides good structural integrity, strength and dimensional consistency. |
| Compact Socket Weld Design | Provides a compact and secure connection for small-bore piping systems. |
| Equal & Reducing Configurations | Available as Equal Tees and Reducing Tees for different branch connection requirements. |
| High-Pressure Capability | Can be supplied in applicable pressure classes according to size and specification. |
| Precision Dimensions | Accurate socket and branch dimensions support proper pipe alignment and installation. |
| Good Mechanical Strength | Provides dependable mechanical performance for demanding industrial piping systems. |
| Inspection & Certification | MTC, PMI, dimensional inspection and other quality documentation can be supplied as required. |
| Custom Manufacturing | Size, branch dimensions, surface finish, testing and documentation can be customized according to project requirements. |
| Export-Ready Supply | Suitable packaging and documentation can be arranged for domestic and international shipment. |
| Specification | Details |
|---|---|
| Product Name | Hastelloy C22 Socket Weld Tee |
| Material Grade | Hastelloy C22 / Alloy C22 |
| UNS Designation | UNS N06022 |
| Werkstoff Number | W.Nr. 2.4602 |
| Material Type | Nickel-Chromium-Molybdenum-Tungsten Alloy |
| Material Standard | ASTM B366 / ASME SB366, as applicable |
| Fitting Type | Socket Weld Tee |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Connection Type | Socket Weld |
| Nominal Size | As per Customer Requirement and Applicable Standard |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Schedule | As Required for the Piping System |
| Tee Configuration | Equal Tee / Reducing Tee |
| Dimensional Standard | ASME B16.11 |
| End Connection | Socket Weld |
| Surface Finish | Machined / Pickled / Passivated / Polished / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| MTC | EN 10204 3.1 / 3.2, as Required |
| Corrosion Resistance | Excellent resistance to general and aggressive corrosion |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Acid Resistance | Excellent resistance to selected oxidizing and reducing acids |
| High-Temperature Performance | Good mechanical stability and corrosion resistance at elevated temperatures |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for precision machining and specialized fabrication |
| Dimensional Accuracy | Manufactured according to ASME B16.11 and applicable customer requirements |
| Available Forms | Equal Socket Weld Tee / Reducing Socket Weld Tee / Forged Socket Weld Tee |
| Customization | Size, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Hastelloy C22 Socket Weld Tee Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and Shipment Coordination |
| Applications | Chemical Processing, Petrochemical, Pharmaceutical, Power Generation, Wastewater Treatment, Pollution Control, Flue Gas Treatment and Process Industries |
1. What is a Hastelloy C22 Socket Weld Tee?
A Hastelloy C22 Socket Weld Tee is a forged nickel-alloy piping fitting manufactured from Hastelloy C22 / UNS N06022. It is used to create a branch connection in piping systems while maintaining a compact socket weld configuration.
2. What types of Hastelloy C22 Socket Weld Tees are available?
The commonly supplied types are Equal Socket Weld Tees and Reducing Socket Weld Tees . They can be supplied in different sizes and pressure classes according to project requirements.
3. What standards are used for Hastelloy C22 Socket Weld Tees?
Hastelloy C22 Socket Weld Tees are generally manufactured according to ASME B16.11 for dimensional requirements and ASTM B366 / ASME SB366 for applicable material requirements.
4. What pressure classes are available for Hastelloy C22 Socket Weld Tees?
Common pressure classes include Class 3000, Class 6000 and Class 9000 , subject to the required size, design and applicable specification.
5. What are the main advantages of Hastelloy C22 Socket Weld Tees?
They offer excellent corrosion resistance, pitting and crevice corrosion resistance, chloride resistance and resistance to aggressive chemical environments . Their forged construction also provides good strength and dimensional stability.
6. Can Hastelloy C22 Socket Weld Tees be customized?
Yes. METALX NICKEL ALLOYS can supply customized tees according to required size, tee configuration, branch dimensions, pressure class, surface finish, heat treatment, testing, inspection, certification and packaging requirements.
