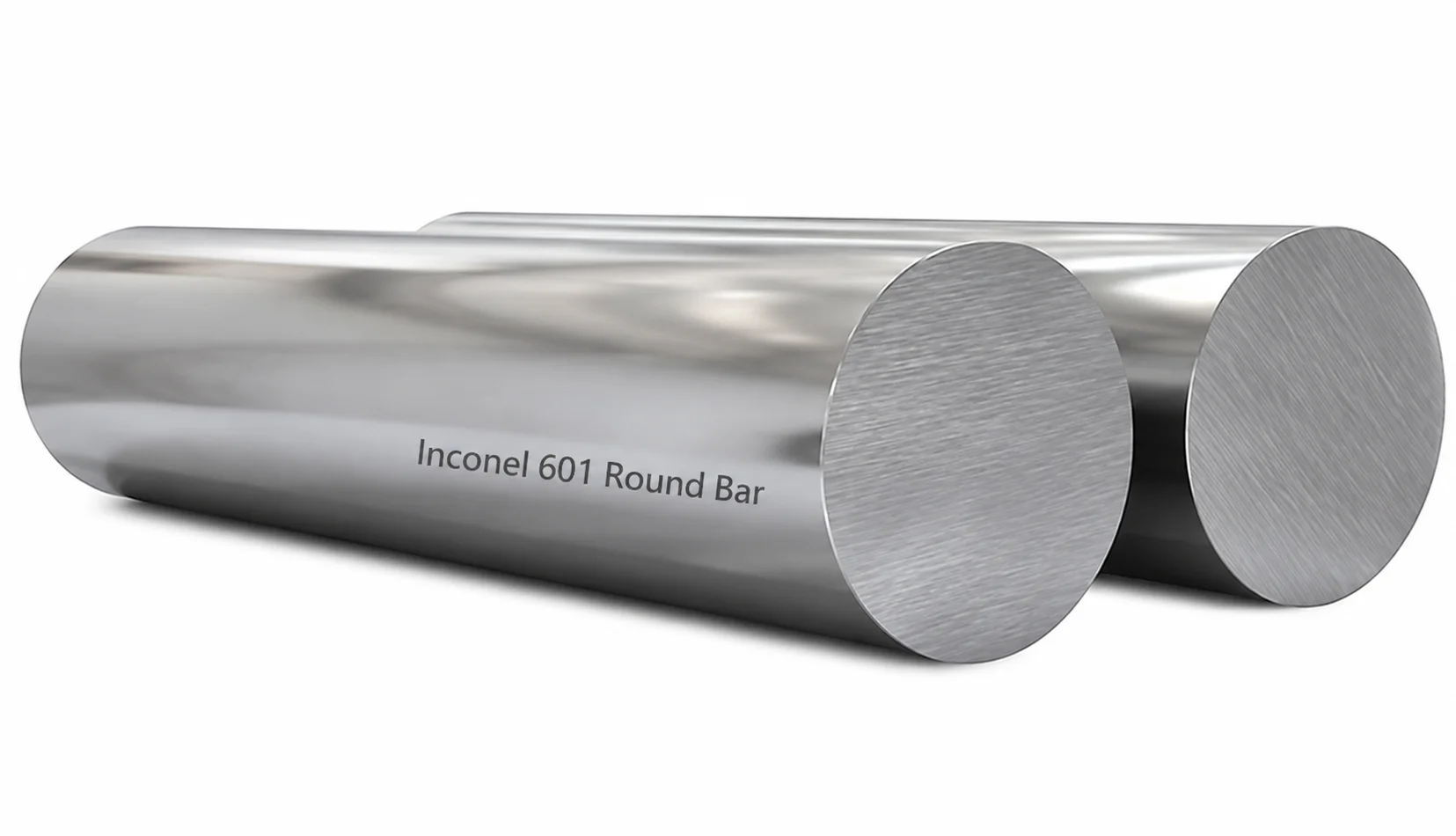

Inconel 601 Round Bar
| Specification Inconel 601 Round Bar Details | |
|---|---|
| Product Name | Inconel 601 Round Bar |
| Material Grade | Inconel 601 / Alloy 601 |
| UNS Designation | UNS N06601 |
| Werkstoff Number | W.Nr. 2.4851 |
| Material Type | Nickel-Chromium-Iron Alloy |
| Chemical Composition | Nickel 58–63%, Chromium 21–25%, Iron Balance, Aluminium 1.0–1.7%, Carbon 0.10% max, Manganese 1.0% max, Silicon 0.50% max, Copper 1.0% max |
| Manufacturing Type | Hot Rolled / Cold Finished / Forged |
| Bar Standard | ASTM B166 / ASME SB166 |
| Forging Standard | ASTM B564 / ASME SB564, as applicable |
| Outside Diameter | As per standard / Customer Requirement |
| Diameter Range | Commonly available from approximately 3 mm to 600 mm, depending on manufacturing capability |
| Length | Standard Random / Fixed / Cut-to-Length / Customized |
| Bar Shape | Round Bar |
| Surface Finish | Bright / Black / Peeled / Ground / Polished / Centerless Ground |
| Heat Treatment | Solution Annealed / Annealed as applicable |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Ultrasonic and other NDT as specified |
| Tensile Strength | Minimum approximately 550 MPa |
| Yield Strength | Minimum approximately 205 MPa |
| Elongation | Minimum approximately 30% |
| Density | Approximately 8.11 g/cm³ |
| Melting Range | Approximately 1360–1411°C |
| Corrosion Resistance | Excellent resistance to oxidation, carburization and high-temperature corrosive environments |
| High-Temperature Performance | Excellent oxidation resistance at elevated temperatures, with good strength retention |
| Oxidation Resistance | Excellent resistance to oxidation and scaling up to approximately 1200°C in suitable environments |
| Weldability | Good weldability with appropriate nickel-alloy filler metals |
| Filler Metal | ERNiCr-3 / compatible nickel-alloy filler |
| Welding Electrode | ENiCrFe-3 |
| Available Forms | Round Bar / Rod |
| Customization | Diameter, Length, Surface Finish, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Heat Treatment Equipment, Industrial Furnaces, Petrochemical, Chemical Processing, Thermal Processing, Power Generation, Aerospace, Gas Turbines and High-Temperature Applications |
Inconel 601 Round Bar – Standard Diameter & Length
| Diameter (mm) | Diameter (in.) | Standard Length (mm) | Standard Length (ft.) |
|---|---|---|---|
| 3 | 0.118 | 3000 | 9.84 |
| 4 | 0.157 | 3000 | 9.84 |
| 5 | 0.197 | 3000 | 9.84 |
| 6 | 0.236 | 3000 | 9.84 |
| 8 | 0.315 | 3000 | 9.84 |
| 10 | 0.394 | 3000 | 9.84 |
| 12 | 0.472 | 3000 | 9.84 |
| 14 | 0.551 | 3000 | 9.84 |
| 16 | 0.630 | 3000 | 9.84 |
| 18 | 0.709 | 3000 | 9.84 |
| 20 | 0.787 | 3000 | 9.84 |
| 22 | 0.866 | 3000 | 9.84 |
| 25 | 0.984 | 3000 | 9.84 |
| 28 | 1.102 | 3000 | 9.84 |
| 30 | 1.181 | 3000 | 9.84 |
| 32 | 1.260 | 3000 | 9.84 |
| 35 | 1.378 | 3000 | 9.84 |
| 38 | 1.496 | 3000 | 9.84 |
| 40 | 1.575 | 3000 | 9.84 |
| 45 | 1.772 | 3000 | 9.84 |
| 50 | 1.969 | 3000 | 9.84 |
| 55 | 2.165 | 3000 | 9.84 |
| 60 | 2.362 | 3000 | 9.84 |
| 65 | 2.559 | 3000 | 9.84 |
| 70 | 2.756 | 3000 | 9.84 |
| 75 | 2.953 | 3000 | 9.84 |
| 80 | 3.150 | 3000 | 9.84 |
| 90 | 3.543 | 3000 | 9.84 |
| 100 | 3.937 | 3000 | 9.84 |
| 110 | 4.331 | 3000 | 9.84 |
| 120 | 4.724 | 3000 | 9.84 |
| 130 | 5.118 | 3000 | 9.84 |
| 140 | 5.512 | 3000 | 9.84 |
| 150 | 5.906 | 3000 | 9.84 |
| 160 | 6.299 | 3000 | 9.84 |
| 180 | 7.087 | 3000 | 9.84 |
| 200 | 7.874 | 3000 | 9.84 |
| 250 | 9.843 | 3000 | 9.84 |
| 300 | 11.811 | 3000 | 9.84 |
Inconel 601 Round Bar – ASTM B166 Dimensions
nconel 601 Round Bar – Size & Manufacturing Chart
Inconel 601 Round Bar – Size & Manufacturing Chart
| Bar Type | Size Range | Manufacturing Process | Surface Finish | Length |
|---|---|---|---|---|
| Cold Finished Round Bar | 3–100 mm | Cold Drawn / Cold Finished | Bright / Ground | Fixed / Random |
| Hot Finished Round Bar | 20–300 mm | Hot Rolled / Hot Finished | Black / Pickled | Fixed / Random |
| Peeled Round Bar | 20–300 mm | Hot Rolled + Peeled | Peeled / Smooth | Fixed / Cut Length |
| Ground Round Bar | 10–250 mm | Cold Finished + Grinding | Centerless Ground | Fixed / Customized |
| Polished Round Bar | 10–200 mm | Ground + Polishing | Polished | Fixed / Customized |
| Forged Round Bar | 100–600 mm+ | Open Die / Closed Die Forging | Black / Machined | Customized |
| Precision Round Bar | 5–100 mm | Cold Drawn / Ground | Bright / Precision Ground | Customized |
| Custom Round Bar | As Required | As per Drawing | Customized | Customized |
Why Should You Buy Super Duplex 2507 Pipes from Metalx Nickel & Alloys?
- Experienced Super Duplex 2507 Pipe Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Alloy Industry Experience in supplying high-performance, corrosion-resistant stainless steel products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Super Duplex 2507 Exporter offering Super Duplex 2507 / UNS S32750 / 1.4410 pipes for demanding offshore, marine, oil & gas and chemical applications.
- Global Sourcing Network with access to reputed stainless steel mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Product Range including Super Duplex 2507, Duplex 2205, Duplex 2507, 904L, Incoloy, Inconel, Hastelloy, Monel and other specialized alloys.
- Ready Stock Availability for selected Super Duplex 2507 Pipe sizes, subject to current stock and availability.
- Custom Super Duplex 2507 Pipe Supply according to customer drawings, outside diameter, wall thickness, schedule, length and project specifications.
- Cut-to-Size Service available for applicable sizes and customer requirements.
- ASTM / ASME Specification Supply according to applicable Super Duplex 2507 Pipe standards, including ASTM A790 / ASME SA790, where applicable.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable ASTM/ASME standards and customer specifications.
- Hydrostatic & NDT Support can be arranged where required by the applicable specification or purchase order.
- Heat Treatment Support – Solution-annealed material can be supplied according to the applicable material specification.
- Export-Ready Packing designed to protect Super Duplex 2507 Pipes during handling, storage and international transportation.
- Worldwide Super Duplex 2507 Pipe Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Super Duplex 2507 Pipe Export Support for EPC contractors, oil & gas companies, offshore projects, chemical plants, desalination facilities, marine industries and specialized industrial buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, heat treatment, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Super Duplex 2507 Pipe shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Inconel 601 Sheets & Plates
- Excellent Oxidation Resistance – Inconel 601 provides strong resistance to oxidation during prolonged exposure to elevated temperatures.
- High-Performance Nickel Alloy – A nickel-chromium-iron alloy designed for demanding high-temperature industrial applications.
- Excellent High-Temperature Performance – Maintains useful mechanical properties and metallurgical stability under elevated-temperature conditions.
- Aluminum-Enhanced Oxidation Resistance – Aluminum promotes the formation of a protective oxide layer that contributes to the alloy’s oxidation resistance.
- Good Carburization Resistance – Suitable for selected high-temperature environments where carburization can be a concern.
- Good Corrosion Resistance – Provides useful resistance to various corrosive environments encountered in industrial processing.
- Good Mechanical Strength – Offers a useful combination of strength and thermal stability at elevated temperatures.
- Excellent Thermal Stability – Suitable for prolonged service in demanding thermal-processing environments.
- Hot Rolled & Cold Rolled Options – Manufacturing can be selected according to product type and required thickness.
- Wide Thickness Availability – Sheets and plates can be supplied in standard or customized thicknesses.
- Customized Width & Length – Widths and lengths can be supplied according to customer drawings and project requirements.
- Multiple Surface Finishes – Mill finish, pickled and other specified finishes can be supplied.
- Annealed Conditions Available – Material can be supplied in suitable annealed conditions to achieve the required balance of strength and formability.
- Heat Treatment Equipment Applications – Suitable for components and equipment used in industrial heat-treatment processes.
- Industrial Furnace Applications – Used for furnace components exposed to high temperatures and oxidizing environments.
- Thermal Processing Applications – Suitable for thermal processing systems requiring oxidation-resistant nickel alloy material.
- Petrochemical Applications – Can be considered for selected petrochemical equipment and high-temperature process components.
- Power Generation Applications – Suitable for selected power-generation components exposed to elevated temperatures.
- Exhaust System Applications – Useful for selected high-temperature exhaust and thermal-processing systems.
- Chemical Processing Applications – Can be used in selected chemical processing equipment requiring corrosion and oxidation resistance.
- Reliable Material Traceability – MTCs and relevant inspection documentation can be supplied according to order requirements.
- Quality Testing Available – Chemical composition, mechanical properties, dimensional inspection and other specified testing can be arranged.
- Export-Ready Material – Sheets and plates can be packed appropriately for handling, transportation and storage.
- Global Inconel 601 Exporter – METALX NICKEL ALLOYS supplies Inconel 601 Sheets & Plates to international buyers and industrial customers.
| Specification | Inconel 601 Sheets & Plates Details |
|---|---|
| Product Name | Inconel 601 Sheets & Plates |
| Grade | Inconel 601 |
| UNS Designation | N06601 |
| Material Type | Nickel-Chromium-Iron Alloy |
| Manufacturing | Hot Rolled / Cold Rolled, depending on product and thickness |
| Applicable Standards | ASTM / ASME specifications as applicable |
| Common Standard | ASTM B168 / ASME SB168 |
| Thickness | As per standard or customer requirement |
| Width | As required |
| Length | Standard or customized |
| Heat Treatment | Annealed / As specified |
| Surface Finish | Mill Finish / Pickled / Other finishes as required |
| Form | Sheets / Plates |
| Testing | Chemical Composition, Mechanical Properties, Dimensional Inspection and other specified tests |
| Documentation | Material Test Certificate, Inspection Reports and Certificate of Conformity as required |
| Corrosion Resistance | Good resistance to oxidation and various corrosive environments |
| High-Temperature Performance | Excellent oxidation resistance with good mechanical strength at elevated temperatures |
| Oxidation Resistance | Excellent resistance to oxidation at elevated temperatures |
| Carburization Resistance | Good resistance to carburizing environments |
| Applications | Heat treatment equipment, industrial furnaces, petrochemical plants, power generation, chemical processing, thermal processing and exhaust systems |
| Customization | Thickness, width, length, surface finish, heat treatment, testing and documentation as required |
| Packing | Export-worthy packing suitable for safe handling, transportation and storage |
| Export Supply | Available for international buyers, distributors, EPC contractors and industrial end users |
1. What are Inconel 601 Sheets & Plates?
Inconel 601 Sheets & Plates are manufactured from a nickel-chromium-iron alloy designed for high-temperature applications requiring excellent oxidation resistance and good mechanical strength.
2. What is the UNS designation of Inconel 601?
The UNS designation of Inconel 601 is N06601.
3. What type of alloy is Inconel 601?
Inconel 601 is a nickel-chromium-iron alloy with aluminum added to improve high-temperature oxidation resistance.
4. What is the common standard for Inconel 601 Sheets?
A commonly applicable specification is ASTM B168 / ASME SB168, subject to the exact product form, dimensions and application.
5. Are Inconel 601 Sheets and Plates available in different thicknesses?
Yes. Thickness can be supplied according to standard requirements or customer specifications, depending on product form and applicable standards.
6. What manufacturing processes are available?
Inconel 601 Sheets & Plates can be supplied as hot rolled or cold rolled, depending on product type and thickness.
