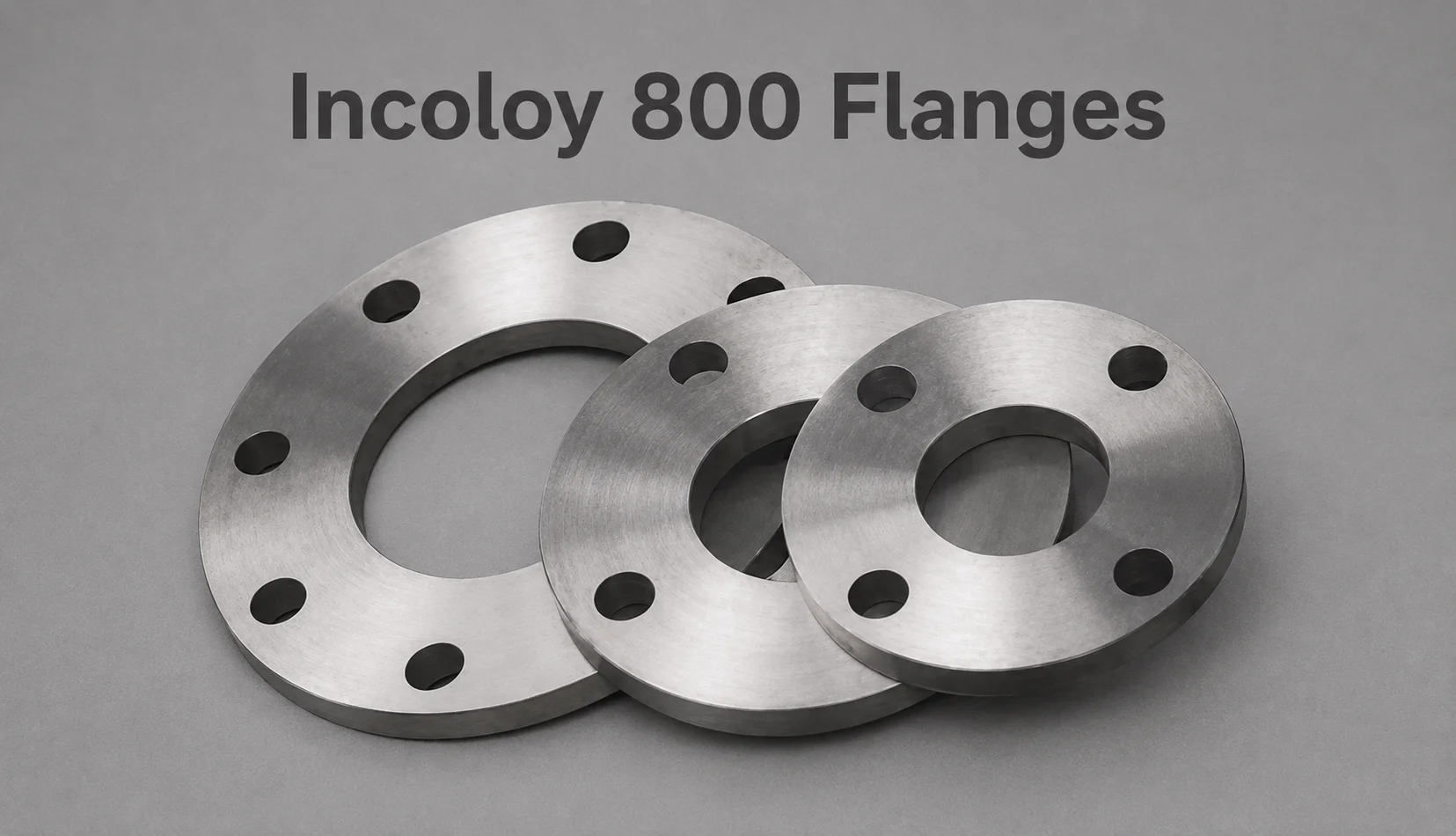

Incoloy 800 Flanges
| Specification | Details |
|---|---|
| Product Name | Incoloy 800 Flanges |
| Material Grade | Incoloy 800 / Alloy 800 |
| UNS Designation | UNS N08800 |
| Werkstoff Number | W.Nr. 1.4876 |
| Material Type | Nickel-Iron-Chromium Alloy |
| Chemical Composition | Nickel, Iron and Chromium as principal elements, with controlled Carbon, Aluminium and Titanium |
| Flange Type | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Flange Standard | ASTM B564 / ASME SB564, as applicable |
| Dimensional Standard | ASME B16.5 / ASME B16.47, as applicable |
| Size | 1/2″ to 24″ or As per Customer Requirement |
| Pressure Class | Class 150 / 300 / 600 / 900 / 1500 / 2500, as applicable |
| Connection Type | Flanged Connection |
| Facing Type | Raised Face / Flat Face / Ring Type Joint, as applicable |
| Bore Type | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / Stabilized / As per Applicable Material Specification |
| Dimensions | As per ASME B16.5 / ASME B16.47 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Incoloy 800 Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 800 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 7.94 g/cm³ |
| Melting Range | Approximately 1350–1400°C |
| Corrosion Resistance | Excellent resistance to oxidation and carburization in high-temperature environments |
| Pitting Resistance | Good resistance to localized corrosion under suitable service conditions |
| Crevice Corrosion Resistance | Good resistance under suitable service conditions |
| Chloride Resistance | Good resistance to chloride-containing environments under suitable conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under suitable service conditions |
| Acid Resistance | Good resistance to selected organic and inorganic acids |
| Oxidation Resistance | Excellent resistance to oxidation at elevated temperatures |
| Carburization Resistance | Excellent resistance to carburization and nitridation in suitable high-temperature environments |
| High-Temperature Performance | Excellent mechanical stability and oxidation resistance at elevated temperatures |
| Welding | Suitable for welding using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to applicable ASME standards |
| Available Forms | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 800 Flanges Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Heat Treatment Equipment, Furnace Components, Petrochemical, Chemical Processing, Power Generation, Heat Exchangers, Industrial Heating Equipment and High-Temperature Process Piping |
1. Most Common Types of Incoloy 800 Flanges
| Type | Details |
|---|---|
| Incoloy 800 Weld Neck Flange | Designed for high-temperature piping systems requiring a strong welded connection and reliable mechanical performance. |
| Incoloy 800 Slip-On Flange | Fits over the pipe and is welded in position for suitable industrial piping applications. |
| Incoloy 800 Blind Flange | Used to close pipe ends, valves, vessels and equipment nozzles in high-temperature process systems. |
| Incoloy 800 Socket Weld Flange | Suitable for smaller-diameter piping systems requiring a compact socket weld connection. |
| Incoloy 800 Threaded Flange | Provides a threaded connection where welding may not be preferred, subject to application requirements. |
| Incoloy 800 Lap Joint Flange | Used with a compatible stub end where frequent assembly and disassembly may be required. |
| Incoloy 800 Orifice Flange | Used in flow measurement systems requiring an orifice plate arrangement. |
| Incoloy 800 Ring Type Joint Flange | Features an RTJ facing for demanding pressure and temperature applications. |
| Incoloy 800 Raised Face Flange | Provides a raised sealing surface for suitable gasketed piping and equipment connections. |
| Incoloy 800 Flat Face Flange | Features a flat sealing face for applications requiring this facing configuration. |
| Customized Incoloy 800 Flange | Available according to customer drawings, size, pressure class, facing, bore, dimensions, testing and documentation requirements. |
2. Incoloy 800 Flanges – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Incoloy 800 Flanges |
| Material Grade | Incoloy 800 / Alloy 800 |
| UNS Designation | UNS N08800 |
| Werkstoff Number | W.Nr. 1.4876 |
| Material Type | Nickel-Iron-Chromium Alloy |
| Chemical Composition | Nickel, Iron and Chromium as principal elements, with controlled Carbon, Aluminium and Titanium |
| Flange Type | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Flange Standard | ASTM B564 / ASME SB564, as applicable |
| Dimensional Standard | ASME B16.5 / ASME B16.47, as applicable |
| Size | 1/2″ to 24″ or As per Customer Requirement |
| Pressure Class | Class 150 / 300 / 600 / 900 / 1500 / 2500, as applicable |
| Connection Type | Flanged Connection |
| Facing Type | Raised Face / Flat Face / Ring Type Joint, as applicable |
| Bore Type | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / Stabilized / As per Applicable Material Specification |
| Dimensions | As per ASME B16.5 / ASME B16.47 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Incoloy 800 Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 800 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 7.94 g/cm³ |
| Melting Range | Approximately 1350–1400°C |
| Corrosion Resistance | Excellent resistance to oxidation and carburization in high-temperature environments |
| Pitting Resistance | Good resistance to localized corrosion under suitable service conditions |
| Crevice Corrosion Resistance | Good resistance under suitable service conditions |
| Chloride Resistance | Good resistance to chloride-containing environments under suitable conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under suitable service conditions |
| Acid Resistance | Good resistance to selected organic and inorganic acids |
| Oxidation Resistance | Excellent resistance to oxidation at elevated temperatures |
| Carburization Resistance | Excellent resistance to carburization and nitridation in suitable high-temperature environments |
| High-Temperature Performance | Excellent mechanical stability and oxidation resistance at elevated temperatures |
| Welding | Suitable for welding using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to applicable ASME standards |
| Available Forms | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 800 Flanges Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Heat Treatment Equipment, Furnace Components, Petrochemical, Chemical Processing, Power Generation, Heat Exchangers, Industrial Heating Equipment and High-Temperature Process Piping |
3. Incoloy 800 Flanges – Supply & Quality Details
| Parameter | Details |
|---|---|
| Material Identification | Incoloy 800 / Alloy 800 / UNS N08800 / W.Nr. 1.4876 |
| Flange Configurations | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice |
| Size Range | 1/2″ to 24″ or As per Requirement |
| Pressure Classes | Class 150 / 300 / 600 / 900 / 1500 / 2500 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Applicable Standards | ASTM B564 / ASME SB564 and ASME B16.5 / B16.47, as applicable |
| Facing Options | Raised Face / Flat Face / Ring Type Joint |
| Bore Options | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / Stabilized / As Required |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI / Other Tests |
| Inspection | Dimensional, Visual and Material Inspection |
| Certification | EN 10204 3.1 / 3.2 |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification |
| Material Traceability | Heat Number and Batch Identification as Applicable |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Packaging | Export-Worthy Wooden Cases, Boxes, Pallets or Customized Packaging |
| Documentation | MTC, Inspection Reports, Test Certificates and Other Documents as Required |
| Export Supply | Worldwide Incoloy 800 Flanges Supply |
| Applications | Heat Treatment, Furnace Equipment, Petrochemical, Chemical Processing, Power Generation, Heat Exchangers, Industrial Heating Equipment and High-Temperature Process Piping |
Most Common Types Of Incoloy 800 Flanges
| Type | Details |
|---|---|
| Incoloy 800 Weld Neck Flange | Designed for high-temperature piping systems requiring a strong welded connection and reliable mechanical performance. |
| Incoloy 800 Slip-On Flange | Fits over the pipe and is welded in position for suitable industrial piping applications. |
| Incoloy 800 Blind Flange | Used to close pipe ends, valves, vessels and equipment nozzles in high-temperature process systems. |
| Incoloy 800 Socket Weld Flange | Suitable for smaller-diameter piping systems requiring a compact socket weld connection. |
| Incoloy 800 Threaded Flange | Provides a threaded connection where welding may not be preferred, subject to application requirements. |
| Incoloy 800 Lap Joint Flange | Used with a compatible stub end where frequent assembly and disassembly may be required. |
| Incoloy 800 Orifice Flange | Used in flow measurement systems requiring an orifice plate arrangement. |
| Incoloy 800 Ring Type Joint Flange | Features an RTJ facing for demanding pressure and temperature applications. |
| Incoloy 800 Raised Face Flange | Provides a raised sealing surface for suitable gasketed piping and equipment connections. |
| Incoloy 800 Flat Face Flange | Features a flat sealing face for applications requiring this facing configuration. |
| Customized Incoloy 800 Flange | Manufactured according to customer drawings, dimensions, pressure class, facing, bore, testing and documentation requirements. |
Why Should You Buy Incoloy 800 Flanges from Metalx Nickel & Alloys?
- Experienced Incoloy 800 Flanges Supplier & Exporter serving international buyers, importers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying and exporting corrosion-resistant, high-temperature and specialty alloy products to customers across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Incoloy 800 Flanges Exporter offering Incoloy 800 / Alloy 800 / UNS N08800 / W.Nr. 1.4876 Flanges according to applicable international standards and customer requirements.
- Global Incoloy 800 Sourcing Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Incoloy 800 Flanges Supplier providing nickel-iron-chromium alloy flanges for demanding applications requiring excellent oxidation and carburization resistance, high-temperature mechanical stability, good corrosion resistance and reliable performance in heat-intensive environments.
- Wide Specialty Flanges Range including Incoloy 800 Weld Neck Flanges, Incoloy 800 Slip-On Flanges, Incoloy 800 Blind Flanges, Incoloy 800 Socket Weld Flanges, Incoloy 800 Threaded Flanges, Incoloy 800 Lap Joint Flanges, Incoloy 800 Orifice Flanges, Incoloy 800H Flanges, Incoloy 800HT Flanges, Monel Flanges, Hastelloy Flanges, Inconel Flanges and Nickel Alloy Flanges.
| Key Feature | Details |
|---|---|
| High-Temperature Oxidation Resistance | Excellent resistance to oxidation at elevated temperatures, making it suitable for thermal processing and furnace applications. |
| Carburization Resistance | Good resistance to carburization in suitable high-temperature industrial environments. |
| Nitridation Resistance | Provides good resistance to nitridation under appropriate service conditions. |
| High-Temperature Strength | Maintains useful mechanical properties and structural reliability at elevated temperatures. |
| Corrosion Resistance | Provides good resistance to corrosion across various industrial processing environments. |
| Thermal Processing Suitability | Well suited for heat exchangers, furnaces, thermal processing systems and other heat-intensive applications. |
| Multiple Flange Types | Available in Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint and other configurations. |
| Multiple Pressure Classes | Available in Class 150, 300, 600, 900, 1500 and 2500, subject to applicable requirements. |
| Multiple Facing Options | RF, FF, RTJ and customized facing options can be supplied according to project requirements. |
| Dimensional Accuracy | Precisely machined dimensions and bolt-hole configurations support reliable installation. |
| Custom Manufacturing | Size, dimensions, drilling, facing, pressure class, finish, testing and documentation can be supplied according to customer drawings. |
| Inspection & Documentation | Dimensional, visual and material testing, along with required inspection documentation, can be provided. |
| Industrial Durability | Suitable for long-term industrial service when properly selected for operating temperature, pressure and process conditions. |
| Specification | Details |
|---|---|
| Product Name | Incoloy 800 Flanges |
| Material Grade | Incoloy 800 / Alloy 800 |
| UNS Designation | UNS N08800 |
| Werkstoff Number | W.Nr. 1.4876 |
| Material Type | Nickel-Iron-Chromium Alloy |
| Chemical Composition | Nickel, Iron and Chromium as principal elements, with controlled Carbon, Aluminium and Titanium |
| Flange Type | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Flange Standard | ASTM B564 / ASME SB564 |
| Dimensional Standard | ASME B16.5 / ASME B16.47 and other applicable standards |
| Size | As per applicable standard and customer requirement |
| Pressure Class | Class 150 / 300 / 600 / 900 / 1500 / 2500 |
| Connection Type | Flanged Connection |
| Facing Type | Raised Face (RF) / Flat Face (FF) / Ring Type Joint (RTJ) / Customized Facing |
| Bore Type | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / Stabilized / As per Applicable Material Specification |
| Dimensions | As per ASME B16.5 / ASME B16.47 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2, as Required |
| Testing | Dimensional / Visual / Material / Chemical / Mechanical / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Incoloy 800 Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 800 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 7.94 g/cm³ |
| Melting Range | Approximately 1350–1400°C |
| Corrosion Resistance | Good resistance to corrosion in various industrial environments |
| Oxidation Resistance | Excellent resistance to oxidation at elevated temperatures |
| Carburization Resistance | Good resistance to carburization in suitable high-temperature environments |
| Nitridation Resistance | Good resistance to nitridation under suitable service conditions |
| Pitting Resistance | Good resistance to localized corrosion under suitable conditions |
| Chloride Resistance | Good resistance to chloride-containing environments under suitable conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under suitable service conditions |
| Acid Resistance | Good resistance to selected organic and inorganic acids |
| High-Temperature Performance | Reliable mechanical performance and oxidation resistance at elevated temperatures |
| Welding | Suitable for welding using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to applicable ASME standards |
| Available Forms | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint Flanges |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 800 Flanges Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Heat Exchangers, Petrochemical Plants, Chemical Processing Equipment, Thermal Processing Systems, Power Generation, Industrial Furnaces, Steam Systems, Piping Assemblies and High-Temperature Process Equipment |
1. What are Incoloy 800 Flanges?
Incoloy 800 Flanges are nickel-iron-chromium alloy flanges designed for piping and equipment connections where high-temperature performance, oxidation resistance and corrosion resistance are required.
2. What material is used for Incoloy 800 Flanges?
They are manufactured from Incoloy 800 / Alloy 800 , identified by UNS N08800 and W.Nr. 1.4876 .
3. What types of Incoloy 800 Flanges are available?
Common types include Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint and Orifice Flanges . Customized configurations can also be supplied according to customer drawings.
4. What pressure classes are available for Incoloy 800 Flanges?
Incoloy 800 Flanges are available in Class 150, 300, 600, 900, 1500 and 2500 , subject to applicable standards, size and project requirements.
5. What are the key advantages of Incoloy 800 Flanges?
The main advantages include excellent oxidation resistance, good resistance to carburization and nitridation, reliable high-temperature mechanical strength, and good corrosion resistance in suitable industrial environments.
6. Where are Incoloy 800 Flanges used?
They are commonly used in heat exchangers, petrochemical plants, chemical processing equipment, industrial furnaces, thermal processing systems, power generation plants, steam systems and high-temperature process piping .
