Parameter254 SMO Tee Details
Product Name254 SMO Tee
Material Grade254 SMO / 6Mo Stainless Steel
UNS NumberS31254
Werkstoff Number1.4547
Alloy FamilySuper-Austenitic Stainless Steel
Product StandardASTM A403 / ASME SA403
Dimensional StandardASME B16.9
Tee ConfigurationEqual Tee / Reducing Tee
Branch ArrangementFull-Size / Reduced Branch
Nominal Size1/2″ to 48″
ConstructionSeamless / Welded / Fabricated
Wall ThicknessSCH 5S–SCH 160 / XXS / Custom
End ConnectionButt Weld
End PreparationBeveled / Plain / Customized
Heat TreatmentSolution Annealed
Surface FinishMill / Pickled / Passivated / Polished
ChromiumApprox. 19.5–20.5%
NickelApprox. 17.5–18.5%
MolybdenumApprox. 6.0–6.5%
NitrogenApprox. 0.18–0.22%
CopperApprox. 0.5–1.0%
Carbon0.020% max
Tensile StrengthApprox. 650 MPa minimum
Yield StrengthApprox. 300 MPa minimum
ElongationApprox. 35% minimum
DensityApprox. 8.0 g/cm³
PRENTypically >40
Pitting ResistanceExcellent
Crevice Corrosion ResistanceExcellent
Chloride SCC ResistanceExcellent compared with conventional austenitic stainless steels
WeldabilityGood with controlled welding procedures
InspectionPMI / Visual / Dimensional / Mechanical / NDT
CertificationEN 10204 3.1 / 3.2
TraceabilityHeat Number / Batch Identification
CustomizationBranch diameter, thickness, dimensions and special configurations
SupplyDomestic & Worldwide Export
ApplicationsDesalination, Offshore, Marine, Chemical Processing, Pulp & Paper, Flue Gas Scrubbing and Process Piping



254 SMO Tee – Equal & Reducing Sizes

Run SizeBranch SizeTee TypeRun ODBranch OD
1/2″1/2″Equal Tee21.34 mm21.34 mm
3/4″3/4″Equal Tee26.67 mm26.67 mm
1″1″Equal Tee33.40 mm33.40 mm
1-1/4″1-1/4″Equal Tee42.16 mm42.16 mm
1-1/2″1-1/2″Equal Tee48.26 mm48.26 mm
2″2″Equal Tee60.33 mm60.33 mm
2-1/2″2-1/2″Equal Tee73.03 mm73.03 mm
3″3″Equal Tee88.90 mm88.90 mm
4″4″Equal Tee114.30 mm114.30 mm
6″6″Equal Tee168.28 mm168.28 mm
8″8″Equal Tee219.08 mm219.08 mm
10″10″Equal Tee273.05 mm273.05 mm
12″12″Equal Tee323.85 mm323.85 mm
2″1″Reducing Tee60.33 mm33.40 mm
3″2″Reducing Tee88.90 mm60.33 mm
4″2″Reducing Tee114.30 mm60.33 mm
4″3″Reducing Tee114.30 mm88.90 mm
6″4″Reducing Tee168.28 mm114.30 mm
8″6″Reducing Tee219.08 mm168.28 mm
10″8″Reducing Tee273.05 mm219.08 mm
12″10″Reducing Tee323.85 mm273.05 mm



254 SMO Tee – Manufacturing & Quality Details

FeatureAvailable Options / Details
Tee PatternEqual / Reducing
Forming ProcessHot Formed / Cold Formed / Seamless / Welded
Size Range1/2″–48″
Branch SizeEqual / Reduced / Custom
Wall ThicknessStandard Schedule / Custom WT
ConnectionButt Weld
End PreparationBeveled / Plain / Special
Surface TreatmentMill / Pickled / Passivated / Polished
Heat TreatmentSolution Annealed
Material VerificationPMI / Chemical Analysis
Mechanical TestingTensile / Yield / Elongation
Dimensional InspectionOD / Thickness / Branch Alignment / Squareness
NDTUT / RT / PT as specified
Corrosion TestingAs required by project specification
DocumentationMTC / EN 10204 3.1 / 3.2
TraceabilityHeat Number / Batch Identification
Third-Party InspectionAvailable as required
PackingExport-Grade Wooden Cases / Bundles
Custom ManufacturingSpecial branch sizes, thicknesses and non-standard geometries



254 SMO Tee – Manufacturing & Quality Details

FeatureAvailable Options
Tee TypeEqual / Reducing
Production MethodHot Formed / Cold Formed / Seamless / Welded
Size Range1/2″–48″
Wall ThicknessStandard Schedule / Custom WT
Branch DiameterEqual / Reduced / Custom
ConnectionButt Weld
End PreparationBeveled / Plain / Special
Surface FinishMill / Pickled / Bright Annealed / Polished
Heat TreatmentAnnealed / Customer Requirement
Dimensional InspectionOD / Thickness / Branch Alignment / Squareness
NDTUT / RT / PT as specified
Material VerificationPMI / Chemical Analysis
DocumentationMTC / EN 10204 3.1 / 3.2
TraceabilityHeat & Batch Identification
PackingExport-Grade Wooden Cases / Bundles
Custom ManufacturingNon-Standard Branch, Size, Thickness & Geometry



Why Should You Buy 254 SMO Tees from Metalx Nickel & Alloys?

  • Experienced 254 SMO Tee Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
  • 20+ Years of Alloy Industry Experience in supplying corrosion-resistant and high-performance alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
  • Specialized 254 SMO Exporter offering 254 SMO / UNS S31254 / 1.4547 Tees for demanding corrosive environments.
  • Super Austenitic Stainless Steel Expertise for applications requiring exceptional resistance to pitting, crevice corrosion and chloride-related attack.
  • Global Sourcing Network with access to reputed stainless-steel and specialty-alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
  • Wide Specialty Stainless Fittings Range including 254 SMO, Duplex 2205, Super Duplex 2507 and other high-performance alloys.
  • Ready Stock Availability for selected 254 SMO Tee sizes, subject to current stock and availability.
  • Custom 254 SMO Tee Supply according to customer drawings, size, schedule, wall thickness and branch dimensions.
  • Equal & Reducing Tee Supply for standard and specialized industrial piping requirements.
  • ASTM / ASME Specification Supply according to applicable requirements, including ASTM A403 / ASME SA403, where applicable.
  • ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
  • MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
  • EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
  • PMI Testing Support for positive material identification where required.
  • Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
  • Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
  • Visual & Hardness Testing Support can be arranged where required by the applicable specification or purchase order.
  • NDT Support including applicable ultrasonic or radiographic examination where specified.
  • Pickling & Passivation can be supplied according to project requirements.
  • Custom Surface Finish can be arranged according to the applicable specification.
  • Export-Ready Packing designed to protect 254 SMO Tees during handling, storage and international transportation.
  • Worldwide 254 SMO Tee Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
  • Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
  • 254 SMO Tee Export Support for EPC contractors, engineering companies, desalination plants, offshore projects, marine industries, chemical plants, pulp & paper facilities and specialized industrial buyers.
  • Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, branch dimensions, heat treatment, testing, certification and packing requirements.
  • Material Traceability with appropriate identification, certification and quality documentation for export projects.
  • Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
  • Global Logistics Coordination for 254 SMO Tee shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.

Key Features of 254 SMO Tee

  • Super Austenitic Stainless Steel Construction – Manufactured from 254 SMO for highly demanding corrosion-resistant piping applications.
  • High Molybdenum Content – Enhances resistance to pitting and crevice corrosion in chloride-containing environments.
  • High Chromium Content – Contributes to strong general corrosion resistance.
  • Nitrogen Alloying – Supports mechanical strength and resistance to localized corrosion.
  • Excellent Pitting Resistance – Suitable for aggressive chloride-rich process environments.
  • Excellent Crevice Corrosion Resistance – Useful for marine, seawater and chemical-processing systems.
  • High Chloride Stress Corrosion Cracking Resistance – Suitable for applications requiring enhanced resistance to chloride-induced cracking.
  • Strong General Corrosion Resistance – Performs well across various aggressive industrial environments.
  • Efficient Branch Connection – Allows process flow to be divided or combined within a piping system.
  • Equal Tee Configuration – Suitable when the branch and run have the same nominal size.
  • Reducing Tee Configuration – Suitable when a smaller branch connection is required.
  • Reliable Butt-Weld Connection – Provides a permanent welded connection when properly fabricated.
  • Smooth Branch Transition – Designed for effective integration of branch piping with the main line.
  • Wide Size Availability – Available in different nominal sizes and outside diameters.
  • Multiple Wall Thicknesses – Different schedules and customized thicknesses can be supplied.
  • Solution-Annealed Condition – Heat treatment can be supplied according to applicable requirements.
  • Good Weldability – Can be welded using suitable procedures for super-austenitic stainless steel.
  • Good Fabrication Characteristics – Suitable for controlled forming and fabrication processes.
  • Marine Applications – Suitable for selected seawater and marine-service systems.
  • Desalination Applications – Useful for demanding desalination and seawater-treatment equipment.
  • Chemical Processing Applications – Suitable for selected aggressive chemical process systems.
  • Oil & Gas Applications – Can be considered for selected upstream, downstream and offshore piping.
  • Pulp & Paper Applications – Useful in selected corrosive process environments.
  • Flue Gas Desulfurization Applications – Suitable for selected pollution-control systems.
  • Water Treatment Applications – Can be considered for chloride-rich water-treatment systems.
  • Heat Exchanger Applications – Suitable for selected heat-transfer systems exposed to corrosive media.
  • Industrial Process Piping – Useful where exceptional localized corrosion resistance is required.
  • Custom Branch Dimensions – Branch sizes and dimensions can be supplied according to project requirements.
  • Multiple Surface Options – Mill finish, pickled, passivated or other specified finishes can be supplied.
  • PMI Verification – Positive Material Identification can be arranged where required.
  • Material Traceability – Material identification and relevant certification can be supplied.
  • Quality Testing Available – Chemical, mechanical, dimensional, visual, PMI and other specified inspections can be arranged.
  • Export-Ready Material – Tees can be suitably packed for handling, storage and international transportation.
  • Global 254 SMO Tee Exporter – METALX NICKEL & ALLOYS supplies 254 SMO Tees to international buyers, distributors, traders, stockholders and industrial end users.
Specification254 SMO Tee Details
Product Name254 SMO Tee
Material Grade254 SMO / 6Mo Stainless Steel
UNS DesignationS31254
Werkstoff Number1.4547
Material TypeSuper Austenitic Stainless Steel
Material StandardASTM A403 / ASME SA403, where applicable
Dimensional StandardASME B16.9, where applicable
Tee TypeEqual Tee / Reducing Tee
Connection TypeButt Weld
SizeAs per applicable standard or customer specification
Wall ThicknessDifferent schedules and customized thicknesses
Branch SizeEqual or reducing branch sizes as required
ManufacturingWrought / Formed, as applicable
ConfigurationSeamless / Welded, depending on size and specification
End PreparationBevelled Ends for Butt Welding
Heat TreatmentSolution Annealed as applicable
Surface FinishMill Finish, Pickled, Passivated or customer-specified finish
TestingChemical, mechanical, dimensional, visual, PMI and other specified inspections
DocumentationMTC, inspection reports and relevant quality documents as required
CustomizationSize, thickness, schedule, branch dimensions, finish, testing and documentation
PackingExport-worthy packing suitable for safe international transportation
ApplicationsMarine, Desalination, Chemical Processing, Oil & Gas, Pulp & Paper, Water Treatment and Pollution Control

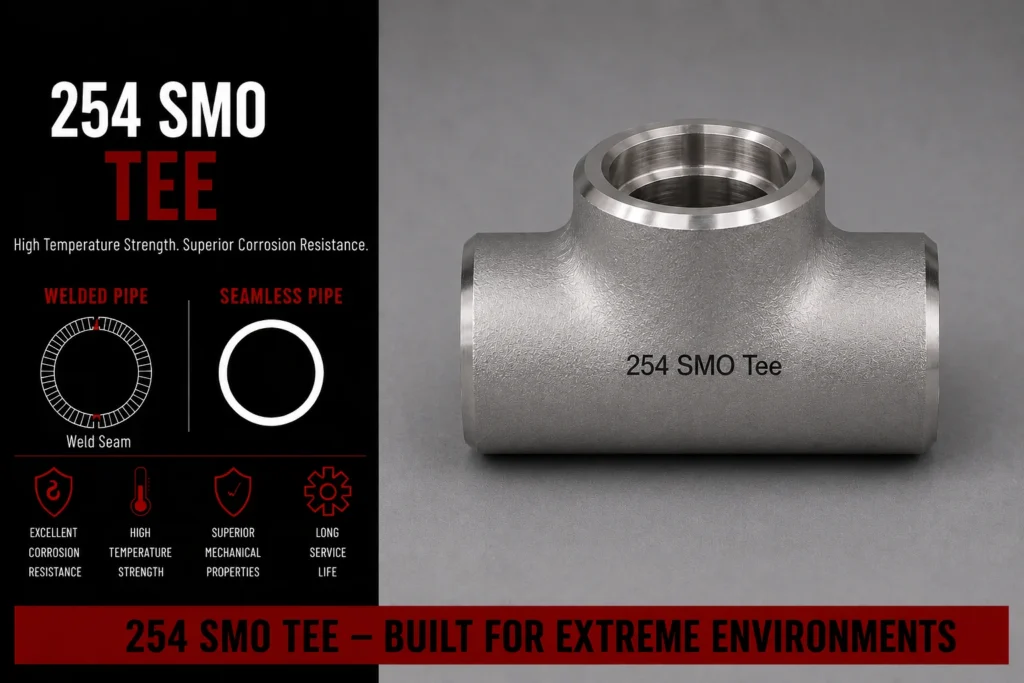

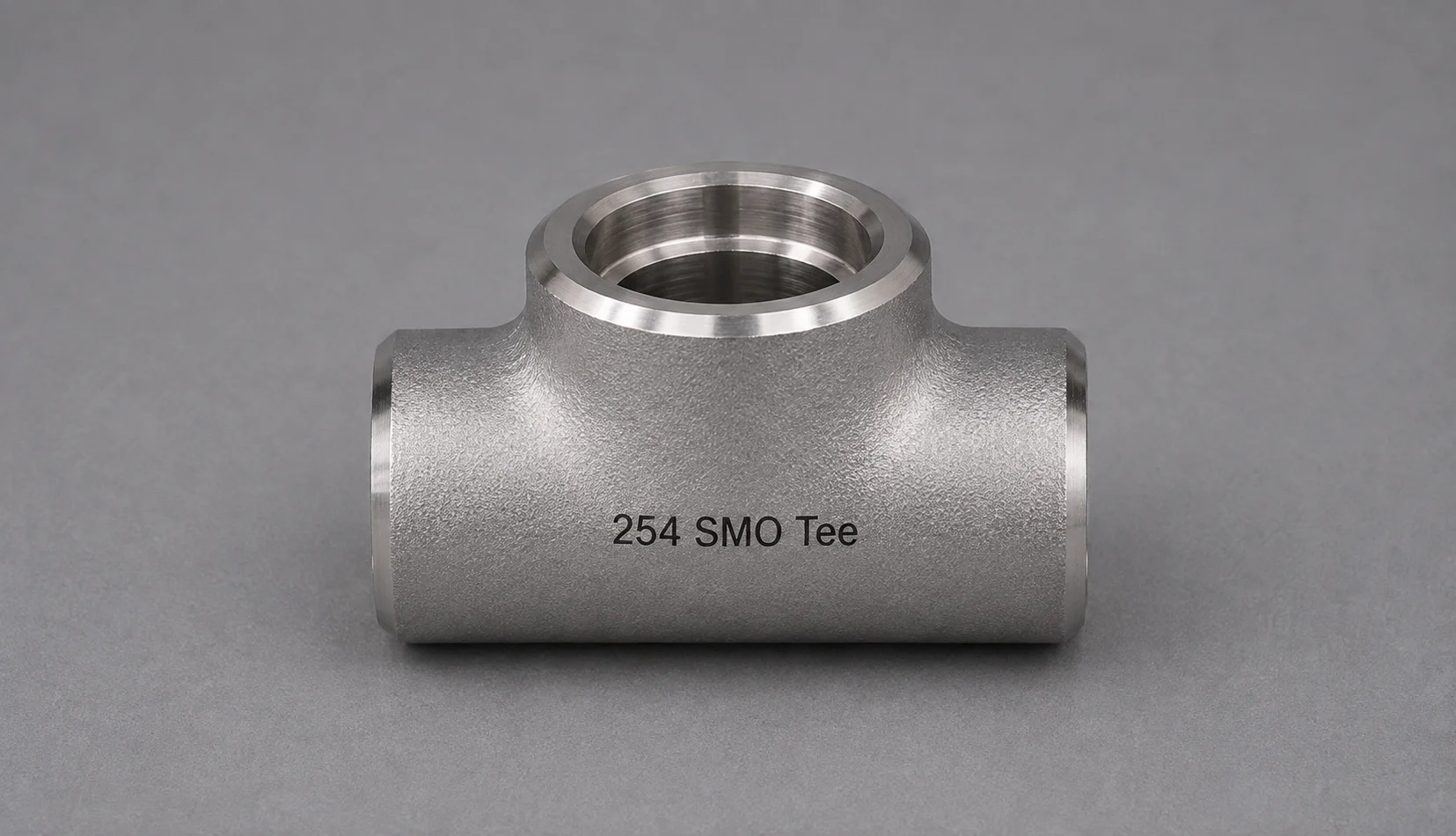

What is a 254 SMO Tee?

A 254 SMO Tee is a super-austenitic stainless-steel butt-weld fitting used to create a branch connection in piping systems exposed to demanding corrosive environments.

254 SMO is a super-austenitic stainless steel containing high levels of chromium, molybdenum and nitrogen.

Its high alloy content provides excellent resistance to pitting, crevice corrosion and chloride stress corrosion cracking in suitable service conditions.

ASTM A403 / ASME SA403 can be applicable to wrought austenitic stainless-steel fittings, subject to the exact product requirements.

Yes. Material Test Certificates, inspection reports and relevant quality documents can be supplied according to customer and project requirements.

Testing can include chemical analysis, mechanical testing, dimensional inspection, visual inspection, hydrostatic testing and other specified tests.
