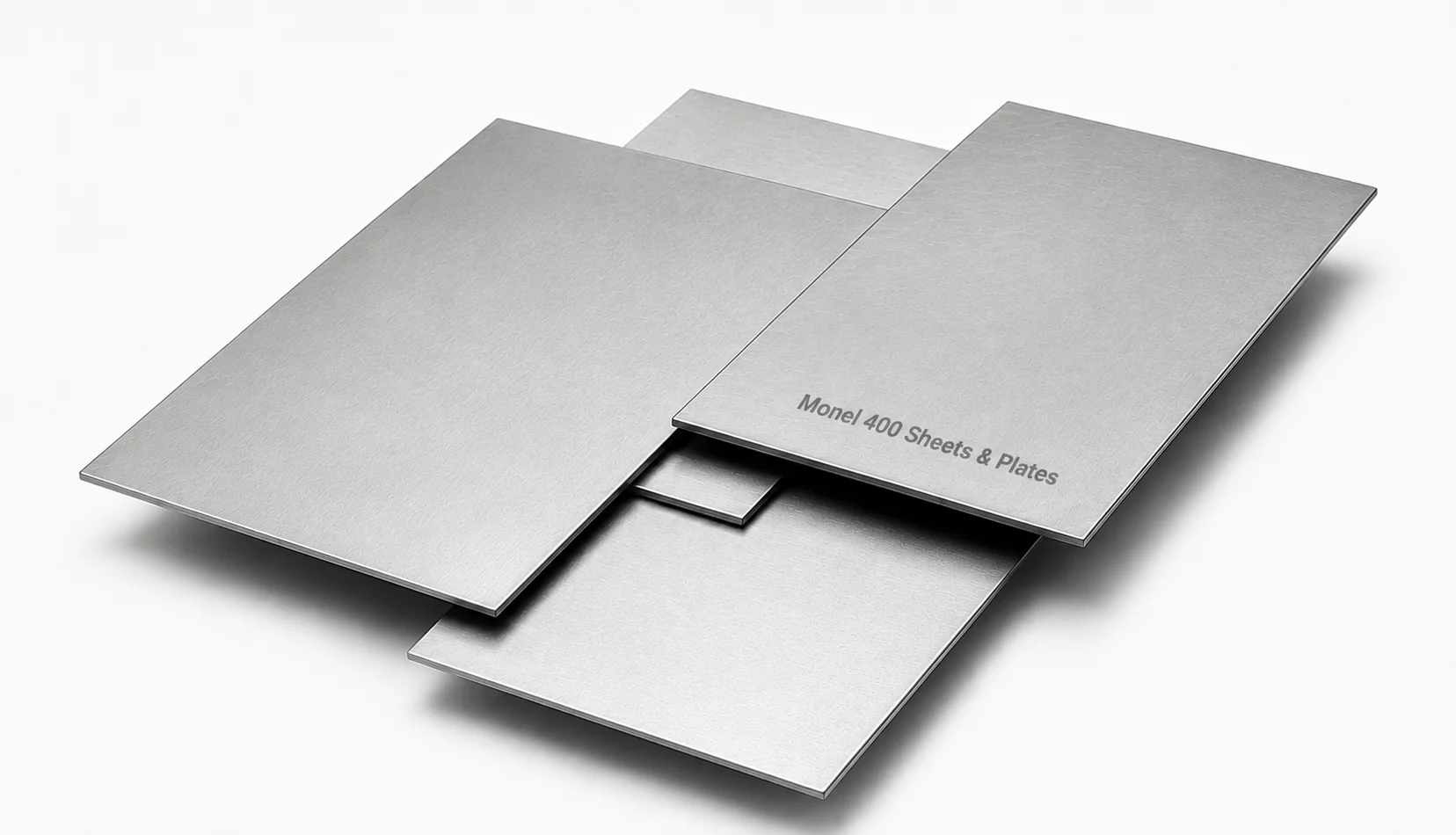

Monel 400 Sheets & Plates
| Specification | Details |
|---|---|
| Product Name | Monel 400 Sheets & Plates |
| Material Grade | Monel 400 / Alloy 400 |
| UNS Designation | UNS N04400 |
| Werkstoff Number | W.Nr. 2.4360 / 2.4361 |
| Material Type | Nickel-Copper Alloy |
| Chemical Composition | Nickel + Cobalt ≥63%, Copper 28–34%, Iron ≤2.5%, Manganese ≤2.0%, Carbon ≤0.30%, Silicon ≤0.50%, Sulfur ≤0.024% |
| Manufacturing Type | Hot Rolled / Cold Rolled / Annealed |
| Sheet & Plate Standard | ASTM B127 / ASME SB127 |
| Outside Dimensions | As per ASTM / ASME Standard or Customer Requirement |
| Thickness | As per Standard / Customer Requirement |
| Thickness Range | Approximately 0.5 mm to 100 mm or as required |
| Width | Standard / Customized Width as per Customer Requirement |
| Length | Standard / Fixed / Customized Length |
| Surface Finish | Hot Rolled / Cold Rolled / Annealed / Pickled / Polished / Customized |
| Edge Condition | Mill Edge / Cut Edge / Customized |
| Heat Treatment | Annealed / As per Applicable Standard |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Ultrasonic and Other NDT as Specified |
| Tensile Strength | Minimum approximately 517 MPa, depending on product condition |
| Yield Strength | Minimum approximately 172 MPa, depending on product condition |
| Elongation | Minimum approximately 35% |
| Density | Approximately 8.80 g/cm³ |
| Melting Range | Approximately 1300–1350°C |
| Corrosion Resistance | Excellent resistance to seawater, steam, hydrofluoric acid, alkalis and various corrosive environments |
| Marine Environment Resistance | Excellent resistance to flowing seawater and marine service conditions |
| Chemical Resistance | Good resistance to many acids, alkalis and industrial chemical media under suitable conditions |
| High-Temperature Performance | Good mechanical and corrosion performance at elevated temperatures within suitable service conditions |
| Welding | Good weldability using suitable nickel-copper alloy welding procedures and compatible filler metals |
| Available Form | Sheets / Plates / Flat Sheets / Cut-to-Size Plates |
| Customization | Grade, Thickness, Width, Length, Surface Finish, Edge, Cutting, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Monel 400 Sheets & Plates Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Marine Engineering, Chemical Processing, Oil & Gas, Petrochemical, Heat Exchangers, Pumps, Valves, Water Treatment, Desalination, Pharmaceutical and Process Industries |
1. Monel 400 Sheets & Plates – Standard Sizes
| Product Form | Thickness | Width | Length |
|---|---|---|---|
| Monel 400 Sheet | 0.5–1.0 mm | 1000–1500 mm | 2000–3000 mm |
| Monel 400 Sheet | 1.0–2.0 mm | 1000–1500 mm | 2000–3000 mm |
| Monel 400 Sheet | 2.0–3.0 mm | 1000–2000 mm | 2000–4000 mm |
| Monel 400 Sheet | 3.0–6.0 mm | 1000–2000 mm | 2000–6000 mm |
| Monel 400 Plate | 6–10 mm | 1500–2000 mm | 3000–6000 mm |
| Monel 400 Plate | 10–20 mm | 1500–2500 mm | 3000–6000 mm |
| Monel 400 Plate | 20–40 mm | 1500–2500 mm | 3000–6000 mm |
| Monel 400 Heavy Plate | 40–60 mm | As per Mill Capability | As per Requirement |
| Monel 400 Heavy Plate | 60–100 mm | As per Mill Capability | As per Requirement |
| Monel 400 Custom Plate | Above 100 mm | Customized | Customized |
2. Monel 400 Sheets & Plates – Approximate Weight Chart
| Thickness | Approx. Weight per m² | Product Form |
|---|---|---|
| 1 mm | 8.80 kg/m² | Monel 400 Sheet |
| 2 mm | 17.60 kg/m² | Monel 400 Sheet |
| 3 mm | 26.40 kg/m² | Monel 400 Sheet |
| 4 mm | 35.20 kg/m² | Monel 400 Sheet |
| 5 mm | 44.00 kg/m² | Monel 400 Sheet |
| 6 mm | 52.80 kg/m² | Sheet / Plate |
| 8 mm | 70.40 kg/m² | Monel 400 Plate |
| 10 mm | 88.00 kg/m² | Monel 400 Plate |
| 12 mm | 105.60 kg/m² | Monel 400 Plate |
| 15 mm | 132.00 kg/m² | Monel 400 Plate |
| 20 mm | 176.00 kg/m² | Monel 400 Plate |
| 25 mm | 220.00 kg/m² | Heavy Monel 400 Plate |
| 30 mm | 264.00 kg/m² | Heavy Monel 400 Plate |
| 40 mm | 352.00 kg/m² | Heavy Monel 400 Plate |
| 50 mm | 440.00 kg/m² | Heavy Monel 400 Plate |
| 60 mm | 528.00 kg/m² | Heavy Monel 400 Plate |
| 75 mm | 660.00 kg/m² | Heavy Monel 400 Plate |
| 100 mm | 880.00 kg/m² | Heavy Monel 400 Plate |
3. Monel 400 Sheets & Plates – Technical & Supply Details
| Specification | Available Details |
|---|---|
| Material Grade | Monel 400 / Alloy 400 |
| UNS Number | UNS N04400 |
| Werkstoff Number | W.Nr. 2.4360 / 2.4361 |
| Material Type | Nickel-Copper Alloy |
| Standard | ASTM B127 / ASME SB127 |
| Product Forms | Sheets / Plates / Flat Sheets / Cut-to-Size Plates |
| Manufacturing | Hot Rolled / Cold Rolled / Annealed |
| Heat Treatment | Annealed / As Applicable |
| Surface Finish | Mill / Hot Rolled / Cold Rolled / Annealed / Pickled / Polished / Customized |
| Edge Condition | Mill Edge / Cut Edge / Customized |
| Thickness | Standard / Customized |
| Width & Length | Standard / Fixed / Customized |
| Cutting | Cut-to-Size as per Drawing or Customer Requirement |
| Testing | Chemical / Mechanical / Dimensional / Visual / Ultrasonic / NDT as Required |
| Certification | EN 10204 3.1 / 3.2 as Required |
| MTC | Available with Applicable Export Orders |
| Third-Party Inspection | Available as per Customer / Project Requirement |
| Packing | Export-Worthy / Seaworthy Packing |
| Customization | Thickness, Width, Length, Finish, Edge, Cutting, Testing & Documentation |
| Export Supply | Worldwide Monel 400 Sheets & Plates Export Supply |
| Exporter Support | Technical Documentation, Inspection, Certification, Export Packing & International Shipment Coordination |
| Applications | Marine Engineering, Seawater Equipment, Desalination, Chemical Processing, Oil & Gas, Petrochemical, Pumps, Valves, Heat Exchangers and Process Industries |
Most Common Types Of Monel 400 Sheets & Plates
Monel 400 Sheets & Plates are available in different product forms, thicknesses, surface finishes, heat-treatment conditions and customized dimensions for marine, chemical processing, oil & gas and other demanding industrial applications. METALX NICKEL & ALLOYS supplies Monel 400 products according to applicable specifications and international export requirements.
| Type of Monel 400 Sheets & Plates | Description |
|---|---|
| Monel 400 Sheets | Thin-gauge nickel-copper alloy sheets offering excellent resistance to seawater, marine environments, alkalis and various chemical media. |
| Monel 400 Plates | Heavy-gauge plates suitable for pressure equipment, chemical processing systems, marine equipment and demanding industrial fabrication. |
| Hot Rolled Monel 400 Plates | Heavy-thickness plates manufactured through hot rolling for industrial fabrication and equipment applications. |
| Cold Rolled Monel 400 Sheets | Sheets with controlled thickness and improved surface quality for applications requiring dimensional accuracy and smoother finishes. |
| Annealed Monel 400 Sheets & Plates | Heat-treated material supplied in an appropriate annealed condition for forming, fabrication and specified service requirements. |
| Pickled Monel 400 Sheets & Plates | Descaled and cleaned material suitable for applications where a clean surface is required after thermal processing. |
| Polished Monel 400 Sheets & Plates | Supplied with an enhanced surface finish for specialized equipment, fabrication and customer-specific requirements. |
| Marine Grade Monel 400 Sheets & Plates | Suitable for marine and seawater applications requiring strong resistance to corrosion and flowing seawater. |
| Cut-to-Size Monel 400 Plates | Plates cut according to customer drawings, specified dimensions or project requirements for easier fabrication and installation. |
| Custom Monel 400 Sheets & Plates | Customized thickness, width, length, edge, surface finish, cutting, testing and documentation according to customer specifications. |
| Monel 400 Export Sheets & Plates | Export-ready material supplied with applicable certification, inspection support, protective packing and international shipment coordination. |
Why Should You Buy Monel 400 Sheets & Plates from Metalx Nickel & Alloys?
- Experienced Monel 400 Sheets & Plates Exporter serving international buyers, importers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Exporter Experience in supplying and exporting corrosion-resistant, marine-grade and chemical-resistant nickel alloy products to customers across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Monel 400 Sheets & Plates Exporter offering Monel 400 / Alloy 400 / UNS N04400 / W.Nr. 2.4360 / 2.4361 Sheets & Plates according to applicable international standards and customer requirements.
- Global Monel 400 Exporter Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Monel 400 Sheets & Plates Exporter supplying nickel-copper alloy products for demanding applications requiring excellent seawater resistance, marine corrosion resistance, chemical resistance, alkali resistance and good mechanical performance.
- Wide Nickel Alloy Exporter Product Range including Monel 400 Sheets & Plates, Hastelloy Sheets & Plates, Inconel Sheets & Plates, Incoloy Sheets & Plates, Nickel Alloy Sheets & Plates and other specialized nickel-based alloy products.
- Monel 400 Ready Stock Exporter offering selected thicknesses, widths, lengths and surface finishes from available stock, subject to current exporter stock availability.
- Custom Monel 400 Sheets & Plates Exporter supplying material according to customer drawings, thickness, width, length, surface finish, edge condition and project specifications.
- Cut-to-Size Monel 400 Plate Exporter providing customized cutting and dimensioning for applicable Monel 400 Sheet & Plate export orders.
- ASTM / ASME Monel 400 Export Supply according to applicable specifications, including ASTM B127 / ASME SB127 for Monel 400 Sheets & Plates.
| Key Feature | Details |
|---|---|
| Excellent Seawater Resistance | Monel 400 provides excellent resistance to seawater and marine environments, making it suitable for demanding saltwater applications. |
| Marine Corrosion Resistance | Offers strong resistance to corrosion in marine hardware, offshore equipment and seawater-handling systems. |
| Nickel-Copper Alloy | The combination of nickel and copper provides useful corrosion resistance and mechanical performance across various industrial environments. |
| Excellent Alkali Resistance | Provides good resistance to caustic alkalis and alkaline solutions under suitable operating conditions. |
| Chemical Resistance | Offers good resistance to various acids, hydrocarbons and chemical processing media depending on concentration and temperature. |
| Good Mechanical Strength | Provides useful tensile and yield strength for industrial components exposed to mechanical loads. |
| Good Ductility | Monel 400 offers good ductility and can be fabricated using suitable forming and processing methods. |
| Good Weldability | Can be welded using appropriate nickel-copper alloy welding procedures and compatible filler metals. |
| High-Temperature Capability | Provides useful mechanical and corrosion performance under suitable elevated-temperature operating conditions. |
| Excellent Marine Applications | Commonly used for pumps, valves, condensers, heat exchangers, marine hardware and seawater equipment. |
| Wide Size Availability | Available in different thicknesses, widths and lengths, including customized dimensions. |
| Multiple Surface Finishes | Can be supplied with mill, hot rolled, cold rolled, pickled, polished or customized surface finishes. |
| Cut-to-Size Plates | Monel 400 Plates can be cut according to customer drawings, specified dimensions and fabrication requirements. |
| Inspection & Certification | METALX NICKEL & ALLOYS can arrange testing, MTC, inspection and relevant quality documentation according to order requirements. |
| Export-Ready Supply | METALX NICKEL & ALLOYS provides protective export packing, material identification and international shipment coordination. |
| Industrial Versatility | Suitable for marine, chemical processing, oil & gas, petrochemical, desalination, heat exchanger and hydrocarbon-processing applications. |
| Specification | Details |
|---|---|
| Product Name | Monel 400 Sheets & Plates |
| Material Grade | Monel 400 / Alloy 400 |
| UNS Designation | UNS N04400 |
| Werkstoff Number | W.Nr. 2.4360 / 2.4361 |
| Material Type | Nickel-Copper Alloy |
| Nickel Content | Approximately 63% Minimum |
| Copper Content | Approximately 28–34% |
| Manganese | Maximum Approximately 2.00% |
| Iron | Maximum Approximately 2.50% |
| Carbon | Maximum Approximately 0.30% |
| Silicon | Maximum Approximately 0.50% |
| Product Form | Sheets / Plates / Flat Sheets / Cut-to-Size Plates |
| Applicable Standards | ASTM B127 / ASME SB127 and Other Applicable Standards |
| Manufacturing Type | Hot Rolled / Cold Rolled / Annealed |
| Thickness | As per Applicable Standard / Customer Requirement |
| Width | Standard / Customized Width |
| Length | Standard / Fixed / Customized Length |
| Surface Finish | Mill Finish / Hot Rolled / Cold Rolled / Pickled / Polished / Customized |
| Edge Condition | Mill Edge / Cut Edge / Customized |
| Heat Treatment | Annealed / As Required |
| Tensile Strength | Typically Around 70 ksi Minimum in Annealed Condition, Depending on Specification |
| Yield Strength | Typically Around 28 ksi Minimum in Annealed Condition, Depending on Specification |
| Elongation | Typically Around 35% Minimum in Annealed Condition |
| Density | Approximately 8.80 g/cm³ |
| Corrosion Resistance | Excellent Resistance to Seawater, Marine Environments, Alkalis and Various Chemical Media |
| Marine Resistance | Excellent Resistance to Flowing Seawater and Saltwater Environments |
| Chemical Resistance | Good Resistance to Various Acids, Hydrocarbons and Alkaline Solutions Under Suitable Conditions |
| Testing | Chemical Analysis, Mechanical Testing, Dimensional Inspection, Visual Inspection and Other Tests as Required |
| MTC | EN 10204 3.1 / 3.2 as Required |
| Inspection | In-House / Third-Party Inspection as per Customer Requirement |
| Customization | Thickness, Width, Length, Tolerances, Surface Finish, Edge, Cutting, Testing and Marking |
| Packing | Export-Worthy / Seaworthy Packing for International Transportation |
| Export Supply | Worldwide Monel 400 Sheets & Plates Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and Shipment Coordination |
| Applications | Marine Engineering, Seawater Equipment, Heat Exchangers, Condensers, Pumps, Valves, Chemical Processing, Hydrocarbon Processing, Oil & Gas and Petrochemical Industries |
1. What are Monel 400 Sheets & Plates?
Monel 400 Sheets & Plates are manufactured from Monel 400 / Alloy 400 (UNS N04400), a nickel-copper alloy known for excellent corrosion resistance and good mechanical properties.
2. What is the standard for Monel 400 Sheets & Plates?
Monel 400 Sheets & Plates are commonly supplied according to ASTM B127 / ASME SB127, with dimensions, heat treatment, testing and other requirements based on the applicable specification.
3. What are the main advantages of Monel 400?
Monel 400 offers excellent resistance to seawater and marine environments, good resistance to alkalis and various chemical media, good mechanical strength and useful fabrication properties.
4. Where are Monel 400 Sheets & Plates used?
They are commonly used in marine engineering, seawater equipment, heat exchangers, condensers, pumps, valves, desalination systems, chemical processing, oil & gas and petrochemical applications.
5. What surface finishes are available for Monel 400 Sheets & Plates?
Depending on the product and requirement, Monel 400 Sheets & Plates can be supplied with mill finish, hot rolled, cold rolled, annealed, pickled, polished or customized surface finishes.
6. Can METALX NICKEL & ALLOYS supply customized Monel 400 Sheets & Plates?
Yes. METALX NICKEL & ALLOYS can supply customized thicknesses, widths and lengths, including cut-to-size plates, testing, MTC, inspection, certification, export-worthy packing and international shipment coordination.
