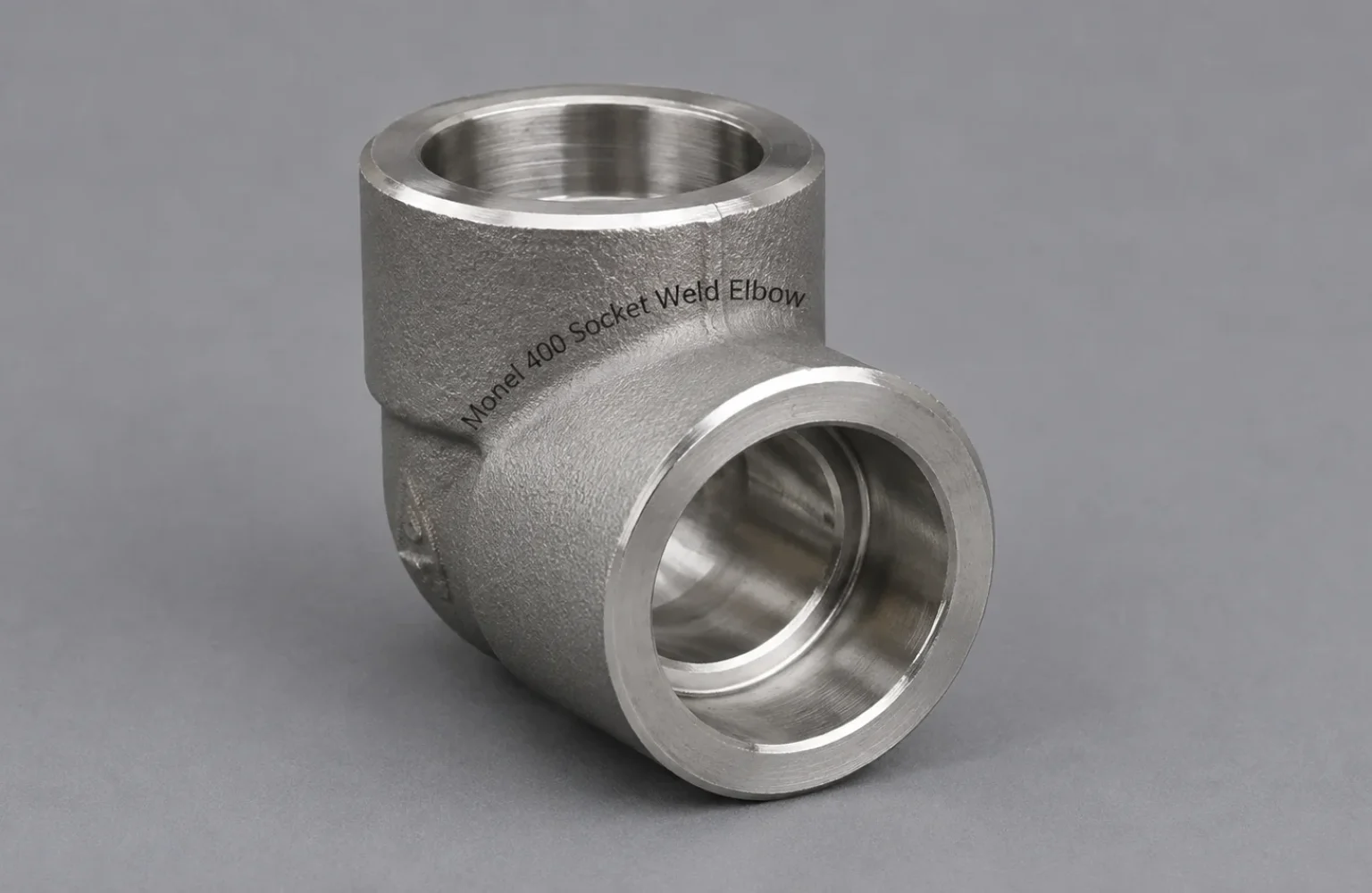

Monel 400 Socket Weld Elbow
| Specification | Details |
|---|---|
| Product Name | Monel 400 Socket Weld Elbow |
| Material Grade | Monel 400 / Alloy 400 |
| UNS Designation | UNS N04400 |
| Werkstoff Number | W.Nr. 2.4360 / 2.4361 |
| Material Type | Nickel-Copper Alloy |
| Chemical Composition | Nickel Balance, Copper approximately 28–34%, Iron 2.5% max, Carbon 0.30% max, Manganese 2.0% max, Silicon 0.50% max |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° Socket Weld Elbow |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Annealed / Stress Relieved / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Monel 400 Material Specification and Condition |
| Yield Strength | As per Applicable Monel 400 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.80 g/cm³ |
| Melting Range | Approximately 1300–1350°C |
| Corrosion Resistance | Excellent resistance to seawater, steam and many corrosive chemical environments |
| Marine Resistance | Excellent resistance to flowing seawater and saltwater environments |
| Acid Resistance | Good resistance to hydrofluoric acid and selected reducing acids under suitable conditions |
| Alkali Resistance | Good resistance to concentrated alkaline solutions under appropriate service conditions |
| Chloride Resistance | Good resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under suitable service conditions |
| High-Temperature Performance | Good mechanical strength and stability within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Elbow Angle, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Monel 400 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Marine, Chemical Processing, Oil & Gas, Petrochemical, Seawater Systems, Power Generation, Heat Exchangers, Valves, Pumps and Industrial Process Piping |
1. Most Common Types of Monel 400 Socket Weld Elbow
| Type | Description |
|---|---|
| Monel 400 45° Socket Weld Elbow | Used to change piping direction by 45° while maintaining a compact socket weld connection. |
| Monel 400 90° Socket Weld Elbow | Used for a 90° change in piping direction and is one of the most commonly used elbow configurations. |
| Monel 400 Forged Socket Weld Elbow | Forged construction provides good mechanical strength, durability and dimensional consistency. |
| Monel 400 Class 3000 Elbow | Suitable for piping systems requiring Class 3000 pressure-rated socket weld fittings. |
| Monel 400 Class 6000 Elbow | Designed for higher-pressure piping applications requiring Class 6000 fittings. |
| Monel 400 Class 9000 Elbow | Used for specialized high-pressure piping systems requiring Class 9000 fittings. |
| Monel 400 Precision Machined Elbow | Precision machining provides accurate dimensions and reliable pipe fit-up. |
| Monel 400 Customized Socket Weld Elbow | Available with customized size, angle, pressure class, dimensions, surface finish, testing and documentation. |
2. Monel 400 Socket Weld Elbow – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Monel 400 Socket Weld Elbow |
| Material Grade | Monel 400 / Alloy 400 |
| UNS Designation | UNS N04400 |
| Werkstoff Number | W.Nr. 2.4360 / 2.4361 |
| Material Type | Nickel-Copper Alloy |
| Chemical Composition | Nickel Balance, Copper approximately 28–34%, Iron 2.5% max, Carbon 0.30% max, Manganese 2.0% max, Silicon 0.50% max |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° Socket Weld Elbow |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size Range | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Annealed / Stress Relieved / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Monel 400 Material Specification and Condition |
| Yield Strength | As per Applicable Monel 400 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.80 g/cm³ |
| Melting Range | Approximately 1300–1350°C |
| Corrosion Resistance | Excellent resistance to seawater, steam and many corrosive chemical environments |
| Marine Resistance | Excellent resistance to flowing seawater and saltwater environments |
| Chloride Resistance | Good resistance to chloride-containing environments |
| Acid Resistance | Good resistance to selected reducing acids under suitable conditions |
| Alkali Resistance | Good resistance to concentrated alkaline solutions under appropriate service conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under suitable service conditions |
| High-Temperature Performance | Good mechanical strength and stability within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Elbow Angle, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Monel 400 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Marine, Chemical Processing, Oil & Gas, Petrochemical, Seawater Systems, Power Generation, Heat Exchangers, Valves, Pumps and Industrial Process Piping |
3. Monel 400 Socket Weld Elbow – Supply & Export Details
| Supply Parameter | Available Options |
|---|---|
| Material | Monel 400 / Alloy 400 / UNS N04400 |
| Elbow Configuration | 45° / 90° |
| Size | 1/8″ to 4″ NPS or As per Requirement |
| Pressure Classes | Class 3000 / 6000 / 9000 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Annealed / Stress Relieved / As Required |
| Testing | Chemical / Mechanical / Dimensional / Visual / Hardness / PMI / NDT as Required |
| Inspection | Dimensional, Visual and Material Inspection |
| Certification | EN 10204 3.1 / 3.2 |
| Material Traceability | Heat Number, Grade and Batch Identification |
| Marking | Size, Grade, Standard and Heat/Batch Identification |
| Third-Party Inspection | Available as per Customer Requirement |
| Customization | Size, Angle, Pressure Class, Finish, Testing and Documentation |
| Packing | Export-Worthy / Seaworthy Protective Packaging |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Exporter Support | Technical Specifications, Inspection, Certification, Packing and Shipment Coordination |
| Export Supply | Worldwide Monel 400 Socket Weld Elbow Supply |
| Applications | Marine, Chemical, Petrochemical, Oil & Gas, Seawater, Power Generation, Heat Exchangers and Process Piping |
Most Common Types Of Monel 400 Socket Weld Elbow
| Type | Description |
|---|---|
| Monel 400 45° Socket Weld Elbow | Used to change the direction of piping by 45° while providing a compact socket weld connection. |
| Monel 400 90° Socket Weld Elbow | Used for a 90° change in piping direction and is commonly used in industrial piping systems. |
| Monel 400 Forged Socket Weld Elbow | Manufactured by forging to provide good mechanical strength, durability and dimensional consistency. |
| Monel 400 Class 3000 Socket Weld Elbow | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Monel 400 Class 6000 Socket Weld Elbow | Designed for higher-pressure piping applications requiring Class 6000 fittings. |
| Monel 400 Class 9000 Socket Weld Elbow | Used for specialized high-pressure piping systems requiring Class 9000 fittings. |
| Monel 400 Precision Machined Elbow | Precision-machined construction provides accurate socket dimensions and reliable pipe fit-up. |
| Monel 400 Customized Socket Weld Elbow | Can be supplied with customized size, elbow angle, pressure class, dimensions, finish, testing and documentation according to project requirements. |
Why Should You Buy Monel 400 Socket Weld Elbows from MetalX Nickel & Alloys?
- Experienced Monel 400 Socket Weld Elbow Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant, high-performance and specialty nickel alloy products across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Monel 400 Socket Weld Elbow Exporter offering Monel 400 / Alloy 400 / UNS N04400 / W.Nr. 2.4360 Socket Weld Elbows according to applicable international standards and customer requirements.
- Global Monel 400 Sourcing Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major supply markets.
- Reliable Monel 400 Socket Weld Elbow Supplier providing nickel-copper alloy fittings for applications requiring excellent seawater resistance, corrosion resistance, good mechanical strength, chloride resistance and reliable performance in marine and chemical environments.
- Wide Nickel Alloy Fittings Range including Monel 400 Socket Weld Elbows, Monel 400 Socket Weld Tees, Monel 400 Socket Weld Couplings, Monel 400 Socket Weld Unions, Monel 400 Socket Weld Crosses, Monel K500 Socket Weld Fittings, Inconel Socket Weld Fittings and Hastelloy Socket Weld Fittings.
| Key Feature | Details |
|---|---|
| Excellent Seawater Resistance | Provides excellent resistance to flowing seawater, saltwater and marine environments. |
| Chemical Corrosion Resistance | Performs well in many corrosive chemical environments and selected reducing media. |
| Alkaline Resistance | Offers good resistance to caustic and alkaline solutions under suitable service conditions. |
| High Mechanical Strength | Provides good mechanical strength, toughness and durability for demanding piping applications. |
| 45° & 90° Configurations | Available in 45° and 90° elbow configurations for different piping direction requirements. |
| Compact Socket Weld Design | Provides a compact and reliable connection, particularly suitable for smaller-diameter piping systems. |
| Forged Construction | Forged manufacturing supports structural integrity, dimensional consistency and dependable service performance. |
| Chloride Resistance | Provides good resistance to chloride-containing environments and marine service conditions. |
| Stress-Corrosion Resistance | Offers good resistance to stress-corrosion cracking under suitable operating conditions. |
| High-Temperature Capability | Maintains useful mechanical performance within recommended service temperature limits. |
| Multiple Pressure Classes | Can be supplied in applicable pressure classes according to size, specification and customer requirements. |
| Precision Dimensions | Manufactured with accurate socket dimensions for proper pipe fit-up and installation. |
| Custom Supply | Size, elbow angle, pressure class, dimensions, surface finish, testing and documentation can be customized. |
| Inspection & Certification | Material certificates, dimensional inspection, PMI and other testing documentation can be provided as required. |
| Wide Industrial Applications | Suitable for marine, chemical, petrochemical, oil & gas, power, seawater and process piping applications. |
| Export-Ready Supply | Available with material traceability, identification, protective packaging and export documentation. |
| Specification | Details |
|---|---|
| Product Name | Monel 400 Socket Weld Elbow |
| Material Grade | Monel 400 / Alloy 400 |
| UNS Designation | UNS N04400 |
| Werkstoff Number | W.Nr. 2.4360 / 2.4361 |
| Material Type | Nickel-Copper Alloy |
| Chemical Composition | Nickel Balance, Copper approximately 28–34%, Iron 2.5% max, Carbon 0.30% max, Manganese 2.0% max, Silicon 0.50% max |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° Socket Weld Elbow |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size Range | As per applicable standard and customer requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Machined / Pickled / Passivated / Polished / As Specified |
| Heat Treatment | Annealed / Stress Relieved / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2, as required |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Tensile Strength | As per Applicable Monel 400 Material Specification and Condition |
| Yield Strength | As per Applicable Monel 400 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.80 g/cm³ |
| Melting Range | Approximately 1300–1350°C |
| Corrosion Resistance | Excellent resistance to seawater, steam and many corrosive chemical environments |
| Marine Resistance | Excellent resistance to flowing seawater and saltwater environments |
| Chloride Resistance | Good resistance to chloride-containing environments |
| Acid Resistance | Good resistance to selected reducing acids under suitable conditions |
| Alkali Resistance | Good resistance to concentrated alkaline solutions under appropriate conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under suitable service conditions |
| High-Temperature Performance | Good mechanical strength and stability within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Elbow Angle, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Monel 400 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Marine, Oil & Gas, Petrochemical, Power Generation, Seawater Systems, Heat Exchangers, Pumps, Valves and Process Piping |
1. What is a Monel 400 Socket Weld Elbow?
A Monel 400 Socket Weld Elbow is a forged nickel-copper alloy fitting used to change the direction of piping, typically by 45° or 90°, while providing a compact and reliable socket weld connection.
2. What material is used for Monel 400 Socket Weld Elbows?
These elbows are manufactured from Monel 400 / Alloy 400, designated UNS N04400 and commonly identified with Werkstoff Number W.Nr. 2.4360.
3. What types of Monel 400 Socket Weld Elbows are available?
The common types are 45° Socket Weld Elbows and 90° Socket Weld Elbows. They can also be supplied in forged, precision-machined and customized configurations.
4. What sizes and pressure classes are available?
Monel 400 Socket Weld Elbows can be supplied in sizes according to the applicable standard and customer requirements. Common socket weld pressure classes include Class 3000, Class 6000 and Class 9000, subject to size and specification.
5. What standards are applicable to Monel 400 Socket Weld Elbows?
The fittings can be supplied according to applicable standards such as ASME B16.11 for dimensional requirements and ASTM B366 / ASME SB366 for applicable nickel-alloy fitting requirements.
6. Where are Monel 400 Socket Weld Elbows used?
They are commonly used in marine and seawater systems, chemical processing, oil & gas, petrochemical plants, power generation, heat exchangers, pumps, valves and industrial process piping where corrosion resistance and mechanical strength are important.
