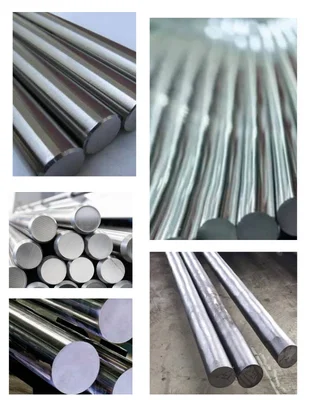

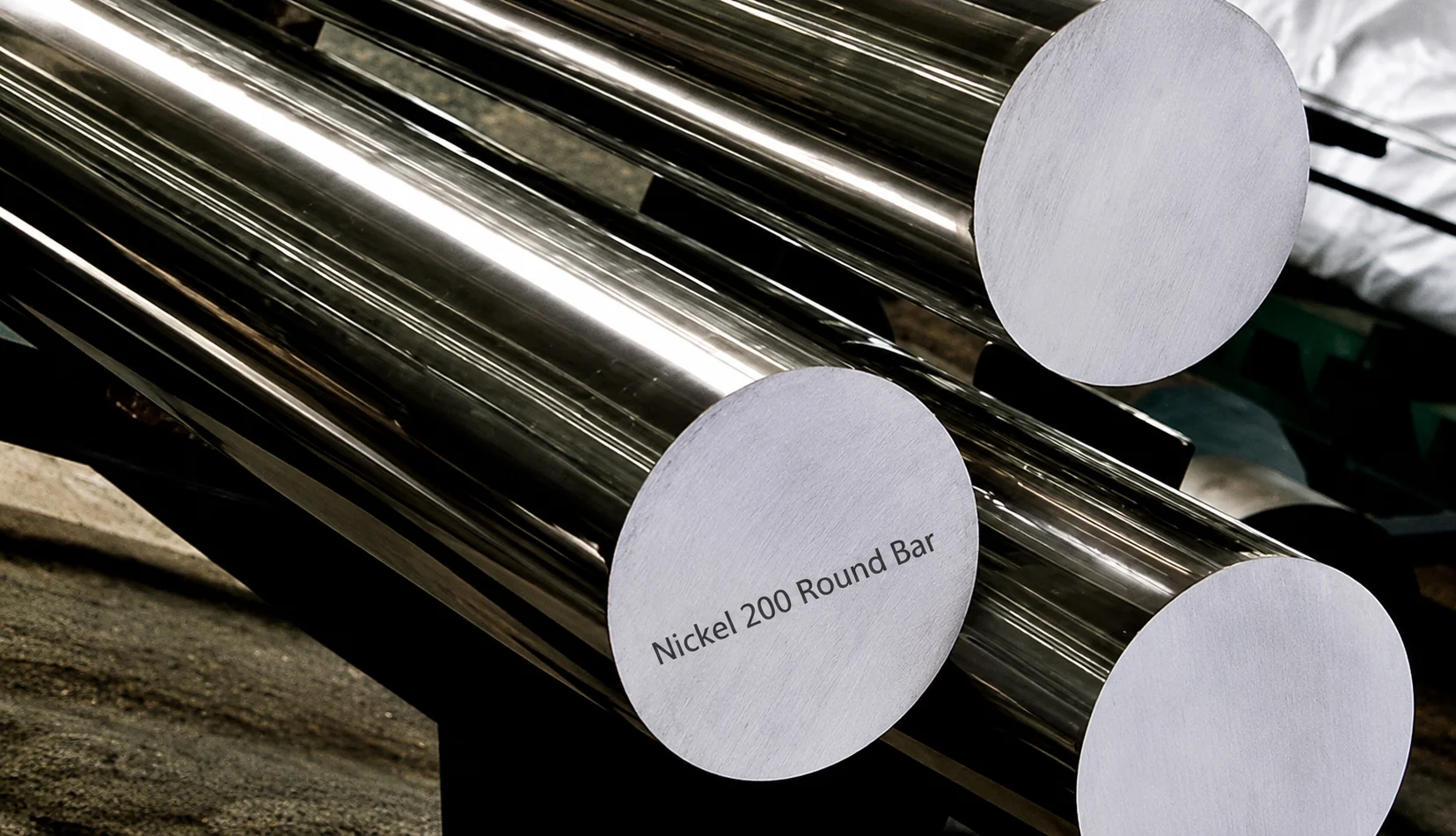

Nickel 200 Round Bar
| Specification Nickel 200 Round Bar Details | |
|---|---|
| Product Name | Nickel 200 Round Bar |
| Material Grade | Nickel 200 / Pure Nickel |
| UNS Designation | UNS N02200 |
| Werkstoff Number | W.Nr. 2.4066 |
| Material Type | Commercially Pure Nickel |
| Chemical Composition | Nickel 99.0% min, Copper 0.25% max, Iron 0.40% max, Manganese 0.35% max, Silicon 0.35% max, Sulfur 0.01% max, Carbon 0.15% max |
| Manufacturing Type | Hot Rolled / Cold Drawn / Forged / Ground |
| Round Bar Standard | ASTM B160 / ASME SB160 |
| Forging Standard | ASTM B564 / ASME SB564 |
| General Requirements | Applicable ASTM / ASME material requirements |
| Diameter | As per Standard / Customer Requirement |
| Diameter Range | Approximately 3 mm to 500 mm, depending on manufacturing capability |
| Length | Standard 1–6 m / Fixed or Customized Length |
| Tolerance | h7, h8, h9, h10, h11 or as required |
| Surface Finish | Black / Bright / Peeled / Ground / Polished / Machined |
| Heat Treatment | Annealed / Stress Relieved as applicable |
| Condition | Annealed / Cold Drawn / Hot Rolled / Ground |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hardness, Ultrasonic and NDT as specified |
| Tensile Strength | Minimum approximately 380 MPa, depending on condition |
| Yield Strength | Minimum approximately 100 MPa, depending on condition |
| Elongation | Minimum approximately 40% |
| Density | Approximately 8.89 g/cm³ |
| Melting Range | Approximately 1435–1446°C |
| Corrosion Resistance | Excellent resistance to caustic alkalis, distilled and natural waters and various neutral/reducing environments |
| Electrical Property | Good electrical and thermal conductivity for a commercially pure nickel alloy |
| Magnetic Property | Ferromagnetic at room temperature |
| Welding | Good weldability using suitable nickel-compatible welding procedures |
| Filler Metal | ENi-1 / ERNi-1 or compatible filler, as applicable |
| Welding Electrode | ENi-1 |
| Available Form | Round Bar / Rod / Precision Ground Bar |
| Customization | Diameter, Length, Tolerance, Finish, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Chemical Processing, Food Processing, Caustic Handling, Electronics, Marine Equipment, Synthetic Fiber Processing, Heat Exchangers, Electrical Components and Process Industries |
Nickel 200 Round Bar – Standard Dimensions
| Diameter (mm) | Diameter (in.) | Weight (kg/m) | Weight (lb/ft) |
|---|---|---|---|
| 5 | 0.197 | 0.175 | 0.118 |
| 6 | 0.236 | 0.251 | 0.169 |
| 8 | 0.315 | 0.447 | 0.300 |
| 10 | 0.394 | 0.698 | 0.469 |
| 12 | 0.472 | 1.005 | 0.675 |
| 14 | 0.551 | 1.368 | 0.919 |
| 16 | 0.630 | 1.786 | 1.200 |
| 18 | 0.709 | 2.260 | 1.519 |
| 20 | 0.787 | 2.793 | 1.877 |
| 22 | 0.866 | 3.378 | 2.270 |
| 25 | 0.984 | 4.364 | 2.932 |
| 28 | 1.102 | 5.477 | 3.680 |
| 30 | 1.181 | 6.284 | 4.220 |
| 32 | 1.260 | 7.144 | 4.800 |
| 36 | 1.417 | 9.042 | 6.075 |
| 40 | 1.575 | 11.172 | 7.506 |
| 45 | 1.772 | 14.141 | 9.503 |
| 50 | 1.969 | 17.461 | 11.732 |
| 56 | 2.205 | 21.929 | 14.725 |
| 63 | 2.480 | 27.775 | 18.654 |
| 71 | 2.795 | 35.300 | 23.710 |
| 80 | 3.150 | 44.584 | 29.947 |
| 90 | 3.543 | 56.240 | 37.784 |
| 100 | 3.937 | 69.813 | 46.900 |
| 110 | 4.331 | 84.650 | 56.810 |
| 125 | 4.921 | 109.180 | 73.350 |
| 150 | 5.906 | 157.070 | 105.490 |
| 175 | 6.890 | 214.000 | 143.82 |
| 200 | 7.874 | 279.600 | 187.81 |
Nickel 200 Round Bar – Inch / US Bar Sizes
| US Bar Size | Diameter (in.) | Diameter (mm) | Approx. Weight (kg/m) |
|---|---|---|---|
| #2 | 0.250 | 6.35 | 0.281 |
| #3 | 0.375 | 9.53 | 0.633 |
| #4 | 0.500 | 12.70 | 1.128 |
| #5 | 0.625 | 15.88 | 1.763 |
| #6 | 0.750 | 19.05 | 2.536 |
| #7 | 0.875 | 22.23 | 3.548 |
| #8 | 1.000 | 25.40 | 4.512 |
| #9 | 1.125 | 28.58 | 5.716 |
| #10 | 1.250 | 31.75 | 7.057 |
| #11 | 1.375 | 34.93 | 8.550 |
| #12 | 1.500 | 38.10 | 10.155 |
| #13 | 1.625 | 41.28 | 11.920 |
| #14 | 1.750 | 44.45 | 13.840 |
| #15 | 1.875 | 47.63 | 15.930 |
| #16 | 2.000 | 50.80 | 18.050 |
| #18 | 2.250 | 57.15 | 22.900 |
| #20 | 2.500 | 63.50 | 28.210 |
Nickel 200 Round Bar – Size & Tolerance Chart
| Diameter Range | Available Finish | Typical Tolerance | Supply Condition |
|---|---|---|---|
| 3–10 mm | Bright / Cold Drawn / Ground | h8 / h9 / h10 / h11 | Annealed / Cold Drawn |
| 10–25 mm | Bright / Cold Drawn / Polished | h8 / h9 / h10 / h11 | Annealed / Cold Drawn |
| 25–50 mm | Cold Drawn / Peeled / Ground | h9 / h10 / h11 | Annealed / Hot Rolled |
| 50–75 mm | Peeled / Ground / Polished | h10 / h11 | Annealed / Hot Rolled |
| 75–100 mm | Peeled / Machined / Ground | h11 | Annealed / Hot Rolled |
| 100–150 mm | Hot Rolled / Peeled / Machined | h11 / Customer Requirement | Annealed |
| 150–250 mm | Hot Rolled / Forged / Machined | Customer Requirement | Annealed |
| 250–350 mm | Forged / Rough Machined | Customer Requirement | Annealed |
| 350–500 mm | Forged / Custom Machined | Customer Requirement | Annealed |
Most Common Types Of Inconel 600 Pipe
Why Should You Buy Nickel 200 Round Bars from Metalx Nickel & Alloys?
- Experienced Nickel 200 Round Bar Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying commercially pure nickel and high-performance alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Nickel 200 Exporter offering Nickel 200 / UNS N02200 / W.Nr. 2.4066 Round Bars for demanding chemical and industrial applications.
- Global Sourcing Network with access to reputed nickel mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Nickel Alloy Product Range including Nickel 200, Nickel 201, Inconel, Incoloy, Hastelloy, Monel and other specialized nickel-based alloys.
- Ready Stock Availability for selected Nickel 200 Round Bar sizes, subject to current stock and availability.
- Custom Nickel 200 Round Bar Supply according to customer drawings, diameter, length, surface finish, heat treatment and project specifications.
- Cut-to-Length Service available for applicable sizes and customer requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B160 / ASME SB160, where applicable.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable ASTM/ASME standards and customer specifications.
- Hardness & Visual Inspection can be arranged where required by the applicable specification or purchase order.
- Heat Treatment Support – Annealed material can be supplied according to applicable material requirements.
- Surface Finish Support – Bright, polished, pickled, ground, peeled and other specified finishes can be supplied.
- Export-Ready Packing designed to protect Nickel 200 Round Bars during handling, storage and international transportation.
- Worldwide Nickel 200 Round Bar Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Nickel 200 Round Bar Export Support for EPC contractors, chemical plants, caustic-processing facilities, food-processing equipment manufacturers, synthetic-fiber industries and specialized engineering buyers.
- Technical Support from Export Enquiry to Shipment covering grade, diameter, length, surface finish, heat treatment, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Nickel 200 Round Bar shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Nickel 200 Round Bar
- Commercially Pure Nickel – Nickel 200 contains approximately 99% minimum nickel and is widely used where high nickel purity is required.
- Excellent Corrosion Resistance – Provides strong resistance to many corrosive environments.
- Excellent Caustic Resistance – Particularly valued for resistance to caustic soda and alkaline solutions under suitable conditions.
- Good Resistance to Fluorine – Offers useful resistance to dry fluorine under appropriate service conditions.
- Good Resistance to Neutral & Reducing Media – Suitable for selected reducing chemical environments.
- Good Electrical Properties – Useful electrical characteristics make Nickel 200 suitable for selected electrical and electronic applications.
- Good Thermal Conductivity – Provides useful thermal properties for selected heat-transfer and industrial applications.
- Good Ductility – Offers good ductility and formability in suitable conditions.
- Good Fabrication Characteristics – Can generally be formed, machined and fabricated using appropriate industrial procedures.
- Hot Rolled & Cold Drawn Options – Round bars can be supplied in different manufacturing conditions according to requirements.
- Forged Options Available – Forged round bars can be supplied for selected dimensions and applications.
- Wide Diameter Availability – Available in different diameters for machining, fabrication and component manufacturing.
- Multiple Surface Finishes – Bright, polished, pickled, ground, peeled and other specified finishes can be supplied.
- Annealed Conditions Available – Material can be supplied in annealed condition according to applicable requirements.
- Chemical Processing Applications – Suitable for selected chemical processing equipment and components.
- Caustic Handling Applications – Widely considered for equipment handling caustic and alkaline solutions.
- Food Processing Applications – Can be used in selected food-processing equipment where commercially pure nickel is suitable.
- Synthetic Fiber Applications – Suitable for selected chemical and synthetic-fiber processing equipment.
- Electrical Applications – Used in selected electrical and electronic components.
- Industrial Component Applications – Suitable for machining and manufacturing specialized industrial components.
- Reliable Material Traceability – Material certificates and inspection documentation can be supplied according to order requirements.
- Quality Testing Available – Chemical, mechanical, dimensional, hardness, visual and other specified inspections can be arranged.
- Export-Ready Material – Round bars can be suitably packed for handling, storage and international transportation.
- Global Nickel 200 Round Bar Exporter – METALX NICKEL & ALLOYS supplies Nickel 200 Round Bars to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Nickel 200 Round Bar Details |
|---|---|
| Product Name | Nickel 200 Round Bar |
| Material Grade | Nickel 200 |
| UNS Designation | N02200 |
| Werkstoff Number | 2.4066 |
| Material Type | Commercially Pure Nickel |
| Nickel Content | Approximately 99.0% minimum nickel |
| Manufacturing | Hot Rolled / Cold Drawn / Forged, as required |
| Applicable Standards | ASTM / ASME specifications as applicable |
| Common Standard | ASTM B160 / ASME SB160, where applicable |
| Bar Type | Round Bar |
| Diameter | As per customer requirement and applicable standard |
| Length | Standard, random and customized lengths |
| Surface Finish | Bright, polished, pickled, ground, peeled or as required |
| Heat Treatment | Annealed / As specified |
| End Condition | Plain cut, chamfered or as specified |
| Chemical Composition | Predominantly Nickel with controlled carbon, manganese, silicon, sulfur, copper and iron |
| Mechanical Properties | Tensile strength, yield strength, elongation and hardness according to applicable specification |
| Corrosion Resistance | Excellent resistance to caustic and alkaline environments and good resistance to various corrosive media |
| Electrical Properties | Useful electrical and thermal properties for selected industrial applications |
| Testing | Chemical, mechanical, dimensional, hardness, visual and other specified tests |
| Applications | Chemical processing, caustic handling, food processing, synthetic fiber, electronics, electrical equipment and industrial components |
| Customization | Diameter, length, surface finish, heat treatment, testing and documentation as required |
| Packing | Export-worthy packing suitable for safe international transportation |
| Export Supply | Available for international buyers, distributors, EPC contractors and industrial end users |
1. What is Nickel 200 Round Bar?
Nickel 200 Round Bar is manufactured from commercially pure nickel and is known for excellent corrosion resistance, good ductility and strong resistance to caustic and alkaline environments.
2. What is the UNS designation of Nickel 200?
The UNS designation of Nickel 200 is N02200.
3. What is the Werkstoff Number of Nickel 200?
The commonly associated Werkstoff Number is 2.4066.
4. What type of material is Nickel 200?
Nickel 200 is a commercially pure nickel alloy, containing approximately 99% minimum nickel.
5. What is the common standard for Nickel 200 Round Bar?
A commonly applicable specification is ASTM B160 / ASME SB160, subject to the exact product requirements.
6. Is Nickel 200 resistant to caustic soda?
Yes. Nickel 200 is particularly valued for its excellent resistance to caustic and alkaline solutions under suitable conditions.
