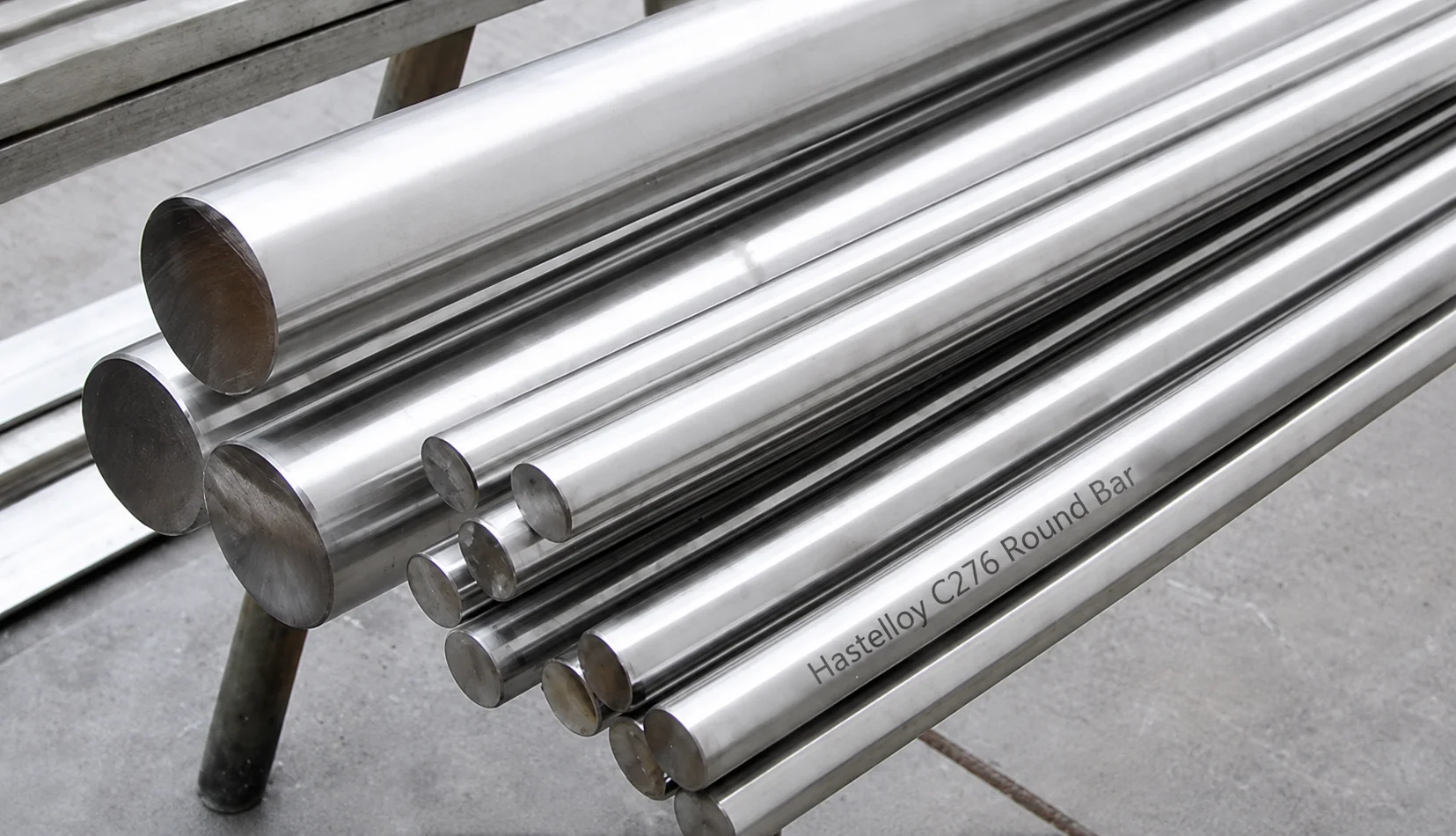

Hastelloy C276 Round Bar
| Specification Hastelloy C276 Round Bar Details | |
|---|---|
| Product Name | Hastelloy C276 Round Bar |
| Material Grade | Hastelloy C276 / Alloy C276 |
| UNS Designation | UNS N10276 |
| Werkstoff Number | W.Nr. 2.4819 |
| Material Type | Nickel-Chromium-Molybdenum-Tungsten Alloy |
| Chemical Composition | Nickel Balance, Chromium 14.5–16.5%, Molybdenum 15–17%, Tungsten 3–4.5%, Iron 4–7%, Cobalt 2.5% max, Vanadium 0.35% max |
| Manufacturing Type | Hot Rolled / Cold Drawn / Forged / Ground |
| Round Bar Standard | ASTM B574 / ASME SB574 |
| Forging Standard | ASTM B564 / ASME SB564 |
| General Requirements | ASTM B880 / applicable material requirements |
| Diameter | As per Standard / Customer Requirement |
| Diameter Range | Approximately 3 mm to 500 mm, depending on manufacturing capability |
| Length | Standard 1–6 m / Fixed or Customized Length |
| Tolerance | h7, h8, h9, h10, h11 or as required |
| Surface Finish | Black / Bright / Peeled / Ground / Polished / Machined |
| Heat Treatment | Solution Annealed |
| Condition | Annealed / Cold Drawn / Ground / Polished |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hardness, Ultrasonic and NDT as specified |
| Tensile Strength | Minimum approximately 690 MPa |
| Yield Strength | Minimum approximately 283 MPa |
| Elongation | Minimum approximately 40% |
| Density | Approximately 8.89 g/cm³ |
| Melting Range | Approximately 1325–1370°C |
| Corrosion Resistance | Excellent resistance to reducing and oxidizing environments, pitting, crevice corrosion and stress-corrosion cracking |
| Acid Resistance | Excellent resistance to sulfuric acid, hydrochloric acid and other aggressive chemical environments |
| Welding | Excellent weldability with suitable C276-compatible filler metals |
| Filler Metal | ERNiCrMo-4 / Alloy C276 compatible filler |
| Welding Electrode | ENiCrMo-4 |
| Available Form | Round Bar / Rod / Precision Ground Bar |
| Customization | Diameter, Length, Tolerance, Finish, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Chemical Processing, Petrochemical, Pharmaceutical, Pollution Control, Power Generation, Waste Treatment, Pulp & Paper, Marine, Oil & Gas and Process Industries |
Hastelloy C276 Round Bar – Standard Dimensions
| Diameter (mm) | Diameter (in.) | Weight (kg/m) | Weight (lb/ft) |
|---|---|---|---|
| 5 | 0.197 | 0.174 | 0.117 |
| 6 | 0.236 | 0.251 | 0.169 |
| 8 | 0.315 | 0.446 | 0.300 |
| 10 | 0.394 | 0.698 | 0.469 |
| 12 | 0.472 | 1.005 | 0.676 |
| 14 | 0.551 | 1.370 | 0.921 |
| 16 | 0.630 | 1.786 | 1.200 |
| 18 | 0.709 | 2.260 | 1.519 |
| 20 | 0.787 | 2.793 | 1.877 |
| 22 | 0.866 | 3.378 | 2.270 |
| 25 | 0.984 | 4.371 | 2.938 |
| 28 | 1.102 | 5.485 | 3.686 |
| 30 | 1.181 | 6.280 | 4.218 |
| 32 | 1.260 | 7.142 | 4.799 |
| 36 | 1.417 | 9.049 | 6.082 |
| 40 | 1.575 | 11.172 | 7.506 |
| 45 | 1.772 | 14.140 | 9.502 |
| 50 | 1.969 | 17.450 | 11.730 |
| 56 | 2.205 | 21.950 | 14.744 |
| 63 | 2.480 | 27.800 | 18.678 |
| 71 | 2.795 | 35.420 | 23.799 |
| 80 | 3.150 | 44.700 | 30.020 |
| 90 | 3.543 | 56.520 | 37.973 |
| 100 | 3.937 | 69.800 | 46.900 |
| 110 | 4.331 | 84.400 | 56.710 |
| 125 | 4.921 | 109.100 | 73.300 |
| 150 | 5.906 | 157.000 | 105.480 |
| 175 | 6.890 | 214.000 | 143.800 |
| 200 | 7.874 | 279.200 | 187.500 |
Hastelloy C276 Round Bar – Inch / US Bar Sizes
| US Bar Size | Diameter (in.) | Diameter (mm) | Approx. Weight (kg/m) |
|---|---|---|---|
| #2 | 0.250 | 6.35 | 0.279 |
| #3 | 0.375 | 9.53 | 0.628 |
| #4 | 0.500 | 12.70 | 1.116 |
| #5 | 0.625 | 15.88 | 1.744 |
| #6 | 0.750 | 19.05 | 2.512 |
| #7 | 0.875 | 22.23 | 3.399 |
| #8 | 1.000 | 25.40 | 4.465 |
| #9 | 1.125 | 28.58 | 5.650 |
| #10 | 1.250 | 31.75 | 6.982 |
| #11 | 1.375 | 34.93 | 8.435 |
| #12 | 1.500 | 38.10 | 10.046 |
| #13 | 1.625 | 41.28 | 11.793 |
| #14 | 1.750 | 44.45 | 13.700 |
| #15 | 1.875 | 47.63 | 15.730 |
| #16 | 2.000 | 50.80 | 17.870 |
| #18 | 2.250 | 57.15 | 22.610 |
| #20 | 2.500 | 63.50 | 27.980 |
Hastelloy C276 Round Bar – Inch / US Bar Sizes
| Diameter Range | Available Finish | Typical Tolerance | Supply Condition |
|---|---|---|---|
| 3–10 mm | Bright / Cold Drawn / Ground | h8 / h9 / h10 / h11 | Solution Annealed |
| 10–25 mm | Bright / Cold Drawn / Polished | h8 / h9 / h10 / h11 | Solution Annealed |
| 25–50 mm | Cold Drawn / Peeled / Ground | h9 / h10 / h11 | Solution Annealed |
| 50–75 mm | Peeled / Ground / Polished | h10 / h11 | Solution Annealed |
| 75–100 mm | Peeled / Machined / Ground | h11 | Solution Annealed |
| 100–150 mm | Hot Rolled / Peeled / Machined | h11 / Customer Requirement | Solution Annealed |
| 150–250 mm | Hot Rolled / Forged / Machined | Customer Requirement | Solution Annealed |
| 250–350 mm | Forged / Rough Machined | Customer Requirement | Solution Annealed |
| 350–500 mm | Forged / Custom Machined | Customer Requirement | Solution Annealed |
