| Parameter | Titanium Grade 2 Reducer Details |
|---|---|
| Product Name | Titanium Grade 2 Reducer |
| Material Grade | Titanium Grade 2 |
| UNS Number | R50400 |
| Werkstoff Number | 3.7035 |
| Material Type | Commercially Pure Titanium |
| Alloy Family | CP Titanium |
| Product Standard | ASTM B363 / ASME SB363 |
| Dimensional Standard | ASME B16.9 |
| Reducer Type | Concentric / Eccentric |
| Size Range | 1/2″ to 48″ |
| Manufacturing | Seamless / Welded / Fabricated |
| Large End | Standard / Custom Diameter |
| Small End | Standard / Custom Diameter |
| Wall Thickness | SCH 5S–SCH 160 / Custom |
| End Connection | Butt Weld |
| End Preparation | Beveled / Plain / Customized |
| Heat Treatment | As per applicable specification |
| Surface Finish | Mill / Pickled / Polished |
| Tensile Strength | Approx. 345 MPa minimum |
| Yield Strength | Approx. 275 MPa minimum |
| Elongation | Approx. 20% minimum |
| Density | Approx. 4.51 g/cm³ |
| Corrosion Resistance | Excellent resistance to seawater, chlorides and many oxidizing environments |
| Chloride Resistance | Excellent |
| Seawater Performance | Excellent |
| Weldability | Good with proper inert-gas shielding |
| Inspection | PMI / Visual / Dimensional / Mechanical / NDT |
| Certification | EN 10204 3.1 / 3.2 |
| Traceability | Heat Number / Batch Identification |
| Customization | Diameter transition, thickness, length and offset |
| Supply | Domestic & Worldwide Export |
| Applications | Desalination, Chemical Processing, Seawater Systems, Heat Exchangers, Chlor-Alkali, Marine, Power Generation and Process Piping |
Titanium Grade 2 Reducer – Common Size Combinations
| Large End | Small End | Reducer Type | Large End OD | Small End OD |
|---|---|---|---|---|
| 2″ | 1″ | Concentric / Eccentric | 60.33 mm | 33.40 mm |
| 2-1/2″ | 1-1/2″ | Concentric / Eccentric | 73.03 mm | 48.26 mm |
| 3″ | 2″ | Concentric / Eccentric | 88.90 mm | 60.33 mm |
| 4″ | 2″ | Concentric / Eccentric | 114.30 mm | 60.33 mm |
| 4″ | 3″ | Concentric / Eccentric | 114.30 mm | 88.90 mm |
| 5″ | 4″ | Concentric / Eccentric | 141.30 mm | 114.30 mm |
| 6″ | 4″ | Concentric / Eccentric | 168.28 mm | 114.30 mm |
| 6″ | 3″ | Concentric / Eccentric | 168.28 mm | 88.90 mm |
| 8″ | 6″ | Concentric / Eccentric | 219.08 mm | 168.28 mm |
| 8″ | 4″ | Concentric / Eccentric | 219.08 mm | 114.30 mm |
| 10″ | 8″ | Concentric / Eccentric | 273.05 mm | 219.08 mm |
| 10″ | 6″ | Concentric / Eccentric | 273.05 mm | 168.28 mm |
| 12″ | 10″ | Concentric / Eccentric | 323.85 mm | 273.05 mm |
| 12″ | 8″ | Concentric / Eccentric | 323.85 mm | 219.08 mm |
| 16″ | 12″ | Concentric / Eccentric | 406.40 mm | 323.85 mm |
| 20″ | 16″ | Concentric / Eccentric | 508.00 mm | 406.40 mm |
| 24″ | 20″ | Concentric / Eccentric | 609.60 mm | 508.00 mm |
Titanium Grade 2 Reducer – Size & Schedule Range
| NPS Large End | Outside Diameter | Typical Schedule | Configuration |
|---|---|---|---|
| 1/2″ | 21.34 mm | SCH 5S–XXS | Concentric / Eccentric |
| 3/4″ | 26.67 mm | SCH 5S–XXS | Concentric / Eccentric |
| 1″ | 33.40 mm | SCH 5S–XXS | Concentric / Eccentric |
| 1-1/4″ | 42.16 mm | SCH 5S–XXS | Concentric / Eccentric |
| 1-1/2″ | 48.26 mm | SCH 5S–XXS | Concentric / Eccentric |
| 2″ | 60.33 mm | SCH 5S–XXS | Concentric / Eccentric |
| 2-1/2″ | 73.03 mm | SCH 5S–XXS | Concentric / Eccentric |
| 3″ | 88.90 mm | SCH 5S–XXS | Concentric / Eccentric |
| 4″ | 114.30 mm | SCH 5S–XXS | Concentric / Eccentric |
| 6″ | 168.28 mm | SCH 5S–XXS | Concentric / Eccentric |
| 8″ | 219.08 mm | SCH 5S–XXS | Concentric / Eccentric |
| 10″ | 273.05 mm | SCH 5S–XXS | Concentric / Eccentric |
| 12″ | 323.85 mm | SCH 5S–XXS | Concentric / Eccentric |
| 14″ | 355.60 mm | SCH 5S–XXS | Concentric / Eccentric |
| 16″ | 406.40 mm | SCH 5S–XXS | Concentric / Eccentric |
| 18″ | 457.20 mm | SCH 5S–XXS | Concentric / Eccentric |
| 20″ | 508.00 mm | SCH 5S–XXS | Concentric / Eccentric |
| 24″ | 609.60 mm | SCH 5S–XXS | Concentric / Eccentric |
| 30″–48″ | 762–1219.20 mm | As Required | Custom / Fabricated |
Titanium Grade 2 Reducer – Manufacturing & Quality
| Feature | Available Options / Details |
|---|---|
| Reducer Profile | Concentric / Eccentric |
| Forming Process | Hot Formed / Cold Formed / Seamless / Welded |
| Size Range | 1/2″–48″ |
| Diameter Transition | Standard / Custom |
| Wall Thickness | Standard / Heavy Wall / Custom |
| Connection | Butt Weld |
| End Preparation | Beveled / Plain / Customized |
| Surface Treatment | Mill / Pickled / Polished |
| Heat Treatment | As Required by Specification |
| Welding Protection | High-Purity Inert Gas Shielding |
| Dimensional Inspection | OD / Thickness / Length / Concentricity / Ovality |
| Material Verification | PMI / Chemical Analysis |
| Mechanical Testing | Tensile / Yield / Elongation |
| NDT | UT / RT / PT as specified |
| Weld Inspection | As per applicable welding specification |
| Documentation | MTC / EN 10204 3.1 / 3.2 |
| Traceability | Heat Number / Batch Identification |
| Third-Party Inspection | Available as required |
| Packing | Export-Grade Wooden Cases / Bundles |
| Custom Fabrication | Special diameters, offsets, lengths and thicknesses |
Why Should You Buy Titanium Grade 2 Reducers from Metalx Nickel & Alloys?
- Experienced Titanium Grade 2 Reducer Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Alloy Industry Experience in supplying corrosion-resistant and high-performance alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Titanium Exporter offering Titanium Grade 2 / UNS R50400 / 3.7035 Reducers for demanding corrosive applications.
- Commercially Pure Titanium Expertise for applications requiring excellent resistance to seawater, chlorides, wet chlorine and selected chemical media.
- Global Sourcing Network with access to reputed titanium mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Titanium Product Range including Titanium Grade 1, Grade 2, Grade 5 and other titanium products, subject to requirements.
- Ready Stock Availability for selected Titanium Grade 2 Reducer sizes, subject to current stock and availability.
- Custom Titanium Grade 2 Reducer Supply according to customer drawings, size, schedule, wall thickness and end dimensions.
- Concentric & Eccentric Reducer Supply for standard and specialized industrial piping requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B363 / ASME SB363, where applicable.
- ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- PMI Testing Support for positive material identification where required.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
- Visual & Hardness Testing Support can be arranged where required by the applicable specification or purchase order.
- NDT Support including applicable ultrasonic or radiographic examination where specified.
- Custom Surface Finish can be arranged according to the applicable specification.
- Export-Ready Packing designed to protect Titanium Grade 2 Reducers during handling, storage and international transportation.
- Worldwide Titanium Grade 2 Reducer Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Titanium Grade 2 Reducer Export Support for EPC contractors, engineering companies, chemical plants, chlor-alkali facilities, desalination plants, marine projects, heat-exchanger manufacturers and specialized industrial buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, reducer type, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Titanium Grade 2 Reducer shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Titanium Grade 2 Reducer
- Commercially Pure Titanium Construction – Manufactured from Titanium Grade 2 for demanding corrosion-resistant piping systems.
- Excellent Corrosion Resistance – Provides strong resistance to many corrosive chemical and industrial environments.
- Outstanding Seawater Resistance – Suitable for selected seawater-handling and marine applications.
- Strong Chloride Resistance – Performs well in many chloride-containing environments.
- Excellent Wet-Chlorine Resistance – Valuable for compatible chlor-alkali and chemical processing applications.
- Strong Chemical Resistance – Suitable for selected acidic and industrial process conditions.
- Low Material Density – Provides a useful strength-to-weight advantage compared with many conventional piping materials.
- Controlled Diameter Transition – Connects piping sections having different nominal diameters.
- Concentric Reducer Configuration – Maintains a common centerline between the larger and smaller pipe connections.
- Eccentric Reducer Configuration – Provides an offset transition for selected piping arrangements.
- Smooth Diameter Transition – Supports a controlled transition between different pipe sizes.
- Reliable Butt-Weld Connection – Provides a permanent welded connection when properly fabricated.
- Wide Size Availability – Available in different nominal pipe sizes and outside diameters.
- Multiple Wall Thicknesses – Different schedules and customized thicknesses can be supplied.
- Wrought / Formed Construction – Manufactured according to applicable titanium fitting requirements.
- Seamless & Welded Options – Configuration can be supplied depending on size and specification.
- Good Fabrication Characteristics – Suitable for controlled forming and fabrication processes.
- Long Service Performance – Provides durable performance in compatible corrosive environments.
- Chemical Processing Applications – Suitable for selected aggressive chemical process systems.
- Chlor-Alkali Applications – Useful for selected chlorine, caustic and related process systems.
- Desalination Applications – Suitable for selected seawater and desalination equipment.
- Marine Applications – Useful for selected seawater and marine-service piping.
- Heat Exchanger Applications – Suitable for selected heat-transfer systems.
- Petrochemical Applications – Can be considered for selected petrochemical process equipment.
- Water Treatment Applications – Suitable for selected corrosive water-treatment systems.
- Pulp & Paper Applications – Useful for selected corrosive process environments.
- Industrial Process Piping – Suitable where corrosion resistance and low material density are important.
- Custom End Dimensions – Large-end and small-end diameters can be supplied according to project requirements.
- Multiple Surface Options – Mill finish, pickled or other specified finishes can be supplied.
- PMI Verification – Positive Material Identification can be arranged where required.
- Material Traceability – Material identification and relevant certification can be supplied.
- Quality Testing Available – Chemical, mechanical, dimensional, visual, PMI and other specified inspections can be arranged.
- Export-Ready Material – Reducers can be suitably packed for handling, storage and international transportation.
- Global Titanium Grade 2 Reducer Exporter – METALX NICKEL & ALLOYS supplies Titanium Grade 2 Reducers to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Titanium Grade 2 Reducer Details |
|---|---|
| Product Name | Titanium Grade 2 Reducer |
| Material Grade | Titanium Grade 2 |
| UNS Designation | R50400 |
| Werkstoff Number | 3.7035 |
| Material Type | Commercially Pure Titanium |
| Material Standard | ASTM B363 / ASME SB363, where applicable |
| Dimensional Standard | ASME B16.9, where applicable |
| Reducer Type | Concentric Reducer / Eccentric Reducer |
| Connection Type | Butt Weld |
| Size | As per applicable standard or customer specification |
| Wall Thickness | Different schedules and customized thicknesses |
| Large End Diameter | As per requirement |
| Small End Diameter | As per requirement |
| Manufacturing | Wrought / Formed, as applicable |
| Configuration | Seamless / Welded, depending on size and specification |
| End Preparation | Bevelled Ends for Butt Welding |
| Heat Treatment | As per applicable specification |
| Surface Finish | Mill Finish, Pickled or customer-specified finish |
| Testing | Chemical, mechanical, dimensional, visual, PMI and other specified inspections |
| Documentation | MTC, inspection reports and relevant quality documents as required |
| Customization | Size, thickness, schedule, reducer type, finish, testing and documentation |
| Packing | Export-worthy packing suitable for safe international transportation |
| Applications | Chemical Processing, Chlor-Alkali, Desalination, Marine, Heat Exchangers, Petrochemical and Water Treatment |

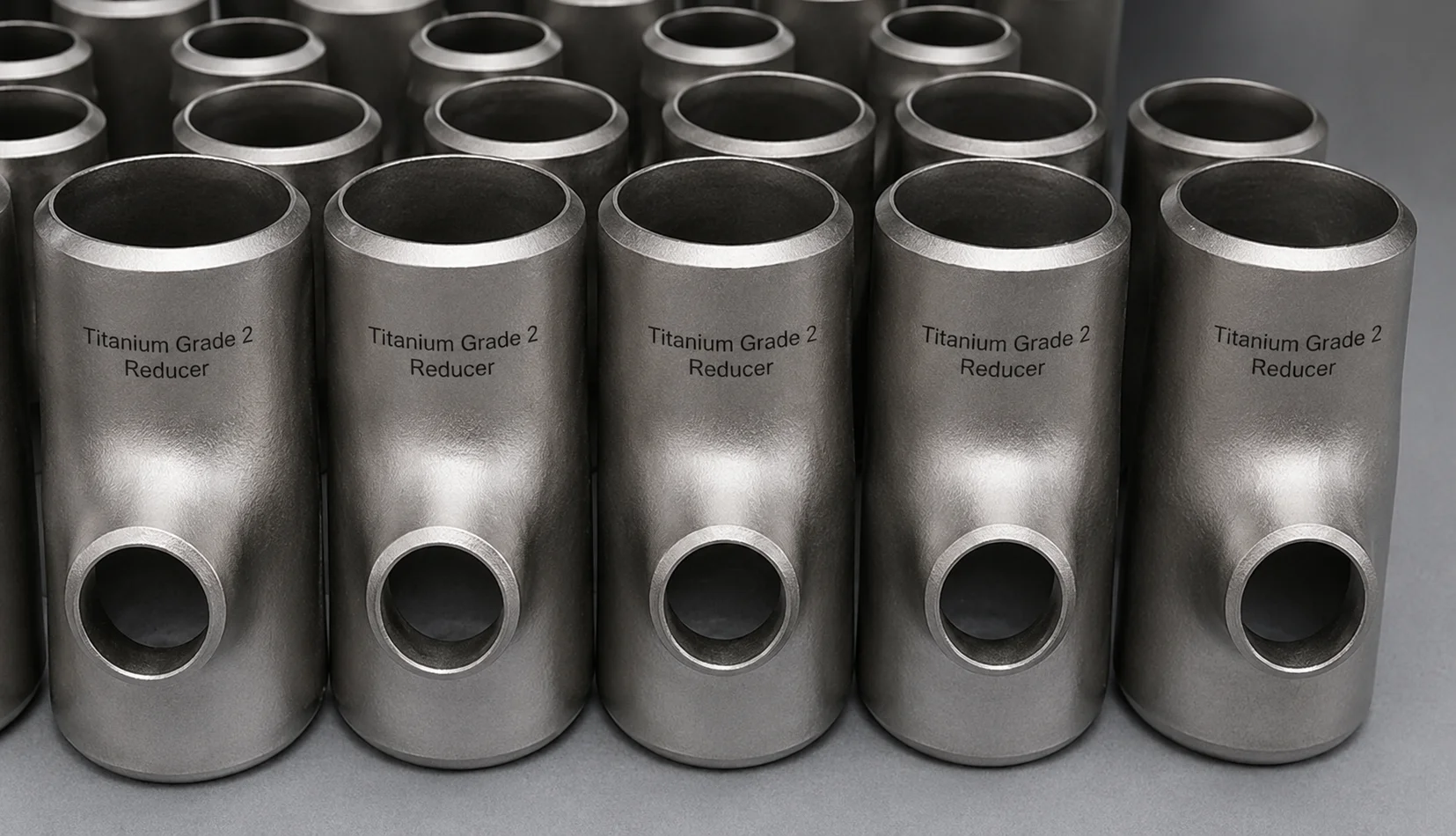

What is a Titanium Grade 2 Reducer?
A Titanium Grade 2 Reducer is a commercially pure titanium butt-weld fitting used to connect pipes of different diameters in corrosion-resistant industrial piping systems.
What is the UNS designation of Titanium Grade 2?
The UNS designation is R50400.
What is the Werkstoff Number of Titanium Grade 2?
The Werkstoff Number is 3.7035.
What makes MetalX Nickel & Alloys different from other alloy suppliers?
Our focus on quality, technical reliability, product consistency, customer service, and application-focused solutions helps us provide dependable alloy materials for challenging industrial requirements.
Does MetalX Nickel & Alloys provide customized material solutions?
Yes, we understand that every project has unique requirements. We can support requirements based on alloy grade, product form, dimensions, thickness, diameter, length, quantity, specifications, and application needs.
Why are Nickel Alloys important for industrial applications?
Nickel alloys offer excellent properties such as corrosion resistance, high-temperature strength, oxidation resistance, durability, and mechanical performance, making them suitable for demanding operating environments.
