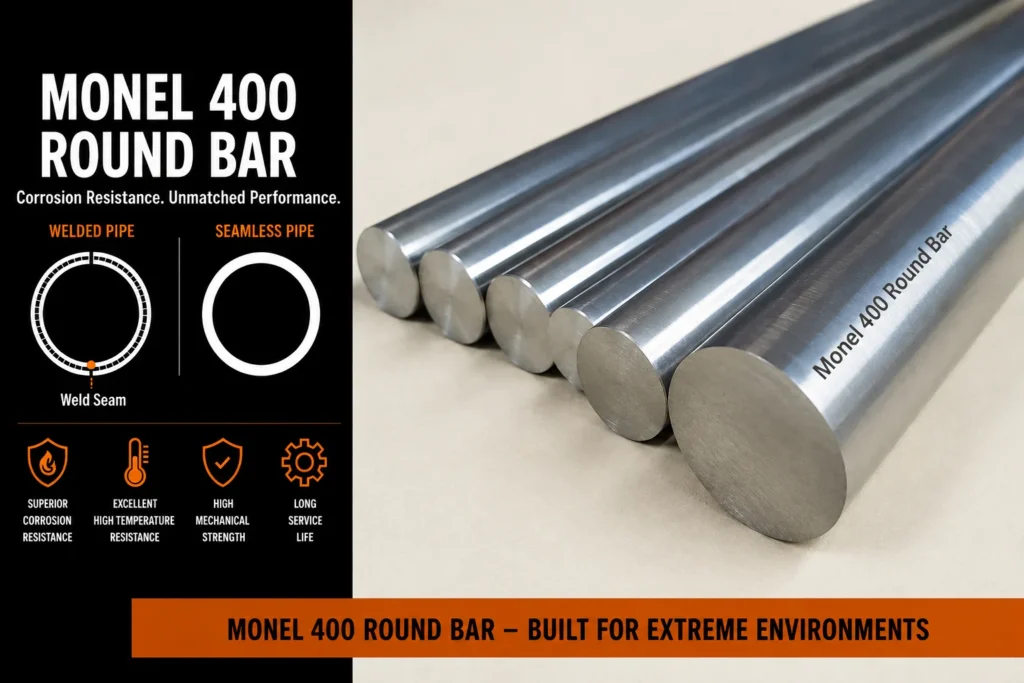

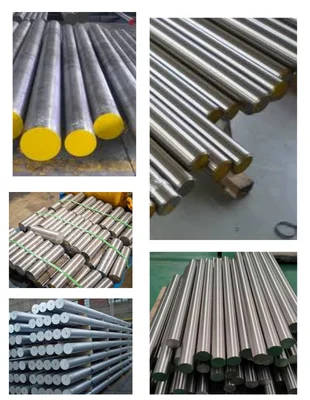

Monel 400 Round Bar
| Specification Monel 400 Round Bar Details | |
|---|---|
| Product Name | Monel 400 Round Bar |
| Material Grade | Monel 400 / Alloy 400 |
| UNS Designation | UNS N04400 |
| Werkstoff Number | W.Nr. 2.4360 |
| Material Type | Nickel-Copper Alloy |
| Chemical Composition | Nickel 63% min, Copper 28–34%, Iron 2.5% max, Manganese 2% max, Carbon 0.30% max, Silicon 0.50% max, Sulfur 0.024% max |
| Manufacturing Type | Hot Rolled / Cold Drawn / Forged / Ground |
| Round Bar Standard | ASTM B164 / ASME SB164 |
| Forging Standard | ASTM B564 / ASME SB564 |
| General Requirements | ASTM B865 / applicable material requirements, where specified |
| Diameter | As per Standard / Customer Requirement |
| Diameter Range | Approximately 3 mm to 500 mm, depending on manufacturing capability |
| Length | Standard 1–6 m / Fixed or Customized Length |
| Tolerance | h7, h8, h9, h10, h11 or as required |
| Surface Finish | Black / Bright / Peeled / Ground / Polished / Machined |
| Heat Treatment | Annealed / Stress Relieved as applicable |
| Condition | Annealed / Cold Drawn / Ground / Polished |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hardness, Ultrasonic and NDT as specified |
| Tensile Strength | Minimum approximately 550 MPa |
| Yield Strength | Minimum approximately 240 MPa |
| Elongation | Minimum approximately 35% |
| Density | Approximately 8.80 g/cm³ |
| Melting Range | Approximately 1300–1350°C |
| Corrosion Resistance | Excellent resistance to seawater, marine environments, hydrofluoric acid, alkalis and reducing chemical environments |
| Acid Resistance | Excellent resistance to hydrochloric acid and hydrofluoric acid under suitable conditions |
| Welding | Good weldability with suitable Monel 400-compatible filler metals |
| Filler Metal | ERNiCu-7 / Alloy 400 compatible filler |
| Welding Electrode | ENiCu-7 |
| Available Form | Round Bar / Rod / Precision Ground Bar |
| Customization | Diameter, Length, Tolerance, Finish, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Marine Engineering, Chemical Processing, Oil & Gas, Petrochemical, Heat Exchangers, Pumps, Valves, Salt Production, Water Treatment, Food Processing and Process Industries |
Monel 400 Round Bar – Standard Dimensions
| Diameter (mm) | Diameter (in.) | Weight (kg/m) | Weight (lb/ft) |
|---|---|---|---|
| 5 | 0.197 | 0.173 | 0.116 |
| 6 | 0.236 | 0.249 | 0.167 |
| 8 | 0.315 | 0.442 | 0.297 |
| 10 | 0.394 | 0.691 | 0.465 |
| 12 | 0.472 | 0.995 | 0.669 |
| 14 | 0.551 | 1.355 | 0.911 |
| 16 | 0.630 | 1.769 | 1.189 |
| 18 | 0.709 | 2.239 | 1.505 |
| 20 | 0.787 | 2.765 | 1.858 |
| 22 | 0.866 | 3.347 | 2.249 |
| 25 | 0.984 | 4.320 | 2.903 |
| 28 | 1.102 | 5.418 | 3.641 |
| 30 | 1.181 | 6.220 | 4.179 |
| 32 | 1.260 | 7.073 | 4.752 |
| 36 | 1.417 | 8.965 | 6.023 |
| 40 | 1.575 | 11.058 | 7.428 |
| 45 | 1.772 | 13.982 | 9.391 |
| 50 | 1.969 | 17.279 | 11.607 |
| 56 | 2.205 | 21.699 | 14.575 |
| 63 | 2.480 | 27.460 | 18.447 |
| 71 | 2.795 | 35.020 | 23.525 |
| 80 | 3.150 | 44.242 | 29.716 |
| 90 | 3.543 | 55.880 | 37.522 |
| 100 | 3.937 | 69.115 | 46.435 |
| 110 | 4.331 | 83.900 | 56.375 |
| 125 | 4.921 | 108.110 | 72.610 |
| 150 | 5.906 | 155.610 | 104.550 |
| 175 | 6.890 | 211.750 | 142.260 |
| 200 | 7.874 | 276.460 | 185.680 |
Monel 400 Round Bar – Inch / US Bar Sizes
| US Bar Size | Diameter (in.) | Diameter (mm) | Approx. Weight (kg/m) |
|---|---|---|---|
| #2 | 0.250 | 6.35 | 0.278 |
| #3 | 0.375 | 9.53 | 0.625 |
| #4 | 0.500 | 12.70 | 1.107 |
| #5 | 0.625 | 15.88 | 1.730 |
| #6 | 0.750 | 19.05 | 2.491 |
| #7 | 0.875 | 22.23 | 3.376 |
| #8 | 1.000 | 25.40 | 4.429 |
| #9 | 1.125 | 28.58 | 5.604 |
| #10 | 1.250 | 31.75 | 6.918 |
| #11 | 1.375 | 34.93 | 8.361 |
| #12 | 1.500 | 38.10 | 9.968 |
| #13 | 1.625 | 41.28 | 11.700 |
| #14 | 1.750 | 44.45 | 13.600 |
| #15 | 1.875 | 47.63 | 15.600 |
| #16 | 2.000 | 50.80 | 17.715 |
| #18 | 2.250 | 57.15 | 22.400 |
| #20 | 2.500 | 63.50 | 27.690 |
Monel 400 Round Bar – Size & Tolerance Chart
| Diameter Range | Available Finish | Typical Tolerance | Supply Condition |
|---|---|---|---|
| 3–10 mm | Bright / Cold Drawn / Ground | h8 / h9 / h10 / h11 | Annealed |
| 10–25 mm | Bright / Cold Drawn / Polished | h8 / h9 / h10 / h11 | Annealed / Cold Drawn |
| 25–50 mm | Cold Drawn / Peeled / Ground | h9 / h10 / h11 | Annealed / Stress Relieved |
| 50–75 mm | Peeled / Ground / Polished | h10 / h11 | Annealed |
| 75–100 mm | Peeled / Machined / Ground | h11 | Annealed |
| 100–150 mm | Hot Rolled / Peeled / Machined | h11 / Customer Requirement | Annealed |
| 150–250 mm | Hot Rolled / Forged / Machined | Customer Requirement | Annealed |
| 250–350 mm | Forged / Rough Machined | Customer Requirement | Annealed |
| 350–500 mm | Forged / Custom Machined | Customer Requirement | Annealed |
Most Common Types Of Inconel 600 Pipe
Why Should You Buy Monel 400 Sheets & Plates from Metalx Nickel & Alloys?
- Experienced Monel 400 Sheets & Plates Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant and high-performance alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Monel 400 Exporter offering Monel 400 / Alloy 400 / UNS N04400 / W.Nr. 2.4360 / 2.4361 Sheets & Plates for demanding marine, chemical and industrial applications.
- Global Sourcing Network with access to reputed nickel alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Nickel Alloy Product Range including Monel 400, Monel K500, Hastelloy, Inconel, Incoloy and other specialized nickel-based alloys.
- Ready Stock Availability for selected Monel 400 Sheet and Plate sizes, subject to current stock and availability.
- Custom Monel 400 Supply according to customer drawings, thickness, width, length, tolerances, surface condition and project specifications.
- Cut-to-Size Service available for applicable sizes and customer requirements.
- ASTM / ASME Specification Supply according to applicable Monel 400 requirements, including ASTM B127 / ASME SB127, where applicable.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
- Tensile Testing Support – Tensile strength, yield strength and elongation requirements can be verified according to the applicable specification.
- Surface Finish Support – Mill, pickled, polished and other specified finishes can be supplied according to customer requirements.
- Heat Treatment Support – Annealed material can be supplied according to the applicable material specification.
- Export-Ready Packing designed to protect Monel 400 Sheets & Plates during handling, storage and international transportation.
- Worldwide Monel 400 Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Monel 400 Sheets & Plates Export Support for EPC contractors, marine companies, chemical plants, heat exchanger manufacturers, condenser manufacturers and hydrocarbon processing facilities.
- Technical Support from Export Enquiry to Shipment covering grade, thickness, width, length, tolerances, surface finish, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Monel 400 Sheets & Plates shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Monel 400 Sheets & Plates
- Excellent Marine Corrosion Resistance – Monel 400 provides strong resistance to seawater and marine environments.
- Excellent Seawater Performance – Suitable for equipment exposed to saltwater and flowing seawater under appropriate service conditions.
- Nickel-Copper Alloy – Monel 400 combines the corrosion resistance of nickel with the useful properties of copper.
- Good Resistance to Hydrofluoric Acid – Particularly valued for resistance to hydrofluoric acid under suitable conditions.
- Good Resistance to Alkaline Environments – Provides useful resistance to selected caustic and alkaline solutions.
- Good Resistance to Hydrocarbon Processing Media – Can be considered for selected petroleum and hydrocarbon processing applications.
- Good Mechanical Strength – Provides useful strength and toughness in annealed and other supplied conditions.
- Good Ductility – Offers good elongation and formability in appropriate conditions.
- Excellent Resistance to Chloride Environments – Suitable for selected chloride-containing and marine applications.
- Good Thermal Conductivity – Useful for selected heat-transfer applications.
- Wide Product Availability – Available as sheets, plates and cut plates in different dimensions.
- Customized Thickness – Thickness can be supplied according to applicable standards or customer requirements.
- Customized Width & Length – Standard and customized dimensions can be supplied according to project requirements.
- Multiple Surface Finishes – Mill finish, pickled, polished and other specified finishes can be supplied.
- Annealed Conditions Available – Material can be supplied in annealed or other required conditions.
- Marine Hardware Applications – Used for selected marine hardware and seawater-handling components.
- Pump Component Applications – Suitable for selected pump components exposed to corrosive fluids.
- Heat Exchanger Applications – Can be considered for heat exchangers and related equipment.
- Condenser Applications – Suitable for selected condenser components and systems.
- Chemical Processing Applications – Used in selected chemical processing equipment.
- Hydrocarbon Processing Applications – Suitable for selected petroleum and hydrocarbon processing equipment.
- Reliable Material Traceability – Material certificates and inspection documentation can be supplied according to order requirements.
- Quality Testing Available – Chemical, tensile, dimensional and other specified inspections can be arranged.
- Export-Ready Material – Sheets and plates can be suitably packed to protect material during handling and transportation.
- Global Monel 400 Exporter – METALX NICKEL ALLOYS supplies Monel 400 Sheets & Plates to international industrial customers.
| Specification | Monel 400 Sheets & Plates Details |
|---|---|
| Product Name | Monel 400 Sheets & Plates |
| Grade | Monel 400 |
| UNS Designation | N04400 |
| Werkstoff Number | 2.4360 / 2.4361 |
| Material Type | Nickel-Copper Alloy |
| Nickel Content | Approximately 63% minimum |
| Copper Content | Approximately 28% to 34% |
| Manganese | Maximum approximately 2.00% |
| Iron | Maximum approximately 2.50% |
| Carbon | Maximum approximately 0.30% |
| Silicon | Maximum approximately 0.50% |
| Applicable Standards | ASTM / ASME specifications as applicable |
| Common Standards | ASTM B127 / ASME SB127 |
| Product Forms | Sheets, Plates and Cut Plates |
| Thickness | As per applicable standard or customer requirement |
| Width | Standard or customized |
| Length | Standard or customized |
| Surface Finish | Mill Finish, Pickled, Polished or as specified |
| Heat Treatment | Annealed or as required |
| Tensile Strength | Typically around 70 ksi minimum in annealed conditions, depending on specification and product form |
| Yield Strength | Typically around 28 ksi minimum in annealed conditions, depending on specification |
| Elongation | Typically around 35% minimum in annealed conditions, depending on applicable standard |
| Testing | Chemical Analysis, Tensile Testing, Dimensional Inspection and other specified tests |
| Documentation | Material Test Certificate, Inspection Reports and relevant quality documents as required |
| Corrosion Resistance | Excellent resistance to seawater, marine environments and various corrosive fluids |
| Applications | Marine hardware, pump components, heat exchangers, condensers, chemical processing and hydrocarbon processing |
| Customization | Thickness, width, length, tolerances, surface condition, testing, marking and packaging as required |
| Packing | Export-worthy packing suitable for safe handling and international transportation |
| Export Supply | Available for international buyers, distributors, EPC contractors and industrial end users |
1. What are Monel 400 Sheets & Plates?
Monel 400 Sheets & Plates are manufactured from a nickel-copper alloy known for excellent resistance to seawater, marine environments and various corrosive chemical media.
2. What is the UNS designation of Monel 400?
The UNS designation of Monel 400 is N04400.
3. What is the Werkstoff Number of Monel 400?
Monel 400 is commonly associated with Werkstoff Number 2.4360 / 2.4361
4. What type of alloy is Monel 400?
Monel 400 is a nickel-copper alloy, containing approximately 63% minimum nickel and approximately 28% to 34% copper.
5. What is the common standard for Monel 400 Sheets & Plates?
A commonly applicable specification is ASTM B127 / ASME SB127, subject to the exact product form and applicable requirements.
6. Are Monel 400 Sheets available in customized sizes?
Yes. Thickness, width, length, tolerances, surface condition and other dimensions can be supplied according to customer and project requirements.
