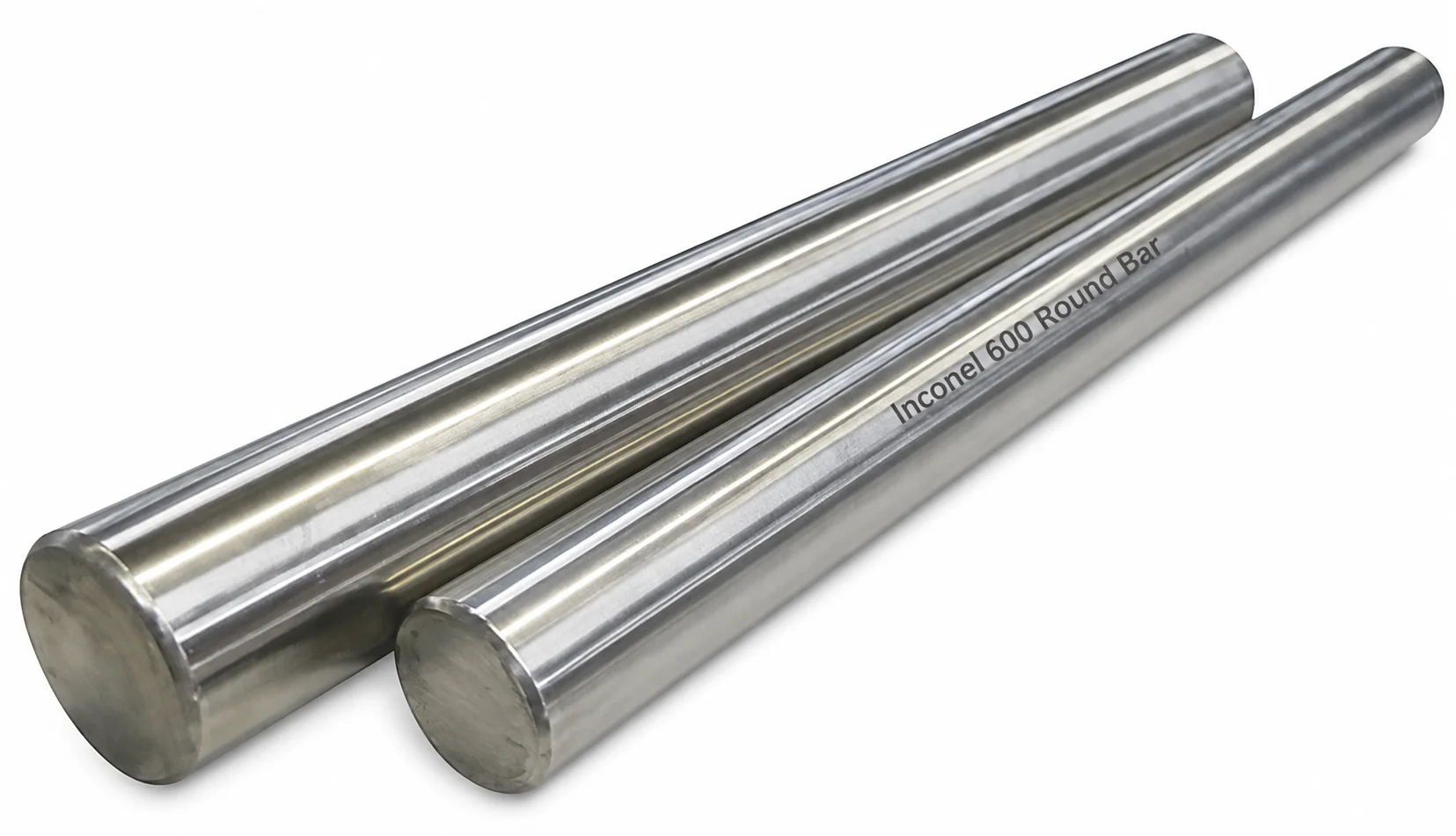

Inconel 600 Round Bar
| Specification Inconel 600 Round Bar Details | |
|---|---|
| Product Name | Inconel 600 Round Bar |
| Material Grade | Inconel 600 / Alloy 600 |
| UNS Designation | UNS N06600 |
| Werkstoff Number | W.Nr. 2.4816 |
| Material Type | Nickel-Chromium-Iron Alloy |
| Chemical Composition | Nickel 72.0% min, Chromium 14–17%, Iron 6–10%, Carbon 0.15% max, Manganese 1.0% max, Silicon 0.50% max, Copper 0.50% max |
| Manufacturing Type | Hot Rolled / Cold Finished / Forged |
| Bar Standard | ASTM B166 / ASME SB166 |
| Forging Standard | ASTM B564 / ASME SB564, as applicable |
| Outside Diameter | As per standard / Customer Requirement |
| Diameter Range | Commonly available from approximately 3 mm to 600 mm, depending on manufacturing capability |
| Length | Standard Random / Fixed / Cut-to-Length / Customized |
| Bar Shape | Round Bar |
| Surface Finish | Bright / Black / Peeled / Ground / Polished / Centerless Ground |
| Heat Treatment | Solution Annealed / Annealed as applicable |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Ultrasonic and other NDT as specified |
| Tensile Strength | Minimum approximately 550 MPa |
| Yield Strength | Minimum approximately 240 MPa |
| Elongation | Minimum approximately 30% |
| Density | Approximately 8.47 g/cm³ |
| Melting Range | Approximately 1354–1413°C |
| Corrosion Resistance | Excellent resistance to oxidation, carburization, chloride environments and various organic/inorganic acids |
| High-Temperature Performance | Excellent resistance to oxidation and scaling at elevated temperatures |
| Weldability | Good weldability with suitable nickel-alloy filler metals |
| Filler Metal | ERNiCr-3 / Alloy 600 compatible filler |
| Welding Electrode | ENiCrFe-3 |
| Available Forms | Round Bar / Rod |
| Customization | Diameter, Length, Surface Finish, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Chemical Processing, Heat Treatment Equipment, Furnace Components, Petrochemical, Nuclear Engineering, Aerospace, Heat Exchangers, Power Generation and High-Temperature Applications |
Inconel 600 Round Bar – Standard Diameter & Length
| Diameter (mm) | Diameter (in.) | Standard Length (mm) | Standard Length (ft.) |
|---|---|---|---|
| 3 | 0.118 | 3000 | 9.84 |
| 4 | 0.157 | 3000 | 9.84 |
| 5 | 0.197 | 3000 | 9.84 |
| 6 | 0.236 | 3000 | 9.84 |
| 8 | 0.315 | 3000 | 9.84 |
| 10 | 0.394 | 3000 | 9.84 |
| 12 | 0.472 | 3000 | 9.84 |
| 14 | 0.551 | 3000 | 9.84 |
| 16 | 0.630 | 3000 | 9.84 |
| 18 | 0.709 | 3000 | 9.84 |
| 20 | 0.787 | 3000 | 9.84 |
| 22 | 0.866 | 3000 | 9.84 |
| 25 | 0.984 | 3000 | 9.84 |
| 28 | 1.102 | 3000 | 9.84 |
| 30 | 1.181 | 3000 | 9.84 |
| 32 | 1.260 | 3000 | 9.84 |
| 35 | 1.378 | 3000 | 9.84 |
| 38 | 1.496 | 3000 | 9.84 |
| 40 | 1.575 | 3000 | 9.84 |
| 45 | 1.772 | 3000 | 9.84 |
| 50 | 1.969 | 3000 | 9.84 |
| 55 | 2.165 | 3000 | 9.84 |
| 60 | 2.362 | 3000 | 9.84 |
| 65 | 2.559 | 3000 | 9.84 |
| 70 | 2.756 | 3000 | 9.84 |
| 75 | 2.953 | 3000 | 9.84 |
| 80 | 3.150 | 3000 | 9.84 |
| 90 | 3.543 | 3000 | 9.84 |
| 100 | 3.937 | 3000 | 9.84 |
| 110 | 4.331 | 3000 | 9.84 |
| 120 | 4.724 | 3000 | 9.84 |
| 130 | 5.118 | 3000 | 9.84 |
| 140 | 5.512 | 3000 | 9.84 |
| 150 | 5.906 | 3000 | 9.84 |
| 160 | 6.299 | 3000 | 9.84 |
| 180 | 7.087 | 3000 | 9.84 |
| 200 | 7.874 | 3000 | 9.84 |
| 250 | 9.843 | 3000 | 9.84 |
| 300 | 11.811 | 3000 | 9.84 |
Inconel 600 Round Bar – ASTM B166 Dimensions
| Diameter (mm) | Diameter (in.) | Cross-Sectional Area (mm²) | Approx. Weight (kg/m) |
|---|---|---|---|
| 6 | 0.236 | 28.27 | 0.24 |
| 8 | 0.315 | 50.27 | 0.43 |
| 10 | 0.394 | 78.54 | 0.66 |
| 12 | 0.472 | 113.10 | 0.96 |
| 14 | 0.551 | 153.94 | 1.30 |
| 16 | 0.630 | 201.06 | 1.70 |
| 18 | 0.709 | 254.47 | 2.15 |
| 20 | 0.787 | 314.16 | 2.66 |
| 22 | 0.866 | 380.13 | 3.22 |
| 25 | 0.984 | 490.87 | 4.15 |
| 28 | 1.102 | 615.75 | 5.21 |
| 30 | 1.181 | 706.86 | 5.98 |
| 32 | 1.260 | 804.25 | 6.81 |
| 35 | 1.378 | 962.11 | 8.14 |
| 38 | 1.496 | 1134.11 | 9.59 |
| 40 | 1.575 | 1256.64 | 10.63 |
| 45 | 1.772 | 1590.43 | 13.46 |
| 50 | 1.969 | 1963.50 | 16.61 |
| 55 | 2.165 | 2375.83 | 20.10 |
| 60 | 2.362 | 2827.43 | 23.92 |
| 65 | 2.559 | 3318.31 | 28.06 |
| 70 | 2.756 | 3848.45 | 32.54 |
| 75 | 2.953 | 4417.86 | 37.36 |
| 80 | 3.150 | 5026.55 | 42.52 |
| 90 | 3.543 | 6361.73 | 53.82 |
| 100 | 3.937 | 7853.98 | 66.45 |
| 110 | 4.331 | 9503.32 | 80.40 |
| 120 | 4.724 | 11309.73 | 95.68 |
| 130 | 5.118 | 13273.23 | 112.29 |
| 140 | 5.512 | 15393.80 | 130.24 |
| 150 | 5.906 | 17671.46 | 149.54 |
| 160 | 6.299 | 20106.19 | 170.18 |
| 180 | 7.087 | 25446.90 | 215.36 |
| 200 | 7.874 | 31415.93 | 265.69 |
| 250 | 9.843 | 49087.39 | 415.14 |
| 300 | 11.811 | 70685.83 | 597.80 |
Inconel 600 Round Bar – Size & Manufacturing Chart
| Bar Type | Size Range | Manufacturing Process | Surface Finish | Length |
|---|---|---|---|---|
| Cold Finished Round Bar | 3–100 mm | Cold Drawn / Cold Finished | Bright / Ground | Fixed / Random |
| Hot Finished Round Bar | 20–300 mm | Hot Rolled / Hot Finished | Black / Pickled | Fixed / Random |
| Peeled Round Bar | 20–300 mm | Hot Rolled + Peeled | Peeled / Smooth | Fixed / Cut Length |
| Ground Round Bar | 10–250 mm | Cold Finished + Grinding | Centerless Ground | Fixed / Customized |
| Polished Round Bar | 10–200 mm | Ground + Polishing | Polished | Fixed / Customized |
| Forged Round Bar | 100–600 mm+ | Open Die / Closed Die Forging | Black / Machined | Customized |
| Precision Round Bar | 5–100 mm | Cold Drawn / Ground | Bright / Precision Ground | Customized |
| Custom Round Bar | As Required | As per Drawing | Customized | Customized |
Why Should You Buy Inconel 600 Round Bars from Metalx Nickel & Alloys?
- Experienced Inconel 600 Round Bar Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant and high-temperature alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Inconel 600 Exporter offering Inconel 600 / Alloy 600 / UNS N06600 / W.Nr. 2.4816 Round Bars for demanding industrial applications.
- Global Sourcing Network with access to reputed nickel alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Nickel Alloy Product Range including Inconel 600, Inconel 625, Inconel 718, Incoloy, Hastelloy, Monel and other specialized nickel-based alloys.
- Ready Stock Availability for selected Inconel 600 Round Bar sizes, subject to current stock and availability.
- Custom Inconel 600 Round Bar Supply according to customer drawings, diameter, length, surface finish and project specifications.
- Cut-to-Length Service available for applicable sizes and customer requirements.
- ASTM / ASME Specification Supply according to applicable Inconel 600 Round Bar standards, including ASTM B166 / ASME SB166, where applicable.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable ASTM/ASME standards and customer specifications.
- Hardness & Visual Inspection can be arranged where required by the applicable specification or purchase order.
- Heat Treatment Support – Solution-annealed material can be supplied according to the applicable material specification.
- Export-Ready Packing designed to protect Inconel 600 Round Bars during handling, storage and international transportation.
- Worldwide Inconel 600 Round Bar Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Inconel 600 Round Bar Export Support for EPC contractors, chemical plants, petrochemical facilities, aerospace companies, furnace manufacturers and specialized engineering industries.
- Technical Support from Export Enquiry to Shipment covering grade, diameter, length, surface finish, heat treatment, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Inconel 600 Round Bar shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Inconel 600 Round Bar
- Excellent Corrosion Resistance – Inconel 600 Round Bar provides strong resistance to many corrosive environments.
- High-Performance Nickel-Chromium Alloy – Combines nickel-based corrosion resistance with good mechanical performance.
- Excellent Oxidation Resistance – Provides good resistance to oxidation during elevated-temperature service.
- Good High-Temperature Strength – Maintains useful mechanical properties under elevated-temperature conditions.
- Resistance to Chloride-Ion Stress Corrosion Cracking – Offers good resistance to chloride-ion stress corrosion cracking in suitable environments.
- Good Resistance to Alkaline Solutions – Nickel content provides useful resistance to selected alkaline environments.
- Thermal Stability – Suitable for applications involving repeated or continuous exposure to elevated temperatures.
- Excellent Fabrication Characteristics – Can be formed, machined and fabricated using appropriate industrial processes.
- Hot Rolled & Cold Finished Options – Round bars can be supplied in different manufacturing conditions according to requirements.
- Wide Diameter Availability – Available in different diameters for machining, fabrication and component manufacturing.
- Multiple Surface Finishes – Bright, polished, pickled, peeled, ground and other specified finishes can be supplied.
- Chemical Processing Applications – Suitable for selected chemical processing equipment and components.
- Heat Treatment Applications – Used for furnace components and high-temperature industrial equipment.
- Aerospace Applications – Can be considered for selected aerospace components requiring nickel alloy performance.
- Nuclear Industry Applications – Suitable for selected nuclear and high-temperature engineering applications.
- Petrochemical Applications – Used in selected petrochemical processing equipment and industrial components.
- Furnace Components – Suitable for applications involving elevated-temperature furnace environments.
- Reliable Material Traceability – Material certificates and inspection documentation can be supplied according to order requirements.
- Quality Testing Available – Chemical, mechanical, dimensional, visual, hardness and other specified inspections can be arranged.
- Export-Ready Material – Round bars can be prepared with suitable export packing for safe international transportation.
- Global Inconel 600 Round Bar Exporter – METALX NICKEL & ALLOYS supplies Inconel 600 Round Bars to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Inconel 600 Round Bar Details |
|---|---|
| Product Name | Inconel 600 Round Bar |
| Material Grade | Inconel 600 / Alloy 600 |
| UNS Designation | N06600 |
| Material Number | 2.4816 |
| Material Type | Nickel-Chromium Alloy |
| Manufacturing | Hot Rolled / Cold Drawn / Forged, as required |
| Applicable Standards | ASTM / ASME specifications as applicable |
| Common Standards | ASTM B166 / ASME SB166, where applicable |
| Bar Type | Round Bar |
| Diameter | As per customer requirement and applicable standard |
| Length | Standard, random and customized lengths |
| Surface Finish | Bright, polished, pickled, peeled, ground or as required |
| Heat Treatment | Solution annealed as applicable |
| End Condition | Plain cut, chamfered or as specified |
| Testing | Chemical, mechanical, dimensional, visual, hardness and other specified tests |
| Corrosion Resistance | Excellent resistance to oxidation and corrosion in various aggressive environments |
| High-Temperature Performance | Good mechanical strength and oxidation resistance at elevated temperatures |
| Applications | Chemical processing, heat treatment, aerospace, nuclear, furnace components, petrochemical equipment and industrial engineering |
| Customization | Diameter, length, surface finish, heat treatment, testing and documentation as required |
| Packing | Export-worthy packing suitable for safe international transportation |
| Export Supply | Available for international buyers, distributors, EPC contractors and industrial end users |
1. What is Inconel 600 Round Bar?
Inconel 600 Round Bar is manufactured from a nickel-chromium alloy designed to provide good corrosion resistance, oxidation resistance and mechanical performance at elevated temperatures.
2. What is the UNS designation of Inconel 600?
The UNS designation of Inconel 600 is UNS N06600.
3. What is the material number of Inconel 600?
The material number of Inconel 600 is 2.4816.
4. What type of alloy is Inconel 600?
Inconel 600 is a nickel-chromium alloy with good resistance to oxidation and corrosion across a range of industrial environments.
5. What is the common standard for Inconel 600 Round Bar?
A commonly applicable specification is ASTM B166 / ASME SB166, subject to the exact product requirements.
6. What manufacturing processes are available?
Inconel 600 Round Bars can be supplied as hot rolled, cold drawn or forged, depending on the required dimensions and specification.
