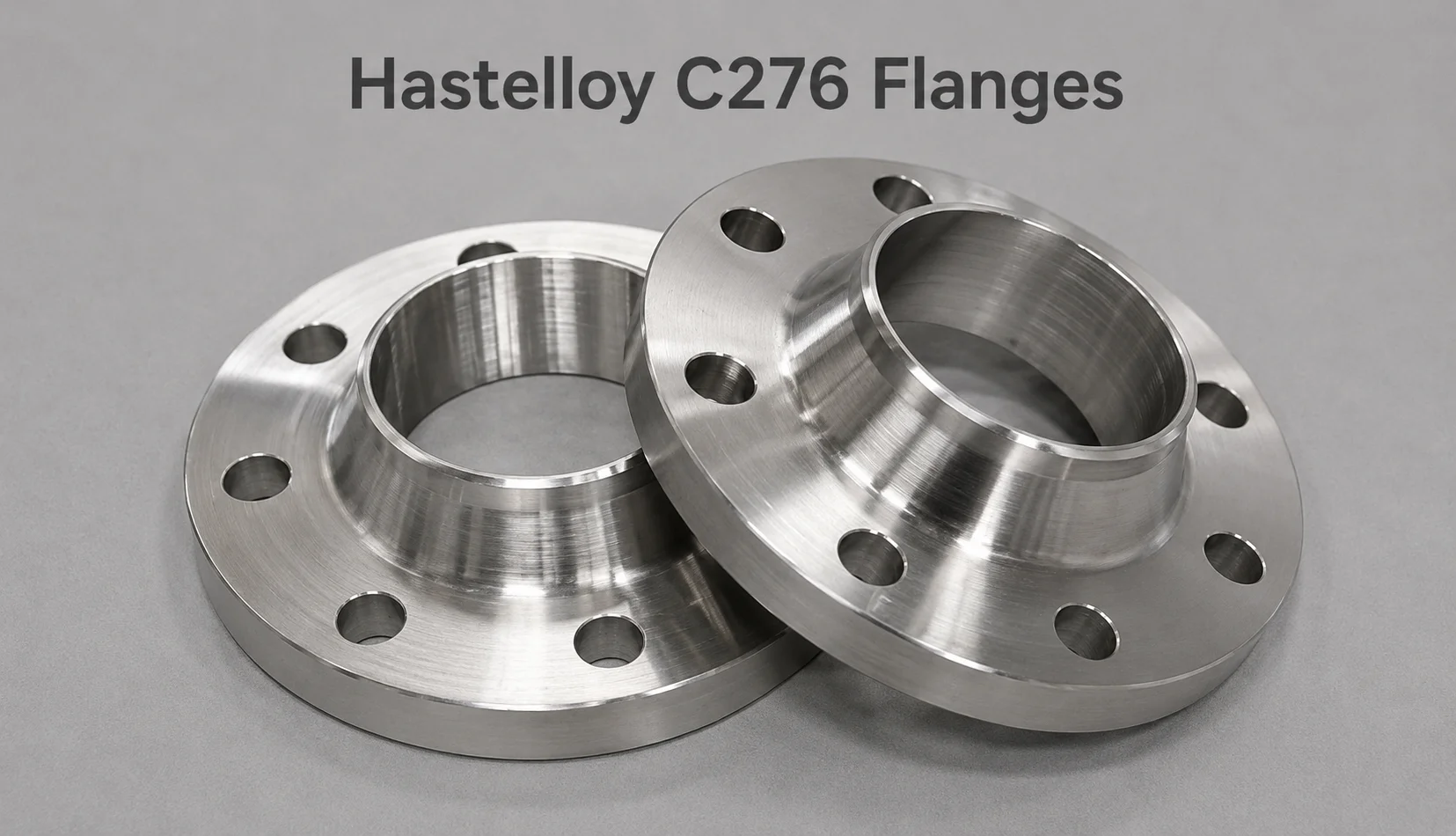

Hastelloy C276 Flanges
| Specification | Details |
|---|---|
| Product Name | Hastelloy C276 Flanges |
| Material Grade | Hastelloy C276 / Alloy C276 |
| UNS Designation | UNS N10276 |
| Werkstoff Number | W.Nr. 2.4819 |
| Material Type | Nickel-Chromium-Molybdenum-Tungsten Alloy |
| Chemical Composition | Nickel Balance, Chromium approximately 14.5–16.5%, Molybdenum approximately 15–17%, Tungsten approximately 3–4.5%, Iron approximately 4–7%, with controlled carbon and other elements |
| Flange Type | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Flange Standard | ASTM B564 / ASME SB564, as applicable |
| Dimensional Standard | ASME B16.5 / ASME B16.47, as applicable |
| Size | 1/2″ to 24″ or As per Customer Requirement |
| Pressure Class | Class 150 / 300 / 600 / 900 / 1500 / 2500, as applicable |
| Connection Type | Flanged Connection |
| Facing Type | Raised Face / Flat Face / Ring Type Joint, as applicable |
| Bore Type | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.5 / ASME B16.47 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Hastelloy C276 Material Specification and Condition |
| Yield Strength | As per Applicable Hastelloy C276 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.89 g/cm³ |
| Melting Range | Approximately 1325–1370°C |
| Corrosion Resistance | Excellent resistance to general corrosion in highly aggressive chemical environments |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Acid Resistance | Excellent resistance to oxidizing and reducing acids under suitable service conditions |
| Oxidation Resistance | Excellent resistance to oxidation in demanding environments |
| Welding | Suitable for welding using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to applicable ASME standards |
| Available Forms | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Hastelloy C276 Flanges Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Petrochemical, Pollution Control, Waste Treatment, Pulp & Paper, Marine, Power Generation, Heat Exchangers and Highly Corrosive Process Piping |

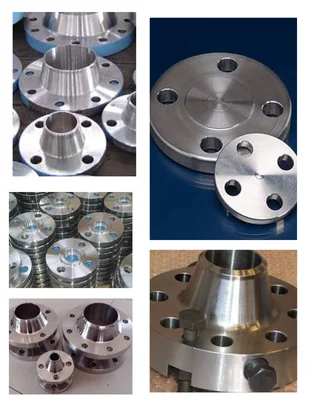

1. Most Common Types of Hastelloy C276 Flanges
| Type | Details |
|---|---|
| Hastelloy C276 Weld Neck Flange | Designed for demanding high-pressure and corrosive piping systems requiring a strong welded connection. |
| Hastelloy C276 Slip-On Flange | Fits over the pipe and is welded in position for suitable industrial piping applications. |
| Hastelloy C276 Blind Flange | Used to close pipe ends, valves, vessels and equipment nozzles in highly corrosive process systems. |
| Hastelloy C276 Socket Weld Flange | Suitable for smaller-diameter piping systems requiring a compact socket weld connection. |
| Hastelloy C276 Threaded Flange | Provides a threaded connection where welding may not be preferred, subject to application requirements. |
| Hastelloy C276 Lap Joint Flange | Used with a compatible stub end where frequent assembly and disassembly may be required. |
| Hastelloy C276 Orifice Flange | Used in flow measurement systems requiring an orifice plate arrangement. |
| Hastelloy C276 Ring Type Joint Flange | Features an RTJ facing for demanding pressure and temperature applications. |
| Customized Hastelloy C276 Flange | Available according to customer drawings, size, pressure class, facing, bore, dimensions, testing and documentation requirements. |
2. Hastelloy C276 Flanges – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Hastelloy C276 Flanges |
| Material Grade | Hastelloy C276 / Alloy C276 |
| UNS Designation | UNS N10276 |
| Werkstoff Number | W.Nr. 2.4819 |
| Material Type | Nickel-Chromium-Molybdenum-Tungsten Alloy |
| Flange Type | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Flange Standard | ASTM B564 / ASME SB564, as applicable |
| Dimensional Standard | ASME B16.5 / ASME B16.47, as applicable |
| Size | 1/2″ to 24″ or As per Customer Requirement |
| Pressure Class | Class 150 / 300 / 600 / 900 / 1500 / 2500, as applicable |
| Connection Type | Flanged Connection |
| Facing Type | Raised Face / Flat Face / Ring Type Joint, as applicable |
| Bore Type | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.5 / ASME B16.47 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Hastelloy C276 Material Specification and Condition |
| Yield Strength | As per Applicable Hastelloy C276 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.89 g/cm³ |
| Melting Range | Approximately 1325–1370°C |
| Corrosion Resistance | Excellent resistance to general corrosion in highly aggressive chemical environments |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Acid Resistance | Excellent resistance to oxidizing and reducing acids under suitable service conditions |
| Oxidation Resistance | Excellent resistance to oxidation in demanding environments |
| Welding | Suitable for welding using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to applicable ASME standards |
| Available Forms | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Hastelloy C276 Flanges Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Petrochemical, Pollution Control, Waste Treatment, Pulp & Paper, Marine, Power Generation, Heat Exchangers and Highly Corrosive Process Piping |
3. Hastelloy C276 Flanges – Supply & Quality Details
| Parameter | Details |
|---|---|
| Material Identification | Hastelloy C276 / Alloy C276 / UNS N10276 / W.Nr. 2.4819 |
| Flange Configurations | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice |
| Size Range | 1/2″ to 24″ or As per Requirement |
| Pressure Classes | Class 150 / 300 / 600 / 900 / 1500 / 2500 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Applicable Standards | ASTM B564 / ASME SB564 and ASME B16.5 / B16.47, as applicable |
| Facing Options | Raised Face / Flat Face / Ring Type Joint |
| Bore Options | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / As Required |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI / Other Tests |
| Inspection | Dimensional, Visual and Material Inspection |
| Certification | EN 10204 3.1 / 3.2 |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification |
| Material Traceability | Heat Number and Batch Identification as Applicable |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Packaging | Export-Worthy Wooden Cases, Boxes, Pallets or Customized Packaging |
| Documentation | MTC, Inspection Reports, Test Certificates and Other Documents as Required |
| Export Supply | Worldwide Hastelloy C276 Flanges Supply |
| Applications | Chemical Processing, Petrochemical, Pollution Control, Waste Treatment, Pulp & Paper, Marine, Power Generation, Heat Exchangers and Highly Corrosive Process Piping |
Most Common Types Of Hastelloy C276 Flanges
| Type | Details |
|---|---|
| Hastelloy C276 Weld Neck Flange | Designed for high-pressure and highly corrosive piping systems requiring a strong welded connection. |
| Hastelloy C276 Slip-On Flange | Fits over the pipe and is welded in position for suitable industrial piping applications. |
| Hastelloy C276 Blind Flange | Used to close pipe ends, valves, vessels and equipment nozzles in corrosive process systems. |
| Hastelloy C276 Socket Weld Flange | Suitable for smaller-diameter piping systems requiring a compact socket weld connection. |
| Hastelloy C276 Threaded Flange | Provides a threaded connection where welding may not be preferred, subject to application requirements. |
| Hastelloy C276 Lap Joint Flange | Used with a compatible stub end where frequent assembly and disassembly may be required. |
| Hastelloy C276 Orifice Flange | Used in flow measurement systems requiring an orifice plate arrangement. |
| Hastelloy C276 Ring Type Joint Flange | Features an RTJ facing for demanding pressure and temperature applications. |
| Hastelloy C276 Raised Face Flange | Provides a raised sealing surface for suitable gasketed piping and equipment connections. |
| Hastelloy C276 Flat Face Flange | Features a flat sealing face for applications requiring this facing configuration. |
| Customized Hastelloy C276 Flange | Available according to customer drawings, size, pressure class, facing, bore, dimensions, testing and documentation requirements. |
Why Should You Buy Hastelloy C276 Flanges from Metalx Nickel & Alloys?
- Experienced Hastelloy C276 Flanges Supplier & Exporter serving international buyers, importers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying and exporting corrosion-resistant, high-performance and specialty alloy products to customers across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Hastelloy C276 Flanges Exporter offering Hastelloy C276 / Alloy C276 / UNS N10276 / W.Nr. 2.4819 Flanges according to applicable international standards and customer requirements.
- Global Hastelloy C276 Sourcing Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Hastelloy C276 Flanges Supplier providing nickel-chromium-molybdenum-tungsten alloy flanges for demanding applications requiring excellent resistance to general corrosion, pitting, crevice corrosion, chloride-containing environments, oxidizing and reducing acids, and chloride-induced stress-corrosion cracking.
- Wide Specialty Flanges Range including Hastelloy C276 Weld Neck Flanges, Hastelloy C276 Slip-On Flanges, Hastelloy C276 Blind Flanges, Hastelloy C276 Socket Weld Flanges, Hastelloy C276 Threaded Flanges, Hastelloy C276 Lap Joint Flanges, Hastelloy C276 Orifice Flanges, Hastelloy C22 Flanges, Inconel Flanges, Nickel Alloy Flanges and Alloy 20 Flanges.
| Key Feature | Details |
|---|---|
| Severe Corrosion Resistance | Provides excellent resistance to severe corrosion in aggressive chemical and process environments. |
| Pitting Resistance | Strong resistance to pitting and localized corrosion. |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion under suitable service conditions. |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking in demanding applications. |
| Acid Resistance | Suitable for many oxidizing and reducing acid environments. |
| Aggressive Chemical Service | Well suited for applications involving corrosive chemicals and process fluids. |
| High Mechanical Strength | Provides dependable mechanical performance and durability for industrial connections. |
| Multiple Flange Configurations | Available in Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint and custom configurations. |
| Multiple Pressure Classes | Available in Class 150, 300, 600, 900, 1500 and 2500, as required. |
| Multiple Facing Options | RF, FF and RTJ facing configurations can be supplied according to application requirements. |
| Dimensional Accuracy | Precision manufacturing and machining support accurate installation and reliable equipment connections. |
| Customization | Size, drilling, bore, facing, pressure class, dimensions, finish, testing and documentation can be customized. |
| Inspection & Certification | Dimensional, visual, material and applicable testing can be arranged with required documentation. |
| Export-Ready Supply | Suitable packaging, certification and documentation can be provided for domestic and international shipments. |
| Specification | Details |
|---|---|
| Product Name | Hastelloy C276 Flanges |
| Material Grade | Hastelloy C276 / Alloy C276 |
| UNS Designation | UNS N10276 |
| Werkstoff Number | W.Nr. 2.4819 |
| Material Type | Nickel-Molybdenum-Chromium Alloy |
| Flange Type | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Custom Types |
| Manufacturing Type | Forged / Precision Machined |
| Flange Standard | ASTM B564 / ASME SB564, as applicable |
| Dimensional Standard | ASME B16.5 / ASME B16.47 / MSS SP-44 and Other Applicable Standards |
| Size Range | As per Customer Requirement and Applicable Standard |
| Pressure Class | Class 150 / 300 / 600 / 900 / 1500 / 2500 |
| Connection Type | Flanged Connection |
| Facing Type | Raised Face (RF) / Flat Face (FF) / Ring Type Joint (RTJ) / Other Options as Required |
| Bore Type | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | As per Applicable Standard or Customer Requirement |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per Applicable ASME Standard and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2, as Required |
| Testing | Dimensional / Visual / Chemical / Mechanical / PMI and Other Applicable Tests |
| Tensile Strength | As per Applicable Hastelloy C276 Material Specification and Condition |
| Yield Strength | As per Applicable Hastelloy C276 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.89 g/cm³ |
| Melting Range | Approximately 1325–1370°C |
| Corrosion Resistance | Excellent resistance to severe general corrosion in aggressive chemical environments |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Good to excellent resistance to stress-corrosion cracking under suitable service conditions |
| Acid Resistance | Excellent resistance to many oxidizing and reducing acids under suitable conditions |
| High-Temperature Performance | Suitable for demanding industrial service within recommended operating limits |
| Welding | Suitable for welding using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to applicable flange standards |
| Available Forms | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Custom Flanges |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Hastelloy C276 Flanges Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical, Petrochemical, Pharmaceutical, Power, Pollution Control, Waste Treatment, Pulp & Paper and Corrosive Process Industries |
1. What are Hastelloy C276 Flanges?
Hastelloy C276 Flanges are nickel-alloy flanges used to connect pipes, valves, pumps, vessels and other process equipment in highly corrosive industrial environments.
2. What material is used for Hastelloy C276 Flanges?
They are manufactured from Hastelloy C276 / Alloy C276 , identified by UNS N10276 and W.Nr. 2.4819 . The alloy is a nickel-molybdenum-chromium material with strong corrosion resistance.
3. What types of Hastelloy C276 Flanges are available?
Common types include Weld Neck, Slip-On, Blind, Socket Weld, Threaded and Lap Joint Flanges. Custom configurations can also be supplied according to customer requirements.
4. What pressure classes are available for Hastelloy C276 Flanges?
They can be supplied in Class 150, 300, 600, 900, 1500 and 2500 , depending on the flange size, type, applicable standard and project requirements.
5. What are the main advantages of Hastelloy C276 Flanges?
Key advantages include excellent resistance to severe corrosion, pitting, crevice corrosion, chloride-containing environments, oxidizing and reducing acids, and good resistance to stress-corrosion cracking under suitable service conditions.
6. Where are Hastelloy C276 Flanges used?
They are commonly used in chemical processing, petrochemical, pharmaceutical, power, pollution control, wastewater treatment, pulp and paper, marine, heat exchanger and highly corrosive process piping applications .
