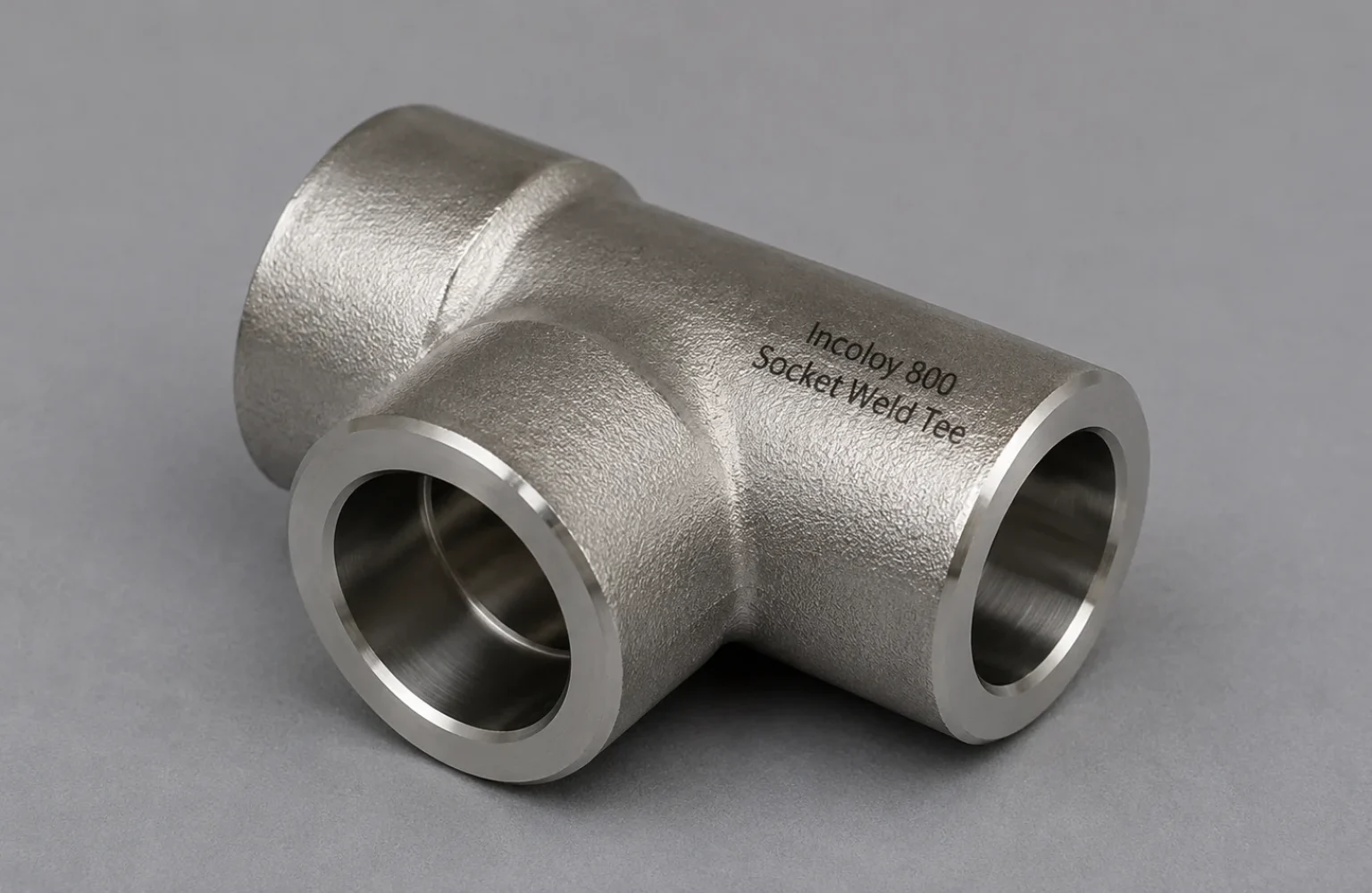

Incoloy 800 Socket Weld Tee
| Specification | Details |
|---|---|
| Product Name | Incoloy 800 Socket Weld Tee |
| Material Grade | Incoloy 800 / Alloy 800 |
| UNS Designation | UNS N08800 |
| Werkstoff Number | W.Nr. 1.4876 |
| Material Type | Nickel-Iron-Chromium Alloy |
| Chemical Composition | Nickel approximately 30–35%, Chromium approximately 19–23%, Iron Balance, Carbon controlled as per applicable specification |
| Fitting Type | Socket Weld Tee |
| Tee Type | Equal Tee / Reducing Tee |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Incoloy 800 Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 800 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 7.94 g/cm³ |
| Melting Range | Approximately 1350–1400°C |
| Corrosion Resistance | Excellent resistance to oxidation, carburization and various corrosive environments |
| High-Temperature Resistance | Good resistance to oxidation and carburization at elevated temperatures |
| Heat Resistance | Suitable for high-temperature industrial service within recommended limits |
| Chloride Resistance | Good resistance to selected chloride-containing environments |
| Acid Resistance | Good resistance to selected chemical and acidic environments under suitable conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under appropriate service conditions |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Equal Socket Weld Tee / Reducing Socket Weld Tee / Forged Socket Weld Tee |
| Customization | Size, Tee Type, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 800 Socket Weld Tee Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Heat Treatment Equipment, Chemical Processing, Petrochemical, Power Generation, Heat Exchangers, Furnaces, Industrial Heating Equipment and High-Temperature Process Piping |

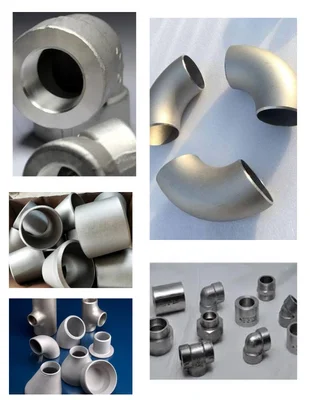

1. Most Common Types of Incoloy 800 Socket Weld Tee
| Type | Details |
|---|---|
| Incoloy 800 Equal Socket Weld Tee | Used where the run and branch connections have the same nominal size. |
| Incoloy 800 Reducing Socket Weld Tee | Used when the branch connection is smaller than the main pipe size. |
| Incoloy 800 Forged Socket Weld Tee | Forged construction provides good strength, durability and dimensional consistency. |
| Incoloy 800 Class 3000 Socket Weld Tee | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Incoloy 800 Class 6000 Socket Weld Tee | Designed for higher-pressure industrial piping applications requiring Class 6000 fittings. |
| Incoloy 800 Class 9000 Socket Weld Tee | Used for specialized high-pressure piping applications requiring Class 9000 fittings. |
| Incoloy 800 Precision Machined Tee | Provides accurate branch and socket dimensions for reliable pipe fit-up. |
| Customized Incoloy 800 Socket Weld Tee | Available according to customer drawings, dimensions, pressure class, finish, testing and documentation requirements. |
2. Incoloy 800 Socket Weld Tee – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Incoloy 800 Socket Weld Tee |
| Material Grade | Incoloy 800 / Alloy 800 |
| UNS Designation | UNS N08800 |
| Werkstoff Number | W.Nr. 1.4876 |
| Material Type | Nickel-Iron-Chromium Alloy |
| Chemical Composition | Nickel approximately 30–35%, Chromium approximately 19–23%, Iron Balance, Carbon controlled as per applicable specification |
| Fitting Type | Socket Weld Tee |
| Tee Type | Equal Tee / Reducing Tee |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size Range | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Incoloy 800 Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 800 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 7.94 g/cm³ |
| Melting Range | Approximately 1350–1400°C |
| Corrosion Resistance | Excellent resistance to oxidation, carburization and various corrosive environments |
| High-Temperature Resistance | Good resistance to oxidation and carburization at elevated temperatures |
| Heat Resistance | Suitable for high-temperature industrial service within recommended limits |
| Chloride Resistance | Good resistance to selected chloride-containing environments |
| Acid Resistance | Good resistance to selected chemical and acidic environments under suitable conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under appropriate service conditions |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Equal Socket Weld Tee / Reducing Socket Weld Tee / Forged Socket Weld Tee |
| Customization | Size, Tee Type, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 800 Socket Weld Tee Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Heat Treatment Equipment, Chemical Processing, Petrochemical, Power Generation, Heat Exchangers, Furnaces, Industrial Heating Equipment and High-Temperature Process Piping |
3. Incoloy 800 Socket Weld Tee – Supply & Quality Details
| Supply Parameter | Available Options / Details |
|---|---|
| Material | Incoloy 800 / Alloy 800 / UNS N08800 |
| Tee Configuration | Equal Tee / Reducing Tee |
| Size Range | 1/8″ to 4″ NPS or As per Requirement |
| Pressure Classes | Class 3000 / 6000 / 9000 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Connection | Socket Weld |
| Standards | ASME B16.11 / ASTM B366 / ASME SB366, as applicable |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / As Required |
| Testing | Chemical / Mechanical / Dimensional / Visual / Hardness / PMI / Other Tests |
| Inspection | Dimensional, Visual and Material Inspection |
| Certification | EN 10204 3.1 / 3.2 |
| Marking | Size, Grade, Standard and Heat/Batch Identification |
| Material Traceability | Heat Number and Batch Identification as Applicable |
| Customization | Size, Tee Type, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Packing | Export-Worthy Protective Packaging |
| Documentation | MTC, Inspection Reports, Test Certificates and Other Documents as Required |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 800 Socket Weld Tee Supply |
| Applications | Heat Treatment, Chemical Processing, Petrochemical, Power Generation, Furnaces, Heat Exchangers and High-Temperature Industrial Piping |
Most Common Types Of Incoloy 800 Socket Weld Tee
| Type | Details |
|---|---|
| Incoloy 800 Equal Socket Weld Tee | Used when the run and branch connections have the same nominal pipe size. |
| Incoloy 800 Reducing Socket Weld Tee | Used when the branch connection is smaller than the main pipe size. |
| Incoloy 800 Forged Socket Weld Tee | Forged construction provides good mechanical strength, durability and dimensional consistency. |
| Incoloy 800 Class 3000 Socket Weld Tee | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Incoloy 800 Class 6000 Socket Weld Tee | Designed for higher-pressure piping applications requiring Class 6000 fittings. |
| Incoloy 800 Class 9000 Socket Weld Tee | Used for specialized high-pressure piping applications requiring Class 9000 fittings. |
| Incoloy 800 Precision Machined Tee | Provides accurate socket and branch dimensions for reliable pipe fit-up and installation. |
| Customized Incoloy 800 Socket Weld Tee | Available according to customer drawings, dimensions, pressure class, surface finish, testing and documentation requirements. |
Why Should You Buy Incoloy 800 Socket Weld Tees from MetalX Nickel & Alloys?
- Experienced Incoloy 800 Socket Weld Tee Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant, high-temperature and specialty nickel alloy products across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Incoloy 800 Socket Weld Tee Exporter offering Incoloy 800 / Alloy 800 / UNS N08800 / W.Nr. 1.4876 Socket Weld Tees according to applicable international standards and customer requirements.
- Global Incoloy 800 Sourcing Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Incoloy 800 Socket Weld Tee Supplier providing nickel-iron-chromium alloy fittings for applications requiring excellent oxidation resistance, carburization resistance, high-temperature performance, corrosion resistance and reliable mechanical strength.
- Wide Nickel Alloy Fittings Range including Incoloy 800 Socket Weld Elbows, Incoloy 800 Socket Weld Tees, Incoloy 800 Socket Weld Couplings, Incoloy 800 Socket Weld Unions, Incoloy 800 Socket Weld Crosses, Incoloy 800H Socket Weld Fittings, Incoloy 800HT Socket Weld Fittings, Incoloy 825 Socket Weld Fittings, Inconel Socket Weld Fittings and Hastelloy Socket Weld Fittings.
| Key Feature | Details |
|---|---|
| Excellent Oxidation Resistance | Provides strong resistance to oxidation during elevated-temperature service. |
| Carburization Resistance | Offers good resistance to carburizing environments encountered in high-temperature industrial equipment. |
| High-Temperature Strength | Maintains good mechanical strength and structural stability under demanding thermal conditions. |
| Nickel-Iron-Chromium Alloy | The balanced alloy composition provides a combination of heat resistance, corrosion resistance and mechanical performance. |
| Compact Socket Weld Design | Provides a secure and space-efficient welded connection for suitable piping systems. |
| 45° & 90° Configurations | Available in both 45° and 90° elbow configurations for different piping layouts. |
| Forged Construction | Forged manufacturing supports strength, dimensional consistency and reliable service performance. |
| Multiple Pressure Classes | Available in Class 3000, 6000 and 9000 configurations, subject to size and applicable requirements. |
| Precision Dimensions | Manufactured to applicable dimensional requirements for accurate pipe fit-up and installation. |
| Corrosion Resistance | Suitable for various corrosive and high-temperature industrial environments. |
| Custom Manufacturing | Size, angle, pressure class, dimensions, finish, testing and documentation can be supplied according to project requirements. |
| Quality Inspection | Dimensional, visual, material and other applicable inspections can be arranged as required. |
| Material Certification | MTC and relevant inspection documentation can be supplied according to customer requirements. |
| Wide Industrial Applications | Suitable for heat exchangers, furnaces, petrochemical equipment, power generation and high-temperature piping systems. |
| Specification | Details |
|---|---|
| Product Name | Incoloy 800 Socket Weld Tee |
| Material Grade | Incoloy 800 / Alloy 800 |
| UNS Designation | UNS N08800 |
| Werkstoff Number | W.Nr. 1.4876 |
| Material Type | Nickel-Iron-Chromium Alloy |
| Fitting Type | Socket Weld Tee |
| Tee Type | Equal Tee / Reducing Tee |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size Range | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Shape | Tee |
| Surface Finish | Standard Industrial Finish / Bright / Pickled / Machined / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| Testing | Chemical / Mechanical / Dimensional / Visual / Hardness / PMI and Other Tests as Required |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard and Heat/Batch Number as Applicable |
| MTC | EN 10204 3.1 / 3.2, as required |
| Tensile Strength | As per Applicable Incoloy 800 Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 800 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 7.94 g/cm³ |
| Melting Range | Approximately 1350–1400°C |
| Oxidation Resistance | Good to excellent resistance to oxidation under suitable high-temperature conditions |
| Carburization Resistance | Good resistance to carburization in suitable elevated-temperature environments |
| Corrosion Resistance | Good resistance to various corrosive environments, particularly at elevated temperatures |
| High-Temperature Performance | Good mechanical strength and thermal stability within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Equal Socket Weld Tee / Reducing Socket Weld Tee / Forged Socket Weld Tee |
| Customization | Size, Tee Type, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 800 Socket Weld Tee Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Petrochemical, Power Generation, Heat Treatment Equipment, Furnaces, Industrial Heating Systems, Thermal Processing and High-Temperature Process Piping |
1. What is an Incoloy 800 Socket Weld Tee?
An Incoloy 800 Socket Weld Tee is a forged nickel-iron-chromium pipe fitting used to create a branch connection in piping systems. It uses a socket weld connection for a compact and secure joint.
2. What is the material designation of Incoloy 800?
Incoloy 800 is also known as Alloy 800 and is identified by UNS N08800 and W.Nr. 1.4876 . It is commonly selected for applications requiring good high-temperature strength and resistance to oxidation and carburization.
3. What types of Incoloy 800 Socket Weld Tees are available?
Common configurations include Equal Socket Weld Tee and Reducing Socket Weld Tee . Forged and precision-machined options can also be supplied according to project requirements.
4. What sizes and pressure classes are available?
Incoloy 800 Socket Weld Tees can commonly be supplied from 1/8″ to 4″ NPS , with larger or customized sizes subject to requirements. Typical pressure classes include Class 3000, Class 6000 and Class 9000 .
5. Which standards are used for Incoloy 800 Socket Weld Tees?
They can be manufactured according to ASME B16.11 for dimensional requirements and ASTM B366 / ASME SB366 for applicable nickel-alloy fitting material requirements.
6. Where are Incoloy 800 Socket Weld Tees used?
They are commonly used in chemical processing, petrochemical plants, power generation, heat-treatment equipment, industrial furnaces, heat exchangers, thermal processing systems and high-temperature process piping .
