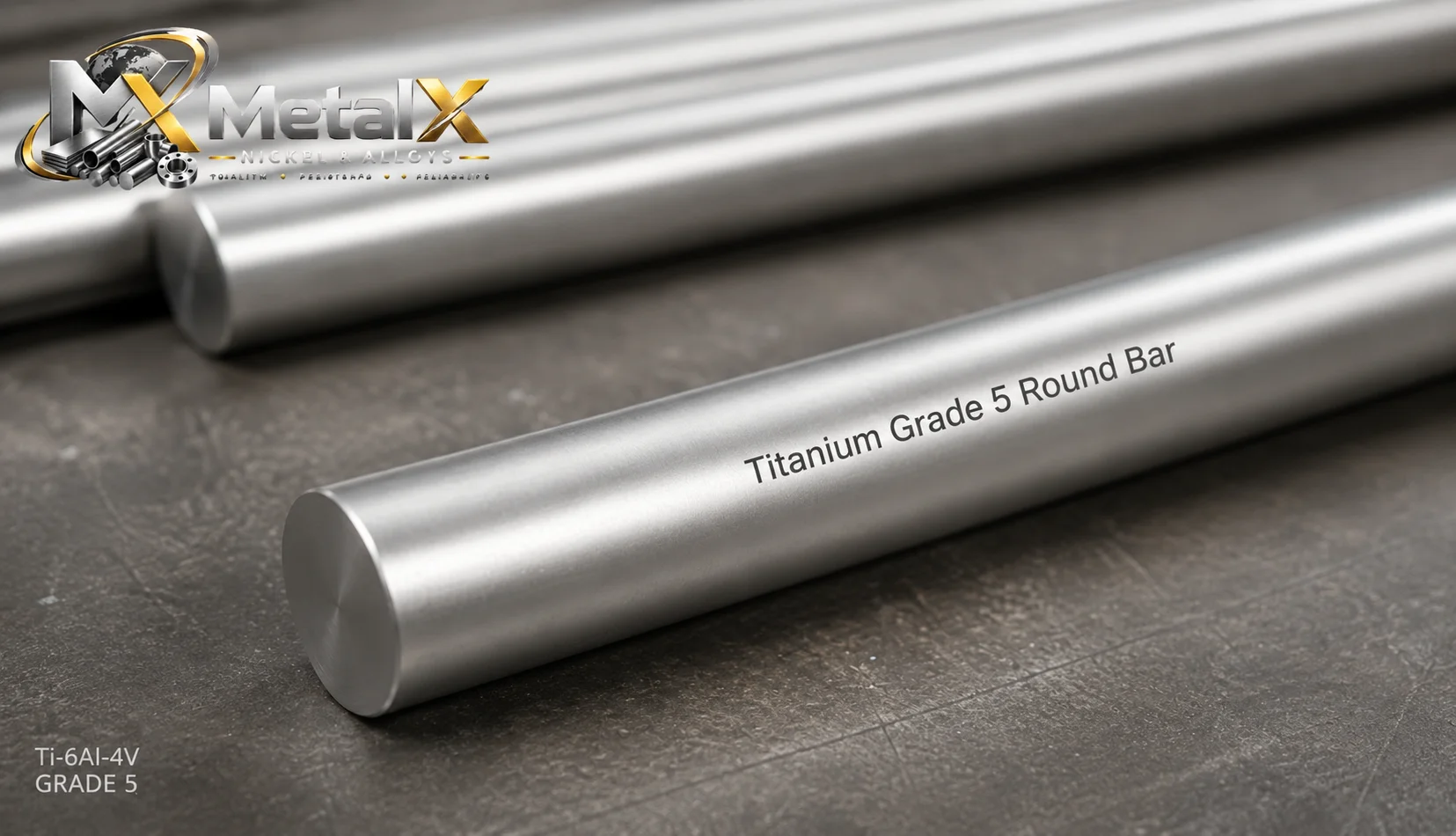

Titanium Grade 5 Round Bar
| Specification Titanium Grade 5 Round Bar Details | |
|---|---|
| Product Name | Titanium Grade 5 Round Bar |
| Material Grade | Titanium Grade 5 / Ti-6Al-4V |
| UNS Designation | UNS R56400 |
| Werkstoff Number | W.Nr. 3.7165 / 3.7164 |
| EN Designation | Ti-6Al-4V |
| Material Type | Alpha-Beta Titanium Alloy |
| Chemical Composition | Titanium Balance, Aluminium 5.5–6.75%, Vanadium 3.5–4.5%, Iron 0.40% max, Oxygen 0.20% max, Carbon 0.08% max, Nitrogen 0.05% max, Hydrogen 0.015% max |
| Manufacturing Type | Hot Rolled / Cold Worked / Forged / Ground / Machined |
| Round Bar Standard | ASTM B348 / ASME SB348 |
| Forging Standard | ASTM B381 / ASME SB381 |
| Aerospace Standard | AMS 4928 / applicable AMS specification |
| General Requirements | Applicable ASTM / ASME / AMS material requirements |
| Diameter | As per Standard / Customer Requirement |
| Diameter Range | Approximately 3 mm to 300 mm, depending on manufacturing capability |
| Length | Standard 1–6 m / Fixed or Customized Length |
| Tolerance | h7, h8, h9, h10, h11 or as required |
| Surface Finish | Mill Finish / Bright / Peeled / Ground / Polished / Machined |
| Heat Treatment | Annealed / Solution Treated and Aged, as specified |
| Condition | Annealed / Hot Rolled / Forged / Cold Worked / Ground |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hardness, Ultrasonic and NDT as specified |
| Tensile Strength | Minimum approximately 895 MPa, depending on specification and condition |
| Yield Strength | Minimum approximately 825 MPa |
| Elongation | Minimum approximately 10% |
| Density | Approximately 4.43 g/cm³ |
| Melting Range | Approximately 1604–1660°C |
| Corrosion Resistance | Excellent resistance to seawater, chlorides, oxidizing environments and many chemical media |
| Strength-to-Weight Ratio | Exceptional strength-to-weight ratio |
| Fatigue Performance | Excellent fatigue strength for demanding engineering applications |
| Heat Resistance | Good mechanical performance at moderately elevated temperatures |
| Biocompatibility | Excellent biocompatibility for suitable medical and biomedical applications |
| Welding | Weldable with proper inert-gas shielding and controlled titanium welding procedures |
| Filler Metal | Grade 5 compatible titanium filler, as specified |
| Available Form | Round Bar / Rod / Precision Ground Bar |
| Customization | Diameter, Length, Tolerance, Finish, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Aerospace, Aircraft Components, Medical Implants, Automotive, Marine, Chemical Processing, Oil & Gas, Power Generation, Sports Equipment and High-Strength Engineering Components |
Titanium Grade 5 Round Bar – Standard Dimensions
| Diameter (mm) | Diameter (in.) | Weight (kg/m) | Weight (lb/ft) |
|---|---|---|---|
| 5 | 0.197 | 0.087 | 0.058 |
| 6 | 0.236 | 0.125 | 0.084 |
| 8 | 0.315 | 0.222 | 0.149 |
| 10 | 0.394 | 0.347 | 0.233 |
| 12 | 0.472 | 0.500 | 0.336 |
| 14 | 0.551 | 0.680 | 0.457 |
| 16 | 0.630 | 0.891 | 0.599 |
| 18 | 0.709 | 1.126 | 0.757 |
| 20 | 0.787 | 1.390 | 0.934 |
| 22 | 0.866 | 1.683 | 1.131 |
| 25 | 0.984 | 2.175 | 1.461 |
| 28 | 1.102 | 2.731 | 1.834 |
| 30 | 1.181 | 3.124 | 2.099 |
| 32 | 1.260 | 3.546 | 2.382 |
| 36 | 1.417 | 4.488 | 3.015 |
| 40 | 1.575 | 5.571 | 3.742 |
| 45 | 1.772 | 7.039 | 4.728 |
| 50 | 1.969 | 8.705 | 5.848 |
| 56 | 2.205 | 10.933 | 7.345 |
| 63 | 2.480 | 13.832 | 9.289 |
| 71 | 2.795 | 17.593 | 11.815 |
| 80 | 3.150 | 22.280 | 14.962 |
| 90 | 3.543 | 28.226 | 18.964 |
| 100 | 3.937 | 34.740 | 23.331 |
| 110 | 4.331 | 42.055 | 28.234 |
| 125 | 4.921 | 54.430 | 36.551 |
| 150 | 5.906 | 78.530 | 52.743 |
| 175 | 6.890 | 106.830 | 71.775 |
| 200 | 7.874 | 139.690 | 93.790 |
Titanium Grade 5 Round Bar – Inch / US Bar Sizes
| US Bar Size | Diameter (in.) | Diameter (mm) | Approx. Weight (kg/m) |
|---|---|---|---|
| #2 | 0.250 | 6.35 | 0.140 |
| #3 | 0.375 | 9.53 | 0.312 |
| #4 | 0.500 | 12.70 | 0.557 |
| #5 | 0.625 | 15.88 | 0.869 |
| #6 | 0.750 | 19.05 | 1.251 |
| #7 | 0.875 | 22.23 | 1.707 |
| #8 | 1.000 | 25.40 | 2.227 |
| #9 | 1.125 | 28.58 | 2.816 |
| #10 | 1.250 | 31.75 | 3.475 |
| #11 | 1.375 | 34.93 | 4.205 |
| #12 | 1.500 | 38.10 | 5.005 |
| #13 | 1.625 | 41.28 | 5.898 |
| #14 | 1.750 | 44.45 | 6.858 |
| #15 | 1.875 | 47.63 | 7.882 |
| #16 | 2.000 | 50.80 | 8.908 |
| #18 | 2.250 | 57.15 | 11.260 |
| #20 | 2.500 | 63.50 | 13.900 |
Titanium Grade 5 Round Bar – Size & Tolerance Chart
| Diameter Range | Available Finish | Typical Tolerance | Supply Condition |
|---|---|---|---|
| 3–10 mm | Bright / Cold Worked / Ground | h8 / h9 / h10 / h11 | Annealed |
| 10–25 mm | Bright / Cold Worked / Polished | h8 / h9 / h10 / h11 | Annealed |
| 25–50 mm | Peeled / Ground / Polished | h9 / h10 / h11 | Annealed / Forged |
| 50–75 mm | Peeled / Ground / Machined | h10 / h11 | Annealed / Forged |
| 75–100 mm | Peeled / Machined / Ground | h11 | Annealed / Forged |
| 100–150 mm | Hot Rolled / Peeled / Machined | h11 / Customer Requirement | Annealed / Forged |
| 150–200 mm | Hot Rolled / Forged / Machined | Customer Requirement | Annealed |
| 200–250 mm | Forged / Rough Machined | Customer Requirement | Annealed |
| 250–300 mm | Forged / Custom Machined | Customer Requirement | Annealed |
Why Should You Buy Titanium Grade 5 Round Bars from Metalx Nickel & Alloys?
- Experienced Titanium Grade 5 Round Bar Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Alloy Industry Experience in supplying titanium, nickel alloys and corrosion-resistant materials to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Titanium Grade 5 Exporter offering Titanium Grade 5 / Ti-6Al-4V / UNS R56400 Round Bars for demanding aerospace, marine, oil & gas and industrial applications.
- Global Sourcing Network with access to reputed titanium mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Specialty Alloy Product Range including Titanium Grade 1, Grade 2, Grade 5, Duplex 2205, Super Duplex 2507, 254 SMO, Incoloy, Inconel, Hastelloy, Monel and other specialized alloys.
- Ready Stock Availability for selected Titanium Grade 5 Round Bar sizes, subject to current stock and availability.
- Custom Titanium Grade 5 Round Bar Supply according to customer drawings, diameter, length, surface finish, heat treatment and project specifications.
- Cut-to-Length Service available for applicable sizes and customer requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B348 / ASME SB348, where applicable.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable ASTM/ASME standards and customer specifications.
- Ultrasonic Testing Support can be arranged where required by the applicable specification or purchase order.
- Hardness & Visual Inspection can also be arranged according to customer requirements.
- Heat Treatment Support – Annealed or specified material conditions can be supplied according to applicable requirements.
- Surface Finish Support – Bright, polished, pickled, ground, peeled and other specified finishes can be supplied.
- Export-Ready Packing designed to protect Titanium Grade 5 Round Bars during handling, storage and international transportation.
- Worldwide Titanium Grade 5 Round Bar Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Titanium Grade 5 Round Bar Export Support for aerospace companies, oil and gas companies, marine industries, chemical processing plants, medical component manufacturers, power-generation companies and specialized engineering buyers.
- Technical Support from Export Enquiry to Shipment covering grade, diameter, length, surface finish, heat treatment, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Titanium Grade 5 Round Bar shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Titanium Grade 5 Round Bar
- High-Strength Titanium Alloy – Titanium Grade 5 is one of the most widely used titanium alloys because of its excellent combination of strength, weight and corrosion resistance.
- Ti-6Al-4V Alloy – Contains approximately 6% aluminium and 4% vanadium as principal alloying additions.
- Excellent Strength-to-Weight Ratio – Provides high mechanical strength while maintaining relatively low density.
- Excellent Corrosion Resistance – Offers strong resistance to many corrosive environments.
- Excellent Seawater Resistance – Suitable for selected marine and seawater applications.
- Good Resistance to Chloride Environments – Performs well in many chloride-containing environments.
- High Tensile Strength – Provides significantly higher strength than commercially pure titanium grades.
- Good Fatigue Performance – Suitable for selected components exposed to cyclic loading when properly designed and processed.
- Good Fracture Performance – Can provide useful fracture and toughness characteristics depending on product condition.
- Excellent Aerospace Performance – Widely used for selected aerospace structural and mechanical components.
- Good Elevated-Temperature Capability – Suitable for selected applications at moderately elevated temperatures within applicable design limits.
- Good Weldability – Can be welded using qualified procedures with appropriate shielding and process controls.
- Good Machinability with Proper Procedures – Can be machined using suitable tooling and controlled machining practices.
- Hot Rolled & Cold Finished Options – Round bars can be supplied in different manufacturing conditions.
- Forged Options Available – Forged round bars can be supplied for selected sizes and applications.
- Wide Diameter Availability – Available in different diameters for shafts, fasteners, pins and machined components.
- Multiple Surface Finishes – Bright, polished, pickled, ground, peeled and other specified finishes can be supplied.
- Annealed Condition – Material can be supplied in annealed or other specified conditions.
- Oil & Gas Applications – Suitable for selected oil and gas components exposed to corrosive environments.
- Marine Applications – Can be considered for selected marine components and seawater systems.
- Chemical Processing Applications – Suitable for selected chemical processing equipment.
- Medical Applications – Widely used for selected biomedical and medical components where the applicable specification permits.
- Power Generation Applications – Can be considered for selected power-generation components.
- Industrial Engineering Applications – Suitable for specialized components requiring high strength and corrosion resistance.
- Reliable Material Traceability – Material certificates and inspection documentation can be supplied according to order requirements.
- Quality Testing Available – Chemical, mechanical, dimensional, hardness, visual, ultrasonic and other specified inspections can be arranged.
- Export-Ready Material – Round bars can be suitably packed for handling, storage and international transportation.
- Global Titanium Grade 5 Round Bar Exporter – METALX NICKEL & ALLOYS supplies Titanium Grade 5 Round Bars to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Titanium Grade 5 Round Bar Details |
|---|---|
| Product Name | Titanium Grade 5 Round Bar |
| Material Grade | Titanium Grade 5 / Ti-6Al-4V |
| UNS Designation | R56400 |
| Werkstoff Number | 3.7165 / 3.7164 |
| Material Type | Alpha-Beta Titanium Alloy |
| Alloy Composition | Titanium with approximately 6% Aluminium and 4% Vanadium |
| Manufacturing | Hot Rolled / Cold Finished / Forged, as required |
| Applicable Standards | ASTM / ASME specifications as applicable |
| Common Standard | ASTM B348 / ASME SB348, where applicable |
| Bar Type | Round Bar |
| Diameter | As per customer requirement and applicable standard |
| Length | Standard, random and customized lengths |
| Surface Finish | Bright, polished, pickled, ground, peeled or as required |
| Heat Treatment | Annealed / As specified |
| End Condition | Plain Cut, Chamfered or as specified |
| Chemical Composition | Titanium, Aluminium, Vanadium with controlled iron, oxygen, carbon, nitrogen and hydrogen |
| Mechanical Properties | High tensile strength, yield strength, elongation and hardness according to applicable specification and condition |
| Density | Approximately 4.43 g/cm³ |
| Melting Range | Approximately 1604–1660°C |
| Corrosion Resistance | Excellent resistance to many corrosive environments |
| Strength-to-Weight Ratio | Excellent strength with relatively low density |
| Testing | Chemical, Mechanical, Dimensional, Hardness, Visual, Ultrasonic and other specified tests |
| Applications | Aerospace, Oil & Gas, Marine, Chemical Processing, Medical, Power Generation and Industrial Equipment |
| Customization | Diameter, length, surface finish, heat treatment, testing and documentation as required |
| Packing | Export-worthy packing suitable for safe international transportation |
| Export Supply | Available for international buyers, distributors, EPC contractors and industrial end users |
1. What is Titanium Grade 5 Round Bar?
Titanium Grade 5 Round Bar is manufactured from Ti-6Al-4V, an alpha-beta titanium alloy known for high strength, low density and excellent corrosion resistance.
2. What is the UNS designation of Titanium Grade 5?
The UNS designation is R56400.
3. What is the Werkstoff Number of Titanium Grade 5?
Commonly associated Werkstoff Numbers are 3.7165 / 3.7164, depending on product condition and applicable designation.
4. What is Ti-6Al-4V?
Ti-6Al-4V is the common designation for Titanium Grade 5, indicating an alloy containing approximately 6% aluminium and 4% vanadium, with titanium as the balance.
5. What is the common standard for Titanium Grade 5 Round Bar?
A commonly applicable specification is ASTM B348 / ASME SB348, subject to the exact product requirements.
6. What is the main advantage of Titanium Grade 5 over commercially pure titanium?
Titanium Grade 5 provides significantly higher mechanical strength while retaining titanium’s useful corrosion resistance and relatively low density.
