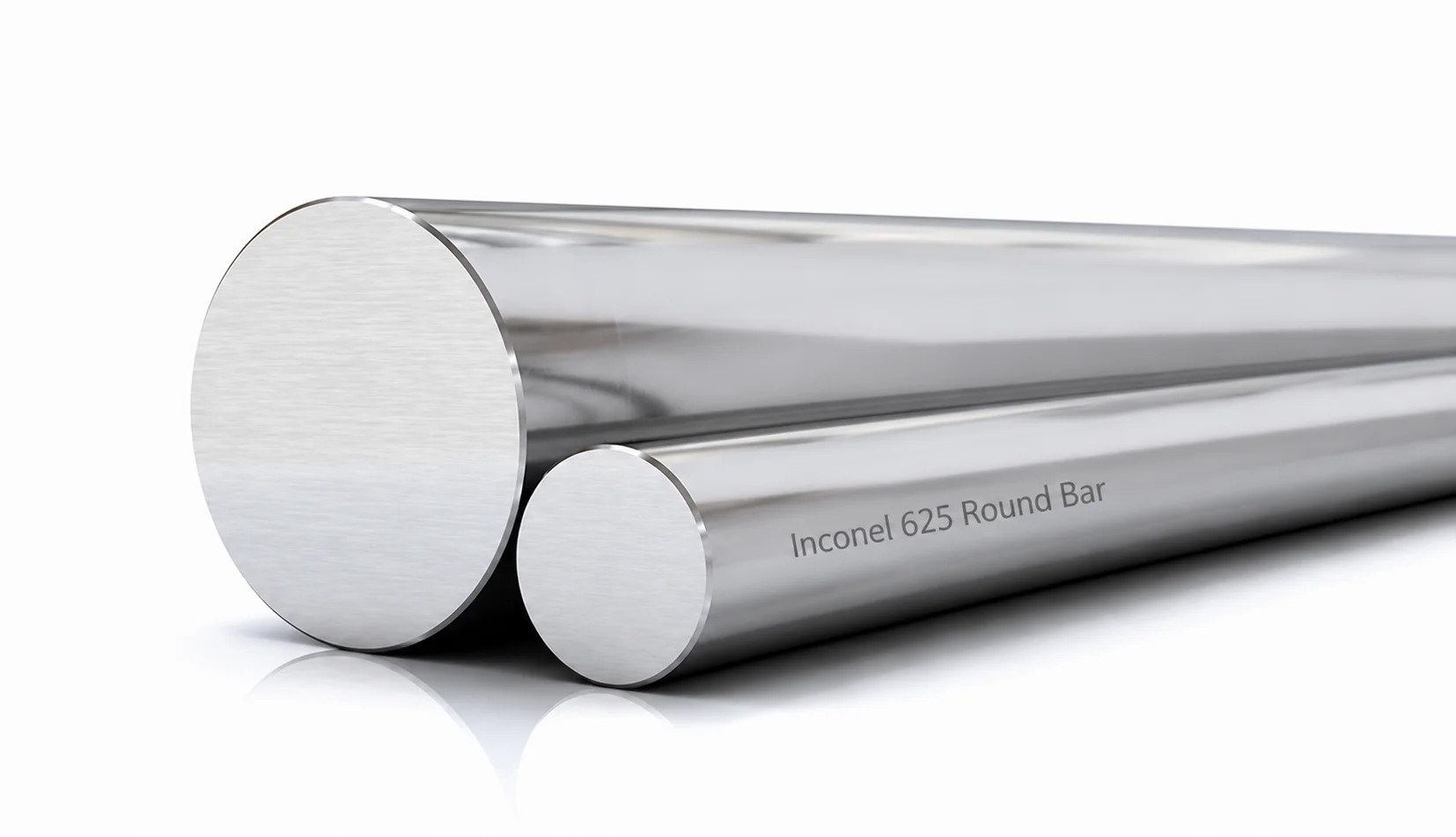

Inconel 625 Round Bar
| Specification Inconel 625 Round Bar Details | |
|---|---|
| Product Name | Inconel 625 Round Bar |
| Material Grade | Inconel 625 / Alloy 625 |
| UNS Designation | UNS N06625 |
| Werkstoff Number | W.Nr. 2.4856 |
| Material Type | Nickel-Chromium-Molybdenum-Niobium Alloy |
| Chemical Composition | Nickel Balance, Chromium 20–23%, Molybdenum 8–10%, Niobium + Tantalum 3.15–4.15%, Iron 5.0% max, Carbon 0.10% max, Manganese 0.50% max, Silicon 0.50% max |
| Manufacturing Type | Hot Rolled / Cold Finished / Forged |
| Bar Standard | ASTM B446 / ASME SB446 |
| Forging Standard | ASTM B564 / ASME SB564, as applicable |
| Outside Diameter | As per standard / Customer Requirement |
| Diameter Range | Commonly available from approximately 3 mm to 600 mm, depending on manufacturing capability |
| Length | Standard Random / Fixed / Cut-to-Length / Customized |
| Bar Shape | Round Bar |
| Surface Finish | Bright / Black / Peeled / Ground / Polished / Centerless Ground |
| Heat Treatment | Solution Annealed / Annealed as applicable |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Ultrasonic and other NDT as specified |
| Tensile Strength | Minimum approximately 827 MPa |
| Yield Strength | Minimum approximately 414 MPa |
| Elongation | Minimum approximately 30% |
| Density | Approximately 8.44 g/cm³ |
| Melting Range | Approximately 1290–1350°C |
| Corrosion Resistance | Exceptional resistance to pitting, crevice corrosion, chloride-ion stress-corrosion cracking and a wide range of corrosive environments |
| High-Temperature Performance | Excellent strength and corrosion resistance at elevated temperatures |
| Low-Temperature Performance | Excellent mechanical properties and toughness at cryogenic and low temperatures |
| Weldability | Excellent weldability with suitable nickel-alloy filler metals |
| Filler Metal | ERNiCrMo-3 / Alloy 625 compatible filler |
| Welding Electrode | ENiCrMo-3 |
| Available Forms | Round Bar / Rod |
| Customization | Diameter, Length, Surface Finish, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Aerospace, Marine, Chemical Processing, Oil & Gas, Petrochemical, Power Generation, Nuclear, Heat Exchangers, Seawater Equipment and Pollution Control |
Inconel 625 Round Bar – Standard Diameter & Length
| Diameter (mm) | Diameter (in.) | Standard Length (mm) | Standard Length (ft.) |
|---|---|---|---|
| 3 | 0.118 | 3000 | 9.84 |
| 4 | 0.157 | 3000 | 9.84 |
| 5 | 0.197 | 3000 | 9.84 |
| 6 | 0.236 | 3000 | 9.84 |
| 8 | 0.315 | 3000 | 9.84 |
| 10 | 0.394 | 3000 | 9.84 |
| 12 | 0.472 | 3000 | 9.84 |
| 14 | 0.551 | 3000 | 9.84 |
| 16 | 0.630 | 3000 | 9.84 |
| 18 | 0.709 | 3000 | 9.84 |
| 20 | 0.787 | 3000 | 9.84 |
| 22 | 0.866 | 3000 | 9.84 |
| 25 | 0.984 | 3000 | 9.84 |
| 28 | 1.102 | 3000 | 9.84 |
| 30 | 1.181 | 3000 | 9.84 |
| 32 | 1.260 | 3000 | 9.84 |
| 35 | 1.378 | 3000 | 9.84 |
| 38 | 1.496 | 3000 | 9.84 |
| 40 | 1.575 | 3000 | 9.84 |
| 45 | 1.772 | 3000 | 9.84 |
| 50 | 1.969 | 3000 | 9.84 |
| 55 | 2.165 | 3000 | 9.84 |
| 60 | 2.362 | 3000 | 9.84 |
| 65 | 2.559 | 3000 | 9.84 |
| 70 | 2.756 | 3000 | 9.84 |
| 75 | 2.953 | 3000 | 9.84 |
| 80 | 3.150 | 3000 | 9.84 |
| 90 | 3.543 | 3000 | 9.84 |
| 100 | 3.937 | 3000 | 9.84 |
| 110 | 4.331 | 3000 | 9.84 |
| 120 | 4.724 | 3000 | 9.84 |
| 130 | 5.118 | 3000 | 9.84 |
| 140 | 5.512 | 3000 | 9.84 |
| 150 | 5.906 | 3000 | 9.84 |
| 160 | 6.299 | 3000 | 9.84 |
| 180 | 7.087 | 3000 | 9.84 |
| 200 | 7.874 | 3000 | 9.84 |
| 250 | 9.843 | 3000 | 9.84 |
| 300 | 11.811 | 3000 | 9.84 |
Inconel 625 Round Bar – ASTM B446 Dimensions
| Diameter (mm) | Diameter (in.) | Cross-Sectional Area (mm²) | Approx. Weight (kg/m) |
|---|---|---|---|
| 6 | 0.236 | 28.27 | 0.24 |
| 8 | 0.315 | 50.27 | 0.42 |
| 10 | 0.394 | 78.54 | 0.66 |
| 12 | 0.472 | 113.10 | 0.95 |
| 14 | 0.551 | 153.94 | 1.30 |
| 16 | 0.630 | 201.06 | 1.70 |
| 18 | 0.709 | 254.47 | 2.15 |
| 20 | 0.787 | 314.16 | 2.65 |
| 22 | 0.866 | 380.13 | 3.21 |
| 25 | 0.984 | 490.87 | 4.14 |
| 28 | 1.102 | 615.75 | 5.20 |
| 30 | 1.181 | 706.86 | 5.97 |
| 32 | 1.260 | 804.25 | 6.79 |
| 35 | 1.378 | 962.11 | 8.12 |
| 38 | 1.496 | 1134.11 | 9.57 |
| 40 | 1.575 | 1256.64 | 10.61 |
| 45 | 1.772 | 1590.43 | 13.42 |
| 50 | 1.969 | 1963.50 | 16.57 |
| 55 | 2.165 | 2375.83 | 20.05 |
| 60 | 2.362 | 2827.43 | 23.86 |
| 65 | 2.559 | 3318.31 | 28.00 |
| 70 | 2.756 | 3848.45 | 32.47 |
| 75 | 2.953 | 4417.86 | 37.28 |
| 80 | 3.150 | 5026.55 | 42.42 |
| 90 | 3.543 | 6361.73 | 53.70 |
| 100 | 3.937 | 7853.98 | 66.31 |
| 110 | 4.331 | 9503.32 | 80.23 |
| 120 | 4.724 | 11309.73 | 95.48 |
| 130 | 5.118 | 13273.23 | 112.05 |
| 140 | 5.512 | 15393.80 | 129.97 |
| 150 | 5.906 | 17671.46 | 149.23 |
| 160 | 6.299 | 20106.19 | 169.83 |
| 180 | 7.087 | 25446.90 | 214.91 |
| 200 | 7.874 | 31415.93 | 265.14 |
| 250 | 9.843 | 49087.39 | 414.28 |
| 300 | 11.811 | 70685.83 | 596.58 |
Inconel 625 Round Bar – Size & Manufacturing Chart
| Bar Type | Size Range | Manufacturing Process | Surface Finish | Length |
|---|---|---|---|---|
| Cold Finished Round Bar | 3–100 mm | Cold Drawn / Cold Finished | Bright / Ground | Fixed / Random |
| Hot Finished Round Bar | 20–300 mm | Hot Rolled / Hot Finished | Black / Pickled | Fixed / Random |
| Peeled Round Bar | 20–300 mm | Hot Rolled + Peeled | Peeled / Smooth | Fixed / Cut Length |
| Ground Round Bar | 10–250 mm | Cold Finished + Grinding | Centerless Ground | Fixed / Customized |
| Polished Round Bar | 10–200 mm | Ground + Polishing | Polished | Fixed / Customized |
| Forged Round Bar | 100–600 mm+ | Open Die / Closed Die Forging | Black / Machined | Customized |
| Precision Round Bar | 5–100 mm | Cold Drawn / Ground | Bright / Precision Ground | Customized |
| Custom Round Bar | As Required | As per Drawing | Customized | Customized |
Why Should You Buy Inconel 625 Sheets & Plates from Metalx Nickel & Alloys?
- Experienced Inconel 625 Sheets & Plates Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying high-performance and corrosion-resistant alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Inconel 625 Exporter offering Inconel 625 / Alloy 625 / UNS N06625 Sheets & Plates for demanding industrial applications.
- Global Sourcing Network with access to reputed nickel alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Nickel Alloy Product Range including Inconel 625, Inconel 601, Inconel 600, Inconel 718, Incoloy, Hastelloy, Monel and other specialized nickel-based alloys.
- Ready Stock Availability for selected Inconel 625 Sheet and Plate sizes, subject to current stock and availability.
- Custom Inconel 625 Supply according to customer drawings, thickness, width, length, surface condition and project specifications.
- Cut-to-Size Service available for applicable sizes and customer requirements.
- ASTM / ASME Specification Supply according to applicable Inconel 625 requirements and project specifications.
- MTC with Quotation – Mill Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable ASTM/ASME standards and customer specifications.
- Surface Finish Support – Smooth, pickled, annealed, hot rolled, cold rolled and other specified surface conditions can be supplied.
- Heat Treatment Support – Annealed and other specified material conditions can be supplied according to applicable requirements.
- Export-Ready Packing designed to protect Inconel 625 Sheets & Plates during handling, storage and international transportation.
- Worldwide Inconel 625 Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Inconel 625 Sheets & Plates Export Support for EPC contractors, chemical plants, oil & gas companies, offshore projects, marine industries, aerospace companies, heat exchanger manufacturers and power-generation facilities.
- Technical Support from Export Enquiry to Shipment covering grade, thickness, width, length, surface condition, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Inconel 625 Sheets & Plates shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Inconel 625 Sheets & Plates
- Excellent Corrosion Resistance – Inconel 625 provides strong resistance to a wide range of corrosive environments.
- High-Performance Nickel Alloy – Nickel, chromium, molybdenum and niobium provide a strong combination of corrosion resistance and mechanical strength.
- Excellent Pitting Resistance – High molybdenum content contributes to strong resistance against localized pitting corrosion.
- Excellent Crevice Corrosion Resistance – Suitable for environments where crevice corrosion can be a major concern.
- Excellent Chloride Resistance – Particularly useful in chloride-containing and marine environments.
- Good Oxidation Resistance – Provides good resistance to oxidation under elevated-temperature service conditions.
- Good Carburization Resistance – Suitable for selected high-temperature environments involving carburization.
- High Mechanical Strength – Offers high tensile and yield strength for demanding industrial applications.
- Good Weldability – Provides good weldability compared with many other high-strength nickel alloys.
- Excellent Marine Performance – Well suited for marine and offshore applications exposed to seawater and aggressive environments.
- Wide Thickness Availability – Sheets and plates can be supplied in different thicknesses according to standards and customer requirements.
- Customized Width & Length – Standard or customized dimensions can be supplied according to project requirements.
- Multiple Surface Conditions – Smooth, pickled, annealed, hot rolled, cold rolled and other specified surface conditions can be arranged.
- Annealed Conditions Available – Material can be supplied in annealed and other specified conditions according to the applicable specification.
- Chemical Processing Applications – Suitable for chemical processing equipment exposed to aggressive chemicals.
- Oil & Gas Applications – Used in selected oil and gas equipment, process systems and components.
- Offshore & Marine Applications – Suitable for offshore structures, marine equipment and seawater-related components.
- Aerospace Applications – Can be considered for selected aerospace components requiring high-strength nickel alloy material.
- Heat Exchanger Applications – Suitable for selected heat-transfer equipment operating in corrosive environments.
- Pollution-Control Applications – Useful for selected pollution-control and environmental processing systems.
- Power Generation Applications – Suitable for selected power-generation components and equipment.
- Fabrication & Forming Applications – Can be used for machining, fabrication, forming and component manufacturing.
- Reliable Material Traceability – Material certificates and relevant quality documentation can be supplied according to order requirements.
- Quality Testing Available – Chemical, mechanical, dimensional and other specified inspections can be arranged.
- Export-Ready Material – Sheets and plates can be suitably packed for handling, transportation and storage.
- Global Inconel 625 Exporter – METALX NICKEL ALLOYS supplies Inconel 625 Sheets & Plates to international buyers and industrial customers.
| Specification | Inconel 625 Sheets & Plates Details |
|---|---|
| Product Name | Inconel 625 Sheets & Plates |
| Grade | Inconel Alloy 625 |
| UNS Designation | N06625 |
| Material Type | Nickel-Chromium-Molybdenum-Niobium Alloy |
| Product Forms | Sheets and Plates |
| Applicable Standards | ASTM / ASME specifications applicable to Inconel 625 |
| Thickness | As per customer requirement and applicable standard |
| Width | Standard or customized dimensions |
| Length | Standard or customized dimensions |
| Condition | Annealed and other conditions as specified |
| Surface Finish | Smooth, Pickled, Annealed, Hot Rolled, Cold Rolled or as required |
| Chemical Composition | Nickel, Chromium, Molybdenum, Niobium and other controlled alloying elements |
| Mechanical Properties | Tensile Strength, Yield Strength, Elongation and Hardness according to applicable specification |
| Manufacturing | Hot Rolled / Cold Rolled, depending on product and thickness |
| Testing | Chemical Analysis, Mechanical Testing, Dimensional Inspection and other specified tests |
| Documentation | Mill Test Certificate, Inspection Certificate and relevant quality documents where applicable |
| Corrosion Resistance | Excellent resistance to pitting, crevice corrosion and various aggressive chemical environments |
| Oxidation Resistance | Good resistance to oxidation and carburization under suitable conditions |
| Weldability | Good weldability compared with many high-strength nickel alloys |
| Applications | Chemical Processing, Oil & Gas, Marine, Offshore, Aerospace, Heat Exchangers, Pollution Control and Power Generation |
| Customization | Thickness, width, length, surface finish, condition, testing and documentation as required |
| Packing | Export-worthy packing suitable for safe handling, transportation and storage |
| Export Supply | Available for international buyers, distributors, EPC contractors and industrial end users |
1. What are Inconel 625 Sheets & Plates?
Inconel 625 Sheets & Plates are manufactured from a nickel-chromium-molybdenum-niobium alloy known for high strength and excellent resistance to corrosion, pitting, crevice corrosion and aggressive environments.
2. What is the UNS designation of Inconel 625?
The UNS designation of Inconel 625 is N06625.
3. What type of alloy is Inconel 625?
Inconel 625 is a nickel-chromium-molybdenum-niobium alloy designed for high-strength and corrosion-resistant applications
4. What are the main alloying elements in Inconel 625?
The principal alloying elements include nickel, chromium, molybdenum and niobium, along with other controlled alloying elements.
5. Are Inconel 625 Sheets & Plates available in different thicknesses?
Yes. They can be supplied in different thicknesses according to the applicable standard, customer requirements and project specifications.
6. What surface finishes are available?
Depending on product requirements, Inconel 625 Sheets & Plates can be supplied with smooth, pickled, annealed, hot rolled, cold rolled or other specified surface conditions.
