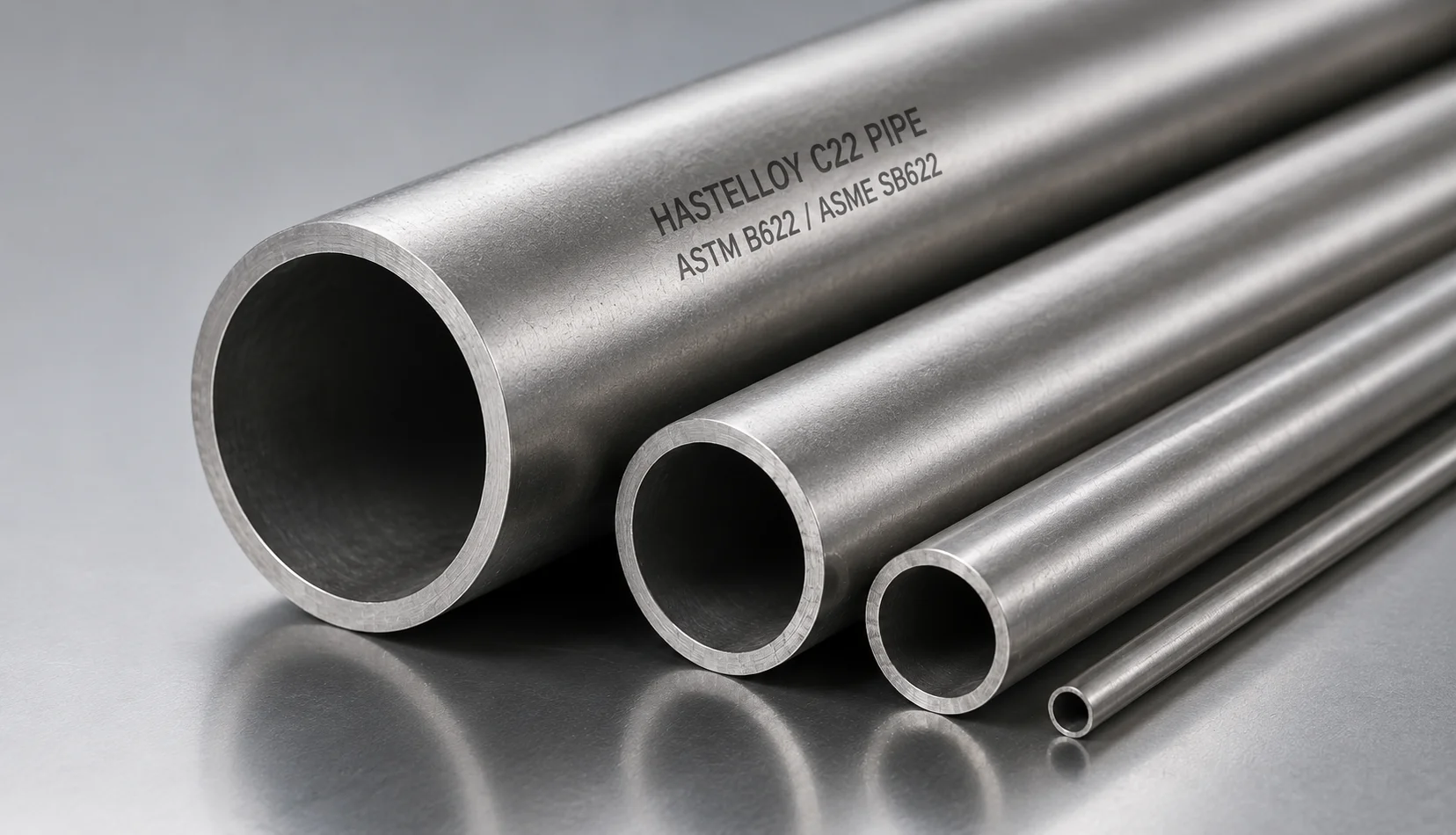

Hastelloy C22 Pipe
| Hastelloy C22 Pipe Details | Specification / Availability |
|---|---|
| Custom Size | Available |
| Sizes Ex.Stock | Available as per stock; custom sizes can be arranged |
| Seamless Pipe | Available as per ASTM B622 and customer requirement |
| Welded Pipe | Available as per applicable ASTM B626 / B619 specification |
| Available Brand | Haynes International, VDM Metals and other approved manufacturers |
| Applicable Standard | ASTM B622 / B626 / B619, ASME SB622 / applicable specification |
| Material Grade | HASTELLOY® C-22® / Alloy C22 |
| UNS Designation | UNS N06022 |
| Material Type | Nickel-Chromium-Molybdenum-Tungsten Alloy |
| Available Forms | Round Pipe / Tube; customized forms subject to requirement |
| MTC | EN 10204 3.1 and 3.2 |
| Heat Treatment | Solution Annealed / Descaled as applicable |
| Surface Finish | Pickled / Annealed / Descaled / Bright Finish as required |
| Fillers | HASTELLOY C-22 filler metal / ERNiCrMo-10 |
| Welding Electrodes | ENiCrMo-10 |
| Origin | European, American, Japanese, Korean and other approved origins |
| Exporter Supply | Worldwide Export Supply |
| Export Packing | Standard Export Packing / Customized Packing |
| Inspection | Chemical, Mechanical, Dimensional, Hydrostatic and NDT as specified |
| Delivery Time | Subject to size, quantity, stock, testing and destination |
1. Hastelloy C22 Pipe – Standard Dimensions
| Size (NPS) | DN | OD (in.) | OD (mm) | Standard Wall / WT (in.) | WT (mm) |
|---|---|---|---|---|---|
| 1/8″ | 6 | 0.405 | 10.29 | 0.068 | 1.73 |
| 1/4″ | 8 | 0.540 | 13.72 | 0.088 | 2.24 |
| 3/8″ | 10 | 0.675 | 17.15 | 0.091 | 2.31 |
| 1/2″ | 15 | 0.840 | 21.34 | 0.109 | 2.77 |
| 3/4″ | 20 | 1.050 | 26.67 | 0.113 | 2.87 |
| 1″ | 25 | 1.315 | 33.40 | 0.133 | 3.38 |
| 1 1/4″ | 32 | 1.660 | 42.16 | 0.140 | 3.56 |
| 1 1/2″ | 40 | 1.900 | 48.26 | 0.145 | 3.68 |
| 2″ | 50 | 2.375 | 60.33 | 0.154 | 3.91 |
| 2 1/2″ | 65 | 2.875 | 73.03 | 0.203 | 5.16 |
| 3″ | 80 | 3.500 | 88.90 | 0.216 | 5.49 |
| 3 1/2″ | 90 | 4.000 | 101.60 | 0.226 | 5.74 |
| 4″ | 100 | 4.500 | 114.30 | 0.237 | 6.02 |
| 5″ | 125 | 5.563 | 141.30 | 0.258 | 6.55 |
| 6″ | 150 | 6.625 | 168.28 | 0.280 | 7.11 |
| 8″ | 200 | 8.625 | 219.08 | 0.322 | 8.18 |
| 10″ | 250 | 10.750 | 273.05 | 0.365 | 9.27 |
| 12″ | 300 | 12.750 | 323.85 | 0.375 | 9.53 |
| 14″ | 350 | 14.000 | 355.60 | 0.375 | 9.53 |
| 16″ | 400 | 16.000 | 406.40 | 0.375 | 9.53 |
| 18″ | 450 | 18.000 | 457.20 | 0.375 | 9.53 |
| 20″ | 500 | 20.000 | 508.00 | 0.375 | 9.53 |
| 24″ | 600 | 24.000 | 609.60 | 0.375 | 9.53 |
2. ASTM B622 / ASME SB622 Hastelloy C22 Pipe – Dimensions & Weight
| NPS | OD (mm) | OD (in.) | WT (mm) | WT (in.) | Approx. Weight (kg/m) | Approx. Weight (lb/ft) |
|---|---|---|---|---|---|---|
| 1/4″ | 13.72 | 0.540 | 2.24 | 0.088 | 0.71 | 0.48 |
| 3/8″ | 17.15 | 0.675 | 2.31 | 0.091 | 0.92 | 0.62 |
| 1/2″ | 21.34 | 0.840 | 2.77 | 0.109 | 1.39 | 0.93 |
| 3/4″ | 26.67 | 1.050 | 2.87 | 0.113 | 1.72 | 1.16 |
| 1″ | 33.40 | 1.315 | 3.38 | 0.133 | 2.56 | 1.72 |
| 1 1/4″ | 42.16 | 1.660 | 3.56 | 0.140 | 3.79 | 2.55 |
| 1 1/2″ | 48.26 | 1.900 | 3.68 | 0.145 | 4.47 | 3.01 |
| 2″ | 60.33 | 2.375 | 3.91 | 0.154 | 5.99 | 4.03 |
| 2 1/2″ | 73.03 | 2.875 | 5.16 | 0.203 | 9.04 | 6.08 |
| 3″ | 88.90 | 3.50 | 5.49 | 0.216 | 12.21 | 8.21 |
| 3 1/2″ | 101.60 | 4.00 | 5.74 | 0.226 | 15.07 | 10.13 |
| 4″ | 114.30 | 4.50 | 6.02 | 0.237 | 18.34 | 12.34 |
| 5″ | 141.30 | 5.563 | 6.55 | 0.258 | 24.85 | 16.70 |
| 6″ | 168.28 | 6.625 | 7.11 | 0.280 | 31.25 | 21.00 |
| 8″ | 219.08 | 8.625 | 8.18 | 0.322 | 47.60 | 31.99 |
3. Hastelloy C22 Pipe – Schedule Chart
| NPS | DN | OD (in.) | OD (mm) | SCH 10S (mm) | SCH 40 / STD (mm) | SCH 80 (mm) | SCH 120 (mm) | SCH 160 (mm) | XXS (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 1/4″ | 8 | 0.540 | 13.72 | 1.65 | 2.24 | 3.02 | — | — | — |
| 3/8″ | 10 | 0.675 | 17.15 | 1.65 | 2.31 | 3.20 | — | — | — |
| 1/2″ | 15 | 0.840 | 21.34 | 2.11 | 2.77 | 3.73 | — | 4.78 | 7.47 |
| 3/4″ | 20 | 1.050 | 26.67 | 2.11 | 2.87 | 3.91 | — | 5.56 | 7.82 |
| 1″ | 25 | 1.315 | 33.40 | 2.77 | 3.38 | 4.55 | — | 6.35 | 9.09 |
| 1 1/4″ | 32 | 1.660 | 42.16 | 2.77 | 3.56 | 4.85 | — | 6.35 | 9.70 |
| 1 1/2″ | 40 | 1.900 | 48.26 | 2.77 | 3.68 | 5.08 | — | 7.14 | 10.16 |
| 2″ | 50 | 2.375 | 60.33 | 2.77 | 3.91 | 5.54 | 6.35 | 8.74 | 11.07 |
| 2 1/2″ | 65 | 2.875 | 73.03 | 3.05 | 5.16 | 7.01 | 7.62 | 8.74 | 14.02 |
| 3″ | 80 | 3.500 | 88.90 | 3.05 | 5.49 | 7.62 | 8.89 | 11.13 | 15.24 |
| 3 1/2″ | 90 | 4.000 | 101.60 | 3.05 | 5.74 | 8.08 | — | — | 16.15 |
| 4″ | 100 | 4.500 | 114.30 | 3.05 | 6.02 | 8.56 | — | 13.49 | — |
| 5″ | 125 | 5.563 | 141.30 | 3.40 | 6.55 | 9.53 | 12.70 | 15.88 | — |
| 6″ | 150 | 6.625 | 168.28 | 3.40 | 7.11 | 10.97 | 14.27 | 18.26 | — |
| 8″ | 200 | 8.625 | 219.08 | 3.76 | 8.18 | 12.70 | 18.26 | 23.01 | — |
| 10″ | 250 | 10.750 | 273.05 | 4.19 | 9.27 | 12.70 | 18.26 | — | — |
| 12″ | 300 | 12.750 | 323.85 | 4.57 | 9.53 | 12.70 | — | — | — |
| 14″ | 350 | 14.000 | 355.60 | 6.35 | 9.53 | 12.70 | — | — | — |
| 16″ | 400 | 16.000 | 406.40 | 6.35 | 9.53 | 12.70 | — | — | — |
| 18″ | 450 | 18.000 | 457.20 | 6.35 | 9.53 | 12.70 | — | — | — |
| 20″ | 500 | 20.000 | 508.00 | 6.35 | 9.53 | 12.70 | — | — | — |
| 24″ | 600 | 24.000 | 609.60 | 6.35 | 9.53 | 12.70 | — | — | — |
Most Common Types Of Inconel 600 Pipe

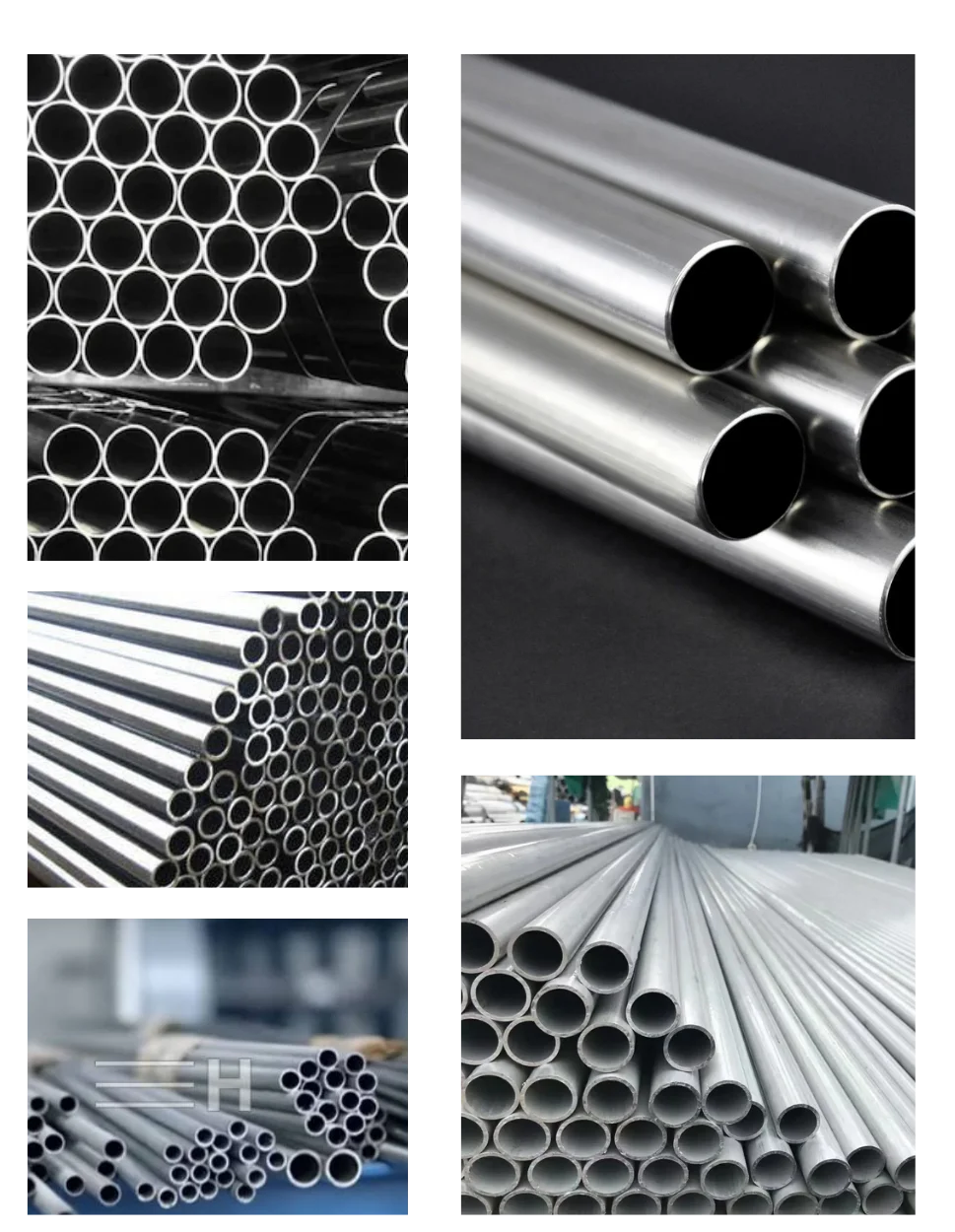

Hastelloy C22 Seamless Pipe
Hastelloy C22 Welded Pipe
Hastelloy C22 Round Pipe
Why Should You Buy Hastelloy C22 Pipes from Metalx Nickel & Alloys?
- Experienced Hastelloy C22 Pipe Supplier & Exporter serving industrial customers, distributors, EPC contractors and end users across international markets.
- 20+ Years of Experience in supplying nickel alloys and high-temperature materials to customers in the UAE, Saudi Arabia, Africa and other global markets.
- Global Sourcing Network with access to reputed nickel alloy mills and approved manufacturers in Europe, USA, Japan and other major manufacturing regions.
- Specialized in Nickel-Based Alloys including Hastelloy C22, Inconel, Incoloy, Monel and other corrosion-resistant alloy products.
- Ready Stock Availability for selected Hastelloy C22 Pipe sizes, subject to stock and current availability.
- Custom Size Supply according to customer drawings, OD, wall thickness, length and project specifications.
- Cut-to-Size Facility available for applicable products and order requirements.
- ASTM / ASME Compliant Material supplied according to the applicable Hastelloy C22 Pipe specification and customer requirements.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with the supply.
- EN 10204 3.1 / 3.2 Certification available according to purchase order and inspection requirements.
- Third-Party Inspection Support can be arranged through approved inspection agencies when required.
- Chemical, Mechanical & Dimensional Testing can be arranged according to the applicable standard and project specification.
- Export-Ready Packing designed for safe handling and international transportation.
- Worldwide Hastelloy C22 Pipe Export for buyers, stockholders, traders, importers, wholesalers and industrial users.
- Competitive Export Pricing for bulk orders, project requirements and international buyers.
- Technical Support for grade selection, dimensions, ASTM/ASME standards, heat treatment, testing and documentation.
- Reliable Supply for Corrosion-Critical Applications including chemical processing, petrochemical, pharmaceutical, pollution-control and other demanding industries.
- Data Sheets & Technical Documents can be supplied according to customer and project requirements.
- Global Logistics Coordination for shipments to the Middle East, Africa, Asia, Europe and other international destinations.
- Quality-Focused Supply with emphasis on material traceability, dimensional accuracy, surface quality and specification compliance.
- Support for International Project Procurement where certified nickel alloy piping and complete documentation are required.
Key Features of Hastelloy Pipes
- Excellent Corrosion Resistance – Hastelloy Pipes offer outstanding resistance to aggressive chemicals, acids, pitting, crevice corrosion and stress corrosion cracking.
- High-Performance Nickel Alloy – Manufactured from nickel-based alloys containing chromium, molybdenum and other alloying elements for demanding industrial service.
- Multiple Hastelloy Grades – Available grades include Hastelloy C22, C276, B2, B3 and other suitable nickel-based alloys.
- Seamless & Welded Options – Hastelloy Pipes can be supplied in seamless or welded construction according to product specification and application.
- Excellent Resistance to Aggressive Media – Suitable for environments containing highly corrosive chemicals and process fluids.
- High-Temperature Capability – Selected Hastelloy grades can maintain useful mechanical and corrosion performance under elevated-temperature conditions.
- Excellent Pitting & Crevice Corrosion Resistance – Particularly valuable in chemical processing and other severe corrosive environments.
- Good Resistance to Stress Corrosion Cracking – Provides dependable performance in applications where conventional materials may be susceptible to cracking.
- Customized Dimensions – Outside diameter, wall thickness, schedule and length can be supplied according to customer drawings and project requirements.
- Wide Industrial Applications – Used in chemical processing, petrochemical, pharmaceutical, marine, power generation and specialized process industries.
- Quality Testing Available – Dimensional, visual, mechanical, chemical and other inspections can be arranged according to the applicable specification.
- Material Traceability – Test certificates and supporting documentation can be provided as required.
- Export-Ready Supply – Metalx Nickel & Alloys supplies Hastelloy Pipes for domestic and international industrial requirements.
- Global Hastelloy Pipe Exporter – Supporting distributors, EPC contractors, traders, stockholders and industrial end users in international markets.
- Project-Based Supply – Material can be supplied according to project specifications, drawings, quantities and inspection requirements.
- Export Packing Available – Suitable packing can be arranged for safe international transportation and handling.
| Specification | Hastelloy Pipes |
|---|---|
| Product Name | Hastelloy Pipes |
| Material | Nickel-Based Hastelloy Alloy |
| Common Grades | Hastelloy C22, C276, B2, B3 and other grades |
| UNS | Depends on selected grade |
| Manufacturing Type | Seamless / Welded |
| Outside Diameter | As per customer specification |
| Wall Thickness | As per requirement / Schedule / Drawing |
| Pipe Schedule | As Required |
| Length | Standard / Custom Lengths |
| Surface Finish | Mill Finish / Pickled / Polished / Customized |
| Form | Round Pipe |
| Applicable Standards | ASTM / ASME specifications applicable to the selected grade |
| Heat Treatment | As per applicable grade and specification |
| Testing | Dimensional / Visual / Mechanical / Chemical / Other Tests as Required |
| Material Documentation | Material Test Certificate / Inspection Documents as Applicable |
| Customization | Size, Thickness, Length, Finish, Testing and Documentation |
| Applications | Chemical, Petrochemical, Pharmaceutical, Power, Marine and Process Industries |
| Export Supply | Domestic & Worldwide Export |
| Packing | Standard Export Packing / Customized Packing |
1. What are Hastelloy Pipes?
Hastelloy Pipes are nickel-based alloy pipes designed for excellent corrosion resistance, high-temperature performance and reliable mechanical strength in aggressive industrial environments. They are widely used where conventional stainless steel and other alloys may not provide sufficient corrosion resistance.
2. Which grades of Hastelloy Pipes are available?
Common grades include Hastelloy C22, C276, B2 and B3, along with other Hastelloy grades depending on the application, required corrosion resistance and applicable specification.
3. Are Hastelloy Pipes available in seamless and welded forms?
Yes. Hastelloy Pipes can be supplied in seamless and welded construction, depending on the selected grade, size, wall thickness, manufacturing specification and customer requirements.
4. What sizes of Hastelloy Pipes can be supplied?
Hastelloy Pipes can be supplied in standard and customized sizes. Outside diameter, wall thickness, pipe schedule and length can be manufactured or sourced according to customer specifications, drawings and project requirements.
5. What are the main applications of Hastelloy Pipes?
Hastelloy Pipes are used in chemical processing, petrochemical, pharmaceutical, power generation, marine, pollution-control and specialized process industries where resistance to aggressive chemicals and corrosive environments is required.
6. Can Metalx Nickel & Alloys export Hastelloy Pipes internationally?
Yes. Metalx Nickel & Alloys is a Hastelloy Pipe supplier and exporter serving international buyers, distributors, traders, stockholders, EPC contractors and industrial end users. Export orders can be arranged with suitable packing, inspection and material documentation according to the destination and purchase requirements.
