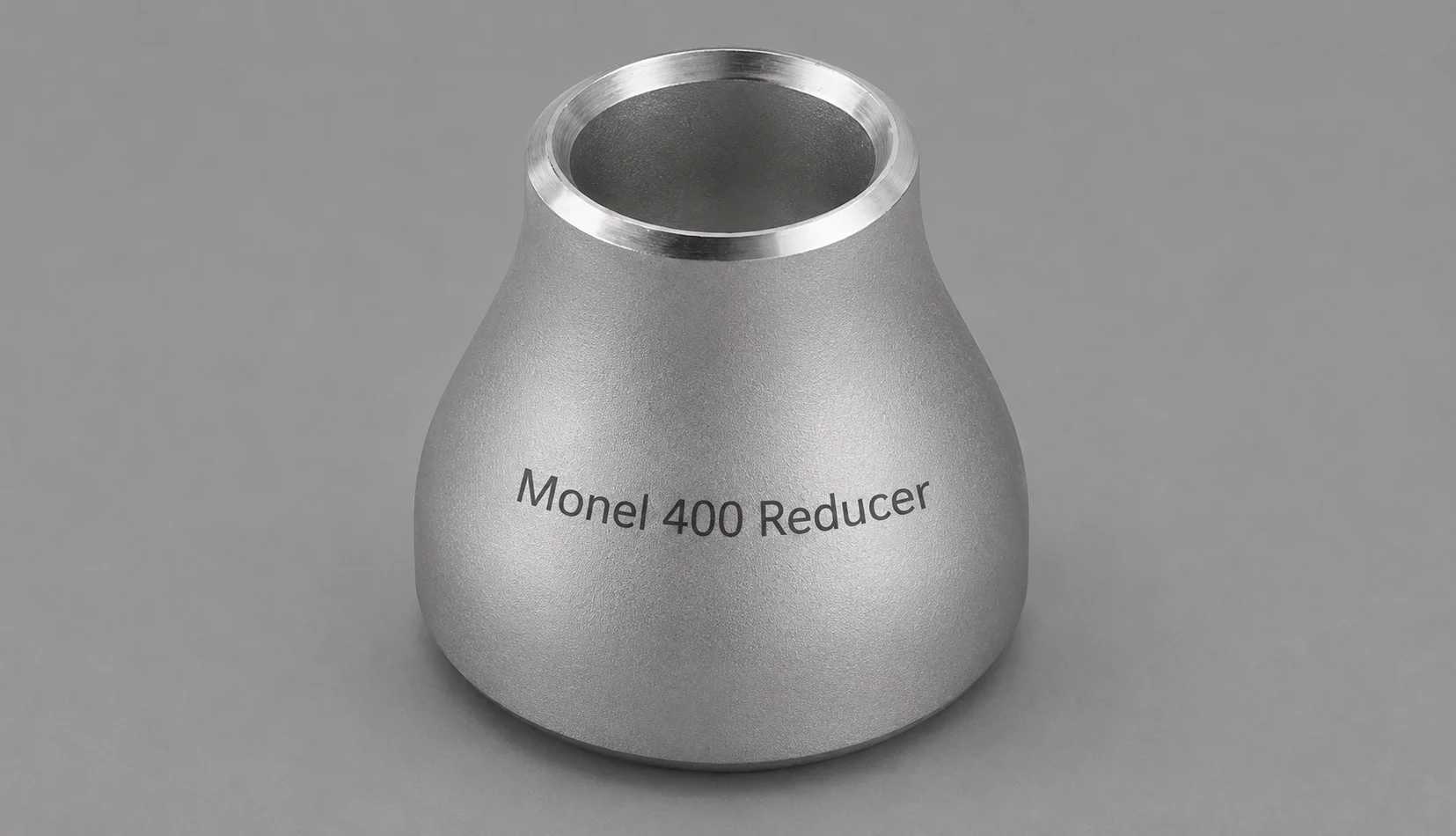

Monel 400 Reducer
| Specification Monel 400 Reducer Details | |
|---|---|
| Product Name | Monel 400 Reducer |
| Material Grade | Monel 400 / Alloy 400 |
| UNS Designation | UNS N04400 |
| Werkstoff Number | W.Nr. 2.4360 |
| Material Type | Nickel-Copper Alloy |
| Chemical Composition | Nickel 63% min, Copper 28–34%, Iron 2.5% max, Manganese 2% max, Carbon 0.30% max, Silicon 0.50% max |
| Manufacturing Type | Seamless / Welded / Hot Formed / Cold Formed |
| Fitting Standard | ASTM B366 / ASME SB366 |
| Dimensional Standard | ASME B16.9 |
| Reducer Type | Concentric Reducer / Eccentric Reducer |
| Size | NPS 1/2 to NPS 48 or as required |
| Outside Diameter | As per ASME B16.9 / Customer Requirement |
| Wall Thickness | SCH 5S, 10S, 10, 40S, 40, 80S, 80, 100, 120, 140, 160, XXS or as required |
| Large End Size | As specified |
| Small End Size | As specified |
| End Type | Butt Weld / Beveled End / Customized |
| Surface Finish | Mill Finish / Pickled / Annealed / Polished / Customized |
| Heat Treatment | Annealed / Stress Relieved as applicable |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hydrostatic, PMI and NDT as specified |
| Tensile Strength | Minimum approximately 483 MPa |
| Yield Strength | Minimum approximately 193 MPa |
| Elongation | Minimum approximately 35% |
| Density | Approximately 8.80 g/cm³ |
| Melting Range | Approximately 1300–1350°C |
| Corrosion Resistance | Excellent resistance to seawater, hydrofluoric acid, alkalies, neutral and reducing environments |
| Seawater Resistance | Excellent resistance to flowing seawater and marine environments |
| Chemical Resistance | Excellent resistance to hydrofluoric acid, alkaline solutions and many non-oxidizing acids |
| High-Temperature Resistance | Good resistance to elevated-temperature service and oxidation |
| Welding | Good weldability using suitable Monel 400-compatible welding procedures |
| Filler Metal | ENiCu-7 / ERNiCu-7 |
| Welding Electrode | ENiCu-7 |
| Available Form | Concentric Reducer / Eccentric Reducer |
| Customization | Size, Schedule, Large & Small End Diameter, Length, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Marine Engineering, Oil & Gas, Chemical Processing, Petrochemical, Seawater Equipment, Heat Exchangers, Pump & Valve Components, Offshore and Process Industries |
Monel 400 Reducer – Standard Dimensions
| NPS Large End | Outside Diameter (mm) | Outside Diameter (in.) | Typical Schedule Range |
|---|---|---|---|
| 1/2″ | 21.34 | 0.840 | SCH 5S–XXS |
| 3/4″ | 26.67 | 1.050 | SCH 5S–XXS |
| 1″ | 33.40 | 1.315 | SCH 5S–XXS |
| 1-1/4″ | 42.16 | 1.660 | SCH 5S–XXS |
| 1-1/2″ | 48.26 | 1.900 | SCH 5S–XXS |
| 2″ | 60.33 | 2.375 | SCH 5S–XXS |
| 2-1/2″ | 73.03 | 2.875 | SCH 5S–XXS |
| 3″ | 88.90 | 3.500 | SCH 5S–XXS |
| 4″ | 114.30 | 4.500 | SCH 5S–XXS |
| 5″ | 141.30 | 5.563 | SCH 5S–XXS |
| 6″ | 168.28 | 6.625 | SCH 5S–XXS |
| 8″ | 219.08 | 8.625 | SCH 5S–XXS |
| 10″ | 273.05 | 10.750 | SCH 5S–XXS |
| 12″ | 323.85 | 12.750 | SCH 5S–XXS |
| 14″ | 355.60 | 14.000 | SCH 5S–XXS |
| 16″ | 406.40 | 16.000 | SCH 5S–XXS |
| 18″ | 457.20 | 18.000 | SCH 5S–XXS |
| 20″ | 508.00 | 20.000 | SCH 5S–XXS |
| 24″ | 609.60 | 24.000 | SCH 5S–XXS |
| 30″ | 762.00 | 30.000 | As Required |
| 36″ | 914.40 | 36.000 | As Required |
| 42″ | 1066.80 | 42.000 | As Required |
| 48″ | 1219.20 | 48.000 | As Required |
Monel 400 Reducer – Common Size Combinations
| Large End Size | Small End Size | Reducer Type | Large End OD | Small End OD |
|---|---|---|---|---|
| 2″ | 1″ | Concentric / Eccentric | 60.33 mm | 33.40 mm |
| 2-1/2″ | 1-1/2″ | Concentric / Eccentric | 73.03 mm | 48.26 mm |
| 3″ | 2″ | Concentric / Eccentric | 88.90 mm | 60.33 mm |
| 4″ | 2″ | Concentric / Eccentric | 114.30 mm | 60.33 mm |
| 4″ | 3″ | Concentric / Eccentric | 114.30 mm | 88.90 mm |
| 6″ | 4″ | Concentric / Eccentric | 168.28 mm | 114.30 mm |
| 6″ | 3″ | Concentric / Eccentric | 168.28 mm | 88.90 mm |
| 8″ | 6″ | Concentric / Eccentric | 219.08 mm | 168.28 mm |
| 8″ | 4″ | Concentric / Eccentric | 219.08 mm | 114.30 mm |
| 10″ | 8″ | Concentric / Eccentric | 273.05 mm | 219.08 mm |
| 10″ | 6″ | Concentric / Eccentric | 273.05 mm | 168.28 mm |
| 12″ | 10″ | Concentric / Eccentric | 323.85 mm | 273.05 mm |
| 12″ | 8″ | Concentric / Eccentric | 323.85 mm | 219.08 mm |
| 14″ | 12″ | Concentric / Eccentric | 355.60 mm | 323.85 mm |
| 16″ | 12″ | Concentric / Eccentric | 406.40 mm | 323.85 mm |
| 18″ | 16″ | Concentric / Eccentric | 457.20 mm | 406.40 mm |
| 20″ | 16″ | Concentric / Eccentric | 508.00 mm | 406.40 mm |
| 24″ | 20″ | Concentric / Eccentric | 609.60 mm | 508.00 mm |
Monel 400 Reducer – Size & Type Chart
| Size Range | Reducer Type | Available Finish | Supply Condition | End Connection |
|---|---|---|---|---|
| 1/2″–2″ | Concentric / Eccentric | Bright / Pickled / Polished | Annealed | Butt Weld / Customized |
| 2-1/2″–4″ | Concentric / Eccentric | Mill / Pickled / Polished | Annealed | Butt Weld |
| 5″–8″ | Concentric / Eccentric | Mill / Pickled / Machined | Annealed | Butt Weld |
| 10″–12″ | Concentric / Eccentric | Mill / Pickled / Machined | Annealed | Butt Weld |
| 14″–18″ | Concentric / Eccentric | Mill / Machined | Annealed | Butt Weld |
| 20″–24″ | Concentric / Eccentric | Mill / Machined | Annealed | Butt Weld |
| 30″–36″ | Concentric / Eccentric | Mill / Machined | Annealed | Butt Weld |
| 42″–48″ | Concentric / Eccentric | Mill / Machined | Annealed | Butt Weld |
Why Should You Buy Monel 400 Reducers from Metalx Nickel & Alloys?
- Experienced Monel 400 Reducer Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant and high-performance alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Monel 400 Exporter offering Monel 400 / UNS N04400 Reducers for demanding marine, chemical and industrial applications.
- Global Sourcing Network with access to reputed nickel alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Nickel Alloy Fittings Range including Monel 400, Monel K500, Hastelloy, Inconel, Incoloy and other specialized nickel alloy fittings.
- Ready Stock Availability for selected Monel 400 Reducer sizes, subject to current stock and availability.
- Custom Monel 400 Reducer Supply according to customer drawings, size, schedule, wall thickness and reducer dimensions.
- Concentric & Eccentric Reducer Supply for standard and specialized industrial piping requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B366 / ASME SB366, where applicable.
- ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
- Visual & Hardness Testing Support can be arranged where required by the applicable specification or purchase order.
- Custom Surface Finish – Mill finish or other specified finishes can be supplied according to requirements.
- Export-Ready Packing designed to protect Monel 400 Reducers during handling, storage and international transportation.
- Worldwide Monel 400 Reducer Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Monel 400 Reducer Export Support for EPC contractors, engineering companies, marine industries, chemical plants, petroleum-processing facilities, heat-exchanger manufacturers and specialized industrial buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, reducer type, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Monel 400 Reducer shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Monel 400 Reducer
- Nickel-Copper Alloy Construction – Manufactured from Monel 400 for demanding industrial applications.
- Excellent Seawater Resistance – Particularly useful in marine and seawater environments.
- Good Corrosion Resistance – Provides resistance to many corrosive and chemical environments.
- Good Chloride Resistance – Suitable for selected chloride-containing applications.
- Resistance to Hydrofluoric Acid – Useful in suitable hydrofluoric acid service conditions.
- Good Alkaline Resistance – Provides useful resistance to many alkaline environments.
- Reliable Butt-Weld Connection – Provides a permanent welded connection for industrial piping.
- Concentric Reducer Option – Maintains aligned centerlines while transitioning between different pipe diameters.
- Eccentric Reducer Option – Provides an offset transition for selected piping arrangements.
- Smooth Diameter Transition – Allows connection between pipes of different diameters.
- Wide Size Availability – Available in different nominal sizes and outside diameters.
- Multiple Wall Thicknesses – Different schedules and customized thicknesses can be supplied.
- Good Mechanical Strength – Provides useful strength for demanding piping applications.
- Good Weldability – Suitable for fabrication using qualified welding procedures.
- Good Fabrication Characteristics – Can be processed using appropriate industrial practices.
- Annealed Options – Can be supplied in applicable annealed conditions.
- Marine Applications – Suitable for selected seawater and marine piping systems.
- Chemical Processing Applications – Can be considered for corrosive chemical process piping.
- Petroleum Processing Applications – Suitable for selected petroleum and hydrocarbon processing systems.
- Heat Exchanger Applications – Useful for selected heat-transfer and process equipment.
- Water System Applications – Suitable for selected industrial water and seawater systems.
- Saltwater Handling Applications – Can be considered for selected saltwater equipment and piping.
- Custom Dimensions – Large-end and small-end diameters can be supplied according to project requirements.
- Multiple Surface Options – Mill finish or other specified finishes can be supplied.
- Material Traceability – Material identification and relevant certificates can be supplied as required.
- Quality Testing Available – Chemical, mechanical, dimensional, visual and other specified inspections can be arranged.
- Export-Ready Material – Reducers can be suitably packed for handling and international transportation.
- Global Monel 400 Reducer Exporter – METALX NICKEL & ALLOYS supplies Monel 400 Reducers to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Monel 400 Reducer Details |
|---|---|
| Product Name | Monel 400 Reducer |
| Material Grade | Monel 400 |
| UNS Designation | N04400 |
| Werkstoff Number | 2.4360 / 2.4361 |
| Material Type | Nickel-Copper Alloy |
| Nickel Content | Approximately 63% minimum |
| Copper Content | Approximately 28%–34% |
| Material Standard | ASTM B366 / ASME SB366, where applicable |
| Dimensional Standard | ASME B16.9, where applicable |
| Reducer Type | Concentric Reducer / Eccentric Reducer |
| Connection Type | Butt Weld |
| Size | As per applicable standard or customer specification |
| Wall Thickness | Different schedules and customized thicknesses |
| Large End Diameter | As per requirement |
| Small End Diameter | As per requirement |
| Manufacturing | Wrought / Formed, as applicable |
| Surface Finish | Mill Finish or customer-specified finish |
| Heat Treatment | Annealed or as applicable |
| End Preparation | Bevelled Ends for Butt Welding |
| Testing | Chemical, mechanical, dimensional, visual and other specified inspections |
| Documentation | MTC, inspection reports and relevant quality documents as required |
| Customization | Size, thickness, reducer type, finish, testing and documentation |
| Packing | Export-worthy packing suitable for safe international transportation |
| Applications | Marine Engineering, Chemical Processing, Petroleum Processing, Petrochemical, Heat Exchangers, Water Systems and Industrial Piping |
Does METALX NICKEL & ALLOYS export Monel 400 Reducers?
Yes. METALX NICKEL & ALLOYS supplies Monel 400 Reducers to international buyers, distributors, EPC contractors, stockholders and industrial end users.
Can Material Test Certificates be provided?
Yes. Material Test Certificates, inspection reports and relevant quality documents can be supplied according to customer and project requirements.
Can Monel 400 Reducers be customized?
Testing can include chemical analysis, mechanical testing, dimensional inspection, visual inspection and other specified tests.
What are the main applications of Monel 400 Reducers?
Applications include marine engineering, chemical processing, petroleum processing, petrochemical, heat exchangers, water systems and industrial piping.
Can Monel 400 Reducers be customized?
Yes. Size, wall thickness, schedule, reducer type, surface finish, testing and documentation can be supplied according to customer requirements.
What are the main applications of Monel 400 Reducers?
Applications include marine engineering, chemical processing, petroleum processing, petrochemical, heat exchangers, water systems and industrial piping.
