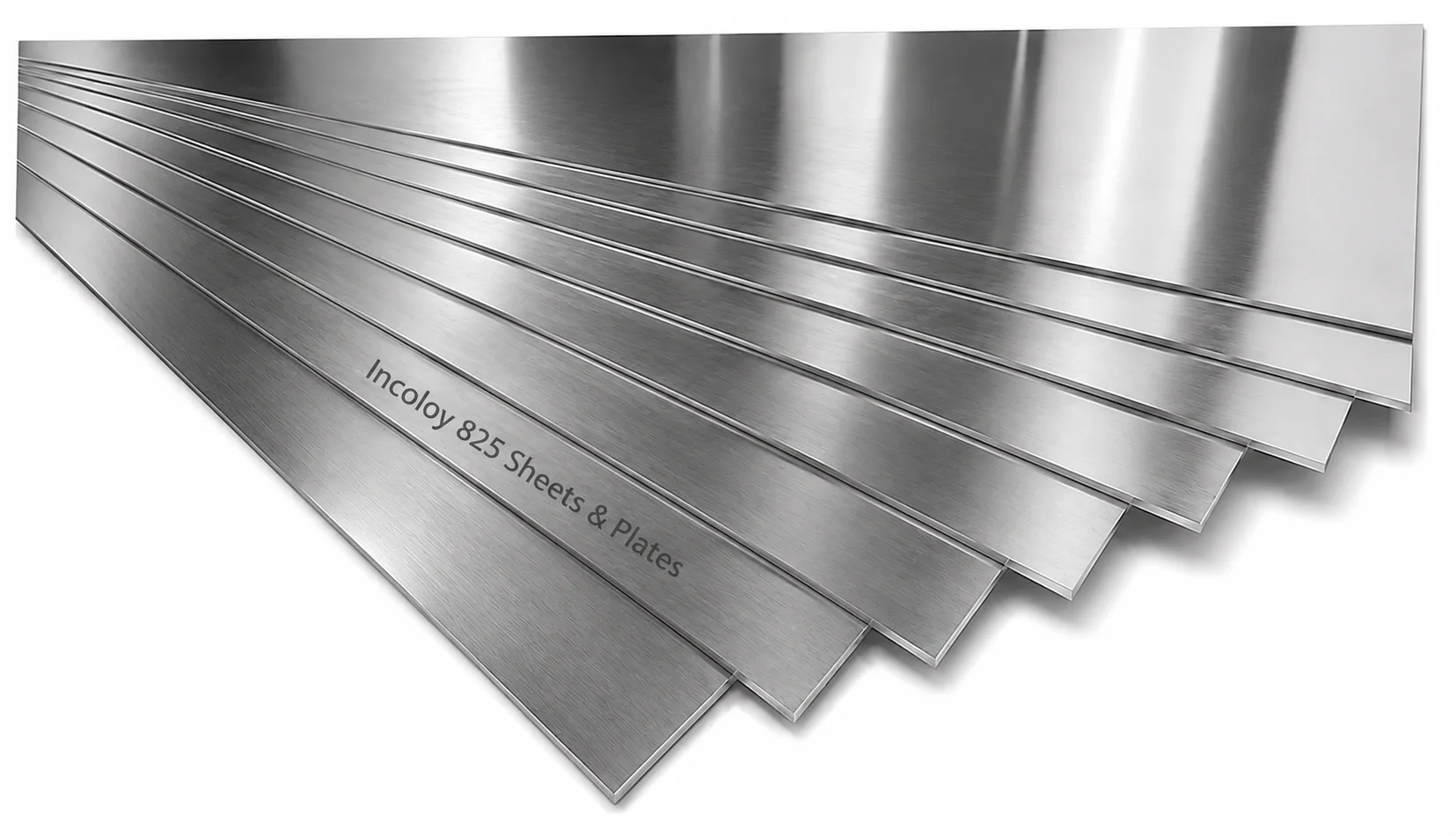

Incoloy 825 Sheets & Plates
| Specification | Details |
|---|---|
| Product Name | Incoloy 825 Sheets & Plates |
| Material Grade | Incoloy 825 / Alloy 825 |
| UNS Designation | UNS N08825 |
| Werkstoff Number | W.Nr. 2.4858 |
| Material Type | Nickel-Iron-Chromium Alloy with Molybdenum, Copper and Titanium Additions |
| Chemical Composition | Nickel 38–46%, Chromium 19.5–23.5%, Molybdenum 2.5–3.5%, Copper 1.5–3.0%, Titanium 0.6–1.2%, Iron Balance, Carbon ≤0.05%, Manganese ≤1.0%, Silicon ≤0.5% |
| Manufacturing Type | Hot Rolled / Cold Rolled / Annealed |
| Sheet & Plate Standard | ASTM B424 / ASME SB424 |
| Outside Dimensions | As per ASTM / ASME Standard or Customer Requirement |
| Thickness | As per Standard / Customer Requirement |
| Thickness Range | Approximately 0.5 mm to 100 mm or as required |
| Width | Standard / Customized Width as per Customer Requirement |
| Length | Standard / Fixed / Customized Length |
| Surface Finish | Hot Rolled / Cold Rolled / Annealed / Pickled / Polished / Customized |
| Edge Condition | Mill Edge / Cut Edge / Customized |
| Heat Treatment | Solution Annealed / Stabilized Annealed as Applicable |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Ultrasonic and Other NDT as Specified |
| Tensile Strength | Grade and Condition Specific; approximately 550 MPa or higher |
| Yield Strength | Grade and Condition Specific; approximately 220 MPa or higher |
| Elongation | Grade and Condition Specific; approximately 30% or higher |
| Density | Approximately 8.14 g/cm³ |
| Melting Range | Approximately 1380–1400°C |
| Corrosion Resistance | Excellent resistance to general corrosion, pitting, crevice corrosion and stress-corrosion cracking |
| Acid Resistance | Excellent resistance to sulfuric acid, phosphoric acid and various reducing and oxidizing chemical environments |
| Chloride Resistance | Excellent resistance to chloride-ion stress-corrosion cracking and localized corrosion |
| Oxidation Resistance | Good resistance to oxidation under suitable elevated- |
1. Incoloy 825 Sheets & Plates – Standard Sizes
| Product Form | Thickness | Width | Length |
|---|---|---|---|
| Incoloy 825 Sheet | 0.5–1.0 mm | 1000–1500 mm | 2000–3000 mm |
| Incoloy 825 Sheet | 1.0–2.0 mm | 1000–1500 mm | 2000–3000 mm |
| Incoloy 825 Sheet | 2.0–3.0 mm | 1000–2000 mm | 2000–4000 mm |
| Incoloy 825 Sheet | 3.0–6.0 mm | 1000–2000 mm | 2000–6000 mm |
| Incoloy 825 Plate | 6–10 mm | 1500–2000 mm | 3000–6000 mm |
| Incoloy 825 Plate | 10–20 mm | 1500–2500 mm | 3000–6000 mm |
| Incoloy 825 Plate | 20–40 mm | 1500–2500 mm | 3000–6000 mm |
| Incoloy 825 Heavy Plate | 40–60 mm | As per Mill Capability | As per Requirement |
| Incoloy 825 Heavy Plate | 60–100 mm | As per Mill Capability | As per Requirement |
| Incoloy 825 Custom Plate | Above 100 mm | Customized | Customized |
2. Incoloy 825 Sheets & Plates – Approximate Weight Chart
| Thickness | Approx. Weight per m² | Product Form |
|---|---|---|
| 1 mm | 8.14 kg/m² | Incoloy 825 Sheet |
| 2 mm | 16.28 kg/m² | Incoloy 825 Sheet |
| 3 mm | 24.42 kg/m² | Incoloy 825 Sheet |
| 4 mm | 32.56 kg/m² | Incoloy 825 Sheet |
| 5 mm | 40.70 kg/m² | Incoloy 825 Sheet |
| 6 mm | 48.84 kg/m² | Sheet / Plate |
| 8 mm | 65.12 kg/m² | Incoloy 825 Plate |
| 10 mm | 81.40 kg/m² | Incoloy 825 Plate |
| 12 mm | 97.68 kg/m² | Incoloy 825 Plate |
| 15 mm | 122.10 kg/m² | Incoloy 825 Plate |
| 20 mm | 162.80 kg/m² | Incoloy 825 Plate |
| 25 mm | 203.50 kg/m² | Heavy Incoloy 825 Plate |
| 30 mm | 244.20 kg/m² | Heavy Incoloy 825 Plate |
| 40 mm | 325.60 kg/m² | Heavy Incoloy 825 Plate |
| 50 mm | 407.00 kg/m² | Heavy Incoloy 825 Plate |
| 60 mm | 488.40 kg/m² | Heavy Incoloy 825 Plate |
| 75 mm | 610.50 kg/m² | Heavy Incoloy 825 Plate |
| 100 mm | 814.00 kg/m² | Heavy Incoloy 825 Plate |
3. Incoloy 825 Sheets & Plates – Technical & Supply Details
| Specification | Available Details |
|---|---|
| Material Grade | Incoloy 825 / Alloy 825 |
| UNS Number | UNS N08825 |
| Werkstoff Number | W.Nr. 2.4858 |
| Material Type | Nickel-Iron-Chromium Alloy with Molybdenum, Copper & Titanium |
| Standard | ASTM B424 / ASME SB424 |
| Product Forms | Sheets / Plates / Flat Sheets / Cut-to-Size Plates |
| Manufacturing | Hot Rolled / Cold Rolled / Annealed |
| Heat Treatment | Solution Annealed / Stabilized Annealed as Applicable |
| Surface Finish | Mill / Hot Rolled / Cold Rolled / Annealed / Pickled / Polished / Customized |
| Edge Condition | Mill Edge / Cut Edge / Customized |
| Thickness | Standard / Customized |
| Width & Length | Standard / Fixed / Customized |
| Cutting | Cut-to-Size as per Drawing or Customer Requirement |
| Testing | Chemical / Mechanical / Dimensional / Visual / Ultrasonic / NDT as Required |
| Certification | EN 10204 3.1 / 3.2 as Required |
| MTC | Available with Applicable Export Orders |
| Third-Party Inspection | Available as per Customer / Project Requirement |
| Packing | Export-Worthy / Seaworthy Packing |
| Customization | Thickness, Width, Length, Finish, Edge, Cutting, Heat Treatment, Testing & Documentation |
| Export Supply | Worldwide Incoloy 825 Sheets & Plates Export Supply |
| Exporter Support | Technical Documentation, Inspection, Certification, Export Packing & International Shipment Coordination |
| Applications | Chemical Processing, Sulfuric Acid Equipment, Phosphoric Acid Plants, Oil & Gas, Marine Equipment, Pollution Control, Heat Exchangers, Pickling Equipment, Nuclear Fuel Processing and Petrochemical Industries |
Most Common Types Of Incoloy 825 Sheets & Plates
Incoloy 825 Sheets & Plates are available in different product forms, manufacturing conditions, surface finishes, thicknesses and customized dimensions. They are mainly selected for applications requiring excellent corrosion resistance, acid resistance, pitting resistance and resistance to chloride stress-corrosion cracking.
| Type of Incoloy 825 Sheets & Plates | Description |
|---|---|
| Incoloy 825 Sheets | Thin-gauge nickel-iron-chromium alloy sheets suitable for chemical processing, pollution control and corrosive industrial environments. |
| Incoloy 825 Plates | Heavy-gauge plates designed for process equipment, tanks, heat exchangers and demanding chemical applications. |
| Hot Rolled Incoloy 825 Plates | Heavy-thickness plates manufactured through hot rolling for industrial fabrication and process equipment. |
| Cold Rolled Incoloy 825 Sheets | Sheets with controlled thickness and improved dimensional accuracy for specialized fabrication requirements. |
| Annealed Incoloy 825 Sheets & Plates | Heat-treated material supplied to provide suitable ductility and balanced mechanical properties. |
| Solution Annealed Incoloy 825 Sheets & Plates | Material supplied in solution-annealed condition according to applicable specifications and customer requirements. |
| Stabilized Annealed Incoloy 825 Sheets & Plates | Stabilized material suitable for applications involving prolonged exposure to corrosive environments and elevated temperatures. |
| Pickled Incoloy 825 Sheets & Plates | Descaled and cleaned material supplied with a clean surface for industrial fabrication. |
| Polished Incoloy 825 Sheets & Plates | Smooth-finish sheets and plates supplied for specialized equipment and customer-specific requirements. |
| Cut-to-Size Incoloy 825 Plates | Plates cut according to customer drawings, specified dimensions or project requirements. |
| Custom Incoloy 825 Sheets & Plates | Customized thickness, width, length, edge condition, surface finish, heat treatment, testing and documentation. |
| Incoloy 825 Export Sheets & Plates | Export-ready material supplied with applicable certification, inspection support, protective packing and international shipment coordination. |
Why Should You Buy Incoloy 825 Sheets & Plates from Metalx Nickel & Alloys?
- Experienced Incoloy 825 Sheets & Plates Exporter serving international buyers, importers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Exporter Experience in supplying and exporting corrosion-resistant, acid-resistant and high-performance nickel alloy products to customers across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Incoloy 825 Sheets & Plates Exporter offering Incoloy 825 / Alloy 825 / UNS N08825 / W.Nr. 2.4858 Sheets & Plates according to applicable international standards and customer requirements.
- Global Incoloy 825 Exporter Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Incoloy 825 Sheets & Plates Exporter supplying nickel-iron-chromium alloy products for demanding applications requiring excellent corrosion resistance, pitting resistance, crevice corrosion resistance, acid resistance and chloride stress-corrosion cracking resistance.
- Wide Nickel Alloy Exporter Product Range including Incoloy 825 Sheets & Plates, Incoloy 800 Sheets & Plates, Incoloy 800H Sheets & Plates, Incoloy 800HT Sheets & Plates, Inconel Sheets & Plates, Hastelloy Sheets & Plates, Monel Sheets & Plates, Nickel Alloy Sheets & Plates and other specialized nickel-based alloy products.
- Incoloy 825 Ready Stock Exporter offering selected thicknesses, widths, lengths and surface finishes from available stock, subject to current exporter stock availability.
- Custom Incoloy 825 Sheets & Plates Exporter supplying material according to customer drawings, required thickness, width, length, surface finish, edge condition, heat-treatment condition and project specifications.
- Cut-to-Size Incoloy 825 Plate Exporter providing customized cutting and dimensioning for applicable Incoloy 825 Sheet & Plate export orders.
- ASTM / ASME Incoloy 825 Export Supply according to applicable product specifications, including ASTM B424 / ASME SB424 for Incoloy 825 Sheets & Plates.
| Key Feature | Details |
|---|---|
| Excellent Corrosion Resistance | Provides broad resistance to general corrosion in demanding industrial environments. |
| Acid Resistance | Performs well in sulfuric acid, phosphoric acid and various acidic process environments. |
| Chloride Resistance | Offers good resistance to chloride-induced stress-corrosion cracking and localized corrosion. |
| Pitting & Crevice Resistance | Molybdenum content helps improve resistance to pitting and crevice corrosion. |
| Titanium Stabilization | Titanium addition helps reduce susceptibility to intergranular corrosion following welding and thermal exposure. |
| Marine Performance | Suitable for equipment exposed to seawater and chloride-containing environments. |
| Chemical Stability | Performs reliably across a broad range of reducing and oxidizing chemical conditions. |
| Good Mechanical Properties | Provides a useful combination of strength, ductility and corrosion resistance. |
| Good Weldability | Can be welded using appropriate nickel-alloy welding procedures and compatible filler metals. |
| Fabrication Friendly | Suitable for forming, machining and fabrication using established industrial practices. |
| Custom Supply | Available in customized thicknesses, widths, lengths, finishes and cut-to-size dimensions. |
| Industrial Versatility | Suitable for tanks, vessels, heat exchangers, process equipment, piping components and protective liners. |
| Quality Documentation | METALX NICKEL & ALLOYS can provide MTC, inspection reports and relevant quality documentation as required. |
| Export Support | METALX NICKEL & ALLOYS can support export packing, inspection and international shipment coordination. |
| Specification | Details |
|---|---|
| Product Name | Incoloy 825 Sheets & Plates |
| Material Grade | Incoloy 825 / Alloy 825 |
| UNS Designation | UNS N08825 |
| Werkstoff Number | W.Nr. 2.4858 |
| Material Type | Nickel-Iron-Chromium Alloy |
| Product Form | Sheets / Plates / Cut-to-Size Plates |
| Standard | ASTM B424 / ASME SB424 |
| Manufacturing | Hot Rolled / Cold Rolled |
| Thickness | As per Standard / Customer Requirement |
| Width | Standard / Customized |
| Length | Standard / Fixed / Customized |
| Surface Finish | Mill Finish / Pickled / Polished / Customized |
| Heat Treatment | Solution Annealed / Stabilized Annealed as Applicable |
| Edge Condition | Mill Edge / Cut Edge / Customized |
| Testing | Chemical, Mechanical, Dimensional, Visual and Other Tests as Required |
| Inspection | Third-Party Inspection Available as Required |
| Certification | Material Test Certificate / Quality Documentation |
| Corrosion Resistance | Excellent resistance to general corrosion, pitting and crevice corrosion |
| Acid Resistance | Excellent resistance to sulfuric acid, phosphoric acid and other aggressive chemical media |
| Chloride Resistance | Good resistance to chloride-induced stress-corrosion cracking |
| Welding | Good weldability using suitable nickel-alloy welding procedures |
| Fabrication | Suitable for forming, machining and other conventional fabrication processes |
| Customization | Thickness, Width, Length, Finish, Cutting, Testing and Documentation |
| Packing | Export-Worthy / Seaworthy Packing |
| Export Supply | Worldwide Incoloy 825 Sheets & Plates Export Supply |
| Applications | Chemical Processing, Acid Plants, Heat Exchangers, Oil & Gas, Marine Equipment, Pollution Control, Pickling Equipment, Petrochemical and Process Industries |
1. What are Incoloy 825 Sheets & Plates?
Incoloy 825 Sheets & Plates are manufactured from Incoloy 825 / Alloy 825 (UNS N08825), a nickel-iron-chromium alloy designed for excellent corrosion resistance in demanding industrial environments.
2. What is the standard for Incoloy 825 Sheets & Plates?
They are commonly supplied according to ASTM B424 / ASME SB424, with dimensions, heat treatment and testing based on applicable specifications and customer requirements.
3. What are the main advantages of Incoloy 825?
Incoloy 825 provides excellent resistance to general corrosion, sulfuric acid, phosphoric acid, pitting, crevice corrosion and chloride-induced stress-corrosion cracking.
4. Where are Incoloy 825 Sheets & Plates used?
They are commonly used in chemical processing, acid plants, heat exchangers, oil & gas equipment, marine applications, pollution-control systems, pickling equipment and petrochemical industries.
5. Are Incoloy 825 Sheets & Plates suitable for welding?
Yes. Incoloy 825 offers good weldability when suitable nickel-alloy welding procedures and compatible filler metals are used. Titanium stabilization also helps improve resistance to intergranular corrosion after welding.
6. Can Metalx Nickel & Alloys supply customized customized Incoloy 825 Sheets & Plates?
Yes. Metalx Nickel & Alloys can supply customized thicknesses, widths and lengths, including cut-to-size plates, heat treatment, testing, MTC, inspection, certification, export-worthy packing and international shipment coordination.
