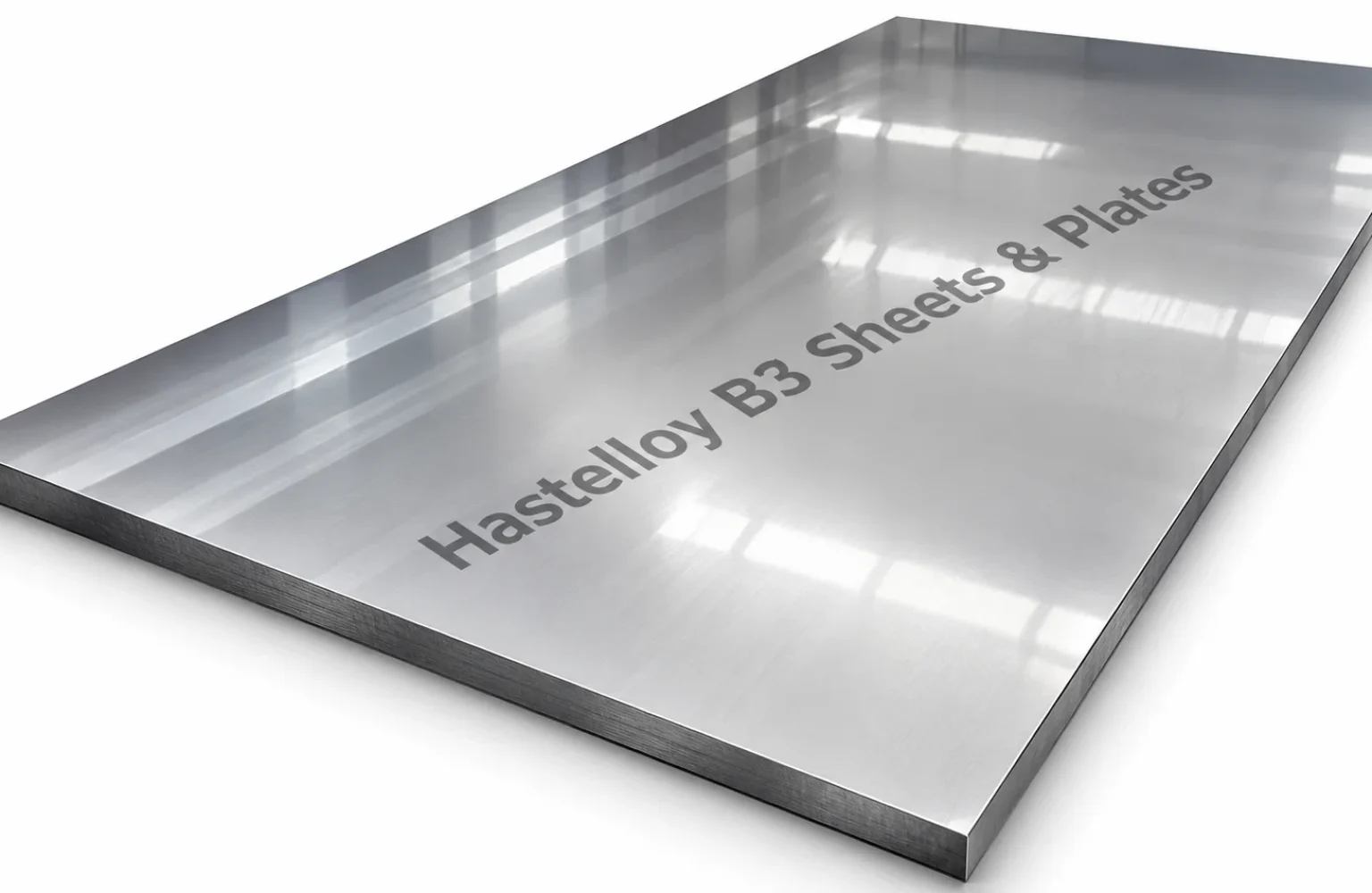

Hastelloy B3 Sheets & Plates
| Specification | Details |
|---|---|
| Product Name | Hastelloy B3 Sheets & Plates |
| Material Grade | Hastelloy B3 / Alloy B3 |
| UNS Designation | UNS N10675 |
| Werkstoff Number | W.Nr. 2.4600 |
| Material Type | Nickel-Molybdenum Alloy |
| Chemical Composition | Nickel Balance, Molybdenum 28–32%, Iron ≤2%, Chromium ≤1.5%, Cobalt ≤3%, Carbon ≤0.01%, Manganese ≤3%, Silicon ≤0.10%, Copper ≤0.50% |
| Manufacturing Type | Hot Rolled / Cold Rolled / Solution Annealed |
| Sheet & Plate Standard | ASTM B333 / ASME SB333 |
| Material Condition | Solution Annealed / As per Applicable Specification |
| Outside Dimensions | As per ASTM / ASME Standard or Customer Requirement |
| Thickness | As per Applicable Standard / Customer Requirement |
| Thickness Range | Approximately 0.5 mm to 100 mm or as required |
| Width | Standard / Customized Width as per Customer Requirement |
| Length | Standard / Fixed / Customized Length |
| Surface Finish | Hot Rolled / Cold Rolled / Annealed / Pickled / Polished / Customized |
| Edge Condition | Mill Edge / Cut Edge / Customized |
| Heat Treatment | Solution Annealing / Rapid Cooling as Applicable |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Ultrasonic and Other NDT as Specified |
| Tensile Strength | Minimum approximately 690 MPa, subject to product condition and applicable specification |
| Yield Strength | Minimum approximately 310 MPa, subject to product condition and applicable specification |
| Elongation | Minimum approximately 40%, subject to applicable specification |
| Density | Approximately 9.22 g/cm³ |
| Melting Range | Approximately 1370–1400°C |
| Corrosion Resistance | Excellent resistance to reducing acids and aggressive chemical environments |
| Hydrochloric Acid Resistance | Excellent resistance to hydrochloric acid under suitable concentration and temperature conditions |
| Reducing Environment Resistance | Excellent resistance to reducing environments due to its high nickel and molybdenum content |
| Pitting & Crevice Corrosion Resistance | Good resistance to localized corrosion under suitable reducing service conditions |
| Acid Resistance | Excellent resistance to hydrochloric, sulfuric and other reducing acids under appropriate conditions |
| Oxidizing Environment Resistance | More limited than chromium-rich Hastelloy grades; application-specific evaluation is recommended |
| Chemical Stability | Excellent resistance to aggressive reducing chemical processing environments |
| High-Temperature Performance | Good mechanical and corrosion performance under suitable elevated-temperature service conditions |
| Thermal Stability | Good stability during suitable thermal exposure and chemical processing operations |
| Welding | Good weldability using suitable nickel-alloy welding procedures and compatible filler metals |
| Available Form | Sheets / Plates / Flat Sheets / Cut-to-Size Plates |
| Customization | Thickness, Width, Length, Surface Finish, Edge, Cutting, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Hastelloy B3 Sheets & Plates Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Hydrochloric Acid Equipment, Sulfuric Acid Processing, Pickling Equipment, Reactors, Heat Exchangers, Pumps, Valves, Chemical Storage, Pharmaceutical Processing, Petrochemical Equipment and Other Reducing Chemical Environments |
1. Hastelloy B3 Sheets & Plates – Standard Sizes
| Product Form | Thickness | Width | Length |
|---|---|---|---|
| Hastelloy B3 Sheet | 0.5–1.0 mm | 1000–1500 mm | 2000–3000 mm |
| Hastelloy B3 Sheet | 1.0–2.0 mm | 1000–1500 mm | 2000–3000 mm |
| Hastelloy B3 Sheet | 2.0–3.0 mm | 1000–2000 mm | 2000–4000 mm |
| Hastelloy B3 Sheet | 3.0–6.0 mm | 1000–2000 mm | 2000–6000 mm |
| Hastelloy B3 Plate | 6–10 mm | 1500–2000 mm | 3000–6000 mm |
| Hastelloy B3 Plate | 10–20 mm | 1500–2500 mm | 3000–6000 mm |
| Hastelloy B3 Plate | 20–40 mm | 1500–2500 mm | 3000–6000 mm |
| Hastelloy B3 Heavy Plate | 40–60 mm | As per Mill Capability | As per Requirement |
| Hastelloy B3 Heavy Plate | 60–100 mm | As per Mill Capability | As per Requirement |
| Hastelloy B3 Custom Plate | Above 100 mm | Customized | Customized |
2. Hastelloy B3 Sheets & Plates – Approximate Weight Chart
| Thickness | Approx. Weight per m² | Product Form |
|---|---|---|
| 1 mm | 9.22 kg/m² | Hastelloy B3 Sheet |
| 2 mm | 18.44 kg/m² | Hastelloy B3 Sheet |
| 3 mm | 27.66 kg/m² | Hastelloy B3 Sheet |
| 4 mm | 36.88 kg/m² | Hastelloy B3 Sheet |
| 5 mm | 46.10 kg/m² | Hastelloy B3 Sheet |
| 6 mm | 55.32 kg/m² | Sheet / Plate |
| 8 mm | 73.76 kg/m² | Hastelloy B3 Plate |
| 10 mm | 92.20 kg/m² | Hastelloy B3 Plate |
| 12 mm | 110.64 kg/m² | Hastelloy B3 Plate |
| 15 mm | 138.30 kg/m² | Hastelloy B3 Plate |
| 20 mm | 184.40 kg/m² | Hastelloy B3 Plate |
| 25 mm | 230.50 kg/m² | Heavy Hastelloy B3 Plate |
| 30 mm | 276.60 kg/m² | Heavy Hastelloy B3 Plate |
| 40 mm | 368.80 kg/m² | Heavy Hastelloy B3 Plate |
| 50 mm | 461.00 kg/m² | Heavy Hastelloy B3 Plate |
| 60 mm | 553.20 kg/m² | Heavy Hastelloy B3 Plate |
| 75 mm | 691.50 kg/m² | Heavy Hastelloy B3 Plate |
| 100 mm | 922.00 kg/m² | Heavy Hastelloy B3 Plate |
3. Hastelloy B3 Sheets & Plates – Technical & Supply Details
| Specification | Available Details |
|---|---|
| Material Grade | Hastelloy B3 / Alloy B3 |
| UNS Number | UNS N10675 |
| Werkstoff Number | W.Nr. 2.4600 |
| Material Type | Nickel-Molybdenum Alloy |
| Standard | ASTM B333 / ASME SB333 |
| Material Condition | Solution Annealed / As per Applicable Specification |
| Product Forms | Sheets / Plates / Flat Sheets / Cut-to-Size Plates |
| Manufacturing | Hot Rolled / Cold Rolled / Solution Annealed |
| Heat Treatment | Solution Annealing / Rapid Cooling as Applicable |
| Surface Finish | Mill Finish / Hot Rolled / Cold Rolled / Annealed / Pickled / Polished / Customized |
| Edge Condition | Mill Edge / Cut Edge / Customized |
| Thickness | Standard / Customized |
| Width & Length | Standard / Fixed / Customized |
| Cutting | Cut-to-Size as per Drawing or Customer Requirement |
| Testing | Chemical / Mechanical / Dimensional / Visual / Ultrasonic / NDT as Required |
| Certification | EN 10204 3.1 / 3.2 as Required |
| MTC | Available with Applicable Export Orders |
| Third-Party Inspection | Available as per Customer / Project Requirement |
| Packing | Export-Worthy / Seaworthy Packing |
| Customization | Thickness, Width, Length, Finish, Edge, Cutting, Heat Treatment, Testing & Documentation |
| Export Supply | Worldwide Hastelloy B3 Sheets & Plates Export Supply |
| Exporter Support | Technical Documentation, Inspection, Certification, Export Packing & International Shipment Coordination |
| Applications | Chemical Processing, Hydrochloric Acid Equipment, Sulfuric Acid Processing, Pickling Equipment, Reactors, Heat Exchangers, Pumps, Valves, Pharmaceutical Processing, Petrochemical Equipment and Other Reducing Chemical Environments |
Most Common Types Of Hastelloy B3 Sheets & Plates
Hastelloy B3 Sheets & Plates are available in different product forms, thicknesses, surface finishes, heat-treatment conditions and customized dimensions for demanding chemical-processing applications. METALX NICKEL & ALLOYS supplies Hastelloy B3 products according to applicable specifications and international export requirements.
| Type of Hastelloy B3 Sheets & Plates | Description |
|---|---|
| Hastelloy B3 Sheets | Thin-gauge nickel-molybdenum alloy sheets designed for applications requiring excellent resistance to reducing acids and aggressive chemical media. |
| Hastelloy B3 Plates | Heavy-gauge plates suitable for reactors, heat exchangers, process equipment and other demanding chemical-processing applications. |
| Solution Annealed Hastelloy B3 Sheets & Plates | Heat-treated material supplied in solution-annealed condition to achieve the required metallurgical structure and corrosion-resistant properties. |
| Hot Rolled Hastelloy B3 Plates | Heavy-thickness plates manufactured through hot rolling for industrial equipment and fabrication requirements. |
| Cold Rolled Hastelloy B3 Sheets | Sheets manufactured with controlled thickness and improved surface quality for applications requiring dimensional accuracy and smoother finishes. |
| Annealed Hastelloy B3 Sheets & Plates | Supplied in a suitable annealed condition for fabrication, forming and specified service requirements. |
| Pickled Hastelloy B3 Sheets & Plates | Descaled and cleaned sheets and plates suitable for applications where surface cleanliness is important. |
| Polished Hastelloy B3 Sheets & Plates | Supplied with a smoother enhanced surface finish for specialized equipment and customer-specific fabrication requirements. |
| Cut-to-Size Hastelloy B3 Plates | Plates cut according to customer drawings, specified dimensions or project requirements for easier fabrication and installation. |
| Custom Hastelloy B3 Sheets & Plates | Customized thickness, width, length, edge condition, surface finish, cutting, testing and documentation according to customer specifications. |
| Hastelloy B3 Export Sheets & Plates | Export-ready material supplied with applicable certification, inspection support, protective packing and international shipment coordination. |
Why Should You Buy Hastelloy B3 Sheets & Plates from Metalx Nickel & Alloys?
- Experienced Hastelloy B3 Sheets & Plates Exporter serving international buyers, importers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Exporter Experience in exporting high-performance, corrosion-resistant and chemically resistant nickel alloy products to customers across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Hastelloy B3 Sheets & Plates Exporter offering Hastelloy B3 / Alloy B3 / UNS N10675 / W.Nr. 2.4600 Sheets & Plates according to applicable international standards and customer requirements.
- Global Hastelloy B3 Exporter Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Hastelloy B3 Sheets & Plates Exporter supplying nickel-molybdenum alloy products for demanding applications requiring excellent resistance to hydrochloric acid, sulfuric acid, reducing acids and other aggressive chemical environments.
- Wide Nickel Alloy Exporter Product Range including Hastelloy B3 Sheets & Plates, Hastelloy B2 Sheets & Plates, Hastelloy C276 Sheets & Plates, Hastelloy C22 Sheets & Plates, Inconel 718 Sheets & Plates, Inconel 625 Sheets & Plates, Inconel 601 Sheets & Plates, Inconel 600 Sheets & Plates, Incoloy Sheets & Plates, Monel Sheets & Plates and other specialized nickel alloy products.
- Hastelloy B3 Ready Stock Exporter offering selected thicknesses, widths, lengths and surface finishes from available stock, subject to current exporter stock availability.
- Custom Hastelloy B3 Sheets & Plates Exporter supplying material according to customer drawings, required thickness, width, length, surface finish, edge condition, heat-treatment condition and project specifications.
- Cut-to-Size Hastelloy B3 Plate Exporter providing customized cutting and dimensioning for applicable Hastelloy B3 Sheet & Plate export orders.
| Key Feature | Details |
|---|---|
| Excellent Corrosion Resistance | Hastelloy B3 offers excellent resistance to aggressive reducing chemical environments and various corrosive process media. |
| High Molybdenum Content | Its high molybdenum content contributes to strong resistance against reducing acids and aggressive chemical environments. |
| Hydrochloric Acid Resistance | Particularly suitable for equipment exposed to hydrochloric acid under appropriate concentration and temperature conditions. |
| Reducing Acid Resistance | Provides excellent resistance to reducing acids, making it useful for demanding chemical-processing applications. |
| Localized Corrosion Resistance | Offers good resistance to localized corrosion under suitable reducing service conditions. |
| Chemical Stability | Maintains useful corrosion resistance across a wide range of aggressive chemical processing environments. |
| Low Carbon Content | Low carbon content helps minimize undesirable carbide precipitation during appropriate fabrication and welding operations. |
| Good Weldability | Hastelloy B3 can be welded using suitable nickel-alloy welding procedures and compatible filler metals. |
| Good Fabrication Properties | Sheets and plates can be cut, formed, machined and fabricated using appropriate nickel-alloy processing techniques. |
| High-Temperature Capability | Provides useful mechanical and corrosion performance during suitable elevated-temperature service conditions. |
| Wide Size Availability | Available in different thicknesses, widths and lengths, including customized dimensions according to project requirements. |
| Multiple Surface Finishes | Can be supplied with mill, hot rolled, cold rolled, pickled, annealed, polished or customized surface finishes. |
| Cut-to-Size Availability | Hastelloy B3 Plates can be cut according to customer drawings, specified dimensions and fabrication requirements. |
| Quality Documentation | METALX NICKEL & ALLOYS can provide MTC, inspection reports and relevant quality documentation according to order requirements. |
| Export-Ready Supply | METALX NICKEL & ALLOYS provides protective export packing, material identification and international shipment coordination. |
| Industrial Applications | Suitable for chemical processing, reactors, heat exchangers, process vessels, storage tanks, scrubbers, flue-gas treatment equipment and acid-handling systems. |
| Specification | Details |
|---|---|
| Product Name | Hastelloy B3 Sheets & Plates |
| Material Grade | Hastelloy B3 / Alloy B3 |
| UNS Designation | UNS N10675 |
| Werkstoff Number | W.Nr. 2.4600 |
| Material Type | Nickel-Molybdenum Alloy |
| Standard | ASTM B333 / ASME SB333 |
| Product Form | Sheets / Plates / Cut-to-Size Plates |
| Manufacturing | Hot Rolled / Cold Rolled / Solution Annealed |
| Chemical Composition | Nickel Balance, Molybdenum 28–32%, Chromium 1–3%, Iron ≤2%, Cobalt ≤3%, Carbon ≤0.01% |
| Thickness | As per Standard / Customer Requirement |
| Width & Length | Standard / Customized |
| Surface Finish | Mill / Pickled / Annealed / Polished / Customized |
| Heat Treatment | Solution Annealed / As Applicable |
| Corrosion Resistance | Excellent resistance to reducing acids and aggressive chemical environments |
| Testing | Chemical, Mechanical, Dimensional, Visual and NDT as Required |
| MTC | EN 10204 3.1 / 3.2 as Required |
| Customization | Thickness, Width, Length, Finish, Edge, Cutting and Testing |
| Packing | Export-Worthy / Seaworthy Packing |
| Export Supply | Worldwide Hastelloy B3 Sheets & Plates Export Supply |
| Exporter Support | Technical Documentation, Inspection, Certification, Packing and Shipment Coordination |
| Applications | Chemical Processing, Reactors, Heat Exchangers, Process Vessels, Storage Tanks, Scrubbers and Acid-Handling Equipment |
1. What are Hastelloy B3 Sheets & Plates?
Hastelloy B3 Sheets & Plates are made from Hastelloy B3 / Alloy B3 (UNS N10675), a nickel-molybdenum alloy designed for demanding chemical environments, especially reducing acids.
2. What is the standard for Hastelloy B3 Sheets & Plates?
Hastelloy B3 Sheets & Plates can be supplied according to ASTM B333 / ASME SB333, with dimensions and testing based on the applicable specification and customer requirements.
3. What are the main advantages of Hastelloy B3?
Hastelloy B3 offers excellent resistance to reducing acids, hydrochloric acid and aggressive chemical environments, along with good fabrication and welding characteristics.
4. Where are Hastelloy B3 Sheets & Plates used?
They are commonly used in chemical processing plants, reactors, heat exchangers, process vessels, storage tanks, scrubbers, pickling equipment, pharmaceutical processing and acid-handling systems.
5. What surface finishes are available for Hastelloy B3?
Depending on the product and requirement, Hastelloy B3 Sheets & Plates can be supplied with mill, hot rolled, cold rolled, annealed, pickled, polished or customized surface finishes.
6. Can METALX NICKEL & ALLOYS supply customized Hastelloy B3 Sheets & Plates?
Yes. METALX NICKEL & ALLOYS can supply customized thicknesses, widths and lengths, including cut-to-size plates, testing, MTC, inspection, certification, export-worthy packing and international shipment coordination.
