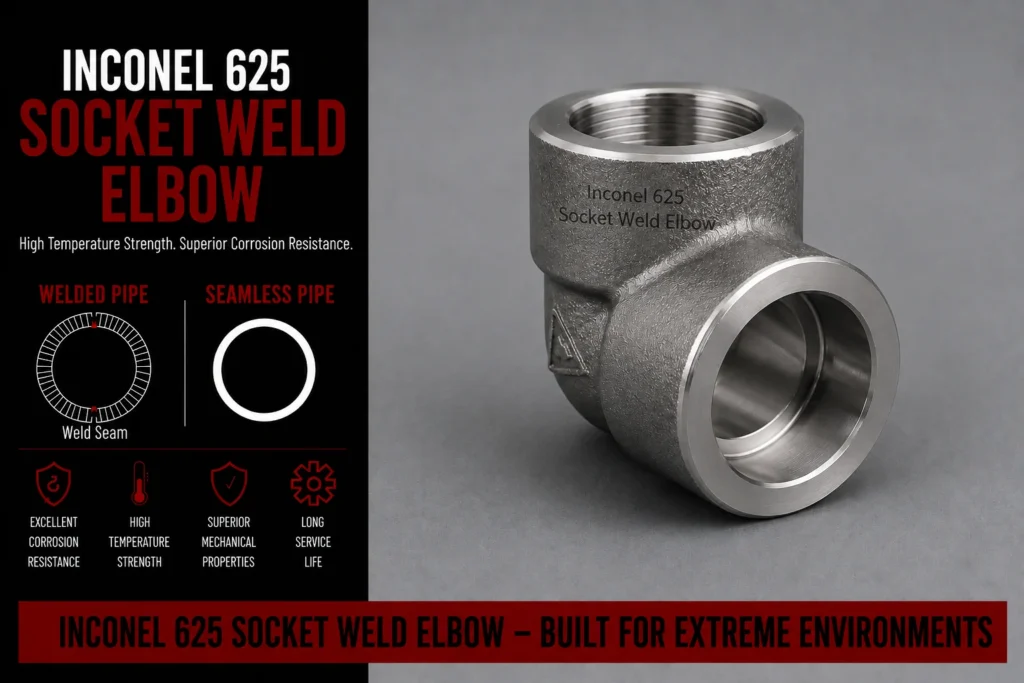

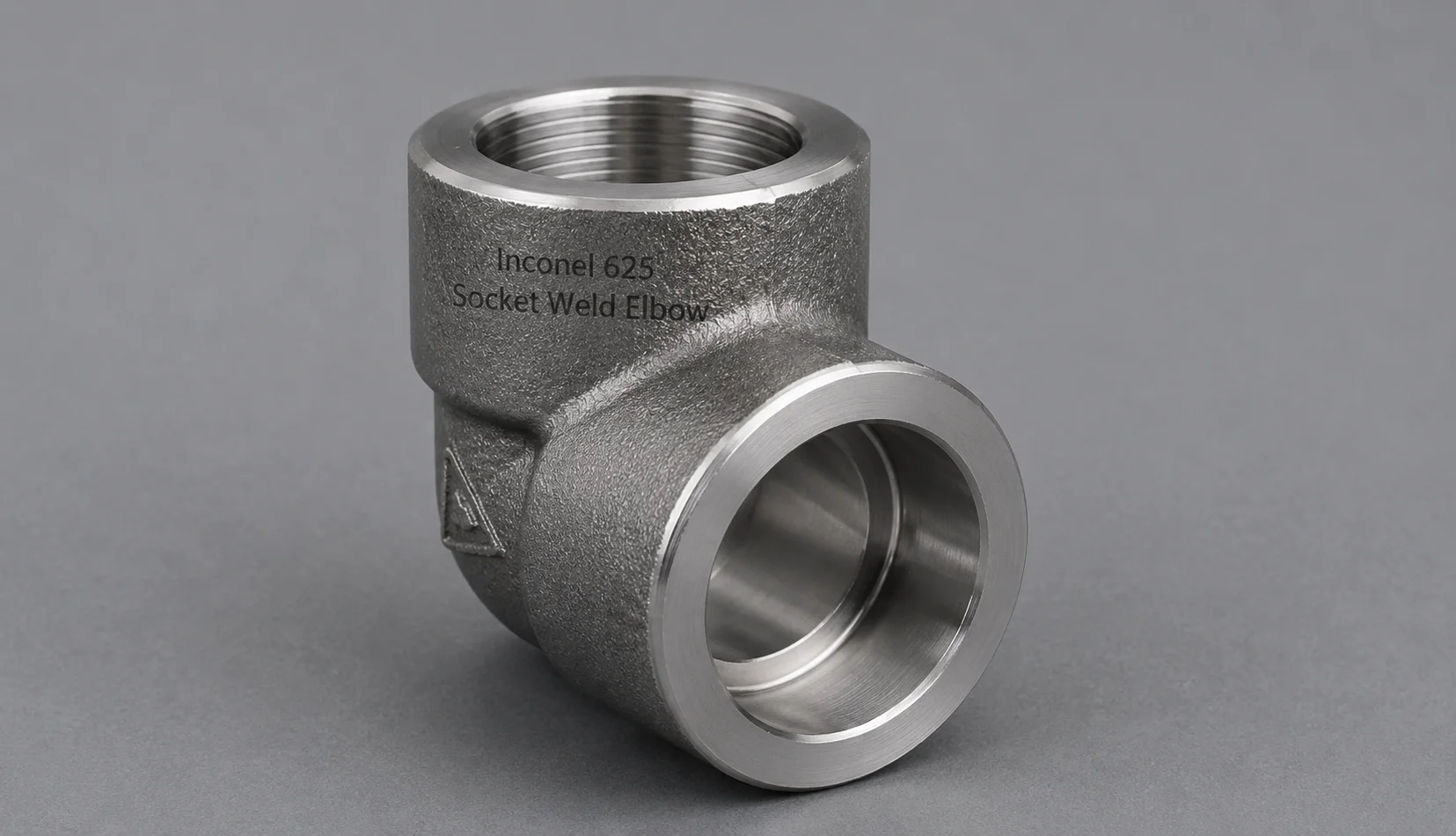

Inconel 625 Socket Weld Elbow
| Specification | Details |
|---|---|
| Product Name | Inconel 625 Socket Weld Elbow |
| Material Grade | Inconel 625 / Alloy 625 |
| UNS Designation | UNS N06625 |
| Werkstoff Number | W.Nr. 2.4856 |
| Material Type | Nickel-Chromium-Molybdenum-Niobium Alloy |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° / Long Radius / Short Radius, as applicable |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Standard | ASME B16.11 / ASTM B366 / ASME SB366, as applicable |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Inconel 625 Material Specification and Condition |
| Yield Strength | As per Applicable Inconel 625 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.44 g/cm³ |
| Melting Range | Approximately 1290–1350°C |
| Corrosion Resistance | Excellent resistance to general and localized corrosion in demanding environments |
| Pitting Resistance | Excellent resistance to pitting and crevice corrosion |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-ion stress-corrosion cracking |
| Acid Resistance | Excellent resistance to selected oxidizing and reducing acids |
| Oxidation Resistance | Good resistance to oxidation at elevated temperatures |
| High-Temperature Performance | Excellent strength and stability at elevated temperatures |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for precision machining and fabrication using appropriate alloy-specific practices |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Angle, Pressure Class, Configuration, Dimensions, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Inconel 625 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Oil & Gas, Petrochemical, Marine, Power Generation, Heat Exchangers, High-Temperature Piping, Offshore Equipment and Industrial Processing Systems |
1. Inconel 625 Socket Weld Elbow – Standard Sizes
| Nominal Size (NPS) | Outside Diameter (Approx.) | Pressure Class |
|---|---|---|
| 1/8″ | 10.3 mm | Class 3000 / 6000 / 9000 |
| 1/4″ | 13.7 mm | Class 3000 / 6000 / 9000 |
| 3/8″ | 17.1 mm | Class 3000 / 6000 / 9000 |
| 1/2″ | 21.3 mm | Class 3000 / 6000 / 9000 |
| 3/4″ | 26.7 mm | Class 3000 / 6000 / 9000 |
| 1″ | 33.4 mm | Class 3000 / 6000 / 9000 |
| 1-1/4″ | 42.2 mm | Class 3000 / 6000 / 9000 |
| 1-1/2″ | 48.3 mm | Class 3000 / 6000 / 9000 |
| 2″ | 60.3 mm | Class 3000 / 6000 / 9000 |
| 2-1/2″ | 73.0 mm | Class 3000 / 6000 / 9000 |
| 3″ | 88.9 mm | Class 3000 / 6000 / 9000 |
| 4″ | 114.3 mm | Class 3000 / 6000 / 9000 |
2. Inconel 625 Socket Weld Elbow – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Inconel 625 Socket Weld Elbow |
| Material Grade | Inconel 625 / Alloy 625 |
| UNS Designation | UNS N06625 |
| Werkstoff Number | W.Nr. 2.4856 |
| Material Type | Nickel-Chromium-Molybdenum-Niobium Alloy |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° / Long Radius / Short Radius, as applicable |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Standard | ASME B16.11 / ASTM B366 / ASME SB366, as applicable |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Inconel 625 Material Specification and Condition |
| Yield Strength | As per Applicable Inconel 625 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.44 g/cm³ |
| Melting Range | Approximately 1290–1350°C |
| Corrosion Resistance | Excellent resistance to general and localized corrosion |
| Pitting Resistance | Excellent resistance to pitting and crevice corrosion |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-ion stress-corrosion cracking |
| Acid Resistance | Excellent resistance to selected oxidizing and reducing acids |
| Oxidation Resistance | Good resistance to oxidation at elevated temperatures |
| High-Temperature Performance | Excellent strength and stability at elevated temperatures |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for precision machining and specialized fabrication |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Angle, Pressure Class, Configuration, Dimensions, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Inconel 625 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Oil & Gas, Petrochemical, Marine, Power Generation, Heat Exchangers, Offshore Equipment, High-Temperature Piping and Industrial Processing Systems |
3. Inconel 625 Socket Weld Elbow – Supply & Export Details
| Supply Parameter | Available Options |
|---|---|
| Configuration | 45° Elbow / 90° Elbow |
| Size Range | 1/8″ to 4″ NPS, subject to applicable standard |
| Pressure Classes | Class 3000 / 6000 / 9000 |
| Material | Inconel 625 / Alloy 625 / UNS N06625 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Polished / Machined |
| Heat Treatment | Solution Annealed / As Required |
| Dimensional Inspection | Size, Socket Dimensions, Elbow Geometry and Tolerance |
| Chemical Testing | Chemical Composition / PMI |
| Mechanical Testing | Tensile / Yield / Elongation as Applicable |
| Visual Inspection | Surface and Workmanship Inspection |
| Hardness Testing | As Required |
| NDT | As Required by Project or Purchase Specification |
| Certification | EN 10204 3.1 / 3.2 |
| Third-Party Inspection | Available as per Customer Requirement |
| Material Traceability | Heat Number and Material Identification |
| Packaging | Export-Worthy / Seaworthy Protective Packaging |
| Customization | Size, Angle, Pressure Class, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing and Shipment Coordination |
| Export Supply | Worldwide Inconel 625 Socket Weld Elbow Supply |
| Applications | Chemical, Petrochemical, Oil & Gas, Marine, Offshore, Power Generation, Heat Treatment and High-Temperature Piping Applications |
Most Common Types Of Inconel 625 Socket Weld Elbow
| Type of Inconel 625 Socket Weld Elbow | Description |
|---|---|
| Inconel 625 45° Socket Weld Elbow | Used to change the direction of piping by 45° while providing a compact socket weld connection. |
| Inconel 625 90° Socket Weld Elbow | Most commonly used elbow for changing piping direction by 90° in industrial piping systems. |
| Inconel 625 Long Radius Socket Weld Elbow | Designed with a larger centerline radius to provide smoother fluid flow and reduce pressure losses. |
| Inconel 625 Short Radius Socket Weld Elbow | Compact elbow configuration suitable for installations where space is limited. |
| Inconel 625 Class 3000 Socket Weld Elbow | Pressure-class forged elbow used for applicable small-bore piping applications. |
| Inconel 625 Class 6000 Socket Weld Elbow | Higher-pressure configuration suitable for demanding chemical, petrochemical and industrial piping systems. |
| Inconel 625 Class 9000 Socket Weld Elbow | Heavy-duty pressure-class elbow for applications requiring higher pressure capability, where applicable. |
| Forged Inconel 625 Socket Weld Elbow | Manufactured through forging to provide reliable strength, structural integrity and dimensional consistency. |
| Hot Forged Inconel 625 Socket Weld Elbow | Produced through controlled hot-forging processes for demanding industrial and high-temperature service conditions. |
| Machined Inconel 625 Socket Weld Elbow | Precision-machined elbow with accurately controlled socket dimensions and fitting geometry. |
| Bright Finish Inconel 625 Socket Weld Elbow | Supplied with a smooth and clean surface finish for general industrial and precision applications. |
| Polished Inconel 625 Socket Weld Elbow | Polished surface option for specialized fabrication and engineering requirements. |
| Custom Inconel 625 Socket Weld Elbow | Supplied according to required size, angle, pressure class, dimensions, finish, testing and documentation. |
| Inconel 625 Export Socket Weld Elbow | Export-ready fitting supplied with applicable certification, inspection documentation and protective packaging. |
Why Should You Buy Inconel 625 Socket Weld Elbows from MetalX Nickel & Alloys?
- Experienced Inconel 625 Socket Weld Elbow Exporter serving international buyers, importers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Stainless Steel & Nickel Alloy Exporter Experience in supplying and exporting corrosion-resistant, high-temperature and high-performance alloy products across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Inconel 625 Socket Weld Elbow Exporter offering Inconel 625 / Alloy 625 / UNS N06625 / W.Nr. 2.4856 Socket Weld Elbows according to applicable international standards and customer requirements.
- Global Inconel Exporter Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Inconel 625 Socket Weld Elbow Exporter supplying nickel-chromium-molybdenum alloy fittings for demanding applications requiring excellent corrosion resistance, pitting and crevice corrosion resistance, chloride resistance, stress-corrosion cracking resistance and high-temperature strength.
- Wide Inconel Fittings Product Range including Inconel 625 Socket Weld Elbows, Inconel 625 Socket Weld Tees, Inconel 625 Socket Weld Couplings, Inconel 625 Socket Weld Unions, Inconel 625 Socket Weld Crosses, Inconel 625 Socket Weld Caps and Inconel 625 Socket Weld Reducers.
- Multiple Elbow Configurations including 45° and 90° Socket Weld Elbows, with suitable configurations available according to piping requirements.
| Key Feature | Details |
|---|---|
| Excellent Corrosion Resistance | Provides excellent resistance to general corrosion in aggressive chemical and industrial environments. |
| Pitting & Crevice Corrosion Resistance | Strong resistance to localized corrosion, making it suitable for demanding chloride-containing applications. |
| Chloride Resistance | Performs reliably in chloride-containing environments and provides good resistance to chloride-induced stress-corrosion cracking. |
| High Mechanical Strength | Offers high tensile and yield strength for demanding piping and pressure applications. |
| High-Temperature Performance | Maintains useful mechanical properties and corrosion resistance under elevated-temperature service conditions. |
| Oxidation Resistance | Provides good resistance to oxidation and scaling at elevated temperatures. |
| Marine & Seawater Suitability | Suitable for marine and seawater environments where strong corrosion resistance is required. |
| Compact Socket Weld Design | Provides a compact connection arrangement that is useful for small-bore and space-restricted piping systems. |
| 45° & 90° Configurations | Available in 45-degree and 90-degree configurations for different piping-direction requirements. |
| High-Pressure Capability | Available in Class 3000, 6000 and 9000 configurations, subject to size and applicable specifications. |
| Forged Construction | Forged construction provides reliable structural integrity and dimensional consistency. |
| Good Weldability | Can be welded using appropriate nickel-alloy welding procedures and controlled fabrication practices. |
| Precision Manufacturing | Accurate socket dimensions and fitting geometry support proper pipe alignment and installation. |
| Long Service Life | Excellent corrosion resistance and mechanical performance can contribute to dependable service life when correctly selected. |
| Customized Supply | Size, angle, pressure class, schedule, surface finish, testing and documentation can be supplied according to customer requirements. |
| Inspection & Certification | Chemical, mechanical, dimensional, visual, hardness and PMI testing can be arranged with applicable certification. |
| Export-Ready Supply | Available with material identification, MTC, inspection documentation and protective export packaging for international shipment. |
| Specification | Details |
|---|---|
| Product Name | Inconel 625 Socket Weld Elbow |
| Material Grade | Inconel 625 / Alloy 625 |
| UNS Designation | UNS N06625 |
| Werkstoff Number | W.Nr. 2.4856 |
| Material Type | Nickel-Chromium-Molybdenum Alloy |
| Fitting Type | Socket Weld Elbow |
| Elbow Types | 45° / 90° |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Manufacturing Standard | ASME B16.11 and Applicable International Standards |
| Material Standard | ASTM B564 / ASTM B366, as applicable |
| Pressure Class | Class 3000 / 6000 / 9000, subject to Size and Specification |
| Connection Type | Socket Weld |
| Size Range | 1/8″ to 4″ NPS or As per Customer Requirement |
| Schedule | As Applicable to Selected Fitting and Pipe Connection |
| Surface Finish | Machined / Pickled / Passivated / Polished / As Specified |
| Form | Forged Socket Weld Fitting |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| Corrosion Resistance | Excellent resistance to general and localized corrosion |
| Pitting Resistance | Excellent resistance to pitting and crevice corrosion |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Good to Excellent resistance to chloride-induced stress-corrosion cracking |
| Oxidation Resistance | Good resistance to oxidation at elevated temperatures |
| High-Temperature Performance | Excellent mechanical strength and stability at elevated temperatures |
| Tensile Strength | As per Applicable Inconel 625 Material Specification and Condition |
| Yield Strength | As per Applicable Inconel 625 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.44 g/cm³ |
| Melting Range | Approximately 1290–1350°C |
| Welding | Good weldability using suitable nickel-alloy welding procedures |
| Fabrication | Suitable for precision machining and fabrication using appropriate alloy-specific practices |
| Testing | Dimensional / Visual / Chemical / Mechanical / Hardness / PMI and Other Tests as Applicable |
| Inspection | Third-Party Inspection Can Be Arranged on Request |
| Marking | Product Identification, Size, Grade, Heat Number and Applicable Standard |
| MTC | EN 10204 3.1 / 3.2 as Required |
| Packing | Export-Worthy / Seaworthy Packaging Suitable for International Transportation |
| Available Forms | 45° Elbow / 90° Elbow / Long Radius / Short Radius, as applicable |
| Customization | Size, Angle, Pressure Class, Schedule, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Inconel 625 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and Shipment Coordination |
| Applications | Chemical Processing, Oil & Gas, Petrochemical, Marine, Offshore, Power Generation, Heat Exchangers, High-Temperature Piping and Industrial Processing Systems |
1. What is an Inconel 625 Socket Weld Elbow?
An Inconel 625 Socket Weld Elbow is a forged nickel-alloy piping fitting manufactured from Inconel 625 / UNS N06625. It is used to change the direction of piping while providing a compact socket weld connection.
2. What are the common types of Inconel 625 Socket Weld Elbows?
The most common configurations are 45° and 90° Socket Weld Elbows . They can also be supplied in different pressure classes and dimensional configurations according to applicable standards.
3. What standards are used for Inconel 625 Socket Weld Elbows?
They can be manufactured according to ASME B16.11 , with applicable material requirements covered by standards such as ASTM B564 / ASTM B366 , depending on the fitting and specification.
4. What pressure classes are available?
Inconel 625 Socket Weld Elbows are commonly available in Class 3000, Class 6000 and Class 9000 , subject to fitting size, design and applicable specifications.
5. What are the advantages of Inconel 625 Socket Weld Elbows?
They provide excellent corrosion resistance, strong pitting and crevice corrosion resistance, chloride resistance, high mechanical strength and good elevated-temperature performance , making them suitable for demanding piping environments.
6. Can Inconel 625 Socket Weld Elbows be customized?
Yes. METALX NICKEL ALLOYS can supply customized elbows according to required size, angle, pressure class, schedule, surface finish, heat treatment, testing, inspection and documentation requirements.
