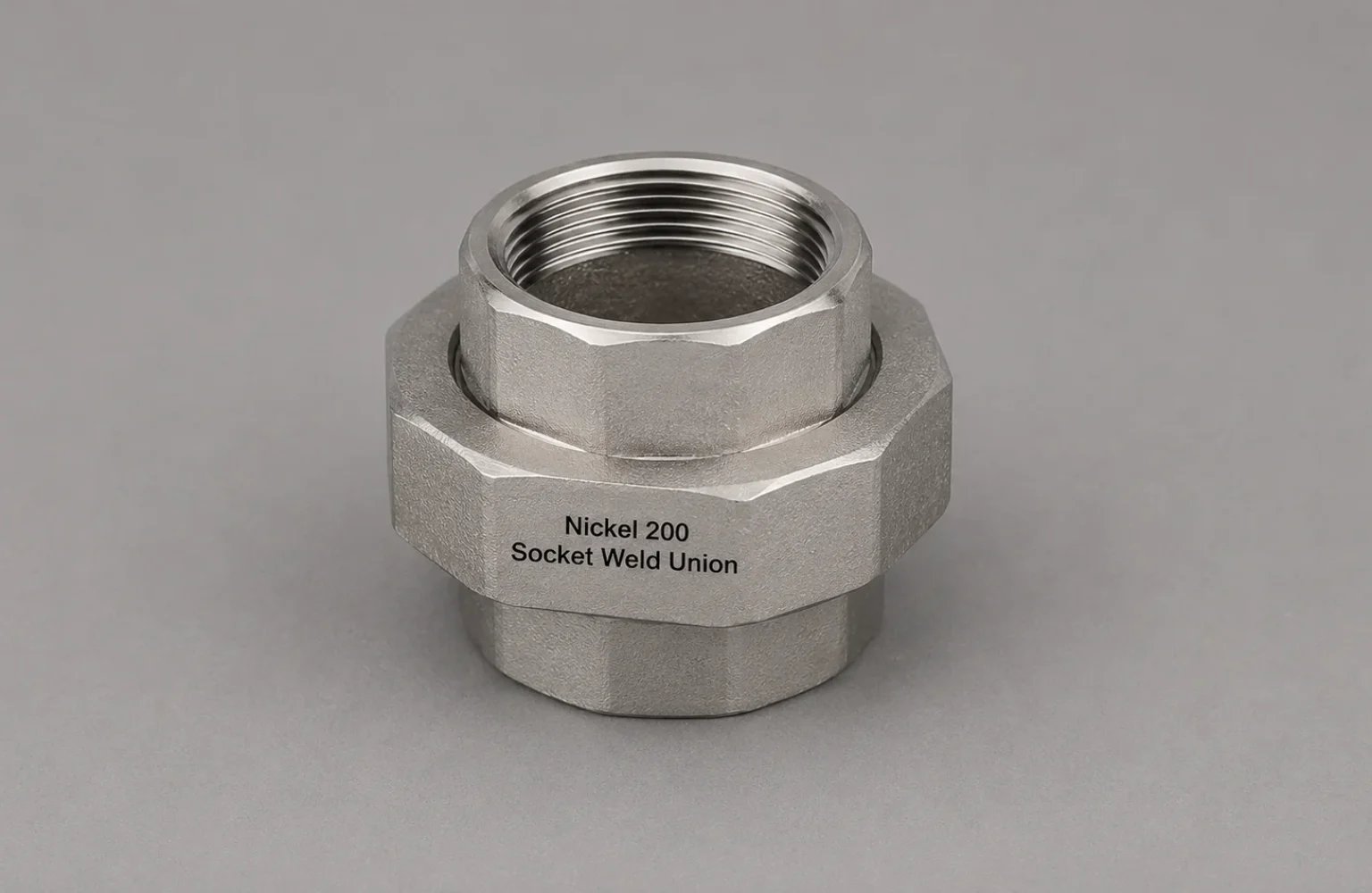

Nickel 200 Socket Weld Union
| Specification | Details |
|---|---|
| Product Name | Nickel 200 Socket Weld Union |
| Material Grade | Nickel 200 / Commercially Pure Nickel |
| UNS Designation | UNS N02200 |
| Werkstoff Number | W.Nr. 2.4066 |
| Material Type | Commercially Pure Nickel |
| Chemical Composition | Nickel 99.0% min, with controlled amounts of iron, carbon, manganese, silicon and sulfur as per applicable specification |
| Fitting Type | Socket Weld Union |
| Union Type | Full Union / Reducing Union, as required |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 / Applicable Specification |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld Ends |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Nickel 200 Material Specification and Condition |
| Yield Strength | As per Applicable Nickel 200 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.89 g/cm³ |
| Melting Range | Approximately 1435–1446°C |
| Corrosion Resistance | Excellent resistance to many reducing and caustic environments |
| Alkali Resistance | Excellent resistance to caustic soda and alkaline solutions under suitable service conditions |
| Acid Resistance | Good resistance to selected reducing acids under appropriate conditions |
| Chloride Resistance | Good resistance to selected chloride-containing environments |
| Water Resistance | Good resistance to distilled, natural and flowing water under suitable conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under appropriate service conditions |
| High-Temperature Performance | Good mechanical stability and ductility within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Full Socket Weld Union / Reducing Socket Weld Union / Forged Socket Weld Union |
| Customization | Size, Union Type, Bore Dimensions, Pressure Class, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Nickel 200 Socket Weld Union Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Caustic Alkali Handling, Petrochemical, Marine Systems, Food Processing, Pharmaceutical Equipment, Synthetic Fiber Production and Industrial Process Piping |
1. Most Common Types of Nickel 200 Socket Weld Union
| Type | Details |
|---|---|
| Nickel 200 Full Socket Weld Union | Used to connect two pipes of the same nominal size with a detachable socket weld union arrangement. |
| Nickel 200 Reducing Socket Weld Union | Used to connect pipes with different nominal sizes where a reducing union configuration is required. |
| Nickel 200 Forged Socket Weld Union | Forged construction provides good mechanical strength, durability and dimensional consistency. |
| Nickel 200 Precision Machined Union | Precision machining provides accurate socket dimensions and smooth mating surfaces for reliable installation. |
| Nickel 200 Class 3000 Union | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Nickel 200 Class 6000 Union | Designed for higher-pressure industrial piping applications requiring Class 6000 fittings. |
| Nickel 200 Class 9000 Union | Used for specialized high-pressure piping systems requiring Class 9000 fittings. |
| Customized Nickel 200 Socket Weld Union | Available according to customer drawings, dimensions, pressure class, finish, testing and documentation requirements. |
2. Nickel 200 Socket Weld Union – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Nickel 200 Socket Weld Union |
| Material Grade | Nickel 200 / Commercially Pure Nickel |
| UNS Designation | UNS N02200 |
| Werkstoff Number | W.Nr. 2.4066 |
| Material Type | Commercially Pure Nickel |
| Chemical Composition | Nickel 99.0% min, with controlled amounts of iron, carbon, manganese, silicon and sulfur as per applicable specification |
| Fitting Type | Socket Weld Union |
| Union Type | Full Union / Reducing Union |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 / Applicable Specification |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld Ends |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Nickel 200 Material Specification and Condition |
| Yield Strength | As per Applicable Nickel 200 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.89 g/cm³ |
| Melting Range | Approximately 1435–1446°C |
| Corrosion Resistance | Excellent resistance to many reducing and caustic environments |
| Alkali Resistance | Excellent resistance to caustic soda and alkaline solutions under suitable service conditions |
| Acid Resistance | Good resistance to selected reducing acids under appropriate conditions |
| Chloride Resistance | Good resistance to selected chloride-containing environments |
| Water Resistance | Good resistance to distilled, natural and flowing water under suitable conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under appropriate service conditions |
| High-Temperature Performance | Good mechanical stability and ductility within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Full Socket Weld Union / Reducing Socket Weld Union / Forged Socket Weld Union |
| Customization | Size, Union Type, Bore Dimensions, Pressure Class, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Nickel 200 Socket Weld Union Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Caustic Alkali Handling, Petrochemical, Marine Systems, Food Processing, Pharmaceutical Equipment, Synthetic Fiber Production and Industrial Process Piping |
3. Nickel 200 Socket Weld Union – Supply & Quality Details
| Supply Parameter | Available Options / Details |
|---|---|
| Material | Nickel 200 / UNS N02200 / W.Nr. 2.4066 |
| Union Configuration | Full / Reducing Socket Weld Union |
| Size Range | 1/8″ to 4″ NPS or As per Requirement |
| Pressure Classes | Class 3000 / 6000 / 9000 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Connection | Socket Weld |
| Standards | ASME B16.11 / ASTM B366 / ASME SB366, as applicable |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Annealed / As Required |
| Testing | Chemical / Mechanical / Dimensional / Visual / Hardness / PMI / Other Tests |
| Inspection | Dimensional, Visual and Material Inspection |
| Certification | EN 10204 3.1 / 3.2 |
| Marking | Size, Grade, Standard, Class and Heat/Batch Identification |
| Material Traceability | Heat Number and Batch Identification as Applicable |
| Customization | Size, Union Type, Bore Dimensions, Pressure Class, Finish, Testing and Documentation |
| Packaging | Export-Worthy Wooden Cases, Boxes, Pallets or Customized Packaging |
| Documentation | MTC, Inspection Reports, Test Certificates and Other Documents as Required |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Nickel 200 Socket Weld Union Supply |
| Applications | Chemical Processing, Caustic Handling, Petrochemical, Marine, Food Processing, Pharmaceutical, Synthetic Fiber and Industrial Process Piping |
Most Common Types Of Nickel 200 Socket Weld Union
| Type | Details |
|---|---|
| Nickel 200 Full Socket Weld Union | Used to connect two pipes of the same nominal size with a detachable socket weld connection. |
| Nickel 200 Reducing Socket Weld Union | Used to connect pipes of different nominal sizes in compact industrial piping systems. |
| Nickel 200 Forged Socket Weld Union | Manufactured by forging for good mechanical strength, durability and dimensional consistency. |
| Nickel 200 Precision Machined Union | Precision-machined construction provides accurate socket dimensions and proper pipe fit-up. |
| Nickel 200 Class 3000 Socket Weld Union | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Nickel 200 Class 6000 Socket Weld Union | Designed for higher-pressure applications requiring Class 6000 socket weld fittings. |
| Nickel 200 Class 9000 Socket Weld Union | Used for specialized high-pressure piping systems requiring Class 9000 fittings. |
| Customized Nickel 200 Socket Weld Union | Available according to customer drawings, size, bore dimensions, pressure class, finish, testing and documentation requirements. |
Why Should You Buy Nickel 200 Socket Weld Unions from MetalX Nickel & Alloys?
- Experienced Nickel 200 Socket Weld Union Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant, high-performance and specialty nickel alloy products across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Nickel 200 Socket Weld Union Exporter offering Nickel 200 / Commercially Pure Nickel / UNS N02200 / W.Nr. 2.4066 Socket Weld Unions according to applicable international standards and customer requirements.
- Global Nickel 200 Sourcing Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Nickel 200 Socket Weld Union Supplier providing commercially pure nickel fittings for applications requiring excellent resistance to caustic alkalis, reducing environments, corrosion resistance, good ductility and reliable mechanical performance.
- Wide Nickel Alloy Fittings Range including Nickel 200 Socket Weld Elbows, Nickel 200 Socket Weld Tees, Nickel 200 Socket Weld Couplings, Nickel 200 Socket Weld Unions, Nickel 200 Socket Weld Crosses, Nickel 201 Socket Weld Fittings, Incoloy Socket Weld Fittings, Inconel Socket Weld Fittings and Hastelloy Socket Weld Fittings.
They are commonly used in chemical processing, petrochemical plants, power generation, heat-treatment equipment, industrial furnaces, heat exchangers, thermal processing systems and high-temperature process piping .
| Key Feature | Details |
|---|---|
| Commercially Pure Nickel | Manufactured from Nickel 200 / UNS N02200 with high nickel content for demanding industrial applications. |
| Excellent Caustic Resistance | Provides excellent resistance to caustic alkalis and selected reducing environments. |
| Detachable Connection | Union design allows convenient disconnection of piping sections for maintenance and servicing. |
| Socket Weld Construction | Provides a compact and secure welded connection suitable for appropriate piping systems. |
| Compact Design | Suitable for installations where space is limited and a compact fitting arrangement is preferred. |
| Good Ductility | Nickel 200 offers good ductility and useful mechanical properties under suitable service conditions. |
| Chemical Resistance | Suitable for many chemical and alkaline environments where material compatibility is important. |
| Full & Reducing Options | Available in full and reducing union configurations for different pipe connection requirements. |
| Multiple Pressure Classes | Available in Class 3000, 6000 and 9000 configurations, subject to size and applicable standards. |
| Precision Machining | Accurate socket dimensions support proper pipe insertion, alignment and welding. |
| Custom Manufacturing | Size, union configuration, bore dimensions, pressure class, finish and testing can be customized. |
| Standard Compliance | Can be supplied according to ASME B16.11 and applicable ASTM material specifications. |
| Inspection & Certification | Dimensional, visual, chemical, mechanical, hardness and PMI testing can be arranged as required. |
| Material Traceability | Heat number, grade and batch identification can be provided for appropriate traceability. |
| Export-Ready Supply | Protective export packaging is available for safe handling and international transportation. |
| Specification | Details |
|---|---|
| Product Name | Nickel 200 Socket Weld Union |
| Material Grade | Nickel 200 / UNS N02200 |
| Material Type | Commercially Pure Nickel |
| Nickel Content | Approximately 99% minimum nickel, with controlled additions and impurities as per applicable specification |
| Werkstoff Number | W.Nr. 2.4066 |
| Fitting Type | Socket Weld Union |
| Union Type | Full Union / Reducing Union |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASME B16.11 |
| Material Standard | ASTM B160 / ASTM B161 / ASTM B564, as applicable |
| Dimensional Standard | ASME B16.11 and Applicable Customer Requirements |
| Size Range | As per Standard Nominal Pipe Size and Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld Ends |
| Surface Finish | Machined / Polished / Pickled / As Specified |
| Shape | Union |
| Heat Treatment | Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2, as required |
| Testing | Chemical / Mechanical / Dimensional / Visual / Hardness / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Nickel 200 Material Specification and Condition |
| Yield Strength | As per Applicable Nickel 200 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.89 g/cm³ |
| Melting Range | Approximately 1435–1446°C |
| Corrosion Resistance | Excellent resistance to many reducing and caustic environments |
| Alkali Resistance | Excellent resistance to caustic soda and alkaline solutions under suitable service conditions |
| Acid Resistance | Good resistance to selected reducing acids under appropriate conditions |
| Chloride Resistance | Good resistance to selected chloride-containing environments |
| Water Resistance | Good resistance to distilled, natural and flowing water under suitable conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under appropriate service conditions |
| High-Temperature Performance | Good mechanical stability and ductility within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Full Socket Weld Union / Reducing Socket Weld Union / Forged Socket Weld Union |
| Customization | Size, Union Type, Bore Dimensions, Pressure Class, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Pressure Class and Heat/Batch Identification as Applicable |
| Packaging | Export-Worthy Wooden Cases, Boxes, Pallets or Customized Packaging |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Nickel 200 Socket Weld Union Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Caustic Handling, Food Processing, Pharmaceutical Equipment, Marine Applications, Petrochemical Systems, Alkaline Solution Handling and Industrial Process Piping |
1. What is a Nickel 200 Socket Weld Union?
A Nickel 200 Socket Weld Union is a pipe fitting used to connect two piping sections with socket weld ends while allowing the connection to be disconnected for maintenance or servicing.
2. What material is used for Nickel 200 Socket Weld Unions?
Nickel 200 Socket Weld Unions are manufactured from commercially pure Nickel 200 , identified by UNS N02200 and W.Nr. 2.4066 , with approximately 99% minimum nickel content.
3. What types of Nickel 200 Socket Weld Unions are available?
Common types include Full Socket Weld Unions, Reducing Socket Weld Unions, Forged Socket Weld Unions and Precision Machined Socket Weld Unions . Customized configurations can also be supplied.
4. What pressure classes are available?
Nickel 200 Socket Weld Unions are commonly available in Class 3000, Class 6000 and Class 9000 , subject to the fitting size, applicable standard and project requirements.
5. Which standards apply to Nickel 200 Socket Weld Unions?
The dimensional requirements are generally based on ASME B16.11 , while applicable material requirements can be specified according to ASTM B160, ASTM B161, ASTM B564 or the customer’s project specification.
6. Where are Nickel 200 Socket Weld Unions used?
They are commonly used in chemical processing, caustic handling, food processing, pharmaceutical equipment, marine applications, petrochemical systems, alkaline solution handling and industrial process piping , particularly where corrosion resistance and a detachable connection are required.
