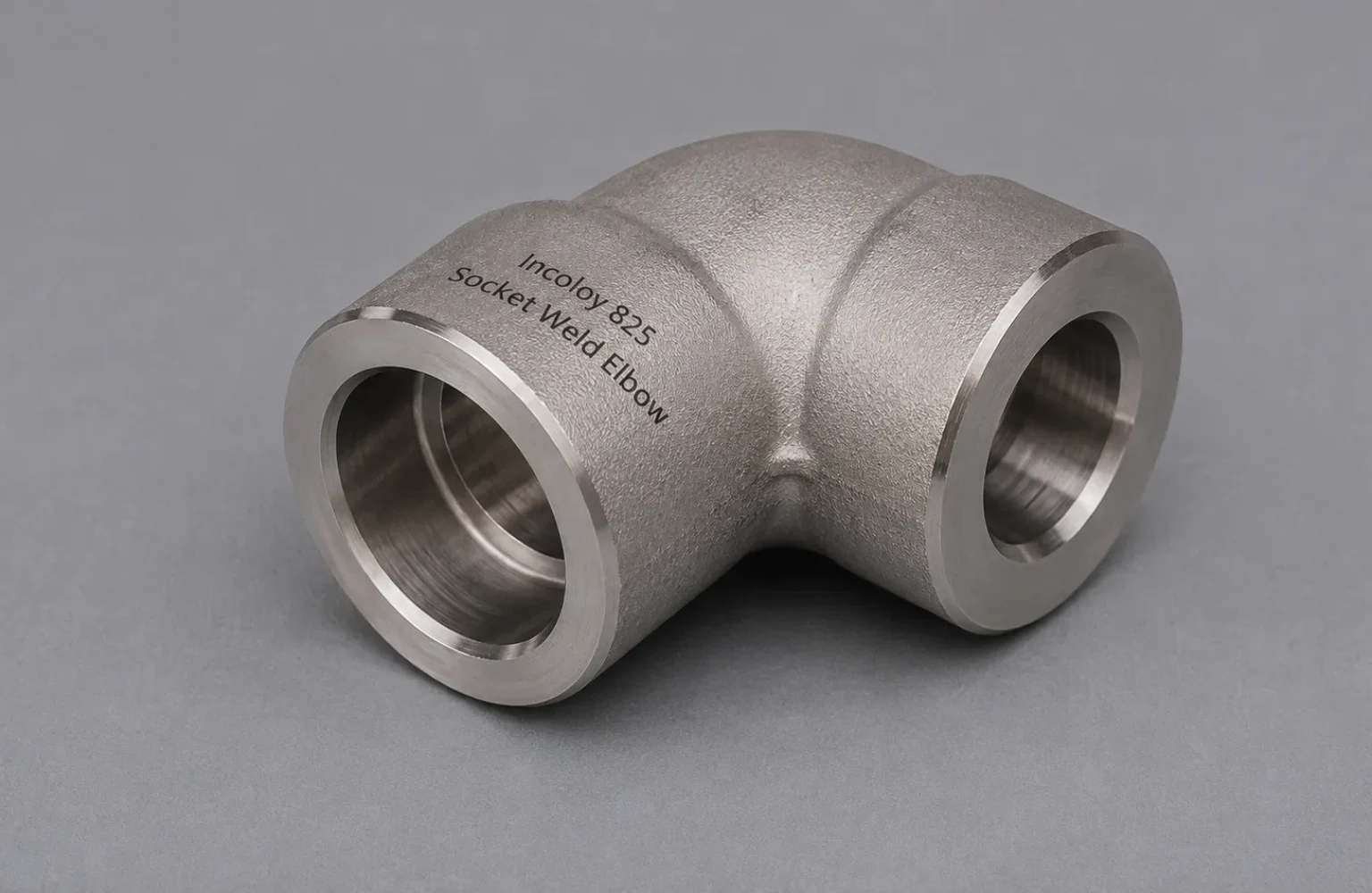

Incoloy 825 Socket Weld Elbow
| Specification | Details |
|---|---|
| Product Name | Incoloy 825 Socket Weld Elbow |
| Material Grade | Incoloy 825 / Alloy 825 |
| UNS Designation | UNS N08825 |
| Werkstoff Number | W.Nr. 2.4858 |
| Material Type | Nickel-Iron-Chromium Alloy with Molybdenum, Copper and Titanium |
| Chemical Composition | Nickel approximately 38–46%, Chromium approximately 19.5–23.5%, Molybdenum approximately 2.5–3.5%, Copper approximately 1.5–3.5%, Titanium approximately 0.6–1.2%, Iron Balance |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° Socket Weld Elbow |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / Passivated / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Incoloy 825 Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 825 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.14 g/cm³ |
| Melting Range | Approximately 1380–1400°C |
| Corrosion Resistance | Excellent resistance to general corrosion in a wide range of aggressive chemical environments |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion in suitable service conditions |
| Chloride Resistance | Good resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Acid Resistance | Excellent resistance to sulfuric, phosphoric and selected reducing acids under suitable conditions |
| Oxidation Resistance | Good resistance to oxidation under suitable service conditions |
| High-Temperature Performance | Good corrosion resistance and mechanical stability within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Elbow Angle, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 825 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Acid Processing, Marine Systems, Pollution Control, Oil & Gas, Petrochemical, Heat Exchangers, Power Generation and Corrosive Process Piping |
1. Most Common Types of Incoloy 825 Socket Weld Elbow
| Type | Details |
|---|---|
| Incoloy 825 45° Socket Weld Elbow | Used for gradual changes in piping direction while maintaining a compact socket weld connection. |
| Incoloy 825 90° Socket Weld Elbow | Used for changing the piping direction by 90° in compact industrial piping layouts. |
| Incoloy 825 Forged Socket Weld Elbow | Forged construction provides good mechanical strength, durability and dimensional consistency. |
| Incoloy 825 Class 3000 Elbow | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Incoloy 825 Class 6000 Elbow | Designed for higher-pressure piping applications requiring Class 6000 fittings. |
| Incoloy 825 Class 9000 Elbow | Used for specialized high-pressure piping systems requiring Class 9000 fittings. |
| Incoloy 825 Precision Machined Elbow | Provides accurate socket dimensions and proper pipe fit-up for reliable installation. |
| Customized Incoloy 825 Socket Weld Elbow | Available according to customer drawings, dimensions, pressure class, finish, testing and documentation requirements. |
2. Incoloy 825 Socket Weld Elbow – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Incoloy 825 Socket Weld Elbow |
| Material Grade | Incoloy 825 / Alloy 825 |
| UNS Designation | UNS N08825 |
| Werkstoff Number | W.Nr. 2.4858 |
| Material Type | Nickel-Iron-Chromium Alloy with Molybdenum, Copper and Titanium |
| Chemical Composition | Nickel approximately 38–46%, Chromium approximately 19.5–23.5%, Molybdenum approximately 2.5–3.5%, Copper approximately 1.5–3.5%, Titanium approximately 0.6–1.2%, Iron Balance |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° Socket Weld Elbow |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / Passivated / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Incoloy 825 Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 825 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.14 g/cm³ |
| Melting Range | Approximately 1380–1400°C |
| Corrosion Resistance | Excellent resistance to general corrosion in aggressive chemical environments |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion under suitable service conditions |
| Chloride Resistance | Good resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Acid Resistance | Excellent resistance to selected sulfuric, phosphoric and reducing acids under suitable conditions |
| Oxidation Resistance | Good resistance to oxidation under suitable service conditions |
| High-Temperature Performance | Good corrosion resistance and mechanical stability within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Elbow Angle, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 825 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Acid Processing, Marine Systems, Pollution Control, Oil & Gas, Petrochemical, Heat Exchangers, Power Generation and Corrosive Process Piping |
3. Incoloy 825 Socket Weld Elbow – Supply & Quality Details
| Supply Parameter | Available Options / Details |
|---|---|
| Material | Incoloy 825 / Alloy 825 / UNS N08825 |
| Elbow Configuration | 45° / 90° Socket Weld Elbow |
| Size Range | 1/8″ to 4″ NPS or As per Requirement |
| Pressure Classes | Class 3000 / 6000 / 9000 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Connection | Socket Weld |
| Standards | ASME B16.11 / ASTM B366 / ASME SB366, as applicable |
| Surface Finish | Bright / Pickled / Machined / Polished / Passivated / As Specified |
| Heat Treatment | Solution Annealed / As Required |
| Testing | Chemical / Mechanical / Dimensional / Visual / Hardness / PMI / Other Tests |
| Inspection | Dimensional, Visual and Material Inspection |
| Certification | EN 10204 3.1 / 3.2 |
| Marking | Size, Grade, Standard and Heat/Batch Identification |
| Material Traceability | Heat Number and Batch Identification as Applicable |
| Customization | Size, Elbow Angle, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Packing | Export-Worthy Protective Packaging |
| Documentation | MTC, Inspection Reports, Test Certificates and Other Documents as Required |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 825 Socket Weld Elbow Supply |
| Applications | Chemical Processing, Acid Processing, Marine, Oil & Gas, Petrochemical, Pollution Control, Power Generation and Corrosive Industrial Piping |
Most Common Types Of Incoloy 825 Socket Weld Elbow
| Type | Details |
|---|---|
| Incoloy 825 45° Socket Weld Elbow | Used for gradual changes in piping direction while maintaining a compact socket weld connection. |
| Incoloy 825 90° Socket Weld Elbow | Used to change the piping direction by 90° in compact industrial piping systems. |
| Incoloy 825 Forged Socket Weld Elbow | Manufactured through forging to provide good mechanical strength, durability and dimensional consistency. |
| Incoloy 825 Class 3000 Socket Weld Elbow | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Incoloy 825 Class 6000 Socket Weld Elbow | Designed for higher-pressure industrial piping applications requiring Class 6000 fittings. |
| Incoloy 825 Class 9000 Socket Weld Elbow | Used for specialized high-pressure piping systems requiring Class 9000 fittings. |
| Incoloy 825 Precision Machined Elbow | Provides accurate socket dimensions and proper pipe fit-up for reliable installation. |
| Customized Incoloy 825 Socket Weld Elbow | Available according to customer drawings, dimensions, pressure class, surface finish, testing and documentation requirements. |
Why Should You Buy Incoloy 825 Socket Weld Elbows from MetalX Nickel & Alloys?
- Experienced Incoloy 825 Socket Weld Elbow Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant, high-performance and specialty nickel alloy products across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Incoloy 825 Socket Weld Elbow Exporter offering Incoloy 825 / Alloy 825 / UNS N08825 / W.Nr. 2.4858 Socket Weld Elbows according to applicable international standards and customer requirements.
- Global Incoloy 825 Sourcing Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Incoloy 825 Socket Weld Elbow Supplier providing nickel-iron-chromium alloy fittings with molybdenum, copper and titanium for applications requiring excellent general corrosion resistance, pitting and crevice corrosion resistance, chloride resistance, acid resistance and reliable mechanical performance.
- Wide Nickel Alloy Fittings Range including Incoloy 825 Socket Weld Elbows, Incoloy 825 Socket Weld Tees, Incoloy 825 Socket Weld Couplings, Incoloy 825 Socket Weld Unions, Incoloy 825 Socket Weld Crosses, Incoloy 800 Socket Weld Fittings, Incoloy 800H Socket Weld Fittings, Incoloy 800HT Socket Weld Fittings, Inconel Socket Weld Fittings and Hastelloy Socket Weld Fittings.
- 45° & 90° Elbow Supply – Available in 45 Degree and 90 Degree Socket Weld Elbows for different piping layouts and flow-direction requirements.
- Multiple Pressure Classes – Available in Class 3000, Class 6000 and Class 9000, subject to size, applicable standards and project requirements.
- Custom Incoloy 825 Elbow Supply – Size, elbow angle, pressure class, dimensions, surface finish, testing and documentation can be customized according to customer specifications.
- ASTM / ASME Specification Supply – Products can be supplied according to applicable requirements including ASTM B366 / ASME SB366 and ASME B16.11.
- Material Certification Support – EN 10204 3.1 / 3.2 material certificates and relevant inspection documentation can be provided as required.
| Key Feature | Details |
|---|---|
| Excellent Corrosion Resistance | Provides strong resistance to general corrosion in demanding chemical and industrial environments. |
| Pitting & Crevice Resistance | Offers strong resistance to pitting and crevice corrosion under suitable service conditions. |
| Acid Resistance | Suitable for selected sulfuric, phosphoric and other reducing acid environments. |
| Chloride Resistance | Provides good resistance to chloride-containing environments and localized corrosion. |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking under appropriate conditions. |
| Nickel Alloy Construction | Manufactured from Incoloy 825 / Alloy 825 / UNS N08825 nickel-based alloy. |
| Socket Weld Connection | Provides a compact and secure welded connection for suitable piping arrangements. |
| 45° & 90° Configurations | Available in both 45° and 90° elbow configurations for different piping layouts. |
| Forged Construction | Forged manufacturing supports strength, durability and dimensional consistency. |
| Multiple Pressure Classes | Available in Class 3000, 6000 and 9000 configurations, subject to size and applicable requirements. |
| Precision Dimensions | Accurate socket dimensions support proper pipe insertion, alignment and welding. |
| High-Integrity Piping | Suitable for demanding industrial piping systems where corrosion resistance and reliable connections are important. |
| Custom Supply | Size, elbow angle, pressure class, dimensions, finish, testing and documentation can be customized. |
| Quality Documentation | MTC, inspection reports and relevant testing documentation can be provided as required. |
| Export-Ready Supply | Suitable for domestic and international projects with appropriate protective export packaging. |
| Specification | Details |
|---|---|
| Product Name | Incoloy 825 Socket Weld Elbow |
| Material Grade | Incoloy 825 / Alloy 825 |
| UNS Designation | UNS N08825 |
| Werkstoff Number | W.Nr. 2.4858 |
| Material Type | Nickel-Iron-Chromium Alloy |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° Socket Weld Elbow |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Size Range | Commonly 1/8″ to 4″ NPS, with customized sizes available |
| Elbow Configuration | 45° and 90°, subject to requirement |
| Surface Finish | Machined / Pickled / Passivated / Polished / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Material Certification | EN 10204 3.1 / 3.2, as required |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Marking | Size, Grade, Class, Manufacturer and Traceability Details |
| Tensile Strength | As per Applicable Incoloy 825 Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 825 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.14 g/cm³ |
| Melting Range | Approximately 1380–1400°C |
| Corrosion Resistance | Excellent resistance to general and aggressive corrosion |
| Pitting Resistance | Strong resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Strong resistance to crevice corrosion under suitable service conditions |
| Chloride Resistance | Good resistance to chloride-containing environments |
| Acid Resistance | Good to excellent resistance to selected sulfuric, phosphoric and reducing acid environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| High-Temperature Performance | Good mechanical stability and corrosion resistance within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Elbow Angle, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 825 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Application | Corrosive and High-Temperature Industrial Piping Systems |
| Applications | Chemical Processing, Marine Systems, Oil & Gas, Petrochemical, Pollution Control, Acid Processing, Power Generation, Heat Exchangers and Corrosive Process Piping |
1. What is an Incoloy 825 Socket Weld Elbow?
An Incoloy 825 Socket Weld Elbow is a forged nickel-iron-chromium alloy fitting used to change the direction of piping through a compact socket weld connection. It is suitable for corrosive industrial and process piping applications.
2. What is the material designation of Incoloy 825?
Incoloy 825 is also known as Alloy 825 and is identified by UNS N08825 and W.Nr. 2.4858 . The alloy contains nickel, chromium, molybdenum, copper and titanium for enhanced corrosion resistance.
3. What elbow angles are available?
Incoloy 825 Socket Weld Elbows are commonly available in 45° and 90° configurations , allowing different piping direction changes and layout requirements.
4. What sizes and pressure classes are available?
These elbows can commonly be supplied from 1/8″ to 4″ NPS , subject to applicable standards and requirements. Typical pressure classes include Class 3000, Class 6000 and Class 9000 .
5. Which standards are applicable to Incoloy 825 Socket Weld Elbows?
The elbows can be supplied according to ASME B16.11 for dimensional requirements and applicable material requirements such as ASTM B366 / ASME SB366 .
6. Where are Incoloy 825 Socket Weld Elbows used?
They are commonly used in chemical processing, acid processing, marine systems, oil and gas, petrochemical plants, pollution control equipment, power generation, heat exchangers and corrosive process piping where strong corrosion resistance is required.
