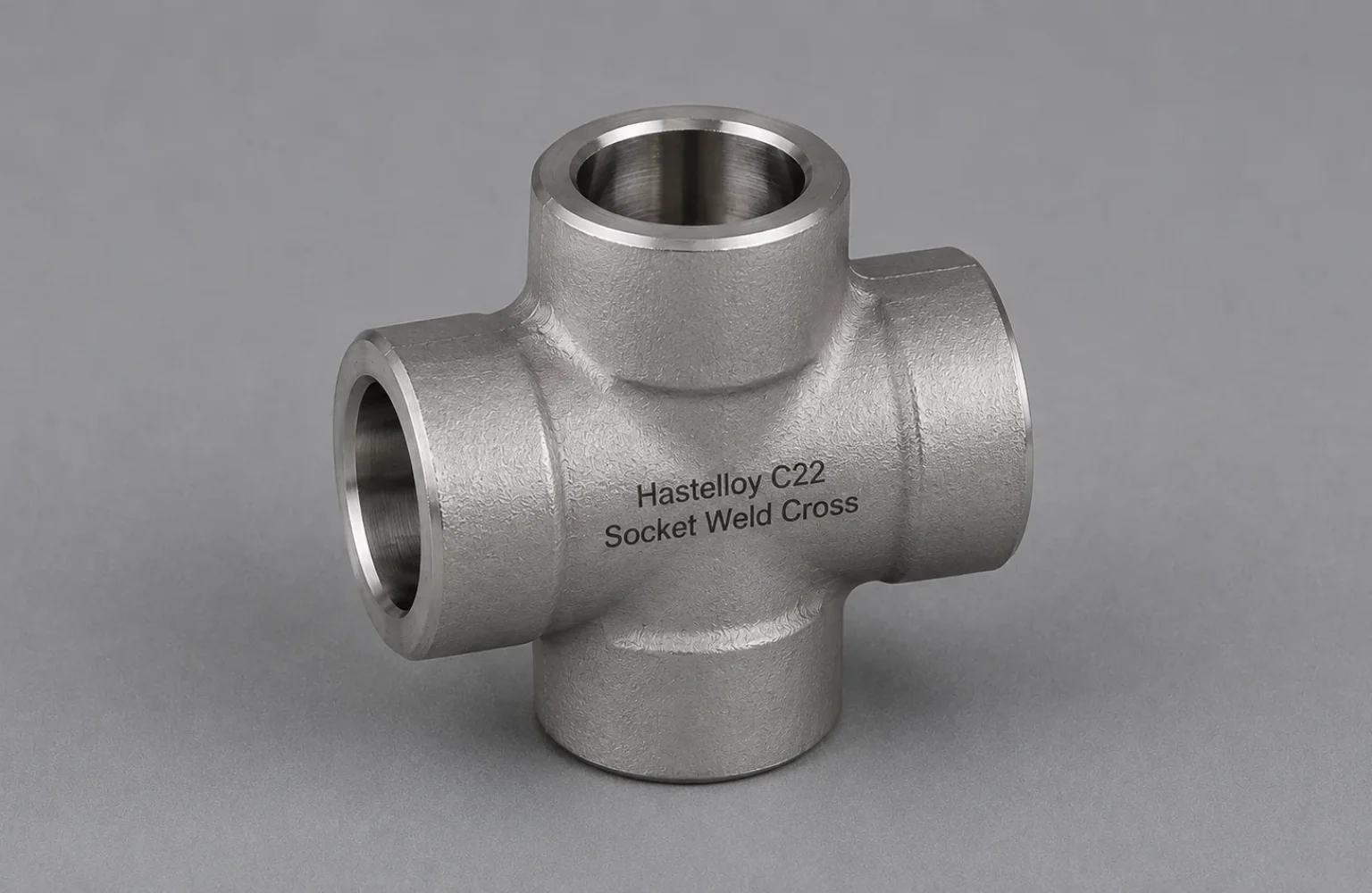

Hastelloy C22 Socket Weld Cross
| Specification | Details |
|---|---|
| Product Name | Hastelloy C22 Socket Weld Cross |
| Material Grade | Hastelloy C22 / Alloy C22 |
| UNS Designation | UNS N06022 |
| Werkstoff Number | W.Nr. 2.4602 |
| Material Type | Nickel-Chromium-Molybdenum-Tungsten Alloy |
| Chemical Composition | Nickel Balance, Chromium approximately 20–22.5%, Molybdenum approximately 12.5–14.5%, Tungsten approximately 2.5–3.5%, Iron approximately 2–6%, Carbon 0.015% max |
| Fitting Type | Socket Weld Cross |
| Cross Type | Equal Cross / Reducing Cross |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / Passivated / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Hastelloy C22 Material Specification and Condition |
| Yield Strength | As per Applicable Hastelloy C22 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.69 g/cm³ |
| Melting Range | Approximately 1357–1399°C |
| Corrosion Resistance | Excellent resistance to general and aggressive corrosion |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Acid Resistance | Excellent resistance to selected oxidizing and reducing acids |
| Oxidation Resistance | Good resistance to oxidation under suitable service conditions |
| High-Temperature Performance | Good mechanical stability and corrosion resistance at elevated temperatures |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for precision machining and specialized fabrication |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Equal Socket Weld Cross / Reducing Socket Weld Cross / Forged Socket Weld Cross |
| Customization | Size, Cross Type, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Hastelloy C22 Socket Weld Cross Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Petrochemical, Pharmaceutical, Oil & Gas, Wastewater Treatment, Pollution Control, Power Generation, Marine and Industrial Process Piping |
1. Hastelloy C22 Socket Weld Cross – Standard Types
| Type | Description |
|---|---|
| Hastelloy C22 Equal Socket Weld Cross | Four outlets of the same nominal size for equal-size branch connections in compact piping systems. |
| Hastelloy C22 Reducing Socket Weld Cross | Features different outlet or branch sizes for connecting pipes of different diameters. |
| Hastelloy C22 Forged Socket Weld Cross | Forged construction provides good strength, structural integrity and dimensional consistency. |
| Hastelloy C22 Class 3000 Cross | Suitable for socket weld piping systems requiring Class 3000 pressure-rated fittings. |
| Hastelloy C22 Class 6000 Cross | Designed for higher-pressure piping applications requiring Class 6000 fittings. |
| Hastelloy C22 Class 9000 Cross | Used for specialized high-pressure applications requiring Class 9000 socket weld fittings. |
| Hastelloy C22 Precision Machined Cross | Accurately machined socket dimensions provide reliable pipe alignment and installation. |
| Hastelloy C22 Customized Socket Weld Cross | Supplied according to customer requirements for size, branch dimensions, pressure class, finish and testing. |
2. Hastelloy C22 Socket Weld Cross – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Hastelloy C22 Socket Weld Cross |
| Material Grade | Hastelloy C22 / Alloy C22 |
| UNS Designation | UNS N06022 |
| Werkstoff Number | W.Nr. 2.4602 |
| Material Type | Nickel-Chromium-Molybdenum-Tungsten Alloy |
| Fitting Type | Socket Weld Cross |
| Cross Type | Equal Cross / Reducing Cross |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Material Standard | ASTM B366 / ASME SB366, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Passivated / Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Corrosion Resistance | Excellent resistance to general and aggressive corrosion |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Acid Resistance | Excellent resistance to selected oxidizing and reducing acids |
| Oxidation Resistance | Good resistance to oxidation under suitable service conditions |
| High-Temperature Performance | Good mechanical stability and corrosion resistance at elevated temperatures |
| Welding | Suitable for socket-welded piping systems using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for precision machining and specialized fabrication |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Equal Cross / Reducing Cross / Forged Socket Weld Cross |
| Customization | Size, Cross Type, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Hastelloy C22 Socket Weld Cross Export Supply |
| Applications | Chemical Processing, Petrochemical, Pharmaceutical, Oil & Gas, Marine, Power Generation, Wastewater Treatment and Industrial Process Piping |
3. Hastelloy C22 Socket Weld Cross – Supply & Export Details
| Supply Parameter | Available Options |
|---|---|
| Cross Configuration | Equal Cross / Reducing Cross |
| Size Range | 1/8″ to 4″ NPS, subject to applicable standard |
| Pressure Classes | Class 3000 / 6000 / 9000 |
| Material | Hastelloy C22 / Alloy C22 / UNS N06022 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Passivated / Polished / Machined |
| Heat Treatment | Solution Annealed / As Required |
| Dimensional Inspection | Socket, Bore, Branch and Overall Dimensions |
| Chemical Testing | Chemical Composition / PMI |
| Mechanical Testing | Tensile / Yield / Elongation as Applicable |
| Visual Inspection | Surface and Workmanship Inspection |
| Hardness Testing | As Required |
| NDT | As Required by Project or Purchase Specification |
| Certification | EN 10204 3.1 / 3.2 |
| Third-Party Inspection | Available as per Customer Requirement |
| Material Traceability | Heat Number and Material Identification |
| Marking | Size, Grade, Standard and Heat/Batch Identification |
| Packaging | Export-Worthy / Seaworthy Protective Packaging |
| Customization | Size, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing and Shipment Coordination |
| Export Supply | Worldwide Hastelloy C22 Socket Weld Cross Supply |
| Applications | Chemical, Pharmaceutical, Petrochemical, Oil & Gas, Marine, Pollution Control, Power Generation and High-Performance Piping Applications |
Most Common Types Of Hastelloy C22 Socket Weld Cross
| Type | Description |
|---|---|
| Hastelloy C22 Equal Socket Weld Cross | Four connections of the same nominal size, suitable for equal-size branch connections in piping systems. |
| Hastelloy C22 Reducing Socket Weld Cross | Features different branch or outlet sizes for connecting pipes with different diameters. |
| Hastelloy C22 Forged Socket Weld Cross | Forged construction provides high strength, structural integrity and dimensional consistency. |
| Hastelloy C22 Class 3000 Socket Weld Cross | Used in piping systems requiring Class 3000 pressure-rated socket weld fittings. |
| Hastelloy C22 Class 6000 Socket Weld Cross | Suitable for higher-pressure piping applications requiring Class 6000 fittings. |
| Hastelloy C22 Class 9000 Socket Weld Cross | Designed for specialized high-pressure applications requiring Class 9000 fittings. |
| Hastelloy C22 Precision Machined Cross | Accurately machined socket dimensions provide reliable pipe alignment and installation. |
| Hastelloy C22 Customized Socket Weld Cross | Manufactured according to customer requirements for size, branch dimensions, pressure class, finish, testing and documentation. |
Why Should You Buy Hastelloy C22 Socket Weld Crosses from MetalX Nickel & Alloys?
- Experienced Hastelloy C22 Socket Weld Cross Supplier & Exporter serving international buyers, importers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant, high-performance and specialty nickel alloy products across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Hastelloy C22 Socket Weld Cross Exporter offering Hastelloy C22 / Alloy C22 / UNS N06022 / W.Nr. 2.4602 Socket Weld Crosses according to applicable international standards and customer requirements.
- Global Hastelloy C22 Sourcing Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major supply markets.
- Reliable Hastelloy C22 Socket Weld Cross Supplier providing nickel-chromium-molybdenum-tungsten alloy fittings for applications requiring excellent corrosion resistance, pitting and crevice corrosion resistance, chloride resistance, acid resistance and reliable mechanical strength.
- Wide Nickel Alloy Fittings Range including Hastelloy C22 Socket Weld Elbows, Hastelloy C22 Socket Weld Tees, Hastelloy C22 Socket Weld Couplings, Hastelloy C22 Socket Weld Unions, Hastelloy C22 Socket Weld Crosses, Hastelloy C22 Socket Weld Caps and Hastelloy C22 Socket Weld Reducers.
- Equal & Reducing Cross Supply – Available in Equal Cross and Reducing Cross configurations for different piping branch requirements.
| Key Feature | Details |
|---|---|
| Excellent Corrosion Resistance | Provides excellent resistance to general corrosion in demanding industrial and chemical environments. |
| Pitting & Crevice Corrosion Resistance | Strong resistance to localized corrosion, including pitting and crevice attack. |
| Stress-Corrosion Cracking Resistance | Offers excellent resistance to chloride-induced stress-corrosion cracking under suitable conditions. |
| Oxidizing & Reducing Environment Resistance | Suitable for a wide range of aggressive oxidizing and reducing chemical environments. |
| High Alloy Content | Chromium, molybdenum and tungsten contribute to enhanced resistance against aggressive and localized corrosion. |
| Forged Construction | Provides good structural integrity, strength and dimensional consistency. |
| Compact Socket Weld Design | Provides a secure and compact four-way connection for small-bore piping arrangements. |
| Equal & Reducing Configurations | Available in equal and reducing configurations for different branch connection requirements. |
| Multiple Pressure Classes | Can be supplied in Class 3000, 6000 and 9000 configurations, where applicable. |
| Good Mechanical Strength | Provides reliable mechanical performance and durability under demanding service conditions. |
| Precision Manufacturing | Accurate socket and branch dimensions support proper pipe alignment and installation. |
| Chemical Processing Suitability | Well suited to piping systems handling aggressive chemicals and corrosive process media. |
| Inspection & Certification | MTC, PMI, dimensional inspection and other quality documents can be provided as required. |
| Custom Supply | Size, branch dimensions, pressure class, surface finish, testing and documentation can be customized. |
| Export-Ready Packaging | Suitable protective packaging and documentation can be arranged for international transportation. |
| Property | Specification |
|---|---|
| Product Name | Hastelloy C22 Socket Weld Cross |
| Material | Hastelloy C22 / Alloy C22 |
| UNS Number | UNS N06022 |
| Werkstoff Number | W.Nr. 2.4602 |
| Material Grade | Nickel-Chromium-Molybdenum-Tungsten Alloy |
| Fitting Type | Socket Weld Cross |
| Cross Type | Equal Cross / Reducing Cross |
| Connection Type | Socket Weld |
| Standard | ASME B16.11 |
| Material Standard | ASTM B366 / ASME SB366, as applicable |
| Pressure Class | Class 3000 / 6000 / 9000 |
| Size Range | Commonly 1/8″ to 4″, subject to requirement |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| End Connection | Socket Weld |
| Surface Finish | Machined / Pickled / Passivated / Polished / As Required |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Testing | Chemical / Mechanical / Dimensional / Visual / Hardness / PMI and Other Tests as Required |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Certification | EN 10204 3.1 / 3.2, where required |
| Applicable Standards | ASME, ASTM, ANSI and Project-Specific Requirements |
| Alloy Family | Nickel Alloy |
| Shape | Four-Way Cross |
| Corrosion Resistance | Excellent resistance to general and localized corrosion |
| Pitting Resistance | Excellent resistance to pitting and crevice corrosion |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Chemical Resistance | Suitable for aggressive oxidizing and reducing chemical environments |
| High-Temperature Performance | Good mechanical stability and corrosion resistance at elevated temperatures |
| Welding | Suitable for socket-welded systems using appropriate nickel-alloy welding procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Equal Socket Weld Cross / Reducing Socket Weld Cross / Forged Cross |
| Customization | Size, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Marking | Size, Grade, Standard and Heat/Batch Identification as Applicable |
| MTC | Available as Required |
| Export Supply | Worldwide Hastelloy C22 Socket Weld Cross Export Supply |
| Applications | Chemical Processing, Petrochemical, Pharmaceutical, Oil & Gas, Marine, Power Generation, Pollution Control, Wastewater Treatment and Industrial Process Piping |
1. What is a Hastelloy C22 Socket Weld Cross?
A Hastelloy C22 Socket Weld Cross is a four-way forged piping fitting manufactured from Hastelloy C22 / UNS N06022. It is used to create multiple branch connections in compact piping systems exposed to corrosive environments.
2. What types of Hastelloy C22 Socket Weld Crosses are available?
The common types include Equal Socket Weld Crosses and Reducing Socket Weld Crosses . They can also be supplied in different pressure classes and customized configurations.
3. What standards are used for Hastelloy C22 Socket Weld Crosses?
These fittings are generally manufactured according to ASME B16.11 for dimensional requirements and ASTM B366 / ASME SB366 for applicable material requirements.
4. What pressure classes are available for Hastelloy C22 Socket Weld Crosses?
Common pressure classes include Class 3000, Class 6000 and Class 9000 , subject to fitting size, design and applicable specifications.
5. What are the main advantages of Hastelloy C22 Socket Weld Crosses?
They provide excellent resistance to general corrosion, pitting, crevice corrosion and chloride-induced stress-corrosion cracking . Hastelloy C22 also performs well in many aggressive oxidizing and reducing chemical environments.
6. Can Hastelloy C22 Socket Weld Crosses be customized?
Yes. METALX NICKEL ALLOYS can supply customized crosses according to required size, branch dimensions, cross configuration, pressure class, surface finish, heat treatment, testing, inspection, certification and packaging requirements.
