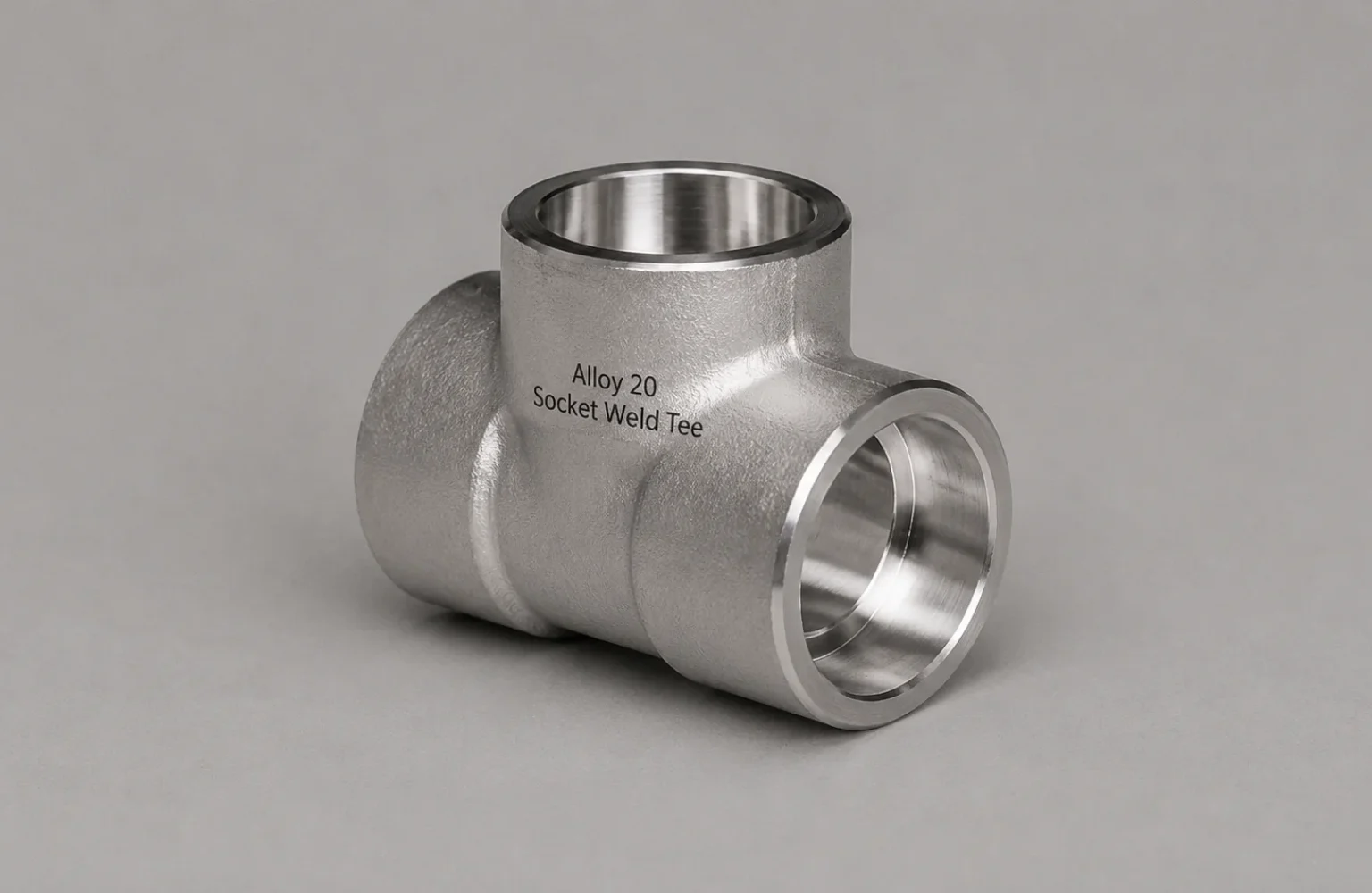

Alloy 20 Socket Weld Tee
| Specification | Details |
|---|---|
| Product Name | Alloy 20 Socket Weld Tee |
| Material Grade | Alloy 20 / Carpenter 20 |
| UNS Designation | UNS N08020 |
| Werkstoff Number | W.Nr. 2.4660 |
| Material Type | Nickel-Iron-Chromium Alloy with Molybdenum and Copper |
| Chemical Composition | Nickel approximately 32–38%, Chromium approximately 19–21%, Molybdenum approximately 2–3%, Copper approximately 3–4%, Iron Balance, with controlled carbon, manganese, silicon and niobium |
| Fitting Type | Socket Weld Tee |
| Tee Type | Equal Tee / Reducing Tee |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B462 / ASME SB462, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Alloy 20 Material Specification and Condition |
| Yield Strength | As per Applicable Alloy 20 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.08 g/cm³ |
| Melting Range | Approximately 1440–1460°C |
| Corrosion Resistance | Excellent resistance to general corrosion and aggressive chemical environments |
| Pitting Resistance | Good resistance to pitting and localized corrosion due to molybdenum content |
| Crevice Corrosion Resistance | Good resistance to crevice corrosion under suitable service conditions |
| Acid Resistance | Excellent resistance to sulfuric acid and good resistance to selected phosphoric and other acids |
| Chloride Resistance | Good resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking under suitable conditions |
| Intergranular Corrosion Resistance | Good resistance when supplied and processed according to applicable requirements |
| Welding | Suitable for socket-welded piping systems using appropriate welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Equal Socket Weld Tee / Reducing Socket Weld Tee / Forged Socket Weld Tee |
| Customization | Size, Tee Type, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Alloy 20 Socket Weld Tee Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Sulfuric Acid Handling, Phosphoric Acid Processing, Pharmaceutical, Food Processing, Petrochemical, Marine, Heat Exchangers and Corrosive Process Piping |
1. Most Common Types of Alloy 20 Socket Weld Tees
| Type | Details |
|---|---|
| Alloy 20 Equal Socket Weld Tee | Used to create a branch connection where the main run and branch have the same nominal size. |
| Alloy 20 Reducing Socket Weld Tee | Used for branch connections where the branch size differs from the main pipe size. |
| Alloy 20 Forged Socket Weld Tee | Forged construction provides reliable strength, durability and dimensional consistency. |
| Alloy 20 Precision Machined Tee | Precision machining provides accurate socket dimensions for proper pipe fit-up and welding. |
| Alloy 20 Class 3000 Socket Weld Tee | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Alloy 20 Class 6000 Socket Weld Tee | Designed for higher-pressure piping applications requiring Class 6000 fittings. |
| Alloy 20 Class 9000 Socket Weld Tee | Used for specialized high-pressure piping applications requiring Class 9000 fittings. |
| Customized Alloy 20 Socket Weld Tee | Available according to customer drawings, branch dimensions, pressure class, finish, testing and documentation requirements. |
2. Alloy 20 Socket Weld Tee – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Alloy 20 Socket Weld Tee |
| Material Grade | Alloy 20 / Carpenter 20 |
| UNS Designation | UNS N08020 |
| Werkstoff Number | W.Nr. 2.4660 |
| Material Type | Nickel-Iron-Chromium Alloy with Molybdenum and Copper |
| Chemical Composition | Nickel approximately 32–38%, Chromium approximately 19–21%, Molybdenum approximately 2–3%, Copper approximately 3–4%, Iron Balance, with controlled carbon, manganese, silicon and niobium |
| Fitting Type | Socket Weld Tee |
| Tee Type | Equal Tee / Reducing Tee |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM B462 / ASME SB462, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Alloy 20 Material Specification and Condition |
| Yield Strength | As per Applicable Alloy 20 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.08 g/cm³ |
| Melting Range | Approximately 1440–1460°C |
| Corrosion Resistance | Excellent resistance to general corrosion and aggressive chemical environments |
| Pitting Resistance | Good resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Good resistance to crevice corrosion under suitable service conditions |
| Acid Resistance | Excellent resistance to sulfuric acid and good resistance to selected phosphoric and other acids |
| Chloride Resistance | Good resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking under suitable conditions |
| Intergranular Corrosion Resistance | Good resistance when supplied and processed according to applicable requirements |
| Welding | Suitable for socket-welded piping systems using appropriate welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Equal Socket Weld Tee / Reducing Socket Weld Tee / Forged Socket Weld Tee |
| Customization | Size, Tee Type, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Alloy 20 Socket Weld Tee Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Sulfuric Acid Handling, Phosphoric Acid Processing, Pharmaceutical, Food Processing, Petrochemical, Marine, Heat Exchangers and Corrosive Process Piping |
3. Alloy 20 Socket Weld Tee – Supply & Quality Details
| Parameter | Details |
|---|---|
| Material Identification | Alloy 20 / Carpenter 20 / UNS N08020 / W.Nr. 2.4660 |
| Tee Configurations | Equal Tee / Reducing Tee |
| Size Range | 1/8″ to 4″ NPS or As per Requirement |
| Pressure Classes | Class 3000 / 6000 / 9000 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Connection | Socket Weld |
| Applicable Standards | ASME B16.11 / ASTM B462 / ASME SB462, as applicable |
| Surface Finish | Bright / Pickled / Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / As Required |
| Testing | Chemical / Mechanical / Dimensional / Visual / Hardness / PMI / Other Tests |
| Inspection | Dimensional, Visual and Material Inspection |
| Certification | EN 10204 3.1 / 3.2 |
| Marking | Size, Grade, Standard, Class and Heat/Batch Identification |
| Traceability | Heat Number and Batch Identification as Applicable |
| Customization | Size, Tee Type, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Packaging | Export-Worthy Wooden Cases, Boxes, Pallets or Customized Packaging |
| Documentation | MTC, Inspection Reports, Test Certificates and Other Documents as Required |
| Export Supply | Worldwide Alloy 20 Socket Weld Tee Supply |
| Applications | Chemical Processing, Sulfuric Acid Handling, Phosphoric Acid Processing, Pharmaceutical, Food Processing, Petrochemical, Marine and Corrosive Process Piping |
Most Common Types Of Alloy 20 Socket Weld Tee
| Type | Details |
|---|---|
| Alloy 20 Equal Socket Weld Tee | Used for branch connections where the main pipe and branch pipe have the same nominal size. |
| Alloy 20 Reducing Socket Weld Tee | Used where the branch connection requires a smaller or different nominal pipe size. |
| Alloy 20 Forged Socket Weld Tee | Forged construction provides good mechanical strength, durability and dimensional consistency. |
| Alloy 20 Precision Machined Socket Weld Tee | Precision machining provides accurate socket dimensions for proper pipe fit-up and welding. |
| Alloy 20 Class 3000 Socket Weld Tee | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Alloy 20 Class 6000 Socket Weld Tee | Used for piping applications requiring higher Class 6000 pressure-rated fittings. |
| Alloy 20 Class 9000 Socket Weld Tee | Suitable for specialized high-pressure piping systems requiring Class 9000 fittings. |
| Customized Alloy 20 Socket Weld Tee | Can be supplied according to customer drawings, branch dimensions, pressure class, finish, testing and documentation requirements. |
Why Should You Buy Alloy 20 Socket Weld Tees from MetalX Nickel & Alloys?
- Experienced Alloy 20 Socket Weld Tee Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant, high-performance and specialty alloy products across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Alloy 20 Socket Weld Tee Exporter offering Alloy 20 / Carpenter 20 / UNS N08020 / W.Nr. 2.4660 Socket Weld Tees according to applicable international standards and customer requirements.
- Global Alloy 20 Sourcing Network with access to reputed alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Alloy 20 Socket Weld Tee Supplier providing nickel-iron-chromium alloy fittings with molybdenum and copper for applications requiring excellent resistance to sulfuric acid, general corrosion, pitting, crevice corrosion, chloride environments and stress-corrosion cracking.
- Wide Specialty Alloy Fittings Range including Alloy 20 Socket Weld Elbows, Alloy 20 Socket Weld Tees, Alloy 20 Socket Weld Couplings, Alloy 20 Socket Weld Unions, Alloy 20 Socket Weld Crosses, Alloy 20 Socket Weld Caps, Nickel 200 Socket Weld Fittings, Incoloy Socket Weld Fittings, Inconel Socket Weld Fittings and Hastelloy Socket Weld Fittings.
Why Should You Buy Alloy 20 Socket Weld Tees from MetalX Nickel & Alloys?
- Experienced Alloy 20 Socket Weld Tee Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant, high-performance and specialty alloy products across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Alloy 20 Socket Weld Tee Exporter offering Alloy 20 / Carpenter 20 / UNS N08020 / W.Nr. 2.4660 Socket Weld Tees according to applicable international standards and customer requirements.
- Global Alloy 20 Sourcing Network with access to reputed alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Alloy 20 Socket Weld Tee Supplier providing nickel-iron-chromium alloy fittings with molybdenum and copper for applications requiring excellent resistance to sulfuric acid, general corrosion, pitting, crevice corrosion, chloride environments and stress-corrosion cracking.
- Wide Specialty Alloy Fittings Range including Alloy 20 Socket Weld Elbows, Alloy 20 Socket Weld Tees, Alloy 20 Socket Weld Couplings, Alloy 20 Socket Weld Unions, Alloy 20 Socket Weld Crosses, Alloy 20 Socket Weld Caps, Nickel 200 Socket Weld Fittings, Incoloy Socket Weld Fittings, Inconel Socket Weld Fittings and Hastelloy Socket Weld Fittings.
They are commonly used in chemical processing, petrochemical plants, power generation, heat-treatment equipment, industrial furnaces, heat exchangers, thermal processing systems and high-temperature process piping .
| Key Feature | Details |
|---|---|
| Excellent Sulfuric Acid Resistance | Suitable for applications involving sulfuric acid and other selected corrosive chemical environments. |
| General Corrosion Resistance | Provides good resistance to general corrosion in demanding process applications. |
| Pitting Resistance | Molybdenum-containing composition provides good resistance to pitting and localized corrosion. |
| Socket Weld Connection | Provides a strong and compact welded connection for suitable piping systems. |
| Equal & Reducing Configurations | Available in equal and reducing tee configurations for different branch connection requirements. |
| Good Mechanical Strength | Offers reliable mechanical performance and dimensional stability under suitable service conditions. |
| Chemical Processing Suitability | Well suited for chemical processing and corrosive fluid-handling applications. |
| Precision Dimensions | Accurate socket and branch dimensions support proper pipe alignment and installation. |
| Multiple Pressure Classes | Available in Class 150 through Class 2500 configurations according to the specified requirement. |
| Forged Construction | Forged manufacturing supports strength, durability and consistent fitting geometry. |
| Custom Specifications | Size, branch dimensions, pressure class, finish, testing and documentation can be customized. |
| Inspection & Testing | Dimensional, visual, material, chemical, mechanical and PMI inspection can be arranged as required. |
| Material Traceability | Grade, heat/batch identification and applicable certification can be supplied for traceability. |
| Export-Ready Supply | Export-quality packaging and documentation can be provided for domestic and international projects. |
| Specification | Details |
|---|---|
| Product Name | Alloy 20 Socket Weld Tee |
| Material Grade | Alloy 20 / Carpenter 20 |
| UNS Designation | UNS N08020 |
| Werkstoff Number | W.Nr. 2.4660 |
| Material Type | Nickel-Iron-Chromium Alloy with Molybdenum and Copper |
| Material Standard | ASTM B366 / ASME SB366 |
| Fitting Type | Socket Weld Tee |
| Configuration | Equal Tee / Reducing Tee |
| Nominal Size | As per Requirement |
| Pressure Class | Class 150, 300, 600, 900, 1500, 2500 |
| End Connection | Socket Weld |
| Design Standard | ASME B16.11 |
| Thread Standard | Not Applicable for Socket Weld Configuration |
| Manufacturing | Forged / Precision Machined |
| Surface Finish | Machined / Pickled / Polished / As Required |
| Heat Treatment | Solution Annealed / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2, as required |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Testing | Chemical / Mechanical / Dimensional / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Alloy 20 Material Specification and Condition |
| Yield Strength | As per Applicable Alloy 20 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 8.08 g/cm³ |
| Melting Range | Approximately 1440–1460°C |
| Corrosion Resistance | Excellent resistance to sulfuric acid and many corrosive chemical environments |
| Pitting Resistance | Good resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Good resistance under suitable service conditions |
| Acid Resistance | Excellent resistance to sulfuric acid and good resistance to selected phosphoric acids |
| Chloride Resistance | Good resistance to selected chloride-containing environments |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under suitable conditions |
| Welding | Suitable for socket-welded piping systems using appropriate welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | Equal Socket Weld Tee / Reducing Socket Weld Tee / Forged Socket Weld Tee |
| Customization | Size, Tee Configuration, Branch Dimensions, Pressure Class, Finish, Testing and Documentation |
| Marking | Size, Grade, Standard, Class and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Alloy 20 Socket Weld Tee Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical Processing, Sulfuric Acid Handling, Pharmaceutical, Food Processing, Petrochemical, Chemical Storage and Corrosive Process Piping |
1. What is an Alloy 20 Socket Weld Tee?
An Alloy 20 Socket Weld Tee is a forged pipe fitting used to create a branch connection in piping systems. It uses a socket weld connection and is available in equal and reducing tee configurations .
2. What material is used for Alloy 20 Socket Weld Tees?
Alloy 20 Socket Weld Tees are manufactured from Alloy 20 / Carpenter 20 , a nickel-iron-chromium alloy containing molybdenum and copper. The material is identified as UNS N08020 / W.Nr. 2.4660 .
3. What sizes and pressure classes are available?
The tee can be supplied in nominal sizes as required and in pressure classes including Class 150, 300, 600, 900, 1500 and 2500 , subject to the applicable specification and project requirements.
4. Which standards are applicable to Alloy 20 Socket Weld Tees?
The dimensional design is generally based on ASME B16.11 , while material requirements can be supplied according to ASTM B366 / ASME SB366 , as applicable.
5. What are the key corrosion-resistant properties of Alloy 20?
Alloy 20 offers excellent resistance to sulfuric acid and many corrosive chemical environments , along with good resistance to pitting, crevice corrosion and selected chloride-containing environments.
6. Where are Alloy 20 Socket Weld Tees used?
They are commonly used in chemical processing, sulfuric acid handling, pharmaceutical manufacturing, food processing, petrochemical facilities, chemical storage systems, heat exchangers and corrosive process piping .
