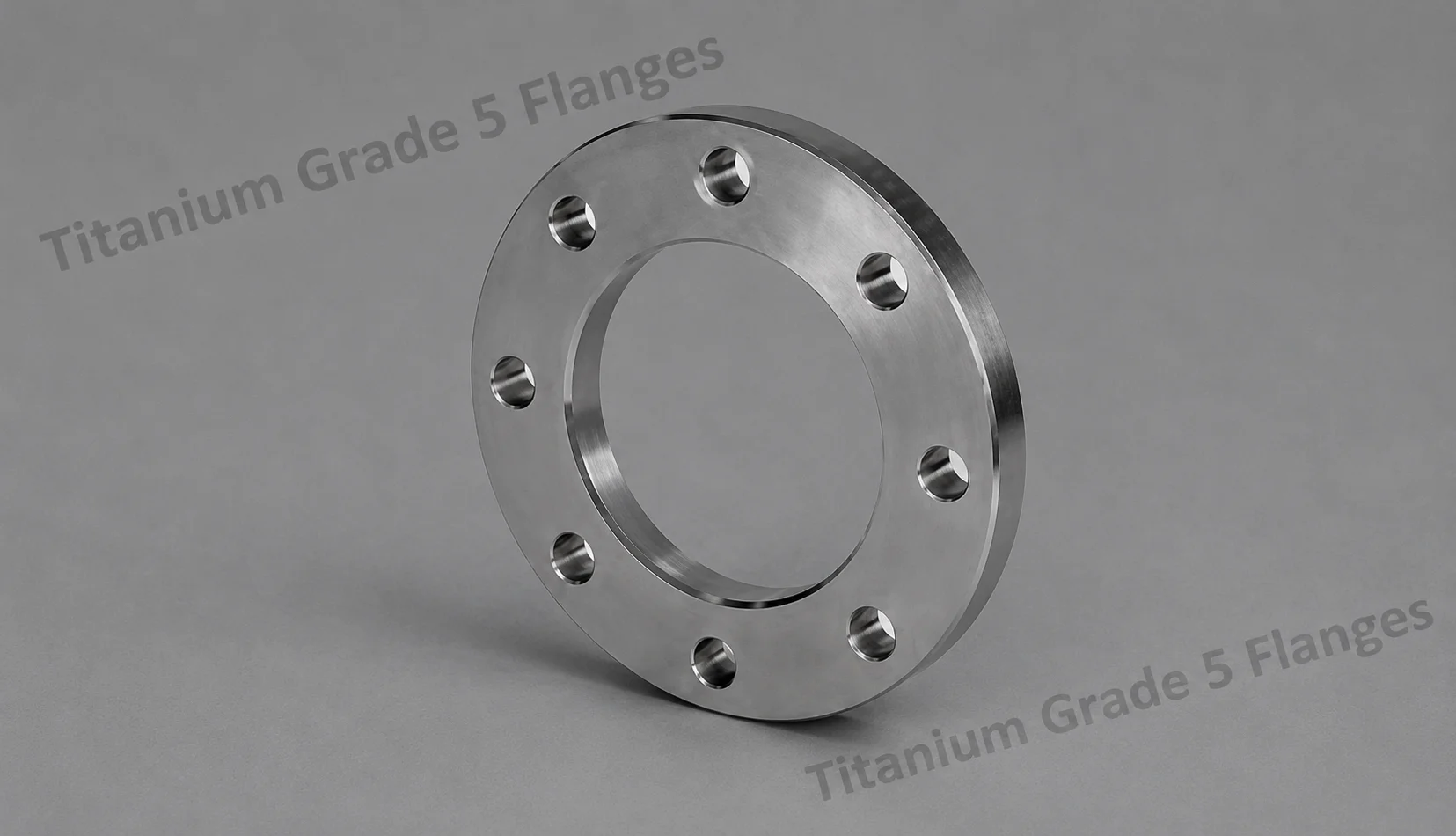

Titanium Grade 5 Flanges
| Specification | Details |
|---|---|
| Product Name | Titanium Grade 5 Flanges |
| Material Grade | Titanium Grade 5 / Ti-6Al-4V |
| UNS Designation | UNS R56400 |
| Werkstoff Number | W.Nr. 3.7165 |
| Material Type | Alpha-Beta Titanium Alloy |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Flange Standard | ASTM B381 / ASME SB381, as applicable |
| Dimensional Standard | ASME B16.5 / ASME B16.47, as applicable |
| Size | 1/2″ to 24″ or As per Customer Requirement |
| Pressure Class | Class 150 / 300 / 600 / 900 / 1500 / 2500, as applicable |
| Flange Type | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Connection Type | Flanged Connection |
| Facing Type | Raised Face / Flat Face / Ring Type Joint, as applicable |
| Bore Type | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Annealed / Stress Relieved / As per Applicable Material Specification |
| Dimensions | As per ASME B16.5 / ASME B16.47 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | Approximately 895 MPa minimum, subject to applicable specification and condition |
| Yield Strength | Approximately 825 MPa minimum, subject to applicable specification and condition |
| Elongation | Approximately 10% minimum, subject to applicable specification |
| Density | Approximately 4.43 g/cm³ |
| Melting Range | Approximately 1604–1660°C |
| Corrosion Resistance | Excellent resistance to seawater, chlorides and many chemical environments |
| Pitting Resistance | Excellent resistance to localized corrosion under suitable service conditions |
| Crevice Corrosion Resistance | Good resistance under suitable service conditions |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under suitable conditions |
| Acid Resistance | Good resistance to selected acids under suitable service conditions |
| Seawater Resistance | Excellent resistance to seawater and marine environments |
| Oxidation Resistance | Good resistance to oxidation under suitable service conditions |
| High-Temperature Performance | Suitable for selected elevated-temperature applications within recommended service limits |
| Welding | Good weldability using suitable titanium welding procedures and inert-gas shielding |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate titanium-specific procedures |
| Dimensional Accuracy | Precision dimensions according to applicable ASME standards |
| Available Forms | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Titanium Grade 5 Flanges Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Aerospace, Chemical Processing, Marine Equipment, Oil & Gas, Petrochemical, Desalination, Heat Exchangers, Pressure Systems and Specialized Engineering Applicatio |
1. Most Common Types of Titanium Grade 5 Flanges
| Type | Details |
|---|---|
| Titanium Grade 5 Weld Neck Flanges | Designed for strong welded connections and commonly used in high-pressure, high-strength and corrosive piping systems. |
| Titanium Grade 5 Slip-On Flanges | Fits over the pipe and is welded in position, providing a practical installation option for suitable industrial applications. |
| Titanium Grade 5 Blind Flanges | Used to close pipe ends, equipment nozzles, vessels and other openings in piping systems. |
| Titanium Grade 5 Socket Weld Flanges | Suitable for smaller-bore piping systems requiring a compact socket-weld connection. |
| Titanium Grade 5 Threaded Flanges | Provides a threaded connection where welding is not preferred and the piping arrangement permits threaded installation. |
| Titanium Grade 5 Lap Joint Flanges | Used with a compatible stub end where frequent dismantling or alignment flexibility is required. |
| Titanium Grade 5 Orifice Flanges | Used in flow measurement systems requiring an orifice plate arrangement. |
| Titanium Grade 5 Ring Type Joint Flanges | Features an RTJ facing for applications requiring a suitable high-integrity gasketed connection. |
| Titanium Grade 5 Raised Face Flanges | Provides a raised sealing surface for suitable gasketed piping and equipment connections. |
| Titanium Grade 5 Flat Face Flanges | Features a flat sealing surface for applications requiring this particular flange-facing configuration. |
| Customized Titanium Grade 5 Flanges | Manufactured according to customer drawings, dimensions, pressure class, facing, bore, drilling pattern, testing and documentation requirements. |
2. Titanium Grade 5 Flanges – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Titanium Grade 5 Flanges |
| Material Grade | Titanium Grade 5 / Ti-6Al-4V |
| UNS Designation | UNS R56400 |
| Werkstoff Number | W.Nr. 3.7165 |
| Material Type | Alpha-Beta Titanium Alloy |
| Chemical Composition | Titanium balance with approximately 5.5–6.75% Aluminum and 3.5–4.5% Vanadium, with controlled Iron, Oxygen, Carbon, Nitrogen and Hydrogen |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Flange Standard | ASTM B381 / ASME SB381, as applicable |
| Dimensional Standard | ASME B16.5 / ASME B16.47, as applicable |
| Size | 1/2″ to 24″ or As per Customer Requirement |
| Pressure Class | Class 150 / 300 / 600 / 900 / 1500 / 2500, as applicable |
| Flange Type | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Connection Type | Flanged Connection |
| Facing Type | Raised Face / Flat Face / Ring Type Joint, as applicable |
| Bore Type | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Annealed / Stress Relieved / As per Applicable Material Specification |
| Dimensions | As per ASME B16.5 / ASME B16.47 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | Approximately 895 MPa minimum, subject to applicable specification and condition |
| Yield Strength | Approximately 825 MPa minimum, subject to applicable specification and condition |
| Elongation | Approximately 10% minimum, subject to applicable specification |
| Density | Approximately 4.43 g/cm³ |
| Melting Range | Approximately 1604–1660°C |
| Corrosion Resistance | Excellent resistance to seawater, chlorides and many chemical environments |
| Pitting Resistance | Excellent resistance to localized corrosion under suitable service conditions |
| Crevice Corrosion Resistance | Good resistance under suitable service conditions |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under suitable conditions |
| Acid Resistance | Good resistance to selected acids under suitable service conditions |
| Seawater Resistance | Excellent resistance to seawater and marine environments |
| Oxidation Resistance | Good resistance under suitable service conditions |
| High-Temperature Performance | Suitable for selected elevated-temperature applications within recommended service limits |
| Welding | Good weldability using suitable titanium welding procedures and inert-gas shielding |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate titanium-specific procedures |
| Dimensional Accuracy | Precision dimensions according to applicable ASME standards |
| Available Forms | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Titanium Grade 5 Flanges Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Aerospace, Chemical Processing, Marine Equipment, Oil & Gas, Petrochemical, Desalination, Heat Exchangers, Pressure Systems and Specialized Engineering Applications |
3. Titanium Grade 5 Flanges – Supply & Quality Details
| Parameter | Details |
|---|---|
| Material Identification | Titanium Grade 5 / Ti-6Al-4V / UNS R56400 / W.Nr. 3.7165 |
| Flange Configurations | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice |
| Size Range | 1/2″ to 24″ or As per Requirement |
| Pressure Classes | Class 150 / 300 / 600 / 900 / 1500 / 2500 |
| Applicable Standards | ASTM B381 / ASME SB381 / ASME B16.5 / ASME B16.47, as applicable |
| Facing Options | Raised Face / Flat Face / Ring Type Joint |
| Bore Options | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Annealed / Stress Relieved / As Required |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI / Other Tests |
| Inspection | Dimensional, Visual and Material Inspection |
| Certification | EN 10204 3.1 / 3.2 |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification |
| Material Traceability | Heat Number and Batch Identification as Applicable |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Packaging | Export-Worthy Wooden Cases, Boxes, Pallets or Customized Packaging |
| Documentation | MTC, Inspection Reports, Test Certificates and Other Documents as Required |
| Export Supply | Worldwide Titanium Grade 5 Flanges Supply |
| Applications | Aerospace, Chemical Processing, Marine Engineering, Oil & Gas, Petrochemical, Desalination, Heat Exchangers and Specialized Engineering Applications |
Most Common Types Of Titanium Grade 5 Flanges
| Type | Details |
|---|---|
| Titanium Grade 5 Weld Neck Flanges | Designed for strong welded connections and commonly used in high-pressure, high-strength and corrosive piping systems. |
| Titanium Grade 5 Slip-On Flanges | Fits over the pipe and is welded in position, providing a practical installation option for suitable industrial applications. |
| Titanium Grade 5 Blind Flanges | Used to close pipe ends, equipment nozzles, vessels and other openings in piping systems. |
| Titanium Grade 5 Socket Weld Flanges | Suitable for smaller-bore piping systems requiring a compact socket-weld connection. |
| Titanium Grade 5 Threaded Flanges | Provides a threaded connection where welding is not preferred and the piping arrangement permits threaded installation. |
| Titanium Grade 5 Lap Joint Flanges | Used with a compatible stub end where frequent dismantling or alignment flexibility is required. |
| Titanium Grade 5 Orifice Flanges | Used in flow measurement systems requiring an orifice plate arrangement. |
| Titanium Grade 5 Ring Type Joint Flanges | Features an RTJ facing for applications requiring a suitable high-integrity gasketed connection. |
| Titanium Grade 5 Raised Face Flanges | Provides a raised sealing surface for suitable gasketed piping and equipment connections. |
| Titanium Grade 5 Flat Face Flanges | Features a flat sealing surface for applications requiring this particular flange-facing configuration. |
| Customized Titanium Grade 5 Flanges | Manufactured according to customer drawings, dimensions, pressure class, facing, bore, drilling pattern, testing and documentation requirements. |
Why Should You Buy Titanium Grade 5 Flanges from Metalx Nickel & Alloys?
- Experienced Titanium Grade 5 Flanges Supplier & Exporter serving international buyers, importers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Titanium & Alloy Industry Experience in supplying and exporting corrosion-resistant, lightweight and high-performance titanium products to customers across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Titanium Grade 5 Flanges Exporter offering Titanium Grade 5 / Ti-6Al-4V / UNS R56400 / W.Nr. 3.7165 Flanges according to applicable international standards and customer requirements.
- Global Titanium Grade 5 Sourcing Network with access to reputed titanium mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Titanium Grade 5 Flanges Supplier providing alpha-beta titanium alloy flanges for demanding applications requiring high mechanical strength, excellent strength-to-weight ratio, good corrosion resistance, seawater resistance, lightweight construction and reliable performance in demanding industrial environments.
| Key Feature | Details |
|---|---|
| High Strength-to-Weight Ratio | Provides high mechanical strength while maintaining relatively low weight compared with many conventional engineering materials. |
| Excellent Corrosion Resistance | Provides strong resistance to corrosion in many aggressive industrial and marine environments. |
| Protective Oxide Layer | Titanium naturally forms a stable oxide layer that helps protect the underlying material from corrosion. |
| Good Mechanical Performance | Ti-6Al-4V offers a useful combination of tensile strength, yield strength, hardness and fatigue resistance. |
| Low Density | Relatively low density helps reduce component weight and can simplify handling in suitable applications. |
| Good Fatigue Resistance | Provides useful fatigue performance for appropriately designed components and service conditions. |
| Marine Suitability | Suitable for selected marine, seawater and offshore applications where corrosion resistance and low weight are important. |
| Chemical Processing Suitability | Can be used for suitable chemical processing piping and equipment applications requiring titanium alloy performance. |
| Aerospace Applications | High strength combined with low density makes Grade 5 suitable for aerospace and specialized engineering applications. |
| Multiple Flange Configurations | Available in Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint and Orifice configurations. |
| Multiple Facing Options | RF, FF and RTJ facing configurations can be supplied according to applicable requirements. |
| Custom Manufacturing | Size, pressure class, bore, thickness, bolt-hole pattern, facing and other dimensions can be customized. |
| Reliable Dimensional Accuracy | Machined flange faces, bolt holes, bore dimensions and thickness can be produced according to specified requirements. |
| Inspection & Documentation | Material certificates, inspection reports and applicable testing documentation can be provided as required. |
| Industrial Versatility | Suitable for chemical, marine, aerospace, oil & gas and specialized process applications. |
| Specification | Details |
|---|---|
| Product Name | Titanium Grade 5 Flanges |
| Material Grade | Titanium Grade 5 |
| UNS Designation | UNS R56400 |
| Common Name | Ti-6Al-4V |
| Material Type | Alpha-Beta Titanium Alloy |
| Standard | ASTM B381 |
| Flange Standards | ASME B16.5 / ASME B16.47 and applicable standards |
| Pressure Classes | Class 150 / 300 / 600 / 900 / 1500 / 2500 and custom classes |
| Size Range | As per standard or Customer Requirement |
| Facing | RF / FF / RTJ and Customized Facing |
| Flange Types | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Manufacturing | Forged / Machined as Required |
| Surface Finish | As per Application and Customer Specification |
| Connection Type | Flanged Connection |
| Bore Type | Standard Bore / Heavy Bore / Customized Bore |
| Heat Treatment | Annealed / Stress Relieved / As per Applicable Specification |
| Testing | Dimensional / Visual / Chemical / Mechanical and Other Testing as Specified |
| Inspection | Material / Dimensional / Visual Inspection as Required |
| Documentation | Material Test Certificate and Inspection Documentation as Required |
| Corrosion Resistance | Excellent resistance to many corrosive environments |
| Pitting Resistance | Good resistance to localized corrosion under suitable conditions |
| Chloride Resistance | Good resistance to chloride-containing environments |
| Seawater Resistance | Good resistance to seawater and marine environments |
| Strength-to-Weight Ratio | High strength combined with relatively low density |
| Welding | Suitable for welding using appropriate titanium welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision machining according to applicable flange standards |
| Customization | Size, pressure class, flange type, facing, bore, dimensions, finish, testing and documentation |
| Available Forms | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Applications | Piping, Chemical Processing, Marine, Aerospace, Oil & Gas and Process Industries |
| Export Supply | Worldwide Titanium Grade 5 Flanges Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
1. What are Titanium Grade 5 Flanges?
Titanium Grade 5 Flanges are manufactured from Ti-6Al-4V titanium alloy and are used to connect pipes, valves, pumps, vessels and other equipment where high strength, low weight and corrosion resistance are required.
2. What is the UNS number of Titanium Grade 5?
Titanium Grade 5 is identified by UNS R56400 and is commonly known as Ti-6Al-4V . Flanges can be manufactured according to ASTM B381 requirements.
3. What types of Titanium Grade 5 Flanges are available?
Common types include Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint and Orifice Flanges . Customized configurations can also be supplied according to customer drawings and specifications.
4. What pressure classes are available for Titanium Grade 5 Flanges?
Titanium Grade 5 Flanges can be supplied in Class 150, 300, 600, 900, 1500 and 2500 , subject to size, dimensional standard and applicable design requirements.
5. What are the key advantages of Titanium Grade 5 Flanges?
They offer a high strength-to-weight ratio, excellent corrosion resistance, relatively low density, good mechanical performance and useful fatigue resistance , making them suitable for demanding applications.
6. Where are Titanium Grade 5 Flanges used?
They are commonly used in chemical processing, marine and offshore systems, aerospace applications, oil gas, petrochemical plants, desalination, pharmaceutical equipment and specialized process industries .
