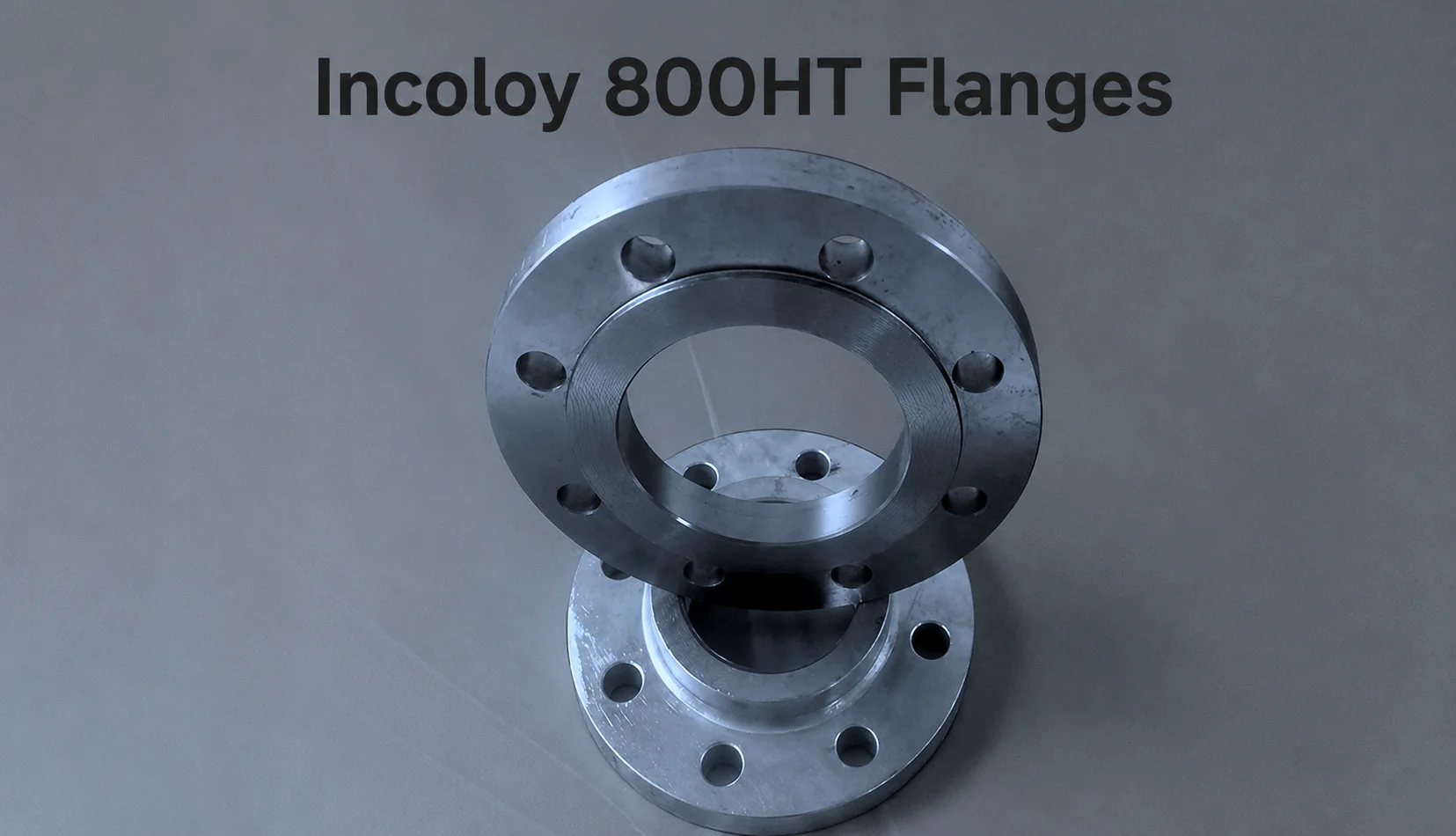

Incoloy 800HT Flanges
| Specification | Details |
|---|---|
| Product Name | Incoloy 800HT Flanges |
| Material Grade | Incoloy 800HT / Alloy 800HT |
| UNS Designation | UNS N08811 |
| Werkstoff Number | W.Nr. 1.4959 |
| Material Type | Nickel-Iron-Chromium Alloy |
| Chemical Composition | Nickel, Iron and Chromium as principal elements, with controlled Carbon, Aluminium and Titanium |
| Flange Type | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Flange Standard | ASTM B564 / ASME SB564, as applicable |
| Dimensional Standard | ASME B16.5 / ASME B16.47, as applicable |
| Size | 1/2″ to 24″ or As per Customer Requirement |
| Pressure Class | Class 150 / 300 / 600 / 900 / 1500 / 2500, as applicable |
| Connection Type | Flanged Connection |
| Facing Type | Raised Face / Flat Face / Ring Type Joint, as applicable |
| Bore Type | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / Stabilized / As per Applicable Material Specification |
| Dimensions | As per ASME B16.5 / ASME B16.47 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Incoloy 800HT Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 800HT Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 7.94 g/cm³ |
| Melting Range | Approximately 1350–1400°C |
| Corrosion Resistance | Excellent resistance to oxidation and carburization in high-temperature environments |
| Pitting Resistance | Good resistance to localized corrosion under suitable service conditions |
| Crevice Corrosion Resistance | Good resistance under suitable service conditions |
| Chloride Resistance | Good resistance to chloride-containing environments under suitable conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under suitable service conditions |
| Acid Resistance | Good resistance to selected organic and inorganic acids |
| Oxidation Resistance | Excellent resistance to oxidation at elevated temperatures |
| Carburization Resistance | Excellent resistance to carburization and nitridation in suitable high-temperature environments |
| High-Temperature Performance | Excellent high-temperature strength, creep resistance and stress-rupture performance |
| Welding | Suitable for welding using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to applicable ASME standards |
| Available Forms | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 800HT Flanges Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Heat Treatment Equipment, Furnace Components, Petrochemical, Chemical Processing, Power Generation, Heat Exchangers, Industrial Heating Equipment and High-Temperature Process Piping |
1. Most Common Types of Incoloy 800HT Flanges
| Type | Details |
|---|---|
| Incoloy 800HT Weld Neck Flange | Designed for high-temperature and high-pressure piping systems requiring strong welded connections and excellent creep and stress-rupture performance. |
| Incoloy 800HT Slip-On Flange | Fits over the pipe and is welded in position for suitable industrial piping applications. |
| Incoloy 800HT Blind Flange | Used to close pipe ends, equipment nozzles, vessels and other openings in high-temperature systems. |
| Incoloy 800HT Socket Weld Flange | Suitable for smaller-diameter piping systems requiring a compact socket weld connection. |
| Incoloy 800HT Threaded Flange | Provides a threaded connection where welding may not be preferred, subject to application requirements. |
| Incoloy 800HT Lap Joint Flange | Used with a compatible stub end where frequent assembly and disassembly may be required. |
| Incoloy 800HT Orifice Flange | Used in flow measurement systems requiring an orifice plate arrangement. |
| Incoloy 800HT Ring Type Joint Flange | Features an RTJ facing for demanding pressure and temperature applications. |
| Incoloy 800HT Raised Face Flange | Provides a raised sealing surface for suitable gasketed piping and equipment connections. |
| Incoloy 800HT Flat Face Flange | Features a flat sealing surface for applications requiring this facing configuration. |
| Customized Incoloy 800HT Flange | Manufactured according to customer drawings, dimensions, pressure class, facing, bore, testing and documentation requirements. |
2. Incoloy 800HT Flanges – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Incoloy 800HT Flanges |
| Material Grade | Incoloy 800HT / Alloy 800HT |
| UNS Designation | UNS N08811 |
| Werkstoff Number | W.Nr. 1.4959 |
| Material Type | Nickel-Iron-Chromium Alloy |
| Chemical Composition | Nickel, Iron and Chromium as principal alloying elements, with controlled Carbon, Aluminium and Titanium |
| Flange Type | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Flange Standard | ASTM B564 / ASME SB564, as applicable |
| Dimensional Standard | ASME B16.5 / ASME B16.47, as applicable |
| Size | 1/2″ to 24″ or As per Customer Requirement |
| Pressure Class | Class 150 / 300 / 600 / 900 / 1500 / 2500, as applicable |
| Connection Type | Flanged Connection |
| Facing Type | Raised Face / Flat Face / Ring Type Joint, as applicable |
| Bore Type | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / Stabilized / As per Applicable Material Specification |
| Dimensions | As per ASME B16.5 / ASME B16.47 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Incoloy 800HT Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 800HT Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 7.94 g/cm³ |
| Melting Range | Approximately 1350–1400°C |
| Corrosion Resistance | Good resistance to corrosion in demanding high-temperature process environments |
| Pitting Resistance | Good resistance to localized corrosion under suitable service conditions |
| Crevice Corrosion Resistance | Good resistance under suitable service conditions |
| Chloride Resistance | Good resistance to chloride-containing environments under suitable conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under suitable service conditions |
| Acid Resistance | Good resistance to selected organic and inorganic acids |
| Oxidation Resistance | Excellent resistance to oxidation at elevated temperatures |
| Carburization Resistance | Excellent resistance to carburization in suitable high-temperature environments |
| Nitridation Resistance | Good resistance to nitridation under suitable service conditions |
| High-Temperature Performance | Excellent high-temperature strength, creep resistance and stress-rupture performance |
| Welding | Suitable for welding using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to applicable ASME standards |
| Available Forms | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 800HT Flanges Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Heat Treatment Equipment, Furnace Components, Petrochemical, Chemical Processing, Power Generation, Heat Exchangers, Industrial Heating Equipment and High-Temperature Process Piping |
3. Incoloy 800HT Flanges – Supply & Quality Details
| Parameter | Details |
|---|---|
| Material Identification | Incoloy 800HT / Alloy 800HT / UNS N08811 / W.Nr. 1.4959 |
| Flange Configurations | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice |
| Size Range | 1/2″ to 24″ or As per Requirement |
| Pressure Classes | Class 150 / 300 / 600 / 900 / 1500 / 2500 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Applicable Standards | ASTM B564 / ASME SB564 and ASME B16.5 / B16.47, as applicable |
| Facing Options | Raised Face / Flat Face / Ring Type Joint |
| Bore Options | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As Specified |
| Heat Treatment | Solution Annealed / Stabilized / As Required |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI / Other Tests |
| Inspection | Dimensional, Visual and Material Inspection |
| Certification | EN 10204 3.1 / 3.2 |
| Marking | Size, Grade, Standard, Class, Facing and Heat/Batch Identification |
| Material Traceability | Heat Number and Batch Identification as Applicable |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Packaging | Export-Worthy Wooden Cases, Boxes, Pallets or Customized Packaging |
| Documentation | MTC, Inspection Reports, Test Certificates and Other Documents as Required |
| Export Supply | Worldwide Incoloy 800HT Flanges Supply |
| Applications | Heat Treatment, Furnace Equipment, Petrochemical, Chemical Processing, Power Generation, Heat Exchangers, Industrial Heating Equipment and High-Temperature Process Piping |
Most Common Types Of Incoloy 800HT Flanges
| Type | Details |
|---|---|
| Incoloy 800HT Weld Neck Flange | Designed for high-temperature and high-pressure piping systems requiring strong welded connections and excellent creep and stress-rupture performance. |
| Incoloy 800HT Slip-On Flange | Fits over the pipe and is welded in position for suitable industrial piping applications. |
| Incoloy 800HT Blind Flange | Used to close pipe ends, equipment nozzles, vessels and other openings in high-temperature process systems. |
| Incoloy 800HT Socket Weld Flange | Suitable for smaller-diameter piping systems requiring a compact and secure socket weld connection. |
| Incoloy 800HT Threaded Flange | Provides a threaded connection where welding may not be preferred, subject to application requirements. |
| Incoloy 800HT Lap Joint Flange | Used with a compatible stub end where frequent assembly and disassembly may be required. |
| Incoloy 800HT Orifice Flange | Used in flow measurement systems requiring an orifice plate arrangement. |
| Incoloy 800HT Ring Type Joint Flange | Features an RTJ facing for demanding pressure and temperature applications. |
| Incoloy 800HT Raised Face Flange | Provides a raised sealing surface for suitable gasketed piping and equipment connections. |
| Incoloy 800HT Flat Face Flange | Features a flat sealing surface for applications requiring this facing configuration. |
| Customized Incoloy 800HT Flange | Manufactured according to customer drawings, dimensions, pressure class, facing, bore, testing and documentation requirements. |
Why Should You Buy Incoloy 800HT Flanges from Metalx Nickel & Alloys?
- Experienced Incoloy 800HT Flanges Supplier & Exporter serving international buyers, importers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying and exporting corrosion-resistant, high-temperature and specialty alloy products to customers across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Incoloy 800HT Flanges Exporter offering Incoloy 800HT / Alloy 800HT / UNS N08811 / W.Nr. 1.4959 Flanges according to applicable international standards and customer requirements.
- Global Incoloy 800HT Sourcing Network with access to reputed nickel alloy mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Incoloy 800HT Flanges Supplier providing nickel-iron-chromium alloy flanges for demanding applications requiring excellent high-temperature strength, creep and stress-rupture resistance, oxidation resistance, carburization resistance and reliable mechanical stability.
| Key Feature | Details |
|---|---|
| High-Temperature Strength | Incoloy 800HT retains useful mechanical strength at elevated temperatures, making it suitable for demanding heat-related applications. |
| Excellent Oxidation Resistance | Provides good resistance to oxidation during prolonged exposure to elevated-temperature environments. |
| Carburization Resistance | Offers good resistance to carburizing conditions, supporting industrial heating and furnace-related applications. |
| Creep Resistance | Provides improved resistance to deformation during prolonged high-temperature service. |
| Stress-Rupture Strength | Suitable for applications where resistance to stress rupture is important during extended elevated-temperature operation. |
| High-Temperature Stability | Maintains reliable mechanical performance under demanding thermal conditions. |
| Corrosion Resistance | Provides good corrosion resistance in suitable industrial and process environments. |
| Multiple Flange Types | Available in Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint and Orifice configurations. |
| Multiple Pressure Classes | Available in Class 150, 300, 600, 900, 1500 and 2500, subject to applicable requirements. |
| Facing Options | RF, FF, RTJ and other specified facing configurations can be supplied. |
| Dimensional Accuracy | Precision-machined dimensions support proper pipe and equipment fit-up. |
| Custom Manufacturing | Size, pressure rating, flange configuration, facing, bore, dimensions, finish, testing and documentation can be customized. |
| Inspection & Documentation | Dimensional, visual, material and other required inspections can be arranged with applicable documentation. |
| Industrial Reliability | Suitable for high-temperature piping, thermal processing, furnace equipment and other demanding industrial applications. |
| Specification | Details |
|---|---|
| Product Name | Incoloy 800HT Flanges |
| Material Grade | Incoloy 800HT / Alloy 800HT |
| UNS Designation | UNS N08811 |
| Werkstoff Number | W.Nr. 1.4959 |
| Material Type | Nickel-Iron-Chromium Alloy |
| Chemical Composition | Nickel, Iron and Chromium as principal alloying elements, with controlled Carbon, Aluminium and Titanium |
| Flange Type | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Flange Standard | ASTM B564 / ASME SB564, as applicable |
| Dimensional Standard | ASME B16.5 / ASME B16.47, as applicable |
| Size | As per applicable standard and customer requirement |
| Pressure Class | Class 150 / 300 / 600 / 900 / 1500 / 2500, as applicable |
| Connection Type | Flanged Connection |
| Connection Method | Butt Weld / Socket Weld / Threaded / Bolted, depending on flange type |
| Facing Type | Raised Face (RF) / Flat Face (FF) / Ring Type Joint (RTJ) / Other specified facings |
| Bore Type | Standard Bore / Heavy Bore / Customized Bore |
| Surface Finish | Machined / Polished / As per Customer Requirement |
| Heat Treatment | Solution Annealed / Stabilized / As per Applicable Material Specification |
| Dimensions | As per ASME B16.5 / ASME B16.47 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Incoloy 800HT Material Specification and Condition |
| Yield Strength | As per Applicable Incoloy 800HT Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 7.94 g/cm³ |
| Melting Range | Approximately 1350–1400°C |
| Corrosion Resistance | Good resistance to corrosion in demanding high-temperature process environments |
| Pitting Resistance | Good resistance to localized corrosion under suitable service conditions |
| Crevice Corrosion Resistance | Good resistance under suitable service conditions |
| Chloride Resistance | Good resistance to chloride-containing environments under suitable conditions |
| Stress-Corrosion Resistance | Good resistance to stress-corrosion cracking under suitable service conditions |
| Acid Resistance | Good resistance to selected organic and inorganic acids |
| Oxidation Resistance | Excellent resistance to oxidation at elevated temperatures |
| Carburization Resistance | Excellent resistance to carburization in suitable high-temperature environments |
| Nitridation Resistance | Good resistance to nitridation under suitable service conditions |
| High-Temperature Performance | Excellent high-temperature strength, creep resistance and stress-rupture performance |
| Welding | Suitable for welding using appropriate nickel-alloy welding procedures |
| Fabrication | Suitable for machining, forming and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to applicable ASME standards |
| Available Forms | Weld Neck / Slip-On / Blind / Socket Weld / Threaded / Lap Joint / Orifice Flanges |
| Customization | Size, Flange Type, Pressure Class, Facing, Bore, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Grade, Size, Standard, Pressure Class, Facing and Heat/Lot Details as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Incoloy 800HT Flanges Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | High-Temperature Piping Systems, Heat Treatment Equipment, Furnace Components, Petrochemical, Chemical Processing, Power Generation, Heat Exchangers and Industrial Heating Equipment |
1. What are Incoloy 800HT Flanges?
Incoloy 800HT Flanges are nickel-iron-chromium alloy flanges designed for high-temperature piping and equipment connections , particularly where high-temperature strength, creep resistance and oxidation resistance are required.
2. What material is used for Incoloy 800HT Flanges?
They are manufactured from Incoloy 800HT / Alloy 800HT , identified by UNS N08811 and W.Nr. 1.4959 .
3. What types of Incoloy 800HT Flanges are available?
Common types include Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint and Orifice Flanges . Customized flange configurations can also be supplied according to project requirements.
4. What pressure classes are available for Incoloy 800HT Flanges?
They can be supplied in Class 150, 300, 600, 900, 1500 and 2500 , subject to the applicable dimensional standard, flange size and customer requirements.
5. What are the key advantages of Incoloy 800HT Flanges?
Key advantages include excellent high-temperature strength, good creep and stress-rupture resistance, excellent oxidation resistance, strong carburization resistance and good corrosion resistance in suitable service environments.
6. Where are Incoloy 800HT Flanges used?
They are commonly used in heat treatment equipment, industrial furnaces, petrochemical plants, chemical processing systems, power generation, heat exchangers, industrial heating equipment and high-temperature process piping .
