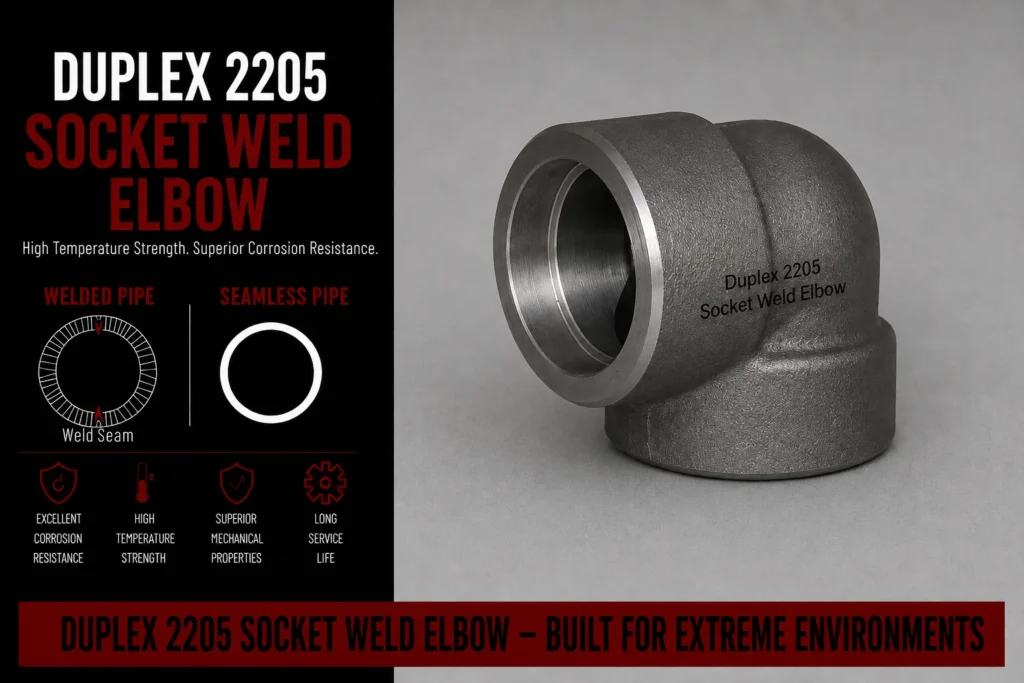

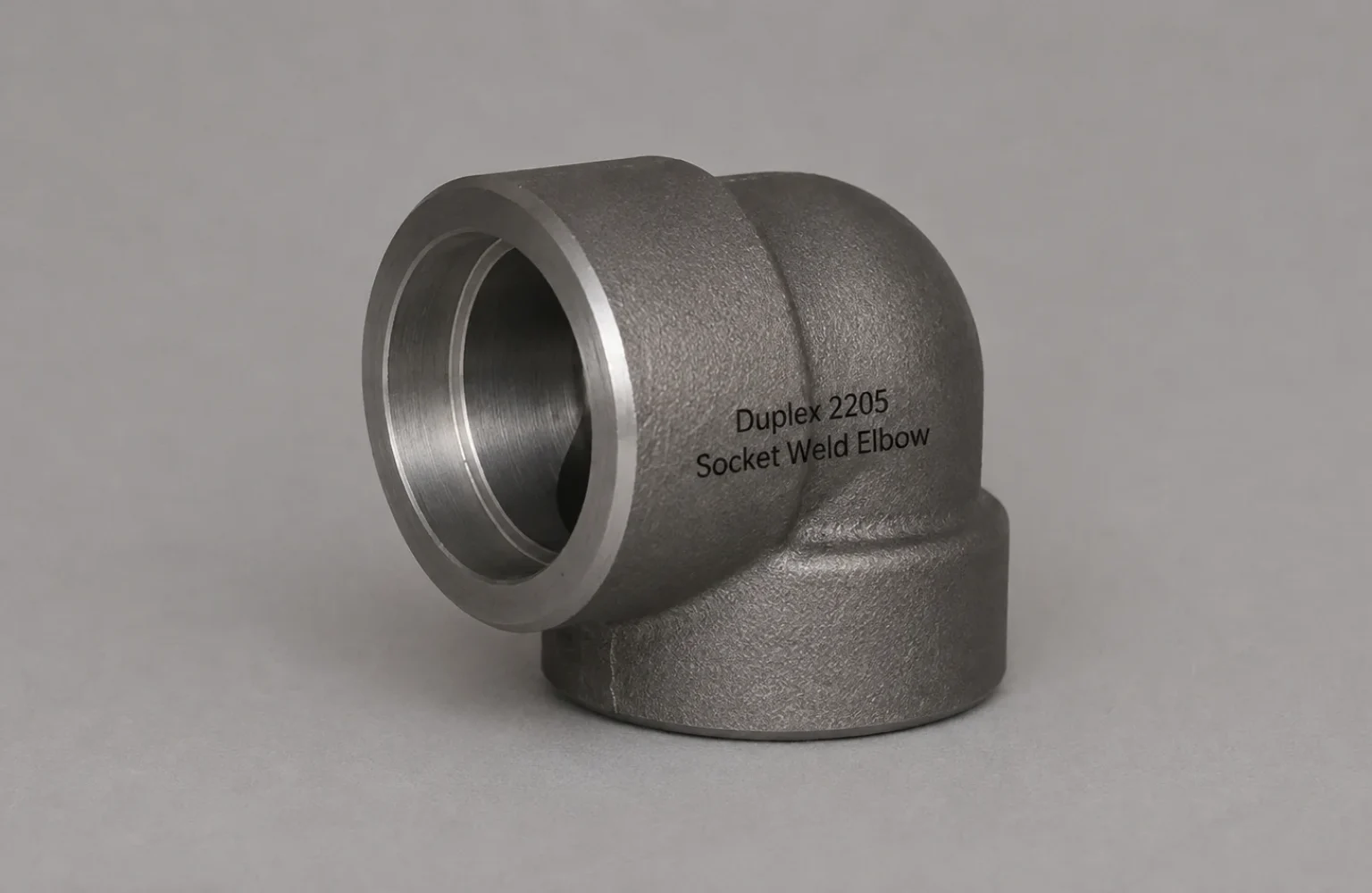

Duplex 2205 Socket Weld Elbow
| Specification | Details |
|---|---|
| Product Name | Duplex 2205 Socket Weld Elbow |
| Material Grade | Duplex 2205 / UNS S32205 / UNS S31803 |
| Werkstoff Number | W.Nr. 1.4462 |
| Material Type | Duplex Stainless Steel |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° Elbow |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM A182 / ASME SA182, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / Passivated / As Specified |
| Heat Treatment | Solution Annealed / Quenched / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Duplex 2205 Material Specification and Condition |
| Yield Strength | As per Applicable Duplex 2205 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 7.8 g/cm³ |
| Melting Range | Approximately 1350–1400°C |
| Corrosion Resistance | Excellent resistance to general corrosion and aggressive chloride-containing environments |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion under suitable service conditions |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Acid Resistance | Good resistance to selected organic and inorganic acids under suitable conditions |
| Erosion Resistance | Good resistance to erosion and corrosion in appropriate service environments |
| High-Temperature Performance | Suitable for elevated-temperature applications within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate duplex stainless steel welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Elbow Type, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Duplex 2205 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Oil & Gas, Petrochemical, Chemical Processing, Marine, Desalination, Power Generation, Heat Exchangers and Corrosive Process Piping |
1. Most Common Types of Duplex 2205 Socket Weld Elbows
| Type | Details |
|---|---|
| Duplex 2205 45° Socket Weld Elbow | Used to change the direction of piping by 45° in compact industrial piping systems. |
| Duplex 2205 90° Socket Weld Elbow | Commonly used for a 90° change in piping direction. |
| Duplex 2205 Forged Socket Weld Elbow | Forged construction provides good mechanical strength, durability and dimensional consistency. |
| Duplex 2205 Precision Machined Elbow | Precision machining provides accurate socket dimensions and proper pipe fit-up. |
| Duplex 2205 Class 3000 Elbow | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Duplex 2205 Class 6000 Elbow | Designed for higher-pressure industrial piping applications. |
| Duplex 2205 Class 9000 Elbow | Suitable for specialized high-pressure piping requirements. |
| Customized Duplex 2205 Socket Weld Elbow | Available according to customer drawings, dimensions, pressure class, finish, testing and documentation requirements. |
2. Duplex 2205 Socket Weld Elbow – Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Duplex 2205 Socket Weld Elbow |
| Material Grade | Duplex 2205 / UNS S32205 / UNS S31803 |
| Werkstoff Number | W.Nr. 1.4462 |
| Material Type | Duplex Stainless Steel |
| Fitting Type | Socket Weld Elbow |
| Elbow Type | 45° / 90° Elbow |
| Manufacturing Type | Forged / Hot Forged / Precision Machined |
| Fitting Standard | ASTM A182 / ASME SA182, as applicable |
| Dimensional Standard | ASME B16.11 |
| Size | 1/8″ to 4″ NPS or As per Customer Requirement |
| Pressure Class | Class 3000 / 6000 / 9000, as applicable |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Surface Finish | Bright / Pickled / Machined / Polished / Passivated / As Specified |
| Heat Treatment | Solution Annealed / Quenched / As per Applicable Material Specification |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical / Mechanical / Dimensional / Hardness / Visual / PMI and Other Tests as Required |
| Tensile Strength | As per Applicable Duplex 2205 Material Specification and Condition |
| Yield Strength | As per Applicable Duplex 2205 Material Specification and Condition |
| Elongation | As per Applicable Material Standard |
| Density | Approximately 7.8 g/cm³ |
| Melting Range | Approximately 1350–1400°C |
| Corrosion Resistance | Excellent resistance to general corrosion and aggressive chloride-containing environments |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Crevice Corrosion Resistance | Excellent resistance to crevice corrosion under suitable service conditions |
| Chloride Resistance | Excellent resistance to chloride-containing environments |
| Stress-Corrosion Resistance | Excellent resistance to chloride-induced stress-corrosion cracking |
| Acid Resistance | Good resistance to selected organic and inorganic acids under suitable conditions |
| Erosion Resistance | Good resistance to erosion and corrosion in appropriate service environments |
| High-Temperature Performance | Suitable for elevated-temperature applications within recommended service limits |
| Welding | Suitable for socket-welded piping systems using appropriate duplex stainless steel welding procedures |
| Fabrication | Suitable for machining and specialized fabrication using appropriate procedures |
| Dimensional Accuracy | Precision dimensions according to ASME B16.11 and applicable requirements |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Elbow Type, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Duplex 2205 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Oil & Gas, Petrochemical, Chemical Processing, Marine, Desalination, Power Generation, Heat Exchangers and Corrosive Process Piping |
3. Duplex 2205 Socket Weld Elbow – Supply & Quality Details
| Parameter | Details |
|---|---|
| Material Identification | Duplex 2205 / UNS S32205 / UNS S31803 / W.Nr. 1.4462 |
| Elbow Configuration | 45° / 90° |
| Size Range | 1/8″ to 4″ NPS or As per Requirement |
| Pressure Classes | Class 3000 / 6000 / 9000 |
| Manufacturing | Forged / Hot Forged / Precision Machined |
| Connection | Socket Weld |
| Applicable Standards | ASME B16.11 / ASTM A182 / ASME SA182, as applicable |
| Surface Finish | Bright / Pickled / Machined / Polished / Passivated / As Specified |
| Heat Treatment | Solution Annealed / Quenched / As Required |
| Testing | Chemical / Mechanical / Dimensional / Visual / Hardness / PMI / Other Tests |
| Inspection | Dimensional, Visual and Material Inspection |
| Certification | EN 10204 3.1 / 3.2 |
| Marking | Size, Grade, Standard, Class and Heat/Batch Identification |
| Material Traceability | Heat Number and Batch Identification as Applicable |
| Customization | Size, Elbow Type, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Packaging | Export-Worthy Wooden Cases, Boxes, Pallets or Customized Packaging |
| Documentation | MTC, Inspection Reports, Test Certificates and Other Documents as Required |
| Export Supply | Worldwide Duplex 2205 Socket Weld Elbow Supply |
| Applications | Oil & Gas, Petrochemical, Chemical Processing, Marine, Desalination, Power Generation, Heat Exchangers and Corrosive Process Piping |
Most Common Types Of Duplex 2205 Socket Weld Elbow
| Type | Details |
|---|---|
| Duplex 2205 45° Socket Weld Elbow | Used to change the direction of piping by 45° while providing a compact socket weld connection. |
| Duplex 2205 90° Socket Weld Elbow | Commonly used for a 90° change in piping direction in industrial and process piping systems. |
| Duplex 2205 Forged Socket Weld Elbow | Forged construction provides good mechanical strength, durability and consistent fitting geometry. |
| Duplex 2205 Hot Forged Elbow | Hot-forged construction is suitable for demanding piping applications requiring robust fitting performance. |
| Duplex 2205 Precision Machined Elbow | Precision machining provides accurate socket dimensions and proper pipe fit-up. |
| Duplex 2205 Class 3000 Socket Weld Elbow | Suitable for piping systems requiring Class 3000 pressure-rated fittings. |
| Duplex 2205 Class 6000 Socket Weld Elbow | Designed for higher-pressure industrial piping applications requiring Class 6000 fittings. |
| Duplex 2205 Class 9000 Socket Weld Elbow | Suitable for specialized high-pressure piping systems requiring Class 9000 fittings. |
| Customized Duplex 2205 Socket Weld Elbow | Available according to customer drawings, dimensions, elbow angle, pressure class, finish, testing and documentation requirements. |
Why Should You Buy Duplex 2205 Socket Weld Elbows from MetalX Nickel & Alloys?
- Experienced Duplex 2205 Socket Weld Elbow Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders, traders and industrial end users.
- 20+ Years of Stainless Steel & Nickel Alloy Industry Experience in supplying corrosion-resistant, high-performance and specialty alloy products across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, Europe, Asia and other global markets.
- Specialized Duplex 2205 Socket Weld Elbow Exporter offering Duplex 2205 / UNS S32205 / UNS S31803 / W.Nr. 1.4462 Socket Weld Elbows according to applicable international standards and customer requirements.
- Global Duplex Stainless Steel Sourcing Network with access to reputed mills, manufacturers, authorized suppliers and approved stockholders across the USA, Europe, Japan, South Korea and other major international supply markets.
- Reliable Duplex 2205 Socket Weld Elbow Supplier providing duplex stainless steel fittings for applications requiring excellent pitting and crevice corrosion resistance, strong chloride resistance, high mechanical strength and resistance to chloride-induced stress-corrosion cracking.
- Wide Specialty Fittings Range including Duplex 2205 Socket Weld Elbows, Duplex 2205 Socket Weld Tees, Duplex 2205 Socket Weld Couplings, Duplex 2205 Socket Weld Unions, Duplex 2205 Socket Weld Crosses, Super Duplex 2507 Socket Weld Fittings, Stainless Steel Socket Weld Fittings, Inconel Socket Weld Fittings and Hastelloy Socket Weld Fittings.
- 45° & 90° Elbow Supply – Available in 45° and 90° Duplex 2205 Socket Weld Elbows for different piping direction-change requirements.
They are commonly used in chemical processing, petrochemical plants, power generation, heat-treatment equipment, industrial furnaces, heat exchangers, thermal processing systems and high-temperature process piping .
| Key Feature | Details |
|---|---|
| Excellent Corrosion Resistance | Strong resistance to general corrosion, pitting, crevice corrosion and chloride-related corrosion in suitable industrial environments. |
| High Mechanical Strength | Duplex 2205 provides high yield strength and reliable mechanical performance for demanding piping applications. |
| Good Chloride Resistance | Suitable for applications involving chloride-containing and saline environments. |
| Socket Weld Connection | Provides a compact and secure welded connection for compatible piping systems. |
| 45° & 90° Configurations | Available in 45° and 90° elbow configurations for different piping direction-change requirements. |
| Forged Construction | Forged manufacturing provides durable construction and consistent fitting geometry. |
| Pressure Class Options | Available in Class 3000, 6000 and 9000, subject to size and applicable requirements. |
| Dimensional Accuracy | Accurate socket dimensions support proper pipe fit-up and reliable installation. |
| Chemical Resistance | Suitable for various corrosive chemical and process environments. |
| Industry Suitability | Commonly used in oil & gas, chemical, petrochemical, marine, desalination, power and process industries. |
| International Standards | Can be supplied according to ASME B16.11 and applicable material specifications. |
| Inspection & Documentation | MTC, inspection reports and required testing documentation can be provided. |
| Customization | Size, elbow angle, pressure class, dimensions, finish, testing and documentation can be supplied according to requirements. |
| Export-Ready Supply | Suitable export packaging and documentation can be arranged for domestic and international projects. |
| Specification | Details |
|---|---|
| Product Name | Duplex 2205 Socket Weld Elbow |
| Material Grade | Duplex 2205 |
| UNS Designation | UNS S31803 / UNS S32205 |
| Common Forging Grades | ASTM A182 F51 / F60 |
| Material Type | Duplex Stainless Steel |
| Fitting Type | Socket Weld Elbow |
| Elbow Angles | 45° / 90° |
| Manufacturing Standard | ASME B16.11 |
| Pressure Classes | Class 3000 / 6000 / 9000, as applicable |
| Size Range | As per Standard and Customer Requirement |
| Connection Type | Socket Weld |
| End Connection | Socket Weld |
| Manufacturing Process | Forged |
| Heat Treatment | As per Applicable Material Standard |
| Surface Finish | As Forged / Machined / Pickled / Passivated / As Specified |
| Material Identification | Marking as per Applicable Standard |
| Dimensions | As per ASME B16.11 and Customer Requirements |
| Testing | Chemical / Mechanical / Dimensional / Visual / Hardness / PMI and Other Tests as Required |
| Documentation | MTC and Inspection Documents Available as Required |
| Corrosion Resistance | Excellent resistance to general corrosion, pitting, crevice and chloride-related corrosion |
| Pitting Resistance | Excellent resistance to pitting and localized corrosion |
| Chloride Resistance | Good resistance to chloride-containing and saline environments |
| Stress-Corrosion Resistance | Good resistance to chloride-induced stress-corrosion cracking |
| Mechanical Strength | High yield strength and good mechanical strength compared with many conventional austenitic stainless steels |
| Welding | Suitable for socket-welded piping systems using appropriate duplex stainless steel welding procedures |
| Dimensional Accuracy | Consistent socket dimensions for reliable pipe fit-up and installation |
| Available Forms | 45° Socket Weld Elbow / 90° Socket Weld Elbow / Forged Socket Weld Elbow |
| Customization | Size, Elbow Angle, Pressure Class, Dimensions, Finish, Testing and Documentation |
| Inspection | Dimensional, Visual and Material Inspection as Required |
| Marking | Size, Grade, Standard, Class and Heat/Batch Identification as Applicable |
| Origin | European / American / Japanese / Korean and Other Approved Origins |
| Export Supply | Worldwide Duplex 2205 Socket Weld Elbow Export Supply |
| Exporter Support | Technical Specifications, Inspection, Certification, Export Packing, Documentation and International Shipment Coordination |
| Applications | Chemical, Petrochemical, Oil & Gas, Marine, Power Generation, Desalination and Process Industries |
1. What is a Duplex 2205 Socket Weld Elbow?
A Duplex 2205 Socket Weld Elbow is a forged pipe fitting used to change the direction of piping while providing a compact socket weld connection. It is manufactured from Duplex 2205 stainless steel.
2. What are the UNS designations for Duplex 2205?
Duplex 2205 is commonly supplied under UNS S31803 and UNS S32205 . Common forging grades include ASTM A182 F51 / F60 .
3. What elbow angles are available?
Duplex 2205 Socket Weld Elbows are commonly available in 45° and 90° configurations , depending on the piping layout and customer requirements.
4. What pressure classes are available?
These elbows can be supplied in Class 3000, Class 6000 and Class 9000 , subject to the required size, applicable standard and project specifications.
5. Which standards are applicable to Duplex 2205 Socket Weld Elbows?
The dimensional requirements can be supplied according to ASME B16.11 , while the material can be supplied according to applicable ASTM A182 requirements.
6. Where are Duplex 2205 Socket Weld Elbows used?
They are commonly used in oil gas, chemical processing, petrochemical, marine, desalination, power generation and industrial process piping applications where high mechanical strength and resistance to corrosion, pitting and chloride environments are required.
