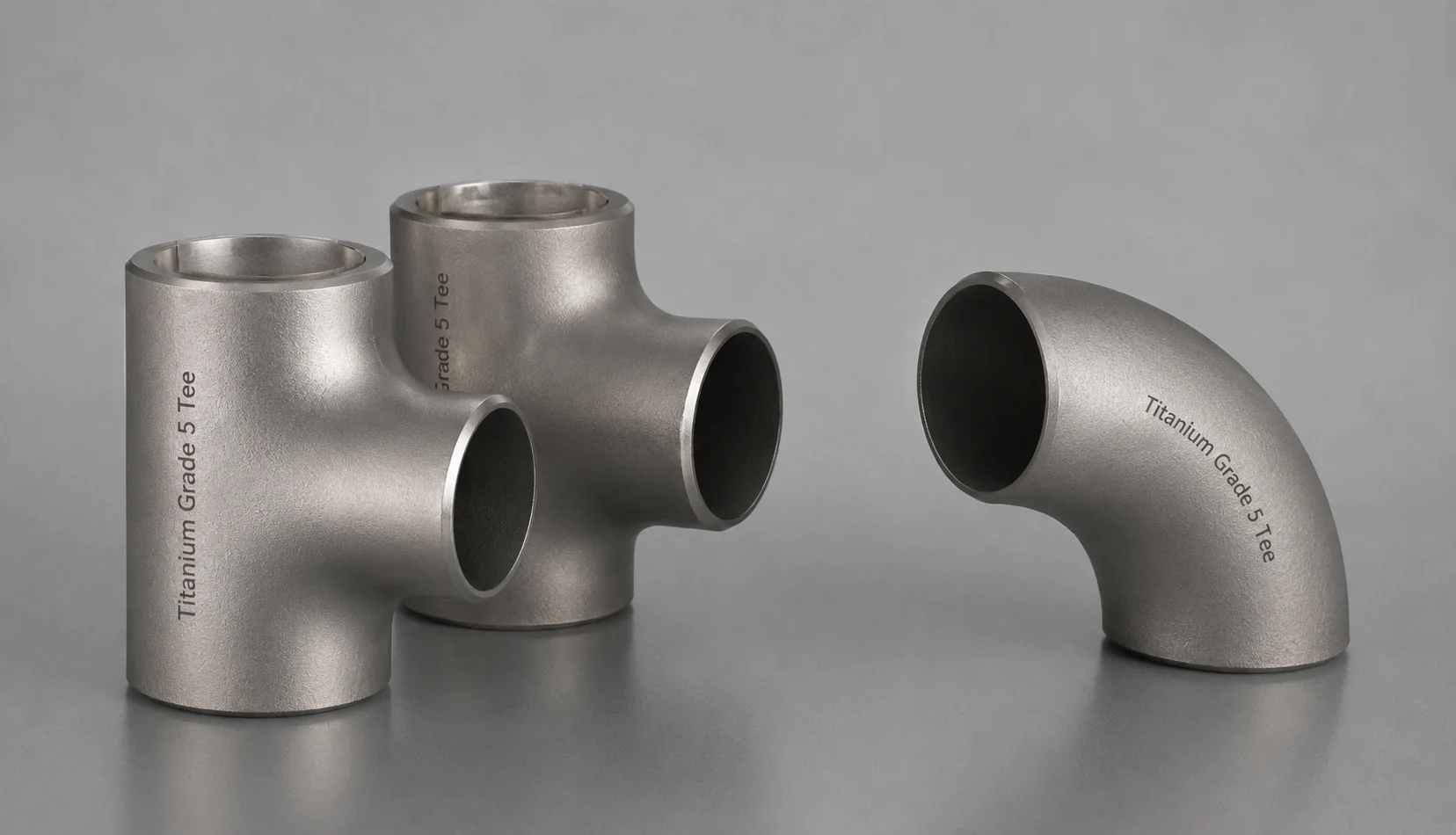

Titanium Grade 5 Tee
| Parameter | Titanium Grade 5 Tee Details |
|---|---|
| Product Name | Titanium Grade 5 Tee |
| Material Grade | Titanium Grade 5 / Ti-6Al-4V |
| UNS Number | R56400 |
| Werkstoff Number | 3.7165 / 3.7164 |
| Alloy Type | Alpha-Beta Titanium Alloy |
| Product Standard | ASTM B363 / ASME SB363 |
| Dimensional Standard | ASME B16.9 |
| Tee Configuration | Equal Tee / Reducing Tee |
| Branch Type | Full Size / Reduced Branch |
| Nominal Size | 1/2″ to 48″ |
| Construction | Seamless / Welded / Fabricated |
| Wall Thickness | SCH 5S–SCH 160 / Custom |
| End Connection | Butt Weld |
| End Preparation | Beveled / Plain / Customized |
| Heat Treatment | As per applicable specification |
| Surface Finish | Mill / Pickled / Polished |
| Aluminium | Approx. 5.5–6.75% |
| Vanadium | Approx. 3.5–4.5% |
| Titanium | Balance |
| Tensile Strength | Approx. 895 MPa minimum |
| Yield Strength | Approx. 825 MPa minimum |
| Elongation | Approx. 10% minimum |
| Density | Approx. 4.43 g/cm³ |
| Strength-to-Weight Ratio | Excellent |
| Corrosion Resistance | Excellent resistance to seawater, chlorides and many chemical environments |
| Weldability | Good with proper inert-gas shielding and controlled titanium welding |
| Inspection | PMI / Visual / Dimensional / Mechanical / NDT |
| Certification | EN 10204 3.1 / 3.2 |
| Traceability | Heat Number / Batch Identification |
| Customization | Branch diameter, thickness, dimensions and special configurations |
| Supply | Domestic & Worldwide Export |
| Applications | Aerospace, Chemical Processing, Marine, Oil & Gas, Heat Exchangers, Power Generation and Process Piping |
Titanium Grade 5 Tee – Equal & Reducing Sizes
| Run Size | Branch Size | Tee Type | Run OD | Branch OD |
|---|---|---|---|---|
| 1/2″ | 1/2″ | Equal Tee | 21.34 mm | 21.34 mm |
| 3/4″ | 3/4″ | Equal Tee | 26.67 mm | 26.67 mm |
| 1″ | 1″ | Equal Tee | 33.40 mm | 33.40 mm |
| 1-1/4″ | 1-1/4″ | Equal Tee | 42.16 mm | 42.16 mm |
| 1-1/2″ | 1-1/2″ | Equal Tee | 48.26 mm | 48.26 mm |
| 2″ | 2″ | Equal Tee | 60.33 mm | 60.33 mm |
| 2-1/2″ | 2-1/2″ | Equal Tee | 73.03 mm | 73.03 mm |
| 3″ | 3″ | Equal Tee | 88.90 mm | 88.90 mm |
| 4″ | 4″ | Equal Tee | 114.30 mm | 114.30 mm |
| 6″ | 6″ | Equal Tee | 168.28 mm | 168.28 mm |
| 8″ | 8″ | Equal Tee | 219.08 mm | 219.08 mm |
| 10″ | 10″ | Equal Tee | 273.05 mm | 273.05 mm |
| 12″ | 12″ | Equal Tee | 323.85 mm | 323.85 mm |
| 2″ | 1″ | Reducing Tee | 60.33 mm | 33.40 mm |
| 3″ | 2″ | Reducing Tee | 88.90 mm | 60.33 mm |
| 4″ | 2″ | Reducing Tee | 114.30 mm | 60.33 mm |
| 4″ | 3″ | Reducing Tee | 114.30 mm | 88.90 mm |
| 6″ | 4″ | Reducing Tee | 168.28 mm | 114.30 mm |
| 8″ | 6″ | Reducing Tee | 219.08 mm | 168.28 mm |
| 10″ | 8″ | Reducing Tee | 273.05 mm | 219.08 mm |
| 12″ | 10″ | Reducing Tee | 323.85 mm | 273.05 mm |
Titanium Grade 5 Tee – Size & Schedule Range
| NPS | Outside Diameter | Typical Schedule | Configuration |
|---|---|---|---|
| 1/2″ | 21.34 mm | SCH 5S–XXS | Equal / Reducing |
| 3/4″ | 26.67 mm | SCH 5S–XXS | Equal / Reducing |
| 1″ | 33.40 mm | SCH 5S–XXS | Equal / Reducing |
| 1-1/4″ | 42.16 mm | SCH 5S–XXS | Equal / Reducing |
| 1-1/2″ | 48.26 mm | SCH 5S–XXS | Equal / Reducing |
| 2″ | 60.33 mm | SCH 5S–XXS | Equal / Reducing |
| 2-1/2″ | 73.03 mm | SCH 5S–XXS | Equal / Reducing |
| 3″ | 88.90 mm | SCH 5S–XXS | Equal / Reducing |
| 4″ | 114.30 mm | SCH 5S–XXS | Equal / Reducing |
| 6″ | 168.28 mm | SCH 5S–XXS | Equal / Reducing |
| 8″ | 219.08 mm | SCH 5S–XXS | Equal / Reducing |
| 10″ | 273.05 mm | SCH 5S–XXS | Equal / Reducing |
| 12″ | 323.85 mm | SCH 5S–XXS | Equal / Reducing |
| 14″ | 355.60 mm | SCH 5S–XXS | Equal / Reducing |
| 16″ | 406.40 mm | SCH 5S–XXS | Equal / Reducing |
| 18″ | 457.20 mm | SCH 5S–XXS | Equal / Reducing |
| 20″ | 508.00 mm | SCH 5S–XXS | Equal / Reducing |
| 24″ | 609.60 mm | SCH 5S–XXS | Equal / Reducing |
| 30″–48″ | 762–1219.20 mm | As Required | Equal / Reducing |
Titanium Grade 5 Tee – Manufacturing & Quality Details
| Feature | Available Options / Details |
|---|---|
| Tee Pattern | Equal / Reducing |
| Production Process | Hot Formed / Cold Formed / Seamless / Welded |
| Size Range | 1/2″–48″ |
| Branch Size | Equal / Reduced / Custom |
| Wall Thickness | Standard / Heavy Wall / Custom |
| Connection | Butt Weld |
| End Preparation | Beveled / Plain / Special |
| Surface Treatment | Mill / Pickled / Polished |
| Heat Treatment | As Required by Specification |
| Welding Protection | High-Purity Inert Gas Shielding |
| Material Verification | PMI / Chemical Analysis |
| Mechanical Testing | Tensile / Yield / Elongation |
| Dimensional Inspection | OD / Thickness / Branch Alignment / Squareness |
| NDT | UT / RT / PT as specified |
| Weld Inspection | As per applicable welding specification |
| Documentation | MTC / EN 10204 3.1 / 3.2 |
| Traceability | Heat Number / Batch Identification |
| Third-Party Inspection | Available as required |
| Packing | Export-Grade Wooden Cases / Bundles |
| Custom Manufacturing | Special branch sizes, thicknesses and non-standard geometries |
Why Should You Buy Titanium Grade 5 Tees from Metalx Nickel & Alloys?
- Experienced Titanium Grade 5 Tee Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Alloy Industry Experience in supplying high-performance titanium and specialty-alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Titanium Grade 5 Exporter offering Titanium Grade 5 / Ti-6Al-4V / UNS R56400 Tees for demanding engineering applications.
- High-Strength Titanium Expertise for applications requiring an excellent combination of strength, corrosion resistance and low material density.
- Global Sourcing Network with access to reputed titanium mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Titanium Product Range including Titanium Grade 1, Grade 2, Grade 5 and other titanium products, subject to requirements.
- Ready Stock Availability for selected Titanium Grade 5 Tee sizes, subject to current stock and availability.
- Custom Titanium Grade 5 Tee Supply according to customer drawings, size, schedule, wall thickness and branch dimensions.
- Equal & Reducing Tee Supply for standard and specialized piping requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B363 / ASME SB363, where applicable.
- ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- PMI Testing Support for positive material identification where required.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
- Visual & Hardness Testing Support can be arranged where required by the applicable specification or purchase order.
- NDT Support including applicable ultrasonic or radiographic examination where specified.
- Custom Surface Finish can be arranged according to the applicable specification.
- Export-Ready Packing designed to protect Titanium Grade 5 Tees during handling, storage and international transportation.
- Worldwide Titanium Grade 5 Tee Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Titanium Grade 5 Tee Export Support for aerospace suppliers, EPC contractors, engineering companies, oil & gas facilities, chemical plants, marine projects, petrochemical plants and specialized industrial buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, branch dimensions, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Titanium Grade 5 Tee shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Titanium Grade 5 Tee
- Ti-6Al-4V Titanium Alloy Construction – Manufactured from Titanium Grade 5 for high-performance piping and engineering applications.
- High Strength-to-Weight Ratio – Delivers excellent mechanical strength while maintaining relatively low density.
- Excellent Corrosion Resistance – Provides strong resistance to many corrosive environments.
- Good Seawater Resistance – Suitable for selected marine and seawater-service applications.
- High Mechanical Strength – Supports demanding pressure and process applications.
- Good Fatigue Performance – Suitable for applications involving appropriate cyclic loading conditions.
- Alpha-Beta Titanium Alloy – Provides a balanced combination of strength, toughness and corrosion resistance.
- Efficient Branch Connection – Allows process flow to split or combine within a piping system.
- Equal Tee Configuration – Suitable when the branch and run have the same nominal size.
- Reducing Tee Configuration – Suitable when the branch connection is smaller than the main run.
- Smooth Branch Transition – Supports efficient integration of branch piping.
- Reliable Butt-Weld Connection – Provides a permanent welded connection when properly fabricated.
- Wide Size Availability – Available in different nominal pipe sizes and outside diameters.
- Multiple Wall Thicknesses – Different schedules and customized thicknesses can be supplied.
- Wrought / Formed Construction – Manufactured according to applicable titanium fitting requirements.
- Seamless & Welded Options – Configuration can be supplied depending on size and specification.
- Good Fabrication Characteristics – Suitable for controlled forming and fabrication processes.
- Low Material Density – Helps reduce component weight compared with many conventional high-strength alloys.
- Aerospace Applications – Suitable for selected high-performance aerospace engineering applications.
- Oil & Gas Applications – Can be considered for selected oil & gas piping and process systems.
- Chemical Processing Applications – Useful for selected corrosive process environments.
- Petrochemical Applications – Suitable for selected petrochemical equipment and piping.
- Marine Applications – Suitable for selected marine and seawater-service applications.
- Power Generation Applications – Can be considered for selected power-generation systems.
- Heat Exchanger Applications – Useful for selected heat-transfer equipment.
- Desalination Applications – Suitable for selected seawater and desalination equipment.
- Industrial Process Piping – Suitable where strength, corrosion resistance and weight efficiency are important.
- Custom Branch Dimensions – Branch sizes and configurations can be supplied according to customer drawings.
- Multiple Surface Options – Mill finish, pickled or other specified finishes can be supplied.
- PMI Verification – Positive Material Identification can be arranged where required.
- Material Traceability – Material identification and relevant certification can be supplied.
- Quality Testing Available – Chemical, mechanical, dimensional, visual, PMI and other specified inspections can be arranged.
- Export-Ready Material – Tees can be suitably packed for handling, storage and international transportation.
- Global Titanium Grade 5 Tee Exporter – METALX NICKEL & ALLOYS supplies Titanium Grade 5 Tees to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Titanium Grade 5 Tee Details |
|---|---|
| Product Name | Titanium Grade 5 Tee |
| Material Grade | Titanium Grade 5 / Ti-6Al-4V |
| UNS Designation | R56400 |
| Werkstoff Number | 3.7165 / 3.7164 |
| Material Type | Alpha-Beta Titanium Alloy |
| Material Standard | ASTM B363 / ASME SB363, where applicable |
| Dimensional Standard | ASME B16.9, where applicable |
| Tee Type | Equal Tee / Reducing Tee |
| Connection Type | Butt Weld |
| Size | As per applicable standard or customer specification |
| Wall Thickness | Different schedules and customized thicknesses |
| Branch Size | Equal or reducing branch sizes as required |
| Manufacturing | Wrought / Formed, as applicable |
| Configuration | Seamless / Welded, depending on size and specification |
| End Preparation | Bevelled Ends for Butt Welding |
| Heat Treatment | As per applicable specification |
| Surface Finish | Mill Finish, Pickled or customer-specified finish |
| Testing | Chemical, mechanical, dimensional, visual, PMI and other specified inspections |
| Documentation | MTC, inspection reports and relevant quality documents as required |
| Customization | Size, thickness, schedule, branch dimensions, finish, testing and documentation |
| Packing | Export-worthy packing suitable for safe international transportation |
| Applications | Aerospace, Chemical Processing, Oil & Gas, Marine, Petrochemical, Power Generation and Industrial Piping |
What is a Titanium Grade 5 Tee?
A Titanium Grade 5 Tee is a Ti-6Al-4V titanium alloy butt-weld fitting used to create branch connections in high-performance piping systems.
What is Titanium Grade 5 commonly known as?
Titanium Grade 5 is commonly known as Ti-6Al-4V.
Which industries does MetalX Nickel & Alloys serve?
Our alloy products are suitable for Oil & Gas, Chemical Processing, Petrochemical, Power Generation, Marine, Aerospace, Pharmaceutical, Engineering, Fabrication, and other critical industrial applications.
What is the Werkstoff Number of Titanium Grade 5?
Commonly referenced Werkstoff Numbers include 3.7165 / 3.7164, depending on the applicable product designation and condition.
Does MetalX Nickel & Alloys provide customized material solutions?
Yes, we understand that every project has unique requirements. We can support requirements based on alloy grade, product form, dimensions, thickness, diameter, length, quantity, specifications, and application needs.
Why are Nickel Alloys important for industrial applications?
Nickel alloys offer excellent properties such as corrosion resistance, high-temperature strength, oxidation resistance, durability, and mechanical performance, making them suitable for demanding operating environments.
