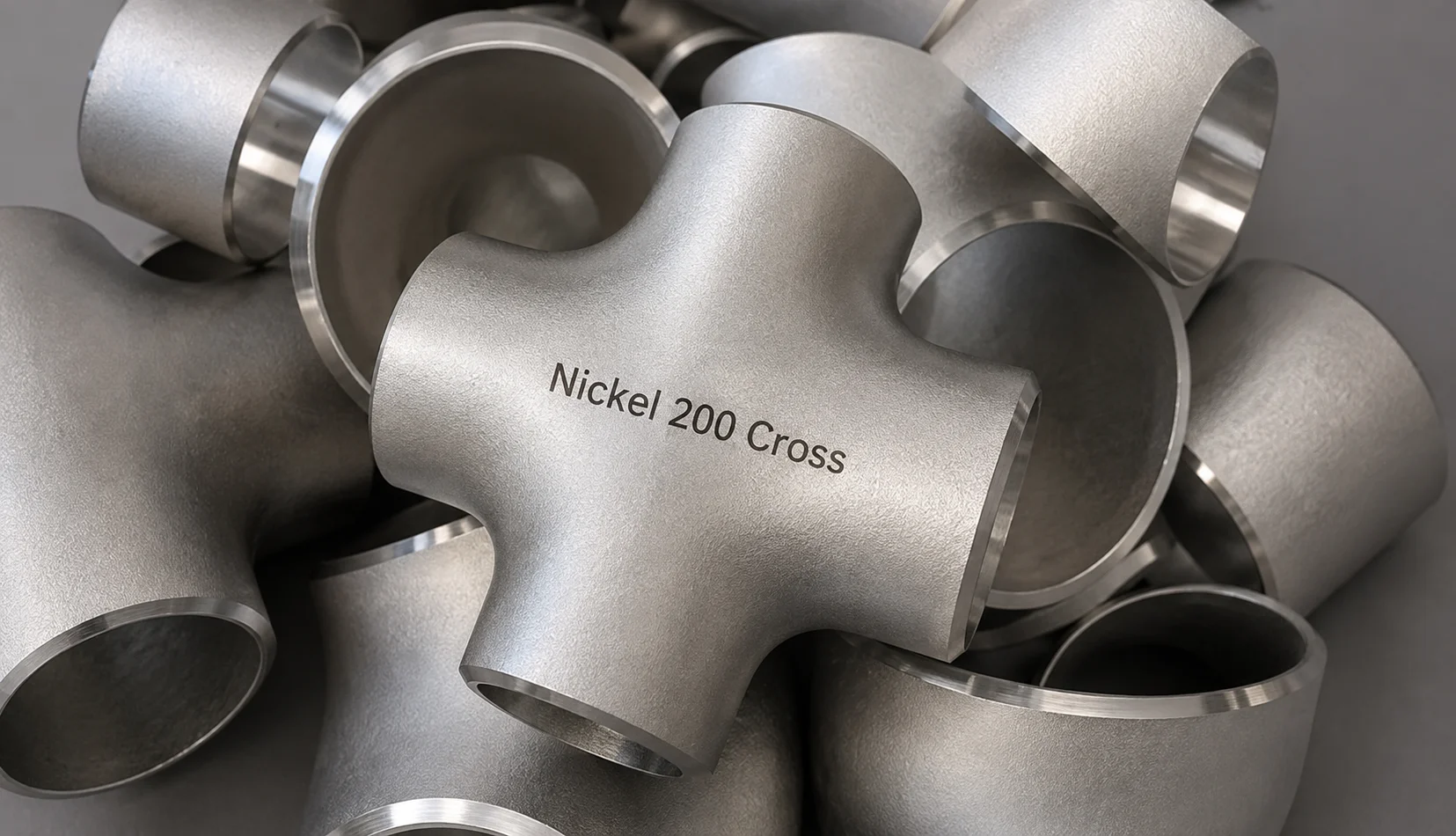

Nickel 200 Cross

ParameterNickel 200 Cross Details
Product NameNickel 200 Cross
Material GradeNickel 200
UNS NumberN02200
Werkstoff Number2.4066
Alloy FamilyCommercially Pure Nickel
Nickel Content99.0% min
Carbon0.15% max
Copper0.25% max
Iron0.40% max
Manganese0.35% max
Silicon0.35% max
Sulfur0.01% max
Product StandardASTM B366 / ASME SB366
Dimensional StandardASME B16.9
Cross ConfigurationEqual Cross / Reducing Cross
Size Range1/2″ to 48″
Branch ArrangementFull Size / Reduced Branch
ConstructionSeamless / Welded / Fabricated
Wall ThicknessSCH 5S–XXS / Custom Thickness
End ConnectionButt Weld
End PreparationBeveled / Plain / Customized
Surface FinishMill / Pickled / Bright Annealed / Polished
Heat TreatmentAnnealed as required
Tensile StrengthApprox. 380 MPa minimum, depending on condition
Yield StrengthApprox. 100 MPa minimum, depending on condition
ElongationApprox. 40% minimum
DensityApprox. 8.89 g/cm³
Melting RangeApprox. 1435–1446°C
Corrosion PerformanceExcellent in reducing environments
Caustic ResistanceExcellent resistance to caustic alkalis
WeldabilityGood with suitable nickel-alloy welding procedures
InspectionPMI / Visual / Dimensional / Mechanical / NDT
CertificationEN 10204 3.1 / 3.2
MarkingGrade / Size / Schedule / Heat Number
CustomizationSpecial branch sizes, wall thickness and dimensions
SupplyDomestic & Worldwide Export
ApplicationsChlor-Alkali, Chemical Processing, Caustic Soda, Food Processing, Electronics, Marine, Pharmaceutical and Synthetic Fibre Industries



Nickel 200 Cross – Standard Size Range

NPSOutside Diameter (mm)Outside Diameter (in.)Typical Schedule
1/2″21.340.840SCH 5S–XXS
3/4″26.671.050SCH 5S–XXS
1″33.401.315SCH 5S–XXS
1-1/4″42.161.660SCH 5S–XXS
1-1/2″48.261.900SCH 5S–XXS
2″60.332.375SCH 5S–XXS
2-1/2″73.032.875SCH 5S–XXS
3″88.903.500SCH 5S–XXS
4″114.304.500SCH 5S–XXS
5″141.305.563SCH 5S–XXS
6″168.286.625SCH 5S–XXS
8″219.088.625SCH 5S–XXS
10″273.0510.750SCH 5S–XXS
12″323.8512.750SCH 5S–XXS
14″355.6014.000SCH 5S–XXS
16″406.4016.000SCH 5S–XXS
18″457.2018.000SCH 5S–XXS
20″508.0020.000SCH 5S–XXS
24″609.6024.000SCH 5S–XXS
30″–48″762–1219.2030″–48″As Required



Nickel 200 Cross – Equal & Reducing Configurations

Run SizeBranch SizeConfigurationRun ODBranch OD
1/2″1/2″Equal Cross21.34 mm21.34 mm
3/4″3/4″Equal Cross26.67 mm26.67 mm
1″1″Equal Cross33.40 mm33.40 mm
1-1/4″1-1/4″Equal Cross42.16 mm42.16 mm
1-1/2″1-1/2″Equal Cross48.26 mm48.26 mm
2″2″Equal Cross60.33 mm60.33 mm
2-1/2″2-1/2″Equal Cross73.03 mm73.03 mm
3″3″Equal Cross88.90 mm88.90 mm
4″4″Equal Cross114.30 mm114.30 mm
6″6″Equal Cross168.28 mm168.28 mm
8″8″Equal Cross219.08 mm219.08 mm
10″10″Equal Cross273.05 mm273.05 mm
12″12″Equal Cross323.85 mm323.85 mm
2″1″Reducing Cross60.33 mm33.40 mm
3″2″Reducing Cross88.90 mm60.33 mm
4″2″Reducing Cross114.30 mm60.33 mm
4″3″Reducing Cross114.30 mm88.90 mm
6″4″Reducing Cross168.28 mm114.30 mm
8″6″Reducing Cross219.08 mm168.28 mm
10″8″Reducing Cross273.05 mm219.08 mm
12″10″Reducing Cross323.85 mm273.05 mm



Nickel 200 Cross – Fabrication & Quality Details

CategoryOptions / Details
Cross PatternEqual / Reducing
Manufacturing ProcessHot Formed / Cold Formed / Seamless / Welded
Connection TypeButt Weld
Size1/2″–48″
Wall ThicknessStandard Schedule / Custom WT
Branch SizeEqual / Reduced / Custom
End PreparationBeveled / Plain / Special
Surface TreatmentMill / Pickled / Bright Annealed / Polished
Heat TreatmentAnnealed / As Required
Dimensional InspectionOD / Thickness / Branch Alignment / Squareness
NDTUT / RT / PT as specified
Material VerificationPMI / Chemical Analysis
CertificationEN 10204 3.1 / 3.2
TraceabilityHeat Number & Material Identification
PackingExport-Worthy Wooden Cases / Bundles
Custom OptionsNon-Standard Branch, Size, Thickness and Geometry



Why Should You Buy Nickel 200 Cross from Metalx Nickel & Alloys?
  • Experienced Nickel 200 Cross Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
  • 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant and high-performance alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
  • Specialized Nickel 200 Exporter offering Nickel 200 / UNS N02200 Cross Fittings for demanding chemical and industrial applications.
  • Global Sourcing Network with access to reputed nickel alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
  • Wide Nickel Alloy Fittings Range including Nickel 200, Nickel 201, Nickel 205, Incoloy, Inconel, Monel and Hastelloy fittings.
  • Ready Stock Availability for selected Nickel 200 Cross sizes, subject to current stock and availability.
  • Custom Nickel 200 Cross Supply according to customer drawings, size, schedule, wall thickness and branch dimensions.
  • Equal & Reducing Cross Supply for standard and specialized industrial piping requirements.
  • ASTM / ASME Specification Supply according to applicable requirements, including ASTM B366 / ASME SB366, where applicable.
  • ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
  • MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
  • EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
  • Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
  • Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
  • Visual & Hardness Testing Support can be arranged where required by the applicable specification or purchase order.
  • Custom Surface Finish – Mill finish, pickled or other specified finishes can be supplied according to requirements.
  • Export-Ready Packing designed to protect Nickel 200 Cross Fittings during handling, storage and international transportation.
  • Worldwide Nickel 200 Cross Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
  • Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
  • Nickel 200 Cross Export Support for EPC contractors, engineering companies, chemical plants, caustic-processing facilities, food-processing companies, pharmaceutical industries and specialized industrial buyers.
  • Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, branch dimensions, heat treatment, testing, certification and packing requirements.
  • Material Traceability with appropriate identification, certification and quality documentation for export projects.
  • Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
  • Global Logistics Coordination for Nickel 200 Cross shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.

Key Features of Nickel 200 Cross

  • Commercially Pure Nickel Construction – Manufactured from Nickel 200 for applications requiring commercially pure nickel material.
  • High Nickel Content – Provides the characteristic corrosion resistance and physical properties associated with Nickel 200.
  • Excellent Caustic Resistance – Particularly suitable for selected caustic soda and alkaline processing environments.
  • Good Resistance to Reducing Media – Performs well in many reducing environments under suitable operating conditions.
  • Good Resistance to Neutral Salts – Offers useful resistance to selected neutral salt solutions.
  • Good Corrosion Resistance – Suitable for a range of chemical and industrial process environments.
  • Four-Way Piping Connection – Provides multiple connection points for selected industrial piping arrangements.
  • Reliable Butt-Weld Connection – Provides a permanent welded connection for compatible piping systems.
  • Equal Cross Configuration – Suitable where the run and branch connections require the same nominal size.
  • Reducing Cross Configuration – Suitable where one or more branch connections require different sizes.
  • Multi-Directional Flow Arrangement – Useful for piping layouts requiring several connected flow paths.
  • Good Thermal Conductivity – Useful for selected heat-transfer and process applications.
  • Good Electrical Conductivity – Suitable for selected applications requiring commercially pure nickel characteristics.
  • Good Ductility – Provides useful forming and fabrication characteristics.
  • Good Fabrication Characteristics – Can be formed, welded and machined using appropriate industrial procedures.
  • Wide Size Availability – Available in different nominal sizes and outside diameters.
  • Multiple Wall Thicknesses – Different schedules and customized thicknesses can be supplied.
  • Chemical Processing Applications – Suitable for selected chemical handling and processing systems.
  • Caustic Processing Applications – Commonly considered for suitable caustic alkali service.
  • Alkali Handling Applications – Can be used for selected alkaline process systems.
  • Food Processing Applications – Suitable for selected food-processing equipment where compatible materials are required.
  • Pharmaceutical Applications – Can be considered for selected pharmaceutical process equipment.
  • Water Treatment Applications – Suitable for selected water-treatment and chemical-handling systems.
  • Heat Transfer Applications – Useful in selected heat-transfer equipment.
  • Industrial Process Piping – Suitable for piping systems requiring Nickel 200 material characteristics.
  • Custom Branch Dimensions – Branch sizes and configurations can be supplied according to project requirements.
  • Multiple Surface Options – Mill finish, pickled or other specified finishes can be supplied.
  • Material Traceability – Material identification and relevant certificates can be supplied as required.
  • Quality Testing Available – Chemical, mechanical, dimensional, visual and other specified inspections can be arranged.
  • Export-Ready Material – Cross
SpecificationNickel 200 Cross Details
Product NameNickel 200 Cross
Material GradeNickel 200
UNS DesignationN02200
Werkstoff Number2.4066
Material TypeCommercially Pure Nickel Alloy
Material StandardASTM B366 / ASME SB366, where applicable
Dimensional StandardASME B16.9, where applicable
Cross TypeEqual Cross / Reducing Cross
Connection TypeButt Weld
SizeAs per applicable standard or customer specification
Wall ThicknessDifferent schedules and customized thicknesses
Branch SizeEqual or reducing branch sizes as required
ManufacturingWrought / Formed, as applicable
Surface FinishMill Finish, Pickled or customer-specified finish
Heat TreatmentAnnealed as applicable
End PreparationBevelled Ends for Butt Welding
TestingChemical, mechanical, dimensional, visual and other specified inspections
DocumentationMTC, inspection reports and relevant quality documents as required
CustomizationSize, thickness, branch dimensions, finish, testing and documentation
PackingExport-worthy packing suitable for safe international transportation
ApplicationsChemical Processing, Caustic Handling, Alkali Processing, Food Processing, Pharmaceutical, Water Treatment and Industrial Process Piping



What is a Nickel 200 Cross?

A Nickel 200 Cross is a commercially pure nickel butt-weld fitting that provides four connection points for selected chemical and industrial piping arrangements.

The UNS designation is N02200.

ASME B16.9 is commonly applicable for dimensions and tolerances of wrought butt-welding fittings.

An Equal Cross has connection openings of the same nominal size at the run and branches.

Yes. Material Test Certificates, inspection reports and relevant quality documents can be supplied according to customer and project requirements.

Testing can include chemical analysis, mechanical testing, dimensional inspection, visual inspection, hydrostatic testing and other specified tests.
