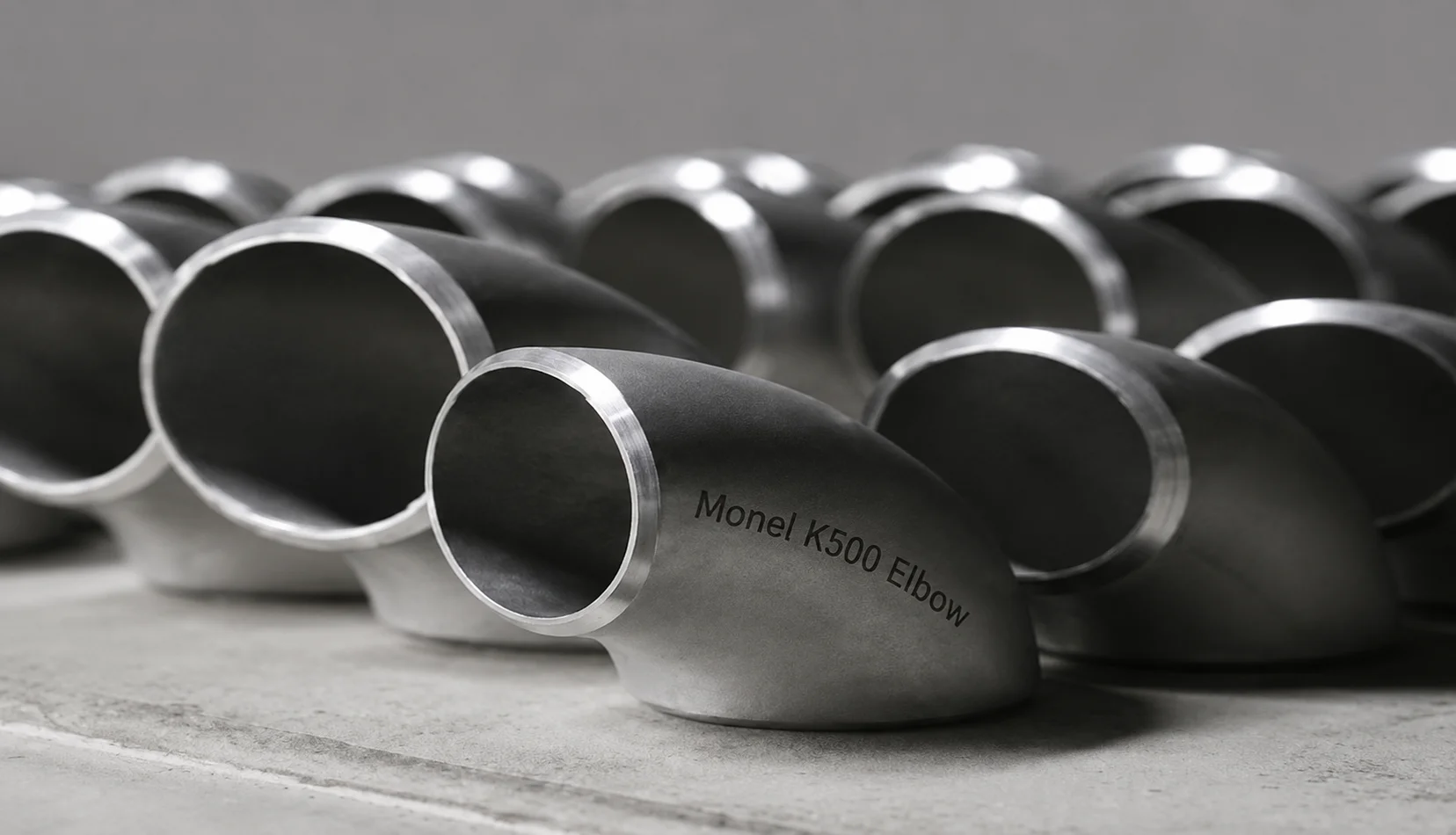

Monel K500 Elbow
| Specification Monel K500 Elbow Details | |
|---|---|
| Product Name | Monel K500 Elbow |
| Material Grade | Monel K500 / Alloy K500 |
| UNS Designation | UNS N05500 |
| Werkstoff Number | W.Nr. 2.4375 |
| Material Type | Nickel-Copper-Aluminium-Titanium Alloy |
| Chemical Composition | Nickel Balance, Copper 27–33%, Aluminium 2.30–3.15%, Titanium 0.35–0.85%, Iron 2.0% max, Manganese 1.5% max, Carbon 0.18% max, Silicon 0.50% max |
| Manufacturing Type | Seamless / Welded / Hot Formed / Cold Formed |
| Fitting Standard | ASTM B366 / ASME SB366 |
| Dimensional Standard | ASME B16.9 |
| Socket-Weld / Threaded Standard | ASME B16.11, where applicable |
| Elbow Type | Long Radius / Short Radius |
| Elbow Angle | 45° / 90° / 180° / Customized |
| Radius | 1.5D Long Radius / 1D Short Radius / Customized Radius |
| Size | NPS 1/2 to NPS 48 or as required |
| Outside Diameter | As per ASME B16.9 / Customer Requirement |
| Wall Thickness | SCH 5S, 10S, 10, 40S, 40, 80S, 80, 100, 120, 140, 160, XXS or as required |
| End Type | Plain End / Beveled End / Customized |
| Surface Finish | Mill Finish / Pickled / Annealed / Polished / Customized |
| Heat Treatment | Solution Annealed / Age Hardened as specified |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hydrostatic, PMI and NDT as specified |
| Tensile Strength | Minimum approximately 1100 MPa, depending on condition |
| Yield Strength | Minimum approximately 790 MPa |
| Elongation | Minimum approximately 15% |
| Density | Approximately 8.44 g/cm³ |
| Melting Range | Approximately 1315–1350°C |
| Corrosion Resistance | Excellent resistance to seawater, salt water, hydrofluoric acid and alkaline environments |
| Seawater Resistance | Excellent resistance to high-velocity seawater and marine environments |
| High-Strength Performance | Excellent strength and hardness after precipitation hardening |
| Chemical Resistance | Excellent resistance to chloride and marine environments and many non-oxidizing chemical solutions |
| Welding | Good weldability with appropriate Monel K500 welding procedures |
| Filler Metal | ERNiCu-7 / ENiCu-7 |
| Welding Electrode | ENiCu-7 |
| Available Form | 45° Elbow / 90° Elbow / 180° Return / Custom Elbow |
| Customization | Size, Schedule, Angle, Radius, Length, End Preparation, Finish, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Marine Engineering, Offshore Oil & Gas, Pumps, Valves, Propeller Shafts, Downhole Equipment, Chemical Processing, Seawater Equipment and Process Industries |
Monel K500 Elbow – Standard Dimensions
| NPS | Outside Diameter (mm) | Outside Diameter (in.) | Typical Schedule Range |
|---|---|---|---|
| 1/2″ | 21.34 | 0.840 | SCH 5S–XXS |
| 3/4″ | 26.67 | 1.050 | SCH 5S–XXS |
| 1″ | 33.40 | 1.315 | SCH 5S–XXS |
| 1-1/4″ | 42.16 | 1.660 | SCH 5S–XXS |
| 1-1/2″ | 48.26 | 1.900 | SCH 5S–XXS |
| 2″ | 60.33 | 2.375 | SCH 5S–XXS |
| 2-1/2″ | 73.03 | 2.875 | SCH 5S–XXS |
| 3″ | 88.90 | 3.500 | SCH 5S–XXS |
| 4″ | 114.30 | 4.500 | SCH 5S–XXS |
| 5″ | 141.30 | 5.563 | SCH 5S–XXS |
| 6″ | 168.28 | 6.625 | SCH 5S–XXS |
| 8″ | 219.08 | 8.625 | SCH 5S–XXS |
| 10″ | 273.05 | 10.750 | SCH 5S–XXS |
| 12″ | 323.85 | 12.750 | SCH 5S–XXS |
| 14″ | 355.60 | 14.000 | SCH 5S–XXS |
| 16″ | 406.40 | 16.000 | SCH 5S–XXS |
| 18″ | 457.20 | 18.000 | SCH 5S–XXS |
| 20″ | 508.00 | 20.000 | SCH 5S–XXS |
| 24″ | 609.60 | 24.000 | SCH 5S–XXS |
| 30″ | 762.00 | 30.000 | As Required |
| 36″ | 914.40 | 36.000 | As Required |
| 42″ | 1066.80 | 42.000 | As Required |
| 48″ | 1219.20 | 48.000 | As Required |
Monel K500 Elbow – 90° Long Radius Dimensions
| NPS | Outside Diameter (mm) | Center-to-End A (mm) | Approx. Radius |
|---|---|---|---|
| 1/2″ | 21.34 | 38.0 | 38 mm |
| 3/4″ | 26.67 | 38.0 | 38 mm |
| 1″ | 33.40 | 38.0 | 38 mm |
| 1-1/4″ | 42.16 | 48.0 | 48 mm |
| 1-1/2″ | 48.26 | 57.0 | 57 mm |
| 2″ | 60.33 | 76.0 | 76 mm |
| 2-1/2″ | 73.03 | 95.0 | 95 mm |
| 3″ | 88.90 | 114.0 | 114 mm |
| 4″ | 114.30 | 152.0 | 152 mm |
| 5″ | 141.30 | 190.0 | 190 mm |
| 6″ | 168.28 | 229.0 | 229 mm |
| 8″ | 219.08 | 305.0 | 305 mm |
| 10″ | 273.05 | 381.0 | 381 mm |
| 12″ | 323.85 | 457.0 | 457 mm |
| 14″ | 355.60 | 533.0 | 533 mm |
| 16″ | 406.40 | 610.0 | 610 mm |
| 18″ | 457.20 | 686.0 | 686 mm |
| 20″ | 508.00 | 762.0 | 762 mm |
| 24″ | 609.60 | 914.0 | 914 mm |
Monel K500 Elbow – Size & Type Chart
| Size Range | Elbow Angle | Radius | Available Finish | Supply Condition |
|---|---|---|---|---|
| 1/2″–2″ | 45° / 90° / 180° | 1.5D / 1D | Bright / Pickled / Polished | Solution Annealed / Age Hardened |
| 2-1/2″–4″ | 45° / 90° / 180° | 1.5D / 1D | Mill / Pickled / Polished | Solution Annealed / Age Hardened |
| 5″–8″ | 45° / 90° / 180° | 1.5D / 1D | Mill / Pickled / Machined | Solution Annealed / Age Hardened |
| 10″–12″ | 45° / 90° / 180° | 1.5D / Custom | Mill / Pickled / Machined | Solution Annealed / Age Hardened |
| 14″–18″ | 45° / 90° / 180° | 1.5D / Custom | Mill / Machined | Solution Annealed / Age Hardened |
| 20″–24″ | 45° / 90° / 180° | 1.5D / Custom | Mill / Machined | Solution Annealed / Age Hardened |
| 30″–36″ | 45° / 90° / 180° | Custom | Mill / Machined | Solution Annealed / Age Hardened |
| 42″–48″ | 45° / 90° / 180° | Custom | Mill / Machined | Solution Annealed / Age Hardened |
Why Should You Buy Monel K500 Elbows from Metalx Nickel & Alloys?
- Experienced Monel K500 Elbow Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant and high-performance alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Monel K500 Exporter offering Monel K500 / UNS N05500 Elbows for demanding marine, oil & gas and industrial applications.
- Global Sourcing Network with access to reputed nickel alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Nickel Alloy Fittings Range including Monel 400, Monel K500, Hastelloy, Inconel, Incoloy and other specialized nickel alloy fittings.
- Ready Stock Availability for selected Monel K500 Elbow sizes, subject to current stock and availability.
- Custom Monel K500 Elbow Supply according to customer drawings, size, schedule, wall thickness, radius and angle.
- 45° & 90° Elbow Supply for standard and specialized industrial piping requirements.
- Long & Short Radius Options available according to project requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B366 / ASME SB366, where applicable.
- ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
- Hydrostatic & Other Testing Support can be arranged where required by the applicable specification or purchase order.
- Custom Surface Finish – Mill finish or other specified finishes can be supplied according to requirements.
- Export-Ready Packing designed to protect Monel K500 Elbows during handling, storage and international transportation.
- Worldwide Monel K500 Elbow Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Monel K500 Elbow Export Support for EPC contractors, engineering companies, marine industries, offshore companies, oil & gas facilities, chemical plants, pump manufacturers and specialized industrial buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, heat treatment, radius, angle, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Monel K500 Elbow shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Monel K500 Elbow
- Nickel-Copper Alloy Construction – Manufactured from Monel K500 for demanding industrial applications.
- High Mechanical Strength – Provides higher strength than conventional Monel 400 through age-hardening treatment.
- Excellent Corrosion Resistance – Provides useful corrosion resistance across many marine and industrial environments.
- Excellent Seawater Resistance – Particularly useful for marine and seawater applications.
- Good Resistance to Chloride Environments – Suitable for selected chloride-containing service conditions.
- Good Resistance to Hydrofluoric Acid – Can be considered for suitable hydrofluoric acid applications.
- Age-Hardenable Alloy – Monel K500 can be strengthened through appropriate precipitation/age-hardening treatment.
- Reliable Butt-Weld Connection – Provides a permanent welded connection for industrial piping systems.
- 45° & 90° Configurations – Common elbow angles can be supplied according to piping requirements.
- Long Radius Options – Suitable where a smoother directional change is required.
- Short Radius Options – Useful for selected compact piping arrangements.
- Customized Angles – Special configurations can be considered according to project requirements.
- Wide Size Availability – Available in different nominal sizes and outside diameters.
- Multiple Wall Thicknesses – Different schedules and customized thicknesses can be supplied.
- Good Mechanical Performance – Suitable for demanding piping and equipment applications.
- Good Fabrication Characteristics – Can be processed using appropriate industrial procedures.
- Solution-Annealed & Age-Hardened Options – Heat treatment can be provided according to requirements.
- Marine Applications – Suitable for selected seawater and marine piping systems.
- Oil & Gas Applications – Can be considered for selected oil and gas equipment and piping.
- Chemical Processing Applications – Suitable for selected corrosive chemical service.
- Pump & Valve Applications – Useful for equipment requiring corrosion resistance and mechanical strength.
- Shaft & Mechanical Component Applications – Monel K500 is commonly selected for components requiring a combination of strength and corrosion resistance.
- Water System Applications – Suitable for selected industrial water and seawater systems.
- Custom Dimensions – Size, thickness, angle and radius can be supplied according to project requirements.
- Multiple Surface Options – Mill finish or other specified finishes can be supplied.
- Material Traceability – Material identification and relevant certificates can be supplied as required.
- Quality Testing Available – Chemical, mechanical, dimensional, visual and other specified inspections can be arranged.
- Export-Ready Material – Elbows can be suitably packed for handling and international transportation.
- Global Monel K500 Elbow Exporter – METALX NICKEL & ALLOYS supplies Monel K500 Elbows to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Monel K500 Elbow Details |
|---|---|
| Product Name | Monel K500 Elbow |
| Material Grade | Monel K500 |
| UNS Designation | N05500 |
| Werkstoff Number | 2.4375 |
| Material Type | Nickel-Copper Alloy |
| Material Standard | ASTM B366 / ASME SB366, where applicable |
| Dimensional Standard | ASME B16.9, where applicable |
| Elbow Type | Butt Weld Elbow |
| Elbow Angle | 45°, 90° and customized angles where applicable |
| Radius | Long Radius / Short Radius |
| Connection Type | Butt Weld |
| Size | As per applicable standard or customer specification |
| Wall Thickness | Different schedules and customized thicknesses |
| Dimensions | ASME B16.9 or customer drawings |
| End Preparation | Bevelled Ends for Butt Welding |
| Manufacturing | Wrought / Formed, as applicable |
| Configuration | Seamless or welded, depending on size and specification |
| Heat Treatment | Solution Annealed and Age Hardened, as required |
| Surface Finish | Mill Finish or customer-specified finish |
| Testing | Chemical, mechanical, dimensional, visual, hydrostatic and other specified inspections |
| Documentation | MTC, inspection reports and relevant quality documents as required |
| Customization | Size, thickness, schedule, angle, radius, finish, testing and documentation |
| Packing | Export-worthy packing suitable for safe international transportation |
| Applications | Marine Engineering, Seawater Systems, Oil & Gas, Chemical Processing, Pumps, Valves, Shafts and Industrial Piping |
What is a Monel K500 Elbow?
A Monel K500 Elbow is a nickel-copper alloy butt-weld fitting used to change the direction of piping while providing a combination of corrosion resistance and mechanical strength.
What is the UNS designation of Monel K500?
The UNS designation is N05500.
What is the material number of Monel K500?
The Werkstoff Number is 2.4375.
What type of alloy is Monel K500?
Monel K500 is an age-hardenable nickel-copper alloy with additions that allow increased mechanical strength after suitable heat treatment.
What material standard is commonly applicable to Monel K500 Elbows?
ASTM B366 / ASME SB366 can be applicable to wrought nickel alloy fittings, subject to the exact product requirements.
What dimensional standard is used for Monel K500 Elbows?
ASME B16.9 is commonly applicable for dimensions and tolerances of wrought butt-welding fittings.
