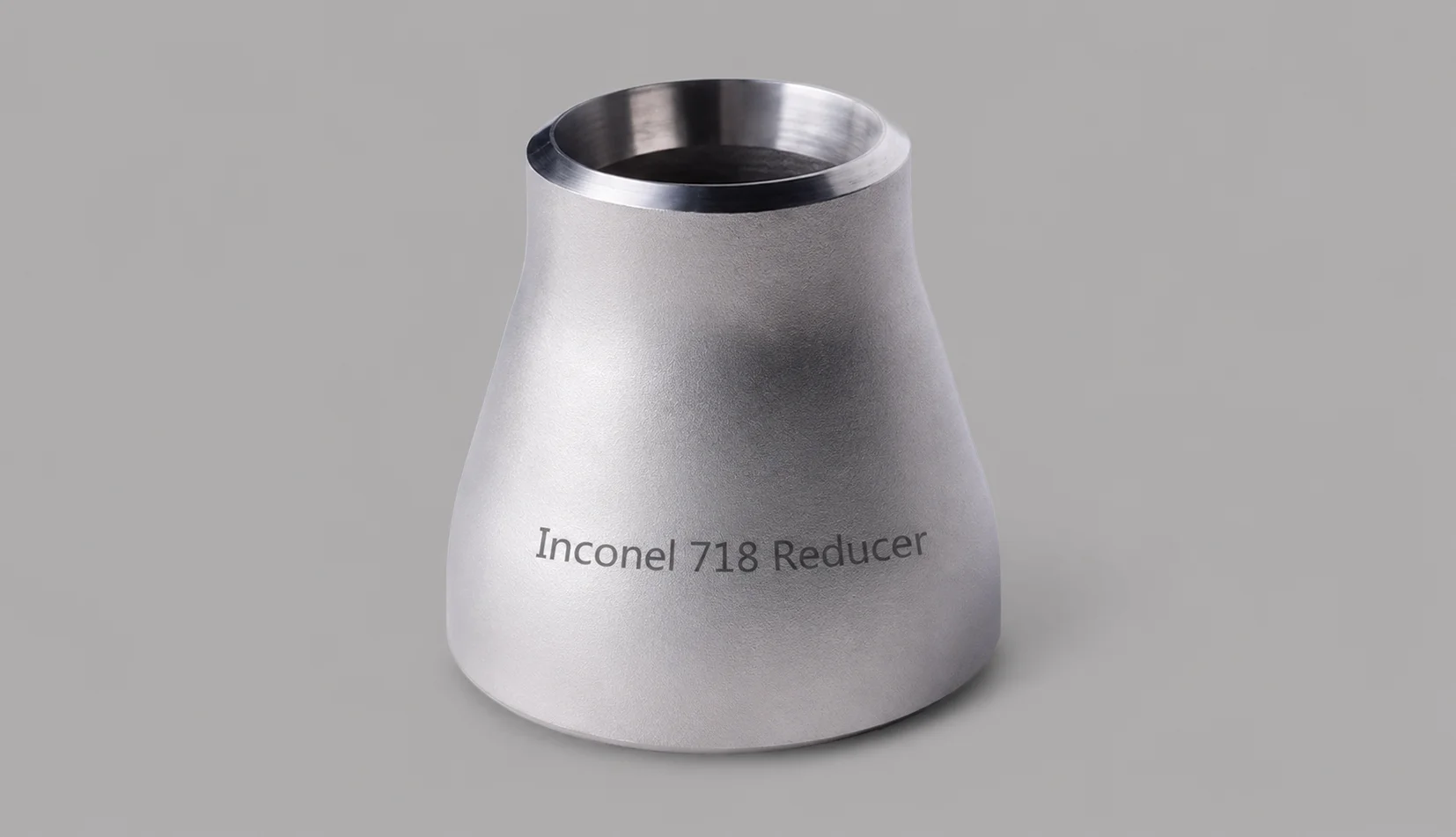

Inconel 718 Reducer
| Specification Inconel 718 Reducer Details | |
|---|---|
| Product Name | Inconel 718 Reducer |
| Material Grade | Inconel 718 / Alloy 718 |
| UNS Designation | UNS N07718 |
| Werkstoff Number | W.Nr. 2.4668 |
| Material Type | Nickel-Chromium-Iron-Niobium-Molybdenum Alloy |
| Chemical Composition | Nickel 50–55%, Chromium 17–21%, Iron Balance, Niobium + Tantalum 4.75–5.50%, Molybdenum 2.80–3.30%, Titanium 0.65–1.15%, Aluminium 0.20–0.80%, Cobalt 1% max, Carbon 0.08% max |
| Manufacturing Type | Seamless / Welded / Hot Formed / Cold Formed |
| Fitting Standard | ASTM B366 / ASME SB366 |
| Dimensional Standard | ASME B16.9 |
| Reducer Type | Concentric Reducer / Eccentric Reducer |
| Size | NPS 1/2 to NPS 48 or as required |
| Outside Diameter | As per ASME B16.9 / Customer Requirement |
| Wall Thickness | SCH 5S, 10S, 10, 40S, 40, 80S, 80, 100, 120, 140, 160, XXS or as required |
| Large End Size | As specified |
| Small End Size | As specified |
| End Type | Butt Weld / Beveled End / Customized |
| Surface Finish | Mill Finish / Pickled / Annealed / Polished / Customized |
| Heat Treatment | Solution Annealed / Age Hardened as specified |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hydrostatic, PMI and NDT as specified |
| Tensile Strength | Minimum approximately 965 MPa, depending on heat treatment and specification |
| Yield Strength | Minimum approximately 550 MPa |
| Elongation | Minimum approximately 30% |
| Density | Approximately 8.19 g/cm³ |
| Melting Range | Approximately 1260–1336°C |
| Corrosion Resistance | Excellent resistance to general corrosion, pitting, crevice corrosion and chloride stress-corrosion cracking |
| High-Temperature Strength | Excellent strength and creep resistance at elevated temperatures |
| Age Hardening | Precipitation-hardening alloy capable of achieving very high mechanical strength |
| Welding | Good weldability with appropriate Inconel 718 welding procedures and heat treatment |
| Filler Metal | ERNiFeCr-2 / Inconel 718 compatible filler |
| Welding Electrode | ENiFeCr-2 |
| Available Form | Concentric Reducer / Eccentric Reducer |
| Customization | Size, Schedule, Large & Small End Diameter, Length, Finish, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Aerospace, Gas Turbines, Jet Engines, Oil & Gas, Nuclear, Power Generation, Chemical Processing, High-Temperature Equipment and Cryogenic Applications |
Inconel 718 Reducer – Standard Dimensions
| NPS Large End | Outside Diameter (mm) | Outside Diameter (in.) | Typical Schedule Range |
|---|---|---|---|
| 1/2″ | 21.34 | 0.840 | SCH 5S–XXS |
| 3/4″ | 26.67 | 1.050 | SCH 5S–XXS |
| 1″ | 33.40 | 1.315 | SCH 5S–XXS |
| 1-1/4″ | 42.16 | 1.660 | SCH 5S–XXS |
| 1-1/2″ | 48.26 | 1.900 | SCH 5S–XXS |
| 2″ | 60.33 | 2.375 | SCH 5S–XXS |
| 2-1/2″ | 73.03 | 2.875 | SCH 5S–XXS |
| 3″ | 88.90 | 3.500 | SCH 5S–XXS |
| 4″ | 114.30 | 4.500 | SCH 5S–XXS |
| 5″ | 141.30 | 5.563 | SCH 5S–XXS |
| 6″ | 168.28 | 6.625 | SCH 5S–XXS |
| 8″ | 219.08 | 8.625 | SCH 5S–XXS |
| 10″ | 273.05 | 10.750 | SCH 5S–XXS |
| 12″ | 323.85 | 12.750 | SCH 5S–XXS |
| 14″ | 355.60 | 14.000 | SCH 5S–XXS |
| 16″ | 406.40 | 16.000 | SCH 5S–XXS |
| 18″ | 457.20 | 18.000 | SCH 5S–XXS |
| 20″ | 508.00 | 20.000 | SCH 5S–XXS |
| 24″ | 609.60 | 24.000 | SCH 5S–XXS |
| 30″ | 762.00 | 30.000 | As Required |
| 36″ | 914.40 | 36.000 | As Required |
| 42″ | 1066.80 | 42.000 | As Required |
| 48″ | 1219.20 | 48.000 | As Required |
Inconel 718 Reducer – Common Size Combinations
| Large End Size | Small End Size | Reducer Type | Large End OD | Small End OD |
|---|---|---|---|---|
| 2″ | 1″ | Concentric / Eccentric | 60.33 mm | 33.40 mm |
| 2-1/2″ | 1-1/2″ | Concentric / Eccentric | 73.03 mm | 48.26 mm |
| 3″ | 2″ | Concentric / Eccentric | 88.90 mm | 60.33 mm |
| 4″ | 2″ | Concentric / Eccentric | 114.30 mm | 60.33 mm |
| 4″ | 3″ | Concentric / Eccentric | 114.30 mm | 88.90 mm |
| 6″ | 4″ | Concentric / Eccentric | 168.28 mm | 114.30 mm |
| 6″ | 3″ | Concentric / Eccentric | 168.28 mm | 88.90 mm |
| 8″ | 6″ | Concentric / Eccentric | 219.08 mm | 168.28 mm |
| 8″ | 4″ | Concentric / Eccentric | 219.08 mm | 114.30 mm |
| 10″ | 8″ | Concentric / Eccentric | 273.05 mm | 219.08 mm |
| 10″ | 6″ | Concentric / Eccentric | 273.05 mm | 168.28 mm |
| 12″ | 10″ | Concentric / Eccentric | 323.85 mm | 273.05 mm |
| 12″ | 8″ | Concentric / Eccentric | 323.85 mm | 219.08 mm |
| 14″ | 12″ | Concentric / Eccentric | 355.60 mm | 323.85 mm |
| 16″ | 12″ | Concentric / Eccentric | 406.40 mm | 323.85 mm |
| 18″ | 16″ | Concentric / Eccentric | 457.20 mm | 406.40 mm |
| 20″ | 16″ | Concentric / Eccentric | 508.00 mm | 406.40 mm |
| 24″ | 20″ | Concentric / Eccentric | 609.60 mm | 508.00 mm |
3. Nickel Alloy 600 Clad PaInconel 718 Reducer – Size & Type Chartipe – Schedule Chart
| Size Range | Reducer Type | Available Finish | Supply Condition | End Connection |
|---|---|---|---|---|
| 1/2″–2″ | Concentric / Eccentric | Bright / Pickled / Polished | Solution Annealed / Aged | Butt Weld / Customized |
| 2-1/2″–4″ | Concentric / Eccentric | Mill / Pickled / Polished | Solution Annealed / Aged | Butt Weld |
| 5″–8″ | Concentric / Eccentric | Mill / Pickled / Machined | Solution Annealed / Aged | Butt Weld |
| 10″–12″ | Concentric / Eccentric | Mill / Pickled / Machined | Solution Annealed / Aged | Butt Weld |
| 14″–18″ | Concentric / Eccentric | Mill / Machined | Solution Annealed / Aged | Butt Weld |
| 20″–24″ | Concentric / Eccentric | Mill / Machined | Solution Annealed / Aged | Butt Weld |
| 30″–36″ | Concentric / Eccentric | Mill / Machined | Solution Annealed / Aged | Butt Weld |
| 42″–48″ | Concentric / Eccentric | Mill / Machined | Solution Annealed / Aged | Butt Weld |
Why Should You Buy Inconel 718 Reducers from Metalx Nickel & Alloys?
- Experienced Inconel 718 Reducer Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying high-strength, corrosion-resistant and high-temperature alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Inconel 718 Exporter offering Inconel 718 / UNS N07718 Reducers for demanding aerospace, gas turbine, power-generation and industrial applications.
- Global Sourcing Network with access to reputed nickel alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Nickel Alloy Fittings Range including Inconel 600, Inconel 625, Inconel 718, Incoloy, Hastelloy, Monel and other specialized nickel alloy fittings.
- Ready Stock Availability for selected Inconel 718 Reducer sizes, subject to current stock and availability.
- Custom Inconel 718 Reducer Supply according to customer drawings, size, schedule, wall thickness and reducer dimensions.
- Concentric & Eccentric Reducer Supply for standard and specialized industrial piping requirements.
- Heat-Treated Supply Options – Solution-treated and age-hardened conditions can be supplied where applicable.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B366 / ASME SB366, where applicable.
- ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
- Visual & Hardness Testing Support can be arranged where required by the applicable specification or purchase order.
- Custom Surface Finish – Mill finish or other specified finishes can be supplied according to requirements.
- Export-Ready Packing designed to protect Inconel 718 Reducers during handling, storage and international transportation.
- Worldwide Inconel 718 Reducer Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Inconel 718 Reducer Export Support for aerospace companies, gas turbine manufacturers, oil & gas companies, power-generation facilities, chemical plants, petrochemical industries and specialized engineering buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, reducer type, heat treatment, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Inconel 718 Reducer shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Inconel 718 Reducer
- High-Strength Nickel Alloy Construction – Manufactured from Inconel 718 for demanding high-strength industrial applications.
- Excellent High-Temperature Strength – Maintains high mechanical strength at elevated temperatures.
- Age-Hardenable Alloy – Can be strengthened through suitable solution treatment and aging.
- High Tensile and Yield Strength – Suitable for applications requiring strong mechanical performance.
- Good Creep Resistance – Provides useful resistance to deformation under sustained high-temperature loading.
- Good Fatigue Resistance – Suitable for selected applications involving cyclic mechanical loading.
- Good Oxidation Resistance – Provides useful oxidation resistance under elevated-temperature conditions.
- Good Corrosion Resistance – Offers resistance to various corrosive service environments.
- Good Weldability – Can be fabricated using suitable qualified industrial procedures.
- Reliable Butt-Weld Connection – Suitable for permanent welded piping connections.
- Concentric Reducer Option – Suitable where connected pipe centerlines need to remain aligned.
- Eccentric Reducer Option – Suitable for selected piping arrangements requiring an offset reduction.
- Smooth Diameter Transition – Provides a controlled transition between different pipe diameters.
- Wide Size Availability – Available in different nominal sizes and outside diameters.
- Multiple Wall Thicknesses – Different schedules and customized wall thicknesses can be supplied.
- Heat-Treated Options – Solution-treated and age-hardened conditions can be supplied where applicable.
- Aerospace Applications – Suitable for selected aerospace and aircraft-engine-related systems.
- Gas Turbine Applications – Can be considered for high-temperature turbine and power-generation equipment.
- Oil & Gas Applications – Suitable for selected high-strength industrial process systems.
- Chemical Processing Applications – Can be considered for selected chemical process equipment.
- Power Generation Applications – Suitable for selected high-temperature power-generation systems.
- High-Temperature Process Piping – Can be considered for suitable elevated-temperature service conditions.
- Custom Dimensions – Large-end and small-end dimensions can be supplied according to project requirements.
- Multiple Surface Options – Mill finish or other specified finishes can be supplied.
- Reliable Material Traceability – Material identification and relevant certificates can be supplied according to order requirements.
- Quality Testing Available – Chemical, mechanical, dimensional, visual, hardness and other specified inspections can be arranged.
- Export-Ready Material – Reducers can be suitably packed for handling, storage and international transportation.
- Global Inconel 718 Reducer Exporter – METALX NICKEL & ALLOYS supplies Inconel 718 Reducers to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Inconel 718 Reducer Details |
|---|---|
| Product Name | Inconel 718 Reducer |
| Material Grade | Inconel Alloy 718 |
| UNS Designation | N07718 |
| Material Type | Nickel-Chromium-Iron Alloy with Molybdenum, Niobium, Titanium & Aluminum |
| Material Standard | ASTM B366 / ASME SB366, where applicable |
| Dimensional Standard | ASME B16.9, where applicable |
| Reducer Type | Concentric Reducer / Eccentric Reducer |
| Connection Type | Butt Weld |
| Size | As per applicable standard or customer specification |
| Wall Thickness | Different schedules and customized thicknesses |
| Large End Diameter | As per requirement |
| Small End Diameter | As per requirement |
| Manufacturing | Wrought / Formed, as applicable |
| Surface Finish | Mill Finish or customer-specified finish |
| Heat Treatment | Solution Annealed / Age Hardened as specified |
| End Preparation | Butt Weld Ends as applicable |
| Testing | Chemical, mechanical, dimensional, visual, hardness and other specified inspections |
| Documentation | MTC, inspection reports and relevant quality documents as required |
| Customization | Size, thickness, reducer type, finish, heat treatment, testing and documentation |
| Packing | Export-worthy packing suitable for safe international transportation |
| Applications | Aerospace, Gas Turbines, Oil & Gas, Chemical Processing, Power Generation, High-Temperature Piping and Industrial Equipment |
What types of Inconel 718 Reducers are available?
The common types are Concentric Reducers and Eccentric Reducers.
What is a Concentric Reducer?
A concentric reducer changes the pipe diameter while keeping the centerlines of the connected pipes aligned.
Which industries does MetalX Nickel & Alloys serve?
Our alloy products are suitable for Oil & Gas, Chemical Processing, Petrochemical, Power Generation, Marine, Aerospace, Pharmaceutical, Engineering, Fabrication, and other critical industrial applications.
Can Inconel 718 be heat treated?
Yes. Inconel 718 can be supplied in specified solution-treated and age-hardened conditions, depending on the applicable specification and requirements.
Does MetalX Nickel & Alloys provide customized material solutions?
Yes, we understand that every project has unique requirements. We can support requirements based on alloy grade, product form, dimensions, thickness, diameter, length, quantity, specifications, and application needs.
Why are Nickel Alloys important for industrial applications?
Nickel alloys offer excellent properties such as corrosion resistance, high-temperature strength, oxidation resistance, durability, and mechanical performance, making them suitable for demanding operating environments.
