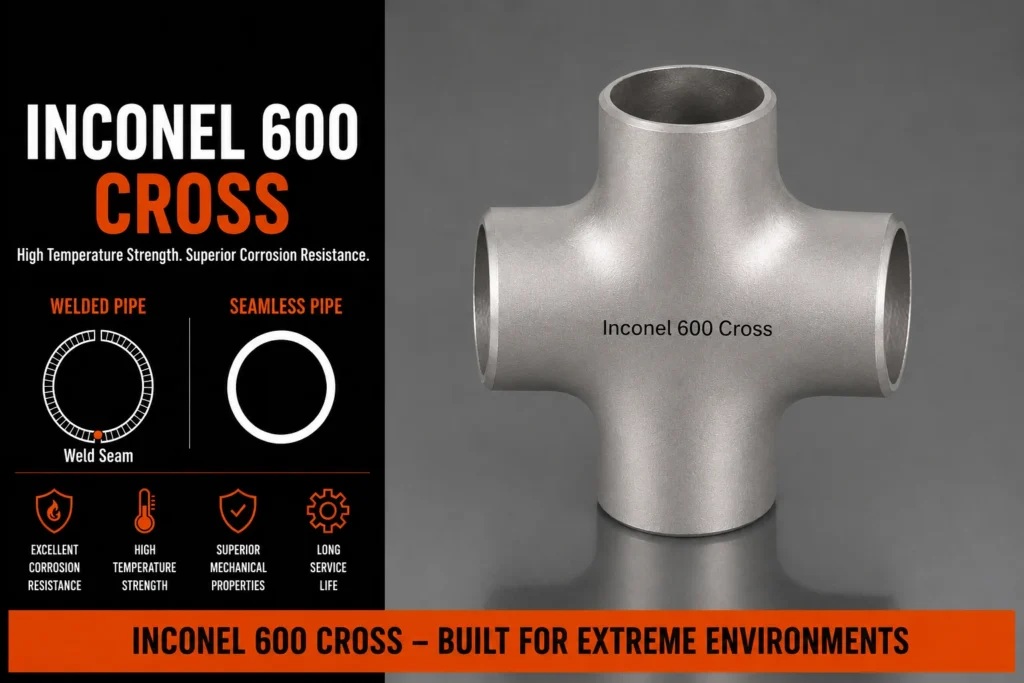

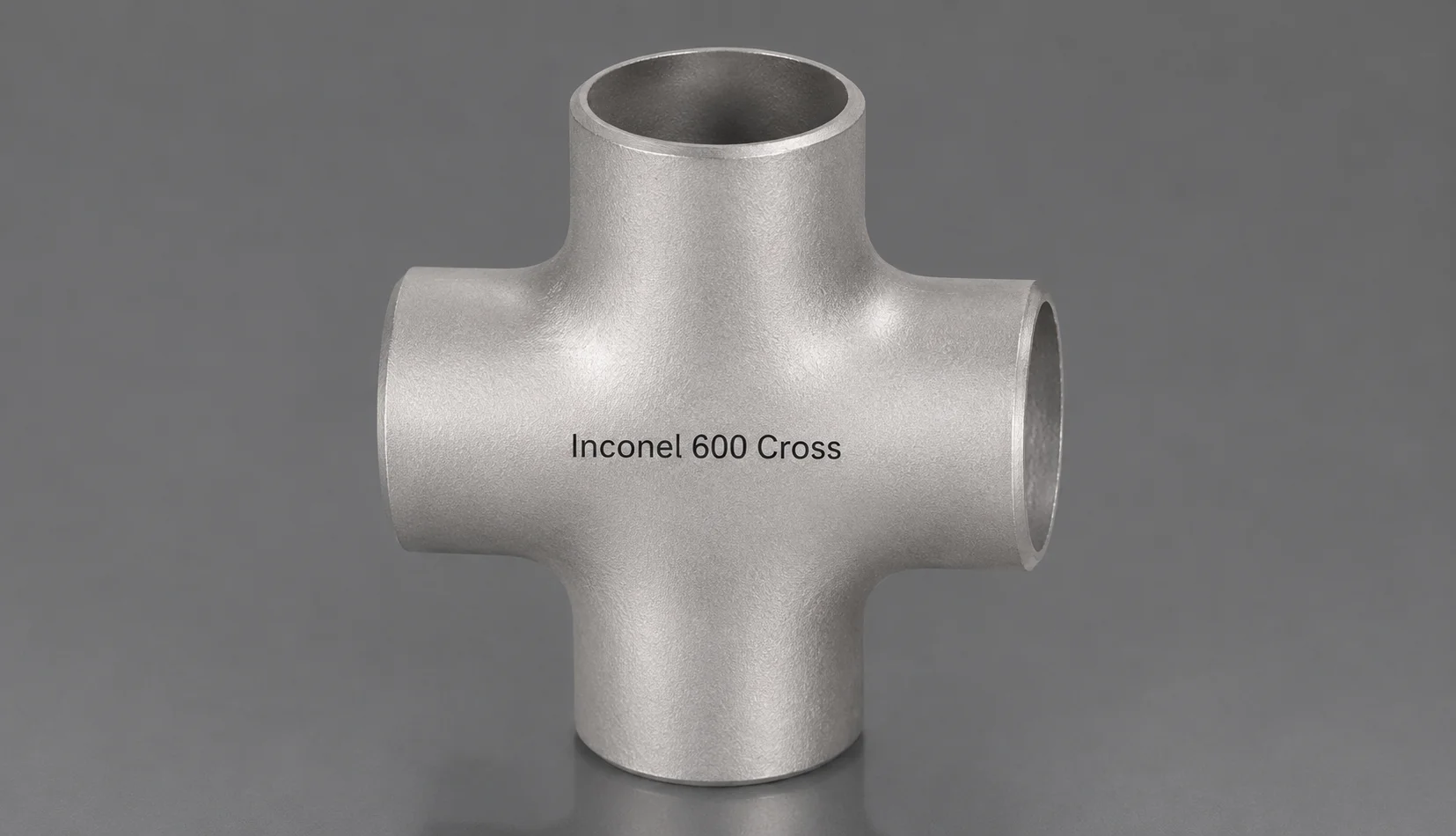

Inconel 600 Cross
| Specification Inconel 600 Cross Details | |
|---|---|
| Product Name | Inconel 600 Cross |
| Material Grade | Inconel 600 / Alloy 600 |
| UNS Designation | UNS N06600 |
| Werkstoff Number | W.Nr. 2.4816 |
| Material Type | Nickel-Chromium-Iron Alloy |
| Chemical Composition | Nickel 72% min, Chromium 14–17%, Iron 6–10%, Carbon 0.15% max, Manganese 1% max, Silicon 0.50% max, Copper 0.50% max |
| Manufacturing Type | Seamless / Welded / Hot Formed / Cold Formed |
| Fitting Standard | ASTM B366 / ASME SB366 |
| Dimensional Standard | ASME B16.9 |
| Cross Type | Equal Cross / Reducing Cross |
| Size | NPS 1/2 to NPS 48 or as required |
| Outside Diameter | As per ASME B16.9 / Customer Requirement |
| Wall Thickness | SCH 5S, 10S, 10, 40S, 40, 80S, 80, 100, 120, 140, 160, XXS or as required |
| Branch Size | Equal / Reduced Branch as specified |
| End Type | Butt Weld / Beveled End / Customized |
| Surface Finish | Mill Finish / Pickled / Annealed / Polished / Customized |
| Heat Treatment | Solution Annealed / Stress Relieved as applicable |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hydrostatic, PMI and NDT as specified |
| Tensile Strength | Minimum approximately 550 MPa |
| Yield Strength | Minimum approximately 240 MPa |
| Elongation | Minimum approximately 30% |
| Density | Approximately 8.47 g/cm³ |
| Melting Range | Approximately 1354–1413°C |
| Corrosion Resistance | Excellent resistance to oxidation, chloride-ion stress corrosion cracking and various corrosive environments |
| High-Temperature Resistance | Excellent resistance to oxidation and carburization at elevated temperatures |
| Welding | Excellent weldability using suitable Inconel 600-compatible welding procedures |
| Filler Metal | ERNiCr-3 / Alloy 600 compatible filler |
| Welding Electrode | ENiCrFe-3 |
| Available Form | Equal Cross / Reducing Cross |
| Customization | Size, Schedule, Branch Size, End Preparation, Finish, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Chemical Processing, Petrochemical, Heat Treatment, Furnace Equipment, Power Generation, Nuclear, Marine, Aerospace and High-Temperature Process Industries |
Inconel 600 Cross – Standard Dimensions
| NPS | Outside Diameter (mm) | Outside Diameter (in.) | Typical Schedule Range |
|---|---|---|---|
| 1/2″ | 21.34 | 0.840 | SCH 5S–XXS |
| 3/4″ | 26.67 | 1.050 | SCH 5S–XXS |
| 1″ | 33.40 | 1.315 | SCH 5S–XXS |
| 1-1/4″ | 42.16 | 1.660 | SCH 5S–XXS |
| 1-1/2″ | 48.26 | 1.900 | SCH 5S–XXS |
| 2″ | 60.33 | 2.375 | SCH 5S–XXS |
| 2-1/2″ | 73.03 | 2.875 | SCH 5S–XXS |
| 3″ | 88.90 | 3.500 | SCH 5S–XXS |
| 4″ | 114.30 | 4.500 | SCH 5S–XXS |
| 5″ | 141.30 | 5.563 | SCH 5S–XXS |
| 6″ | 168.28 | 6.625 | SCH 5S–XXS |
| 8″ | 219.08 | 8.625 | SCH 5S–XXS |
| 10″ | 273.05 | 10.750 | SCH 5S–XXS |
| 12″ | 323.85 | 12.750 | SCH 5S–XXS |
| 14″ | 355.60 | 14.000 | SCH 5S–XXS |
| 16″ | 406.40 | 16.000 | SCH 5S–XXS |
| 18″ | 457.20 | 18.000 | SCH 5S–XXS |
| 20″ | 508.00 | 20.000 | SCH 5S–XXS |
| 24″ | 609.60 | 24.000 | SCH 5S–XXS |
| 30″ | 762.00 | 30.000 | As Required |
| 36″ | 914.40 | 36.000 | As Required |
| 42″ | 1066.80 | 42.000 | As Required |
| 48″ | 1219.20 | 48.000 | As Required |
Inconel 600 Cross – Equal & Reducing Sizes
| Run Size | Branch Size | Cross Type | Outside Diameter |
|---|---|---|---|
| 1/2″ | 1/2″ | Equal Cross | 21.34 mm |
| 3/4″ | 3/4″ | Equal Cross | 26.67 mm |
| 1″ | 1″ | Equal Cross | 33.40 mm |
| 1-1/4″ | 1-1/4″ | Equal Cross | 42.16 mm |
| 1-1/2″ | 1-1/2″ | Equal Cross | 48.26 mm |
| 2″ | 2″ | Equal Cross | 60.33 mm |
| 2-1/2″ | 2-1/2″ | Equal Cross | 73.03 mm |
| 3″ | 3″ | Equal Cross | 88.90 mm |
| 4″ | 4″ | Equal Cross | 114.30 mm |
| 6″ | 6″ | Equal Cross | 168.28 mm |
| 8″ | 8″ | Equal Cross | 219.08 mm |
| 10″ | 10″ | Equal Cross | 273.05 mm |
| 12″ | 12″ | Equal Cross | 323.85 mm |
| 2″ | 1″ | Reducing Cross | 60.33 / 33.40 mm |
| 3″ | 2″ | Reducing Cross | 88.90 / 60.33 mm |
| 4″ | 2″ | Reducing Cross | 114.30 / 60.33 mm |
| 4″ | 3″ | Reducing Cross | 114.30 / 88.90 mm |
| 6″ | 4″ | Reducing Cross | 168.28 / 114.30 mm |
| 8″ | 6″ | Reducing Cross | 219.08 / 168.28 mm |
| 10″ | 8″ | Reducing Cross | 273.05 / 219.08 mm |
| 12″ | 10″ | Reducing Cross | 323.85 / 273.05 mm |
Inconel 600 Cross – Size & Type Chart
| Size Range | Cross Type | Available Finish | Supply Condition | End Connection |
|---|---|---|---|---|
| 1/2″–2″ | Equal / Reducing | Bright / Pickled / Polished | Solution Annealed | Butt Weld / Customized |
| 2-1/2″–4″ | Equal / Reducing | Mill / Pickled / Polished | Solution Annealed | Butt Weld |
| 5″–8″ | Equal / Reducing | Mill / Pickled / Machined | Solution Annealed | Butt Weld |
| 10″–12″ | Equal / Reducing | Mill / Pickled / Machined | Solution Annealed | Butt Weld |
| 14″–18″ | Equal / Reducing | Mill / Machined | Solution Annealed | Butt Weld |
| 20″–24″ | Equal / Reducing | Mill / Machined | Solution Annealed | Butt Weld |
| 30″–36″ | Equal / Reducing | Mill / Machined | Solution Annealed | Butt Weld |
| 42″–48″ | Equal / Reducing | Mill / Machined | Solution Annealed | Butt Weld |
Why Should You Buy Inconel 600 Cross Fittings from Metalx Nickel & Alloys?
- Experienced Inconel 600 Cross Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant and high-temperature alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Inconel 600 Exporter offering Inconel 600 / UNS N06600 Cross Fittings for demanding chemical, petrochemical and high-temperature applications.
- Global Sourcing Network with access to reputed nickel alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Nickel Alloy Fittings Range including Inconel 600, Inconel 625, Inconel 718, Incoloy, Hastelloy, Monel and other specialized nickel alloy fittings.
- Ready Stock Availability for selected Inconel 600 Cross sizes, subject to current stock and availability.
- Custom Inconel 600 Cross Supply according to customer drawings, size, schedule, wall thickness and branch dimensions.
- Equal & Reducing Cross Supply for standard and specialized industrial piping requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B366 / ASME SB366, where applicable.
- ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Dimensional & Material Inspection can be arranged according to applicable standards and customer specifications.
- Visual & Additional Testing Support can be arranged where required by the purchase order.
- Custom Surface Finish – Mill finish or other specified finishes can be supplied according to requirements.
- Export-Ready Packing designed to protect Inconel 600 Cross Fittings during handling, storage and international transportation.
- Worldwide Inconel 600 Cross Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Inconel 600 Cross Export Support for EPC contractors, chemical plants, petrochemical facilities, power-generation companies, furnace manufacturers, aerospace-related industries and specialized engineering buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, branch dimensions, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Inconel 600 Cross shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Inconel 600 Cross
- Nickel-Chromium Alloy Construction – Manufactured from Inconel Alloy 600 for demanding industrial piping applications.
- Excellent Corrosion Resistance – Provides strong resistance to many corrosive environments.
- Good Oxidation Resistance – Performs well in elevated-temperature oxidizing conditions.
- Good Resistance to Chloride Stress Corrosion Cracking – Suitable for selected chloride-containing service environments.
- High-Temperature Capability – Suitable for selected elevated-temperature piping systems.
- Good Mechanical Strength – Provides useful mechanical performance under demanding process conditions.
- Four-Way Branch Connection – An Inconel 600 Cross provides four pipe connections for specialized piping arrangements.
- Equal Cross Configuration – Available where all connected outlets require the same nominal size.
- Reducing Cross Configuration – Available where one or more branch connections require different sizes.
- Reliable Butt-Weld Connection – Provides a suitable permanent connection for industrial piping systems.
- Multiple Branch Connections – Useful for selected complex piping arrangements requiring several flow paths.
- Wide Size Availability – Available in different nominal sizes and outside diameters.
- Multiple Wall Thicknesses – Different schedules and customized wall thicknesses can be supplied.
- Good Fabrication Compatibility – Suitable for industrial piping fabrication using qualified procedures.
- Chemical Processing Applications – Suitable for selected corrosive chemical service systems.
- Petrochemical Applications – Can be considered for selected petrochemical process piping.
- Power Generation Applications – Suitable for selected power-generation piping and process equipment.
- Furnace Applications – Can be considered for selected furnace and heat-treatment systems.
- Aerospace Applications – Suitable for selected aerospace-related process equipment.
- Nuclear-Related Applications – Can be considered for selected applications where required material and design specifications permit.
- High-Temperature Process Lines – Suitable for selected piping systems exposed to elevated temperatures.
- Custom Branch Dimensions – Branch sizes and configurations can be supplied according to project requirements.
- Multiple Surface Options – Mill finish or other specified finishes can be supplied.
- Reliable Material Traceability – Material identification and relevant certificates can be supplied according to order requirements.
- Quality Testing Available – Dimensional, material, visual and other specified inspections can be arranged.
- Export-Ready Material – Cross fittings can be suitably packed for handling, storage and international transportation.
- Global Inconel 600 Cross Exporter – METALX NICKEL & ALLOYS supplies Inconel 600 Cross Fittings to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Inconel 600 Cross Details |
|---|---|
| Product Name | Inconel 600 Cross |
| Material Grade | Inconel Alloy 600 |
| UNS Designation | N06600 |
| Material Type | Nickel-Chromium Alloy |
| Material Standard | ASTM B366 / ASME SB366, where applicable |
| Dimensional Standard | ASME B16.9, where applicable |
| Cross Type | Equal Cross / Reducing Cross |
| Connection Type | Butt Weld |
| Size | As per applicable standard or customer specification |
| Wall Thickness | Different schedules and customized thicknesses |
| Branch Size | Equal or reducing branch sizes as required |
| Manufacturing | Wrought / Formed, as applicable |
| Surface Finish | Mill Finish or customer-specified finish |
| Heat Treatment | As required by applicable material specification |
| End Preparation | Butt Weld Ends as applicable |
| Testing | Dimensional, material, visual and other specified inspections |
| Documentation | MTC, inspection reports and relevant quality documents as required |
| Customization | Size, thickness, branch dimensions, finish, testing and documentation |
| Packing | Export-worthy packing suitable for safe international transportation |
| Applications | Chemical Processing, Petrochemical, Power Generation, Heat Treatment, Furnace Systems, Aerospace and High-Temperature Piping |
What is MetalX Nickel & Alloys?
MetalX Nickel & Alloys is a trusted supplier of high-performance Nickel Alloys and Specialty Alloy Products, offering reliable material solutions for demanding industrial applications across various sectors.
What is the material standard for Inconel 600 Cross Fittings?
A commonly applicable fitting specification is ASTM B366 / ASME SB366, subject to the exact product requirements.
Which industries does MetalX Nickel & Alloys serve?
Our alloy products are suitable for Oil & Gas, Chemical Processing, Petrochemical, Power Generation, Marine, Aerospace, Pharmaceutical, Engineering, Fabrication, and other critical industrial applications.
What makes MetalX Nickel & Alloys different from other alloy suppliers?
Our focus on quality, technical reliability, product consistency, customer service, and application-focused solutions helps us provide dependable alloy materials for challenging industrial requirements.
Does MetalX Nickel & Alloys provide customized material solutions?
Yes, we understand that every project has unique requirements. We can support requirements based on alloy grade, product form, dimensions, thickness, diameter, length, quantity, specifications, and application needs.
Why are Nickel Alloys important for industrial applications?
Nickel alloys offer excellent properties such as corrosion resistance, high-temperature strength, oxidation resistance, durability, and mechanical performance, making them suitable for demanding operating environments.
