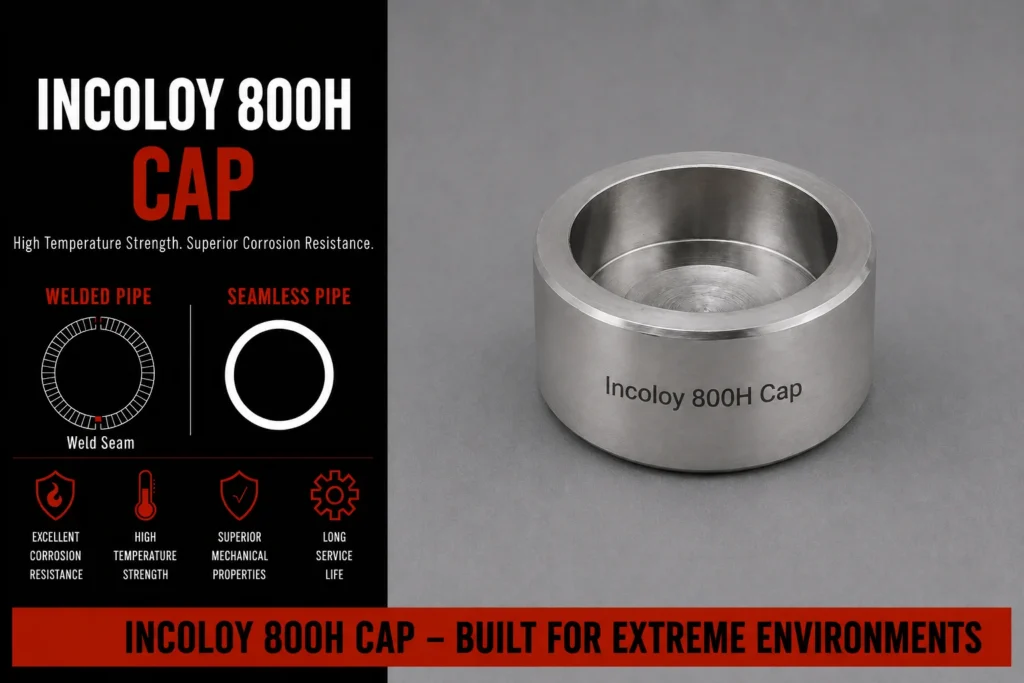

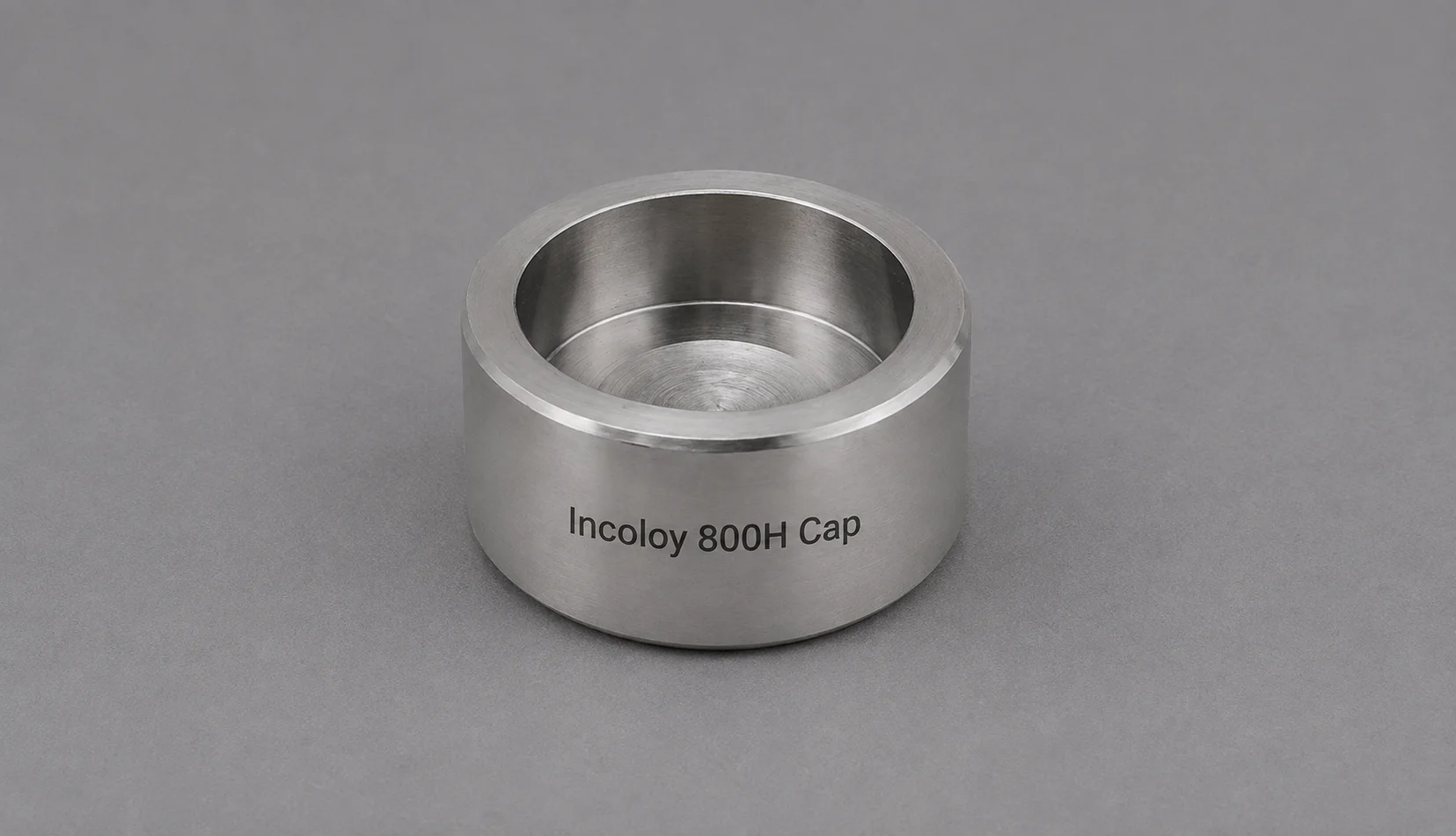

Incoloy 800H Cap
| Specification | Incoloy 800H Cap Details |
|---|---|
| Product Name | Incoloy 800H Cap |
| Material Grade | Incoloy 800H / Alloy 800H |
| UNS Designation | UNS N08810 |
| Werkstoff Number | W.Nr. 1.4958 |
| Material Type | Nickel-Chromium-Iron Alloy |
| Chemical Composition | Nickel 30–35%, Chromium 19–23%, Iron Balance, Aluminium 0.15–0.60%, Titanium 0.15–0.60%, Carbon 0.05–0.10% |
| Manufacturing Type | Seamless / Welded / Hot Formed / Cold Formed |
| Fitting Standard | ASTM B366 / ASME SB366 |
| Dimensional Standard | ASME B16.9 |
| Cap Type | Butt Weld End Cap / Seamless Cap |
| Size | NPS 1/2 to NPS 48 or as required |
| Outside Diameter | As per ASME B16.9 / Customer Requirement |
| Wall Thickness | SCH 5S, 10S, 10, 40S, 40, 80S, 80, 100, 120, 140, 160, XXS or as required |
| Height | As per ASME B16.9 / Customer Requirement |
| End Type | Beveled End / Plain End / Customized |
| Surface Finish | Mill Finish / Pickled / Annealed / Polished / Customized |
| Heat Treatment | Solution Annealed / Stabilized as applicable |
| MTC | EN 10204 3.1 / 3.2 |
| Testing | Chemical, Mechanical, Dimensional, Visual, Hydrostatic, PMI and NDT as specified |
| Tensile Strength | Minimum approximately 450 MPa |
| Yield Strength | Minimum approximately 170 MPa |
| Elongation | Minimum approximately 30% |
| Density | Approximately 7.94 g/cm³ |
| Melting Range | Approximately 1350–1400°C |
| Corrosion Resistance | Excellent resistance to oxidation, carburization and nitridation at elevated temperatures |
| High-Temperature Resistance | Excellent high-temperature creep and rupture strength |
| Chemical Resistance | Good resistance to many aqueous and corrosive environments |
| Welding | Good weldability using suitable Incoloy 800H-compatible welding procedures |
| Filler Metal | ERNiCr-3 / ERNiCrFe-3 |
| Welding Electrode | ENiCrFe-3 |
| Available Form | Seamless Cap / Welded Cap / Custom Cap |
| Customization | Size, Schedule, Height, End Preparation, Finish, Heat Treatment, Testing and Documentation |
| Origin | European / American / Japanese / Korean and other approved origins |
| Export Supply | Worldwide Export Supply |
| Exporter Support | Technical specification, inspection, certification, export packing and international shipment coordination |
| Applications | Petrochemical Processing, Heat Treatment Equipment, Chemical Processing, Power Generation, Heat Exchangers, Furnace Components, Industrial Heating Equipment and High-Temperature Process Industries |
Incoloy 800H Cap – Standard Dimensions
| NPS | Outside Diameter (mm) | Outside Diameter (in.) | Typical Schedule Range |
|---|---|---|---|
| 1/2″ | 21.34 | 0.840 | SCH 5S–XXS |
| 3/4″ | 26.67 | 1.050 | SCH 5S–XXS |
| 1″ | 33.40 | 1.315 | SCH 5S–XXS |
| 1-1/4″ | 42.16 | 1.660 | SCH 5S–XXS |
| 1-1/2″ | 48.26 | 1.900 | SCH 5S–XXS |
| 2″ | 60.33 | 2.375 | SCH 5S–XXS |
| 2-1/2″ | 73.03 | 2.875 | SCH 5S–XXS |
| 3″ | 88.90 | 3.500 | SCH 5S–XXS |
| 4″ | 114.30 | 4.500 | SCH 5S–XXS |
| 5″ | 141.30 | 5.563 | SCH 5S–XXS |
| 6″ | 168.28 | 6.625 | SCH 5S–XXS |
| 8″ | 219.08 | 8.625 | SCH 5S–XXS |
| 10″ | 273.05 | 10.750 | SCH 5S–XXS |
| 12″ | 323.85 | 12.750 | SCH 5S–XXS |
| 14″ | 355.60 | 14.000 | SCH 5S–XXS |
| 16″ | 406.40 | 16.000 | SCH 5S–XXS |
| 18″ | 457.20 | 18.000 | SCH 5S–XXS |
| 20″ | 508.00 | 20.000 | SCH 5S–XXS |
| 24″ | 609.60 | 24.000 | SCH 5S–XXS |
| 30″ | 762.00 | 30.000 | As Required |
| 36″ | 914.40 | 36.000 | As Required |
| 42″ | 1066.80 | 42.000 | As Required |
| 48″ | 1219.20 | 48.000 | As Required |
Incoloy 800H Cap – Height & Dimension Chart
| NPS | Outside Diameter (mm) | Approx. Cap Height (mm) | End Type |
|---|---|---|---|
| 1/2″ | 21.34 | 25.4 | Beveled / Plain |
| 3/4″ | 26.67 | 25.4 | Beveled / Plain |
| 1″ | 33.40 | 38.1 | Beveled / Plain |
| 1-1/4″ | 42.16 | 38.1 | Beveled / Plain |
| 1-1/2″ | 48.26 | 38.1 | Beveled / Plain |
| 2″ | 60.33 | 38.1 | Beveled / Plain |
| 2-1/2″ | 73.03 | 50.8 | Beveled / Plain |
| 3″ | 88.90 | 50.8 | Beveled / Plain |
| 4″ | 114.30 | 63.5 | Beveled / Plain |
| 5″ | 141.30 | 76.2 | Beveled / Plain |
| 6″ | 168.28 | 88.9 | Beveled / Plain |
| 8″ | 219.08 | 101.6 | Beveled / Plain |
| 10″ | 273.05 | 127.0 | Beveled / Plain |
| 12″ | 323.85 | 152.4 | Beveled / Plain |
| 14″ | 355.60 | 152.4 | Beveled / Plain |
| 16″ | 406.40 | 177.8 | Beveled / Plain |
| 18″ | 457.20 | 203.2 | Beveled / Plain |
| 20″ | 508.00 | 228.6 | Beveled / Plain |
| 24″ | 609.60 | 266.7 | Beveled / Plain |
Incoloy 800H Cap – Size & Type Chart
| Size Range | Cap Type | Available Finish | Supply Condition | End Connection |
|---|---|---|---|---|
| 1/2″–2″ | Seamless / Welded | Bright / Pickled / Polished | Solution Annealed / Age Hardened | Butt Weld |
| 2-1/2″–4″ | Seamless / Welded | Mill / Pickled / Polished | Solution Annealed / Age Hardened | Butt Weld |
| 5″–8″ | Seamless / Welded | Mill / Pickled / Machined | Solution Annealed / Age Hardened | Butt Weld |
| 10″–12″ | Welded / Formed | Mill / Pickled / Machined | Solution Annealed / Age Hardened | Butt Weld |
| 14″–18″ | Welded / Formed | Mill / Machined | Solution Annealed / Age Hardened | Butt Weld |
| 20″–24″ | Welded / Formed | Mill / Machined | Solution Annealed / Age Hardened | Butt Weld |
| 30″–36″ | Welded / Custom Formed | Mill / Machined | Solution Annealed / Age Hardened | Butt Weld |
| 42″–48″ | Welded / Custom Formed | Mill / Machined | Solution Annealed / Age Hardened | Butt Weld |
Why Should You Buy Incoloy 800H Caps from Metalx Nickel & Alloys?
- Experienced Incoloy 800H Cap Supplier & Exporter serving international buyers, distributors, EPC contractors, stockholders and industrial end users.
- 20+ Years of Nickel Alloy Industry Experience in supplying corrosion-resistant and high-temperature alloy products to customers across the UAE, Saudi Arabia, Africa and other global markets.
- Specialized Incoloy 800H Exporter offering Incoloy 800H / UNS N08810 Caps for demanding high-temperature and industrial applications.
- Global Sourcing Network with access to reputed nickel alloy mills, manufacturers and approved stockholders across Europe, USA, Japan and other major supply markets.
- Wide Nickel Alloy Fittings Range including Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825, Inconel, Monel and Hastelloy fittings.
- Ready Stock Availability for selected Incoloy 800H Cap sizes, subject to current stock and availability.
- Custom Incoloy 800H Cap Supply according to customer drawings, size, schedule, wall thickness and project specifications.
- Multiple Size & Schedule Options for standard and specialized piping requirements.
- ASTM / ASME Specification Supply according to applicable requirements, including ASTM B366 / ASME SB366, where applicable.
- ASME B16.9 Dimensional Compliance can be supplied where applicable to the fitting configuration.
- MTC with Quotation – Material Test Certificates and relevant technical documentation can be provided with export quotations and orders.
- EN 10204 3.1 / 3.2 Certification available according to the purchase order, project specification and inspection requirements.
- Third-Party Inspection Support can be coordinated through approved inspection agencies for international export orders.
- Chemical, Mechanical & Dimensional Testing can be arranged according to applicable standards and customer specifications.
- Visual & Hardness Testing Support can be arranged where required by the applicable specification or purchase order.
- Custom Surface Finish – Mill finish, pickled or other specified finishes can be supplied according to requirements.
- Export-Ready Packing designed to protect Incoloy 800H Caps during handling, storage and international transportation.
- Worldwide Incoloy 800H Cap Exporter serving buyers across the Middle East, Africa, Asia, Europe and other international markets.
- Competitive Export Pricing for bulk quantities, project orders, distributors, importers, traders and international stockholders.
- Incoloy 800H Cap Export Support for EPC contractors, engineering companies, chemical plants, petrochemical facilities, power-generation companies, heat-exchanger manufacturers and specialized industrial buyers.
- Technical Support from Export Enquiry to Shipment covering grade, size, schedule, wall thickness, heat treatment, testing, certification and packing requirements.
- Material Traceability with appropriate identification, certification and quality documentation for export projects.
- Data Sheets & Technical Documentation can be supplied according to customer requirements and project specifications.
- Global Logistics Coordination for Incoloy 800H Cap shipments to the UAE, Saudi Arabia, Qatar, Oman, Africa, Singapore, Europe and other destinations.
Key Features of Incoloy 800H Cap
- Nickel-Iron-Chromium Alloy Construction – Manufactured from Incoloy 800H for demanding high-temperature applications.
- Enhanced High-Temperature Strength – Designed for improved strength during prolonged exposure to elevated temperatures.
- Excellent Creep Resistance – Suitable for long-term high-temperature service where creep performance is important.
- Good Stress-Rupture Properties – Provides useful resistance to deformation under sustained high-temperature loading.
- Good Oxidation Resistance – Provides resistance to oxidation in many elevated-temperature environments.
- Good Carburization Resistance – Can be considered for selected carburizing environments.
- Good Corrosion Resistance – Suitable for many industrial process environments.
- Reliable Butt-Weld Connection – Provides a permanent welded pipe-end closure.
- Effective Pipe-End Closure – Designed to close and terminate the end of a pipe or piping section.
- Wrought / Formed Construction – Manufactured according to applicable fitting requirements.
- Seamless & Welded Options – Configuration can be supplied according to size and specification.
- Wide Size Availability – Available in different nominal pipe sizes.
- Multiple Wall Thicknesses – Different schedules and customized thicknesses can be supplied.
- Solution-Annealed Options – Can be supplied in applicable heat-treated conditions.
- Good Fabrication Characteristics – Can be formed, welded and machined using appropriate industrial procedures.
- High-Temperature Piping Applications – Suitable for demanding process lines operating at elevated temperatures.
- Heat Exchanger Applications – Suitable for selected heat-transfer equipment.
- Industrial Furnace Applications – Can be considered for furnace and thermal-processing systems.
- Petrochemical Applications – Suitable for selected petrochemical processing systems.
- Chemical Processing Applications – Can be considered for selected chemical process equipment.
- Power Generation Applications – Useful in selected high-temperature power-generation systems.
- Heating Equipment Applications – Suitable for selected heating and thermal-processing equipment.
- Steam Generation Applications – Can be considered for selected high-temperature steam-related systems.
- Custom Dimensions – Size and wall thickness can be supplied according to project requirements.
- Multiple Surface Options – Mill finish, pickled or other specified finishes can be supplied.
- Material Traceability – Material identification and relevant certificates can be supplied as required.
- Quality Testing Available – Chemical, mechanical, dimensional, visual and other specified inspections can be arranged.
- Export-Ready Material – Caps can be suitably packed for handling and international transportation.
- Global Incoloy 800H Cap Exporter – METALX NICKEL & ALLOYS supplies Incoloy 800H Caps to international buyers, distributors, traders, stockholders and industrial end users.
| Specification | Incoloy 800H Cap Details |
|---|---|
| Product Name | Incoloy 800H Cap |
| Material Grade | Incoloy 800H |
| UNS Designation | N08810 |
| Werkstoff Number | 1.4958 |
| Material Type | Nickel-Iron-Chromium Alloy |
| Material Standard | ASTM B366 / ASME SB366, where applicable |
| Dimensional Standard | ASME B16.9, where applicable |
| Cap Type | Butt Weld Pipe Cap |
| Configuration | Seamless / Welded, as applicable |
| Size | As per applicable standard or customer specification |
| Wall Thickness | Different schedules and customized thicknesses |
| End Connection | Butt Weld |
| Manufacturing | Wrought / Formed, as applicable |
| Surface Finish | Mill Finish, Pickled or customer-specified finish |
| Heat Treatment | Solution Annealed as applicable |
| End Preparation | Bevelled Ends for Butt Welding |
| Testing | Chemical, mechanical, dimensional, visual and other specified inspections |
| Documentation | MTC, inspection reports and relevant quality documents as required |
| Customization | Size, thickness, schedule, finish, testing and documentation |
| Packing | Export-worthy packing suitable for safe international transportation |
| Applications | Heat Exchangers, Petrochemical Plants, Chemical Processing, Industrial Furnaces, Power Generation, Heating Equipment and High-Temperature Piping |
Can Material Test Certificates be provided?
Yes. Material Test Certificates, inspection reports and relevant quality documents can be supplied according to customer and project requirements.
What testing can be provided?
Testing can include chemical analysis, mechanical testing, dimensional inspection, visual inspection, hydrostatic testing and other specified tests.
Does METALX NICKEL & ALLOYS export Incoloy 800H Caps?
Yes. METALX NICKEL & ALLOYS supplies Incoloy 800H Caps to international buyers, distributors, EPC contractors, stockholders and industrial end users.
What industries use Incoloy 800H Caps?
Typical industries include chemical processing, petrochemical, power generation, heat exchangers, industrial furnaces, heating equipment and thermal processing.
What is the Werkstoff Number of Incoloy 800H?
The Werkstoff Number is 1.4958.
Can Material Test Certificates be provided?
Yes. Material Test Certificates, inspection reports and relevant quality documents can be supplied according to customer and project requirements.
